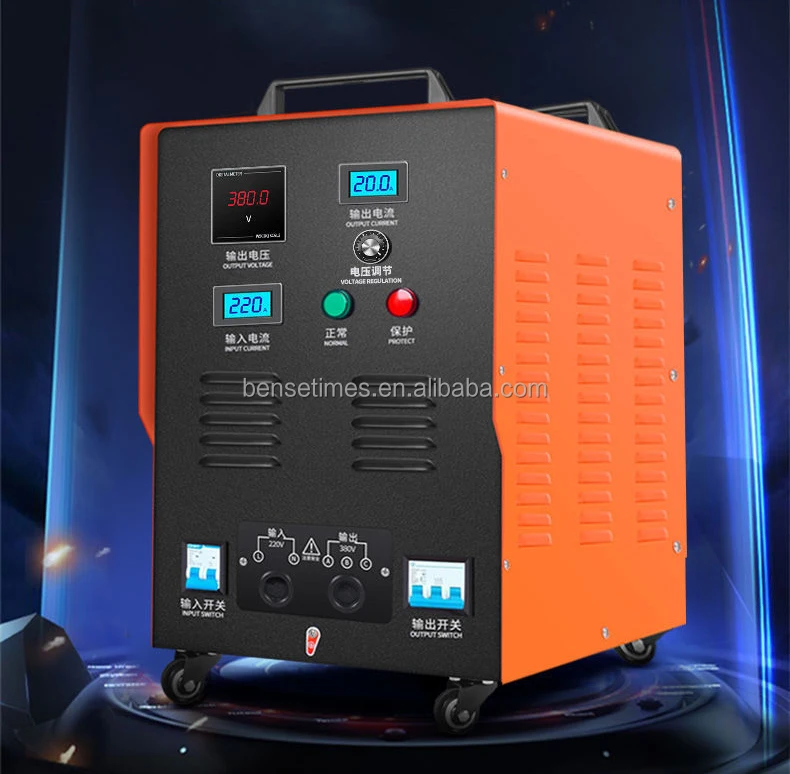

Single phase 220V to three phase 380v transformer power converter 10kva 15kva 20kva 30kva step up step down voltage converter
- Category: >>>
- Supplier: Beijing Bense Times Import And Export Co. Ltd.
Share on (1600871667409):
Product Overview
Description
MAIN TECHNICAL SPECIFICATION

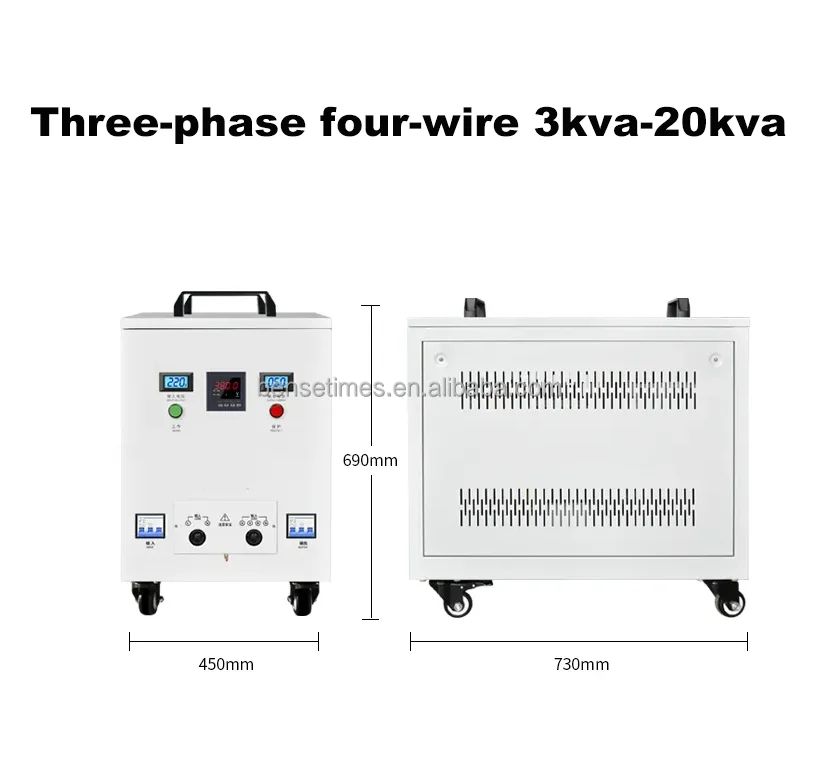

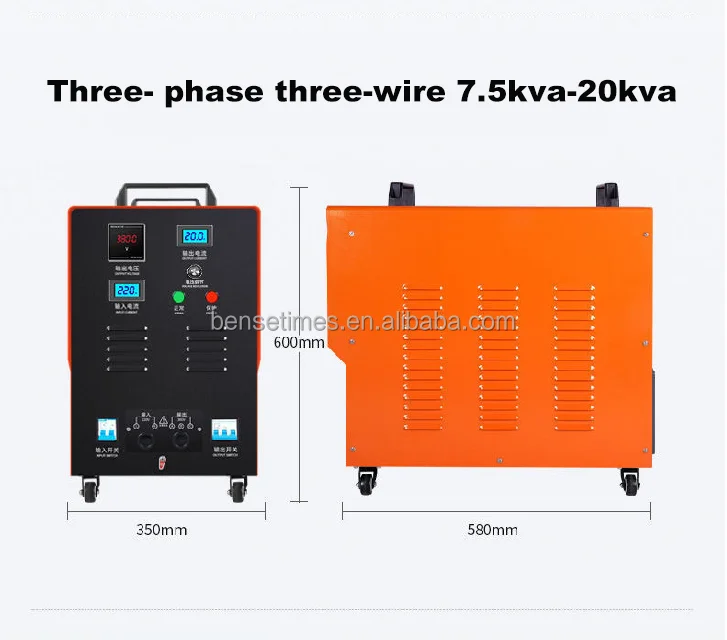

Model | 3 phase 3-WIRE OR 3 phase 4-wire |
Input voltage: | single phase 220V ± 15% |
Input frequency: | 50HZ |
Output voltage: | 380V |
Output frequency: | 50HZ /60HZ |
Output power: | 1.5KVA~ 100KVA |
Load regulation rate: | ≤ ± 1% |
Circuit mode | IGBT / PWM modulation |
Output waveform | Standard sine wave CF=1.4 |
Input voltage | 220V±15% |
The output voltage | Three-phase 380V |
Output current | Phase current high grade 41A low grade 82A |
Frequency stability | ≤0.01% |
Load regulation rate | ≤1% |
Waveform distortion rate | ≤2% (pure resistive load) |
Phase angle | 120°±1° |
Crest factor ratio | 31 |
Panel display | Output voltage, output current, output frequency, output power, and output power factor (switch display) |
Protective function | Output overcurrent protection, overvoltage protection, over temperature protection, short circuit protection, self-diagnosis protection, protection and alarm device |
Protection reaction time | ≤2ms |
Machine efficiency | ≥87% |
Insulation withstand voltage | 1800V AC/10mA/1 min |
Insulation resistance | 500V DC/50 MΩ |
cooling method | Forced air cooling |
noise | Less than 60db at 1 m |
Working temperature | 0~45° |
Relative humidity | 0~95 % (non-condensing state) |
Note | Please make sure that the mains 220V can withstand the power of the power supply, otherwise there will be power failure protection. |
