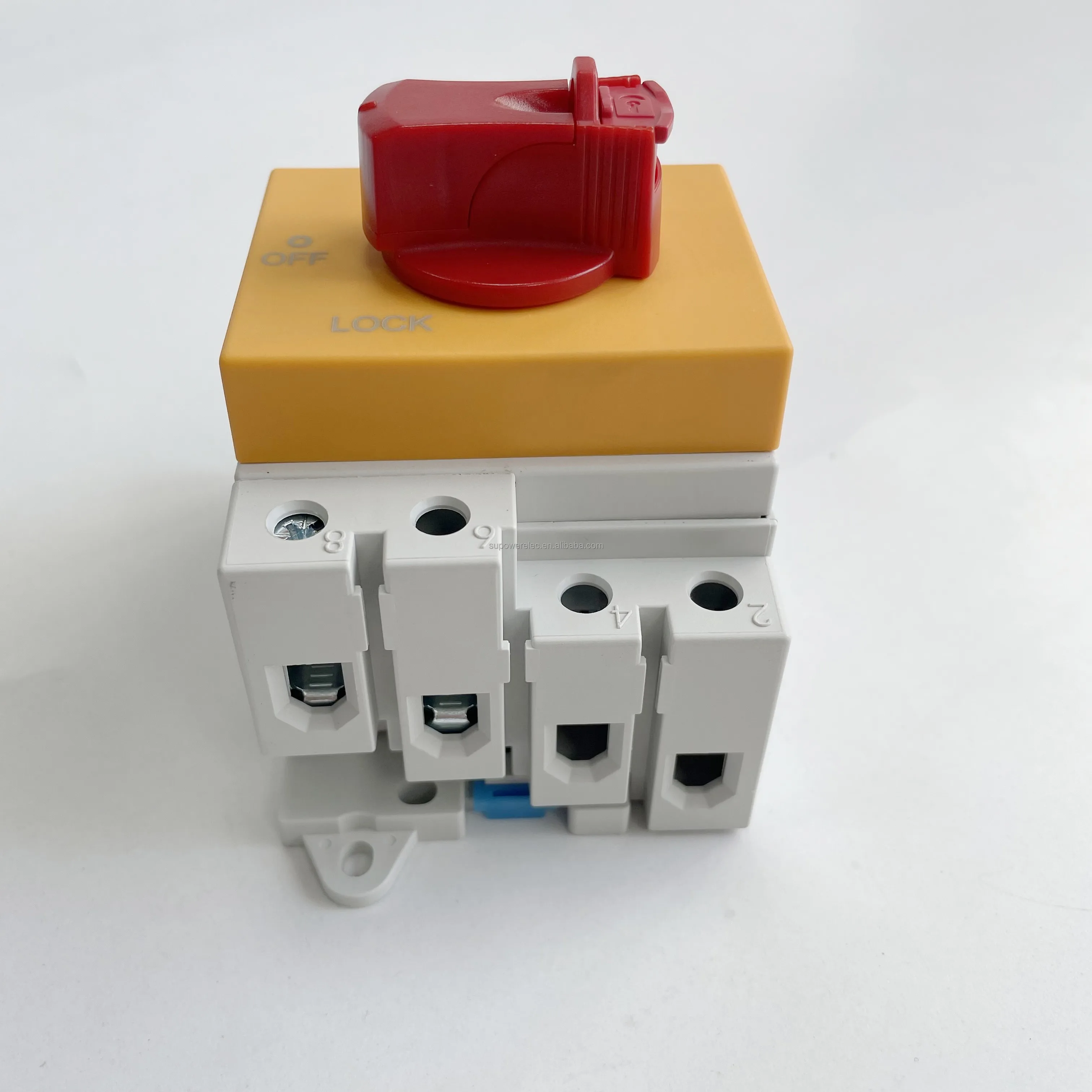

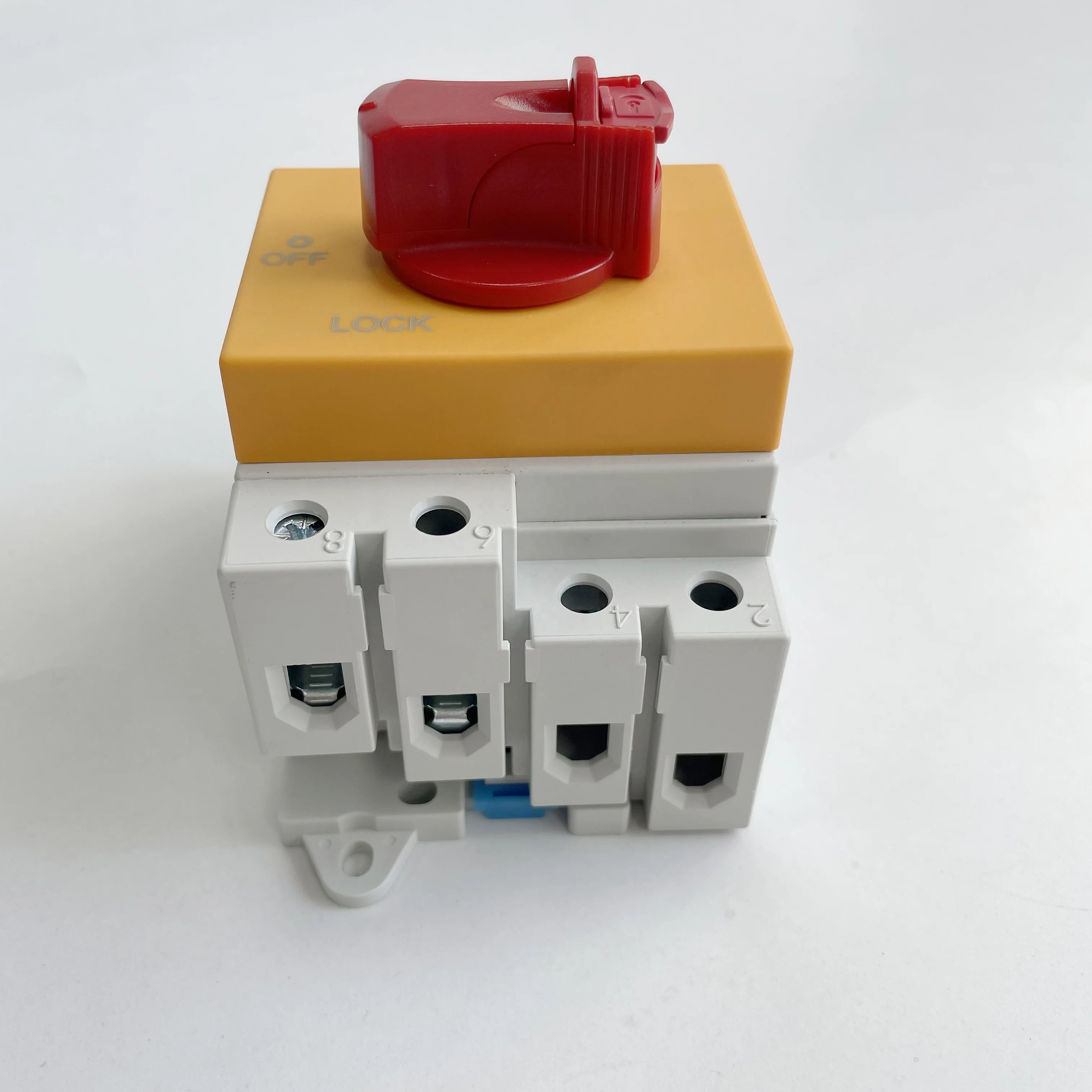

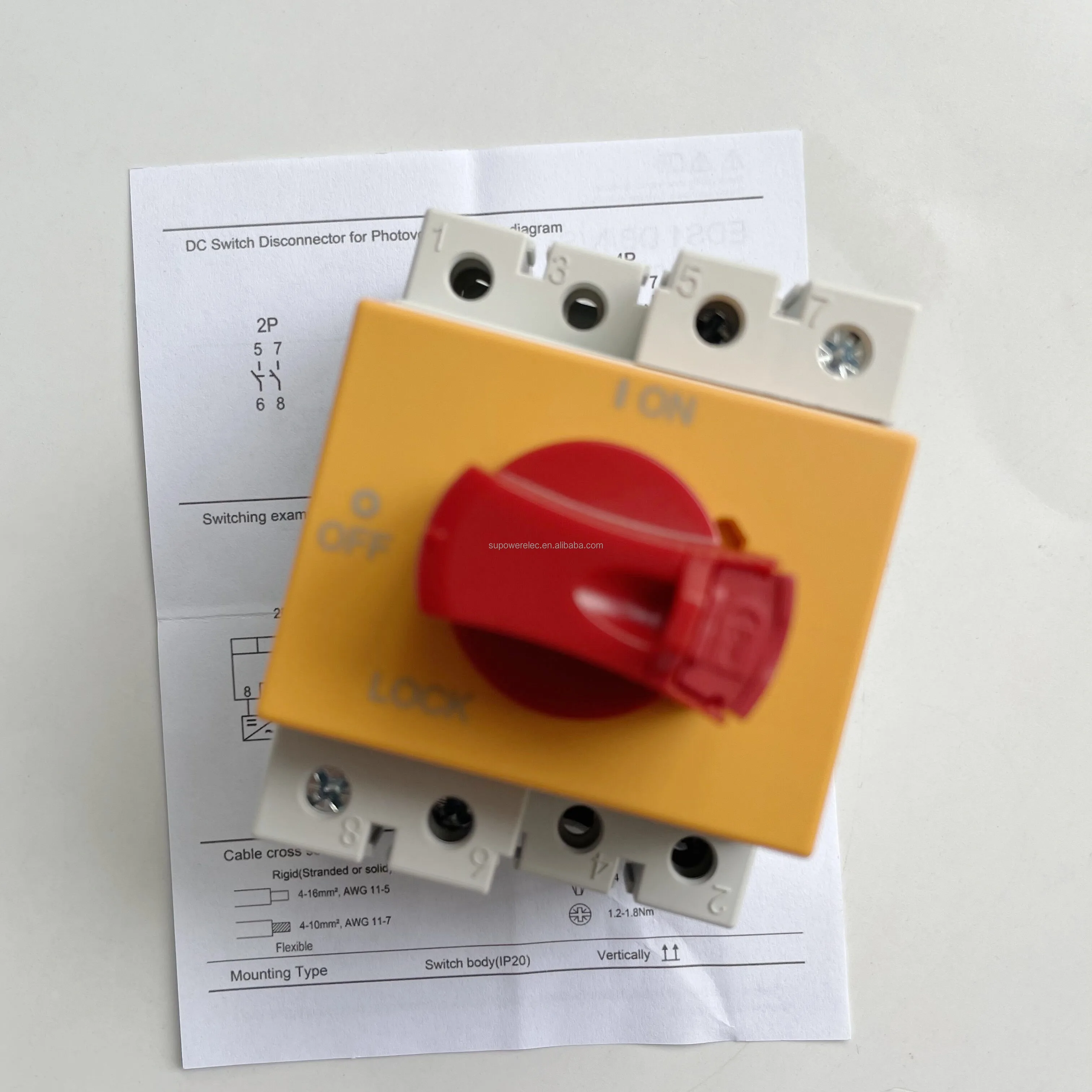

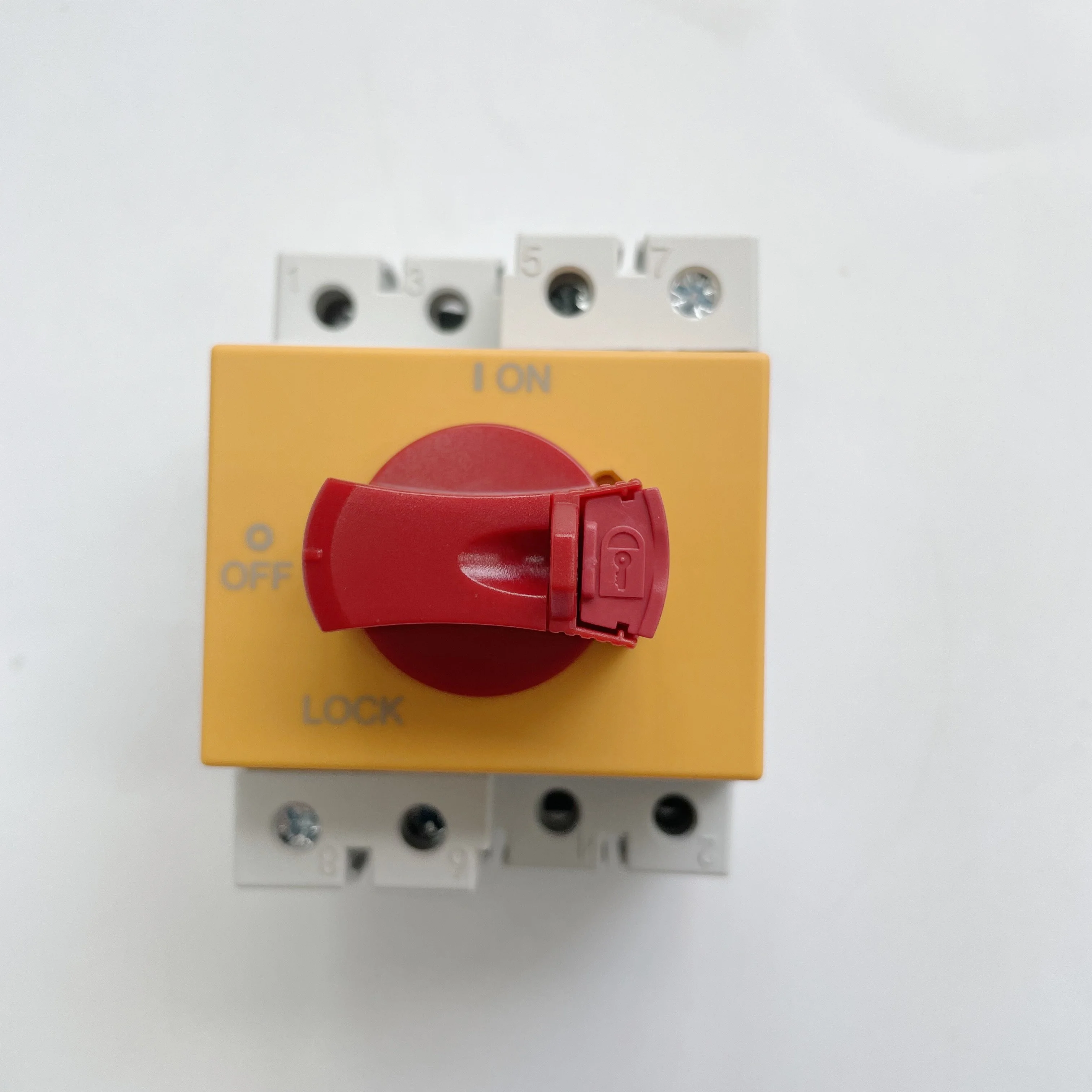

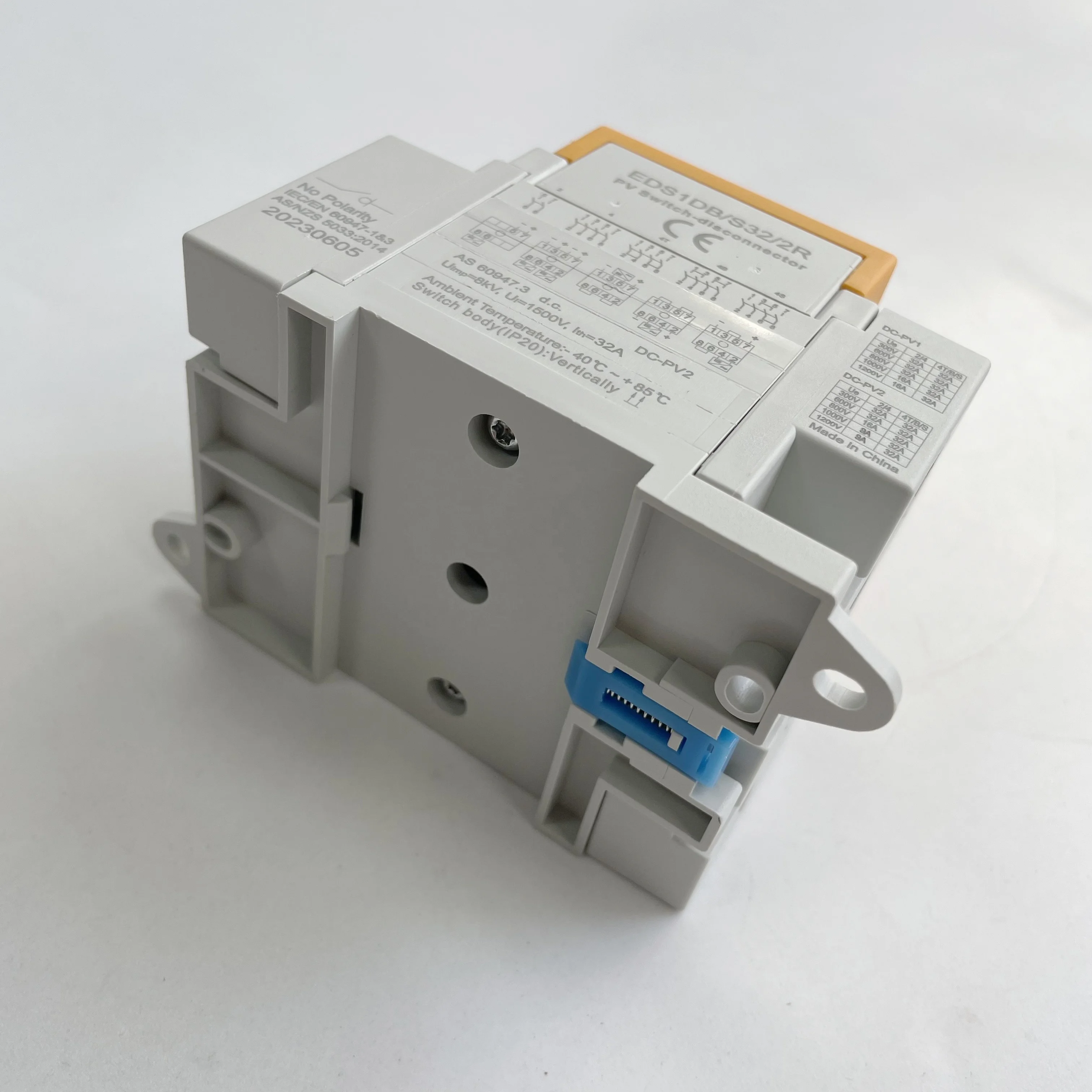

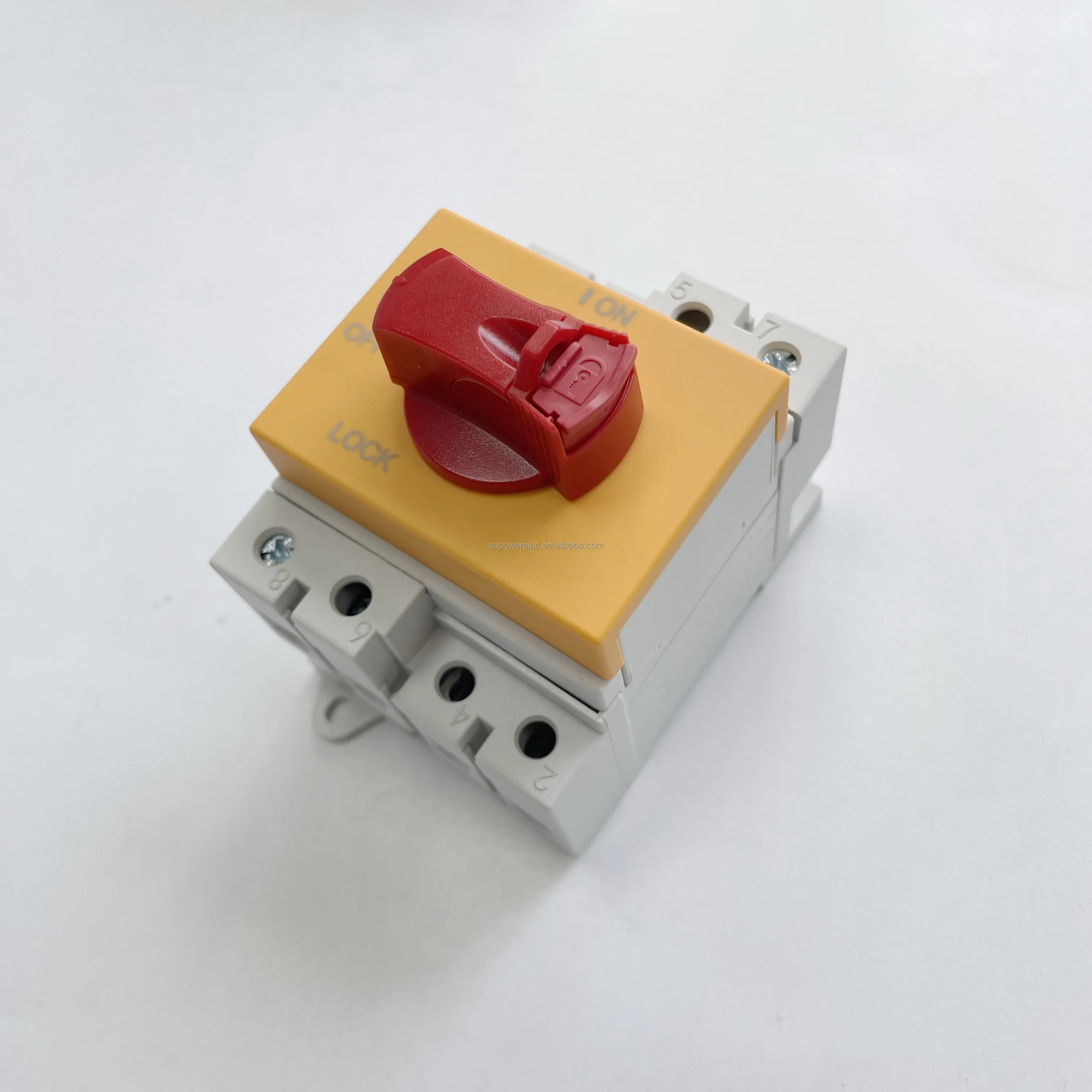

EDS1DB S Din Rail DC Disconnector 2P 1000V 1200V 1500V 32A Solar Rotating Handle Isolator Isolating Switch for PV Solar System

Product Overview

Description

EDS1DB-S Din Rail DC Disconnector 2P 1000V 1200V 1500V 32A Solar Rotating Handle Isolator Isolating Switch for PV Solar System



Features:

1.


   Compact and suitable where space is limited.





2.


   DIN rail mounting for easy installation.





3.


   Load-breaking up to 8 times rated current making it ideal for motor isolation.





4.


   Double-break with silver rivets- superior performance, reliability and long lasting.





5.


   Padlockable handle- tamper-proof.





6.


   Highly visible red/yellow handle.





7.


   DC1000V/DC1200V 32A.






Technical parameters:

•


  Rated voltage: DC600V,DC1000V,DC1200V, DC1500V





•


  IP Rating: IP20





•


  Connection Type: SOLAR PV Connectors , M20, M25





•


  Working Temperature: -5 °C-+60 °C





•


  Standard: IEC 60947-3

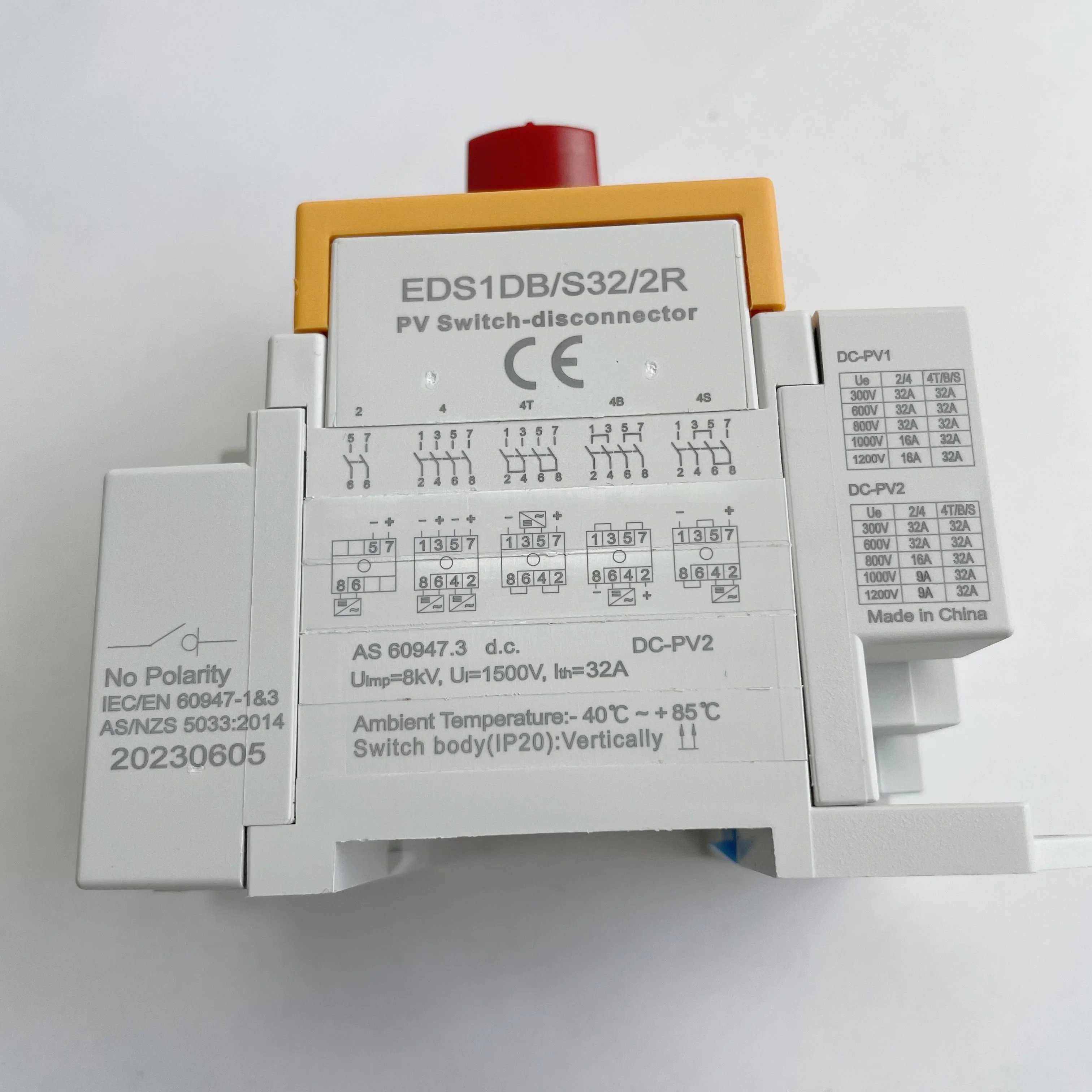

  Specification



















































  Product Model	EDS1DB-S32
  Pole	2P
  Rated Current (A)	32
  Rated Voltage (Vdc)	1000/1200/1500
  Rated insulation voltage (Vdc)	1500
  Rated impulse withstand voltage (Vdc)	8000
  Color	Yellow/white
  Working Temperature	-40C ~+85C
  Distance of contacts (per pole)	8mm
  Pollution degree	2
  Mechanical Life	Not less than 10000 times
