Product Overview

Description





Product Specification

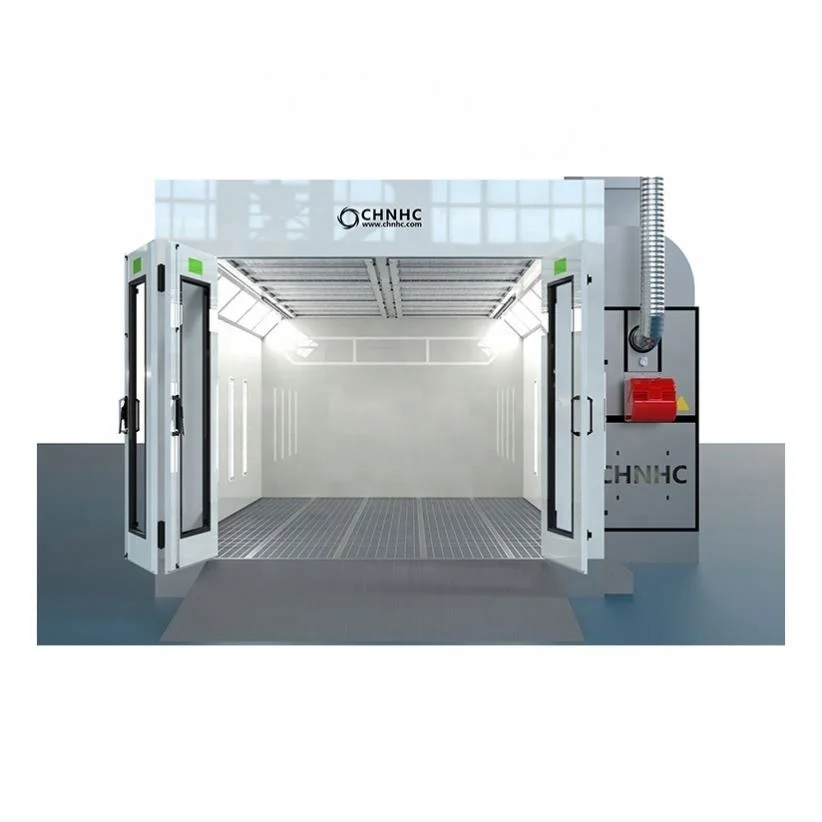

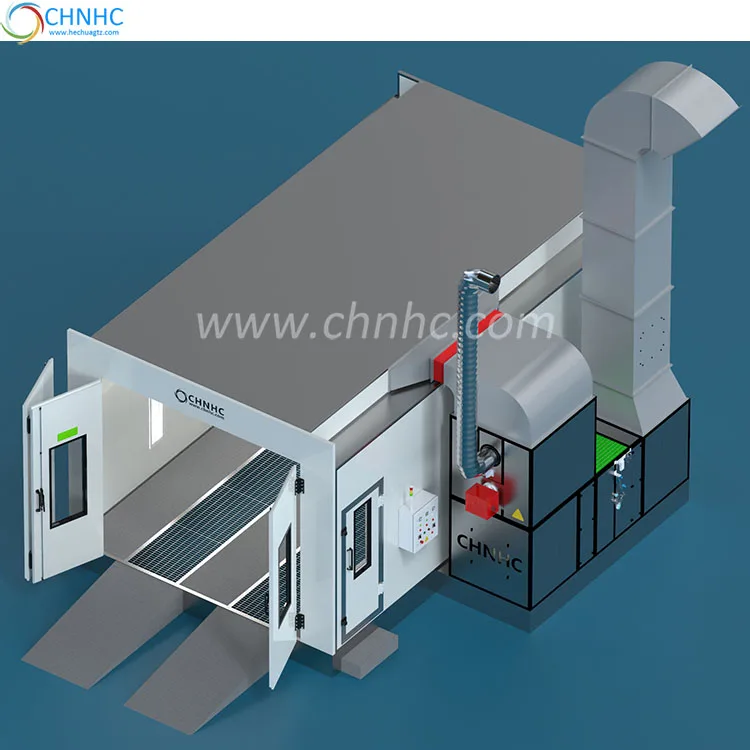

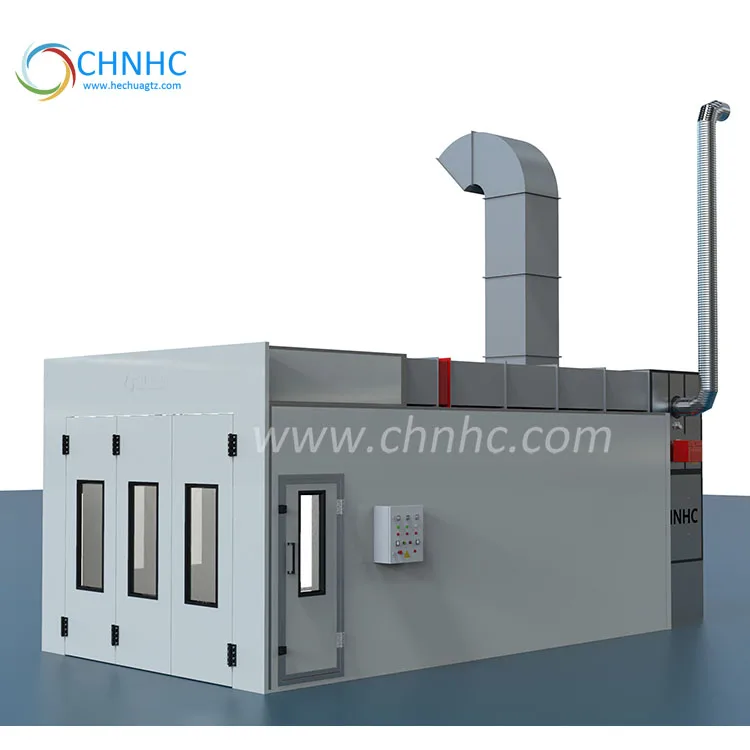

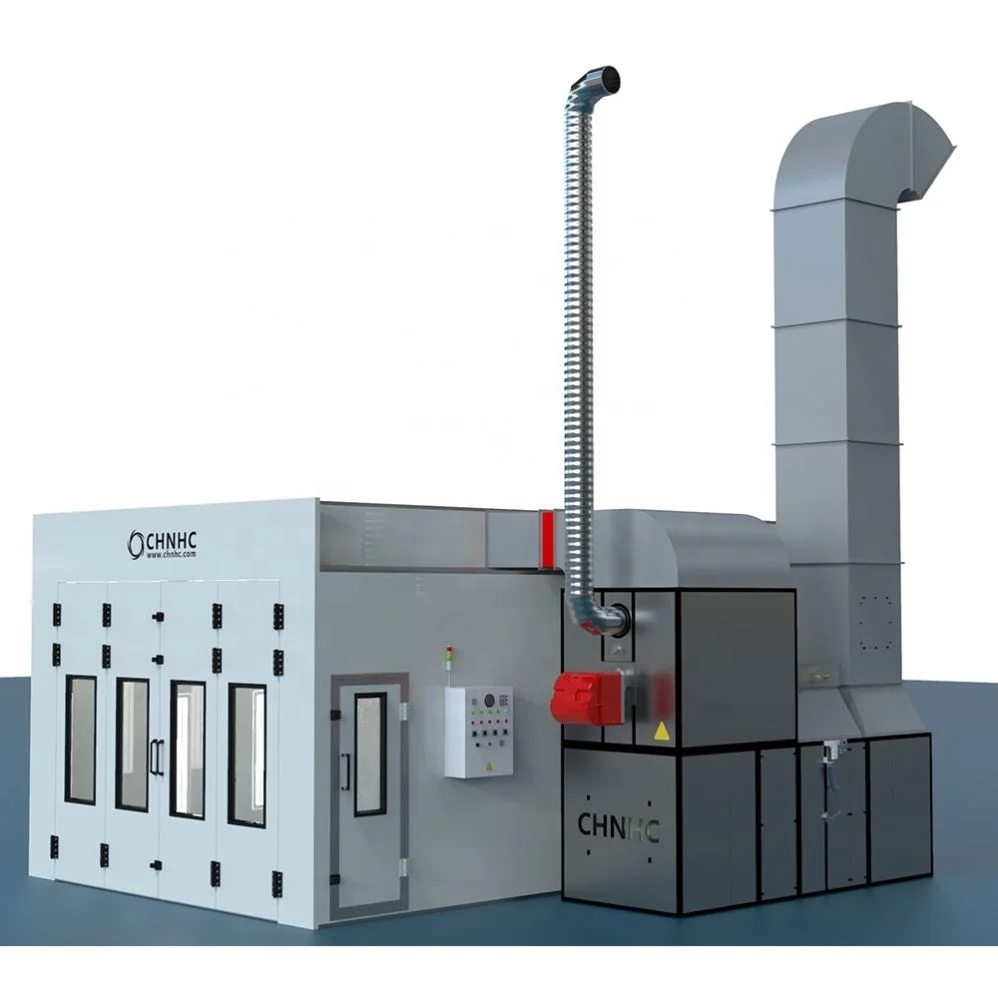

Full downdraught spray booth G503
Size
(L x W x H)
Inside Size
6900 x 3900 x 2700mm
Outside Size
7010 x 5360 x 3400mm

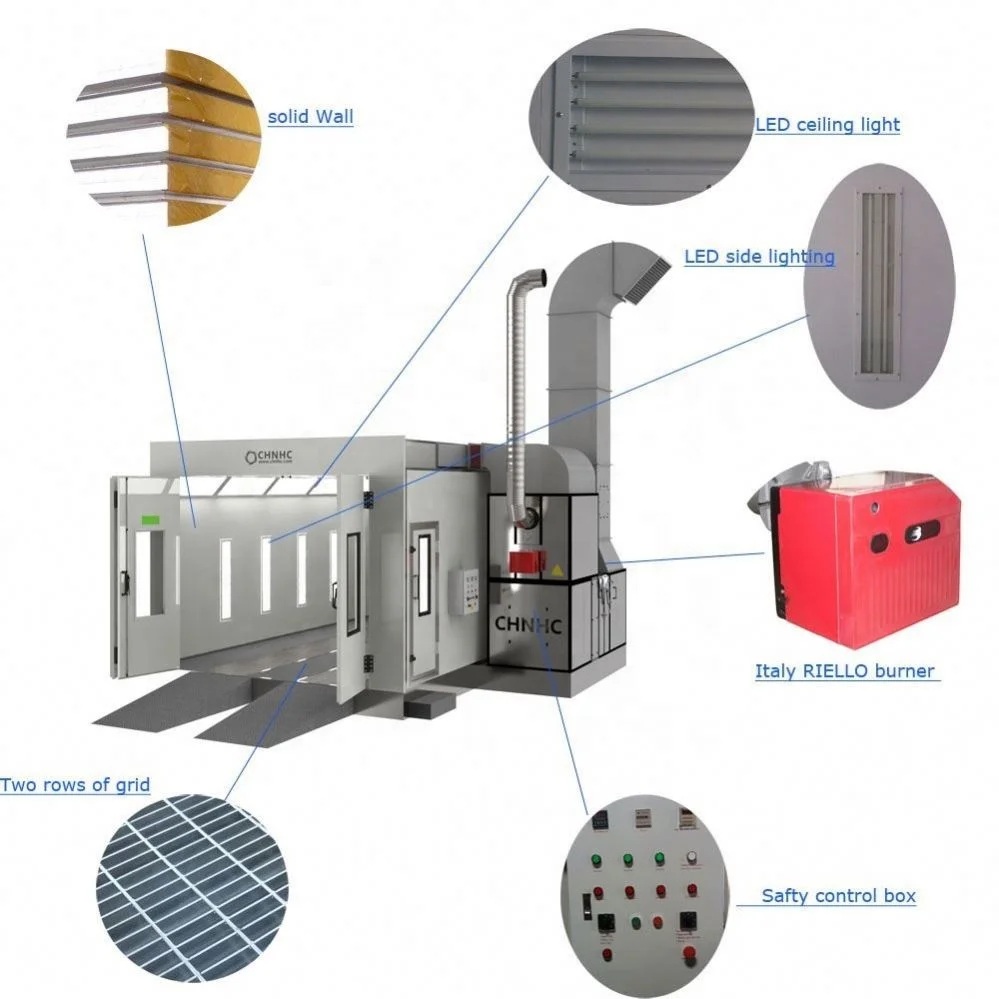

Foundation and Floor
Foundation
Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates
Metal Basement
300mm height, the ventilation effect is better than traditional spray booth
Drive-in Ramps
2 units, each size: 2000x620mm, diamond plate construction


Wall
and Door
Wallboard
Adopt high quality double construction inflaming retarding EPS panel, thickness: 50mm
Roof Panel
Roof panels adopt galvanized steel plate bending forming
Entrance Door
Door with steel frame, 1 set, size: 3000 x 2600mm (W x H), tempering glass observation window
Personnel Door
1 set, size: 700 x 2000mm (W x H),tempering glass observation window

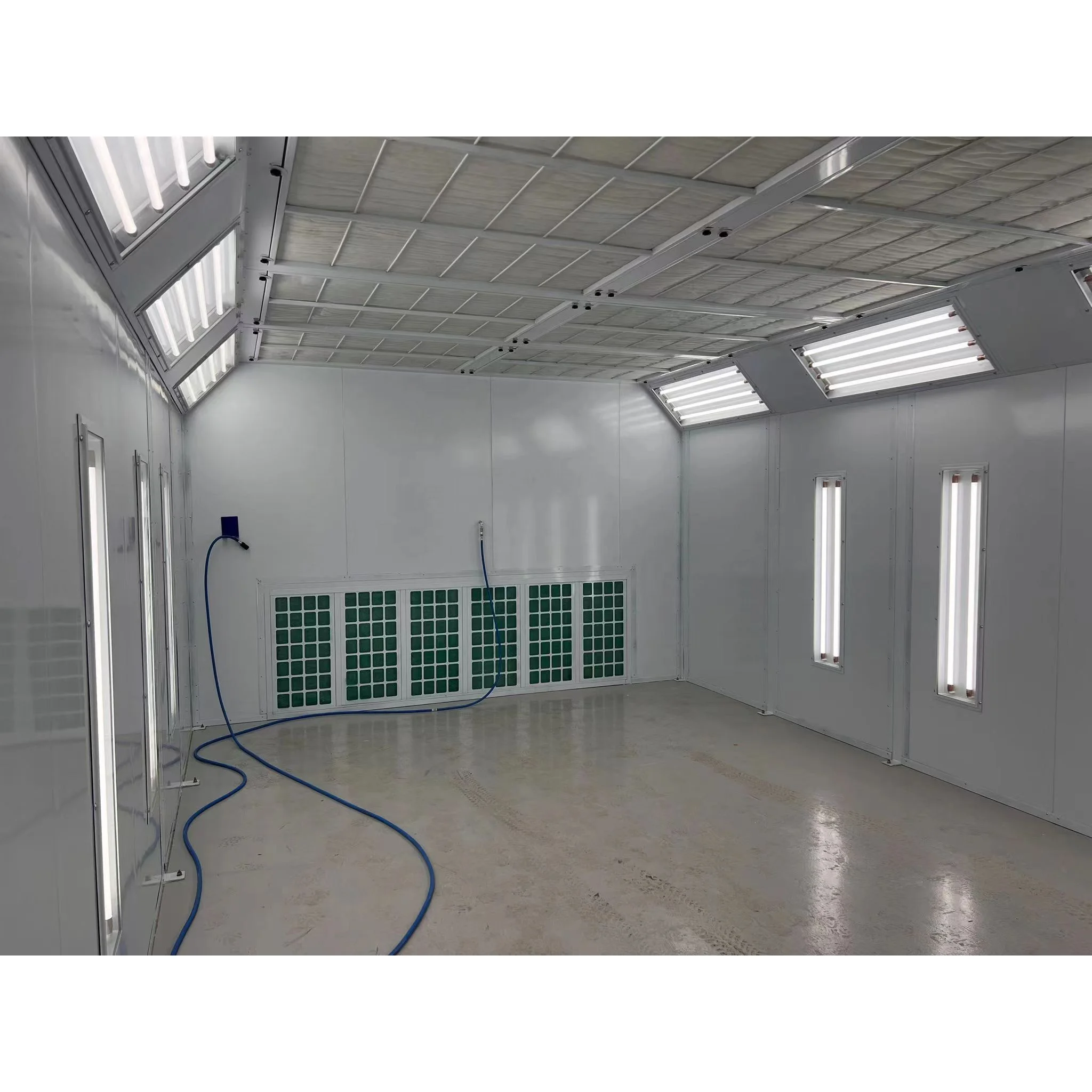

Light System
Ceiling Lighting
8 units, each 4 x 16w, adopt LED energy saving light, tempering glass
Side Lighting
Option
Brightness
≥700 LUX


Filtration System
Pre-filters
Grade G2 plate type fiber glass filter
Ceiling Filters
Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98%
Bottom filter
Fibreglass paint-stop filter
Exhaust Filters
Fibreglass paint-stop filter and active carbon filter


Ventilation System
Inlet Fan
Adopt big impeller turbo fan 1 x 5.5KW , Three-phase, 6 pole motor, 380V, 960RPM, 50HZ
Outlet Fan
Adopt big impeller turbo fan 1 x 5.5KW , Three-phase, 6 pole motor, 380V, 960RPM, 50HZ
Total Fan Capacity
20,000m³/h
Air Flow Speed
in Cabin
0.20-0.30m/s in loaded booth
Painting and Baking
Exchange System
Solenoid valve+ pressure adjustment control cylinder driven damper exchange
Air flow adjust
---
Manometer
---
Duct
Straight pipe: 3.7 meters, bending pipe: 3 units, reducing pipe: 2 units, soft connection: 1 unit, flange connection
Flue
Galvanized pipe: 4 meters, bending pipe: 2 units


Heating System
Heating Exchanger
Adopt high efficient heat-resistant (SUS304) stainless steel as cycling heat exchanger
Burner Model
Adopt 1 set RIELLO diesel burner G10, each heating capacity 180.000kcal/h
(gas burner or infrared light heater as option)
Heating Time
5－7 minutes (from 20 to 60ºС) under baking status, max baking temperature is 80°C


Control Box
Control System
Standard control system
Function
Painting, warm painting, baking, lighting, emergency stop switch, baking time setting, temperature setting, over-temperature alarm
indication, baking delay stop protection, temperature limiter , error alarm
Total Power
12KW
Option voltage
Three-phase 208/220/240/380/400/415/440/480V, 50/60Hz
