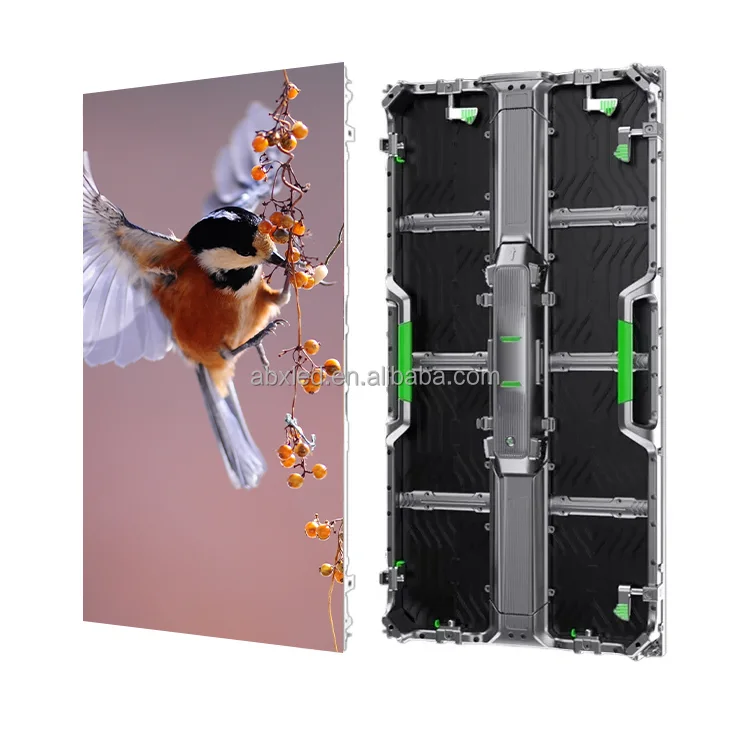

IP65 Full Color Interactive Programable P4.81 Led Display Screen for ball game video wall
- Category: >>>
- Supplier: Shenzhen Abxing Industrial Co. Ltd.
Share on (1600872679367):
Product Overview
Description
Products Description

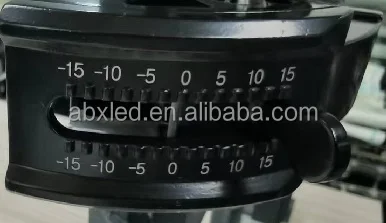

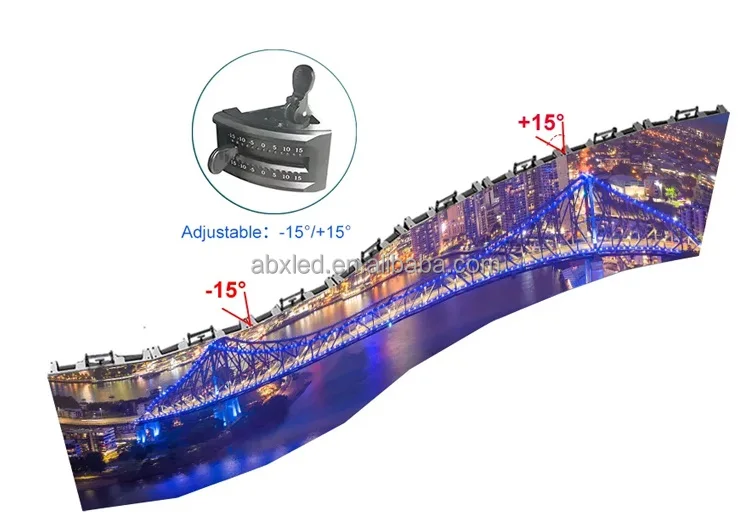

-High Precision Curved Lock
Rotational control, more accurate, easy to use and quickly adjust curve degree.

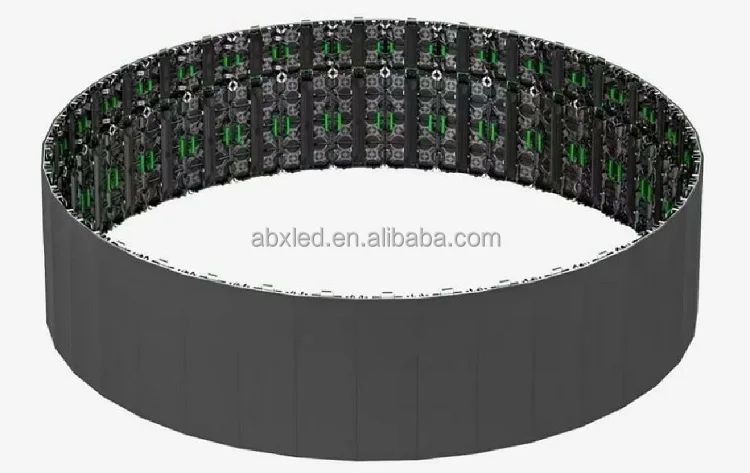

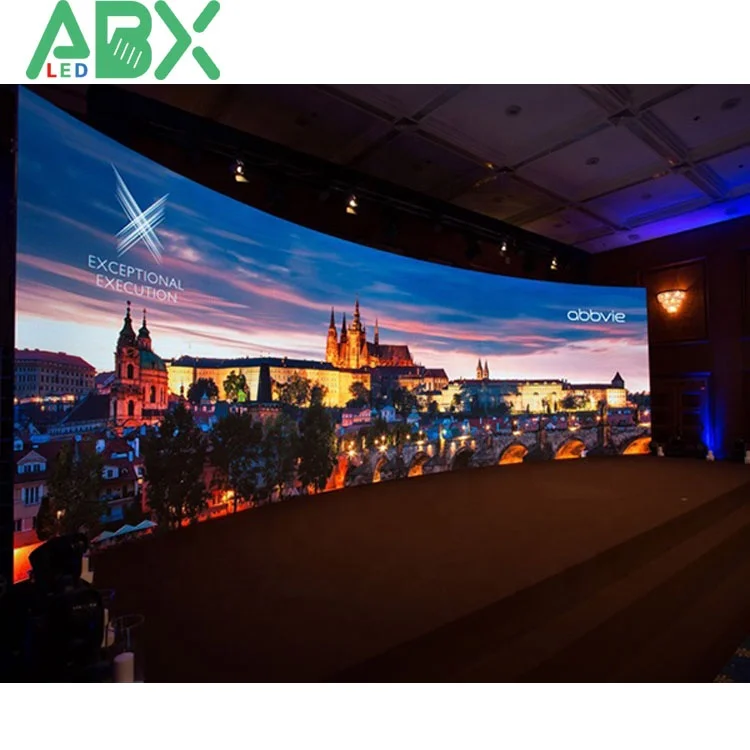

-Support curved installation
Support mixed installation of 500*500mm(16.4ft*16.4ft) cabinets and 500*1000mm(3.28ft*16.4ft) cabinets.
- IP65 dustproof and waterproof
It can resists severe weather conditions during outdoor activities.
Specification
ITEM | UNIT | ABX-1000-2.604 | ABX-1000-2.976 | ABX-1000-3.91 | ABX-1000-4.81 | |||
Pixel Pitch | mm | 2.604 | 2.976 | 3.91 | 4.81 | |||
Pixel Matrix Per | Pixel/sqm | 147456 | 112896 | 65536 | 43264 | |||
Module Pixel structure | N/A | SMD1515 | SMD2121/1515 | SMD2121/1921 | SMD2121/1921 | |||
Brightness | nits | 800-4500MCD | 800-4500MCD | 800-4500MCD | 800-4500MCD | |||
Scan | N/A | 1/32 | 1/28 | 1/16 | 1/13 | |||
Cabinet Resolution | Pixel | 192×384 | 168×336 | 128×256 | 104×208 | |||
Power Con. (Max / Avg) | W/sqm | 600/180 | 600/180 | 600/180 | 600/180 | |||
Module Dimension | mm | 250x250 | 250x250 | 250x250 | 250x250 | |||
Cabinet Dimension | mm | 500x1000x90 | 500x1000x90 | 500x1000x90 | 500x1000x90 | |||
Cabinet Weight | kg | 13.5kg | 13.5kg | 13.5kg | 13.5kg | |||
Service Access | N/A | Rear/Front | Rear/Front | Rear/Front | Rear/Front | |||
View angle | ℃ | 160°/ 140° | 160°/ 140° | 160°/ 140° | 160°/ 140° | |||
Refresh Rate | Hz | 1920/3840/7680 | 1920/3840/7680 | 1920/3840/7680 | 1920/3840/7680 | |||
Grey Scale (bit) | bit | 16 | 16 | 16 | 16 | |||
IP Rate | IP | IP31/65 | IP31/65 | IP31/65 | IP31/65 | |||
Life span | hrs | 100000 hrs | 100000 hrs | 100000 hrs | 100000 hrs | |||
Working Temperature | ℃ | -30-60 ℃ | ||||||
Storage Temperature | ℃ | -30-60 ℃ | ||||||
Power Supply | V | AC100-240V(50-60Hz) | ||||||
Color temperature | N/A | 3000-10000 K(adjustable) | ||||||
Details Images
Small pitch and higher pixel density.

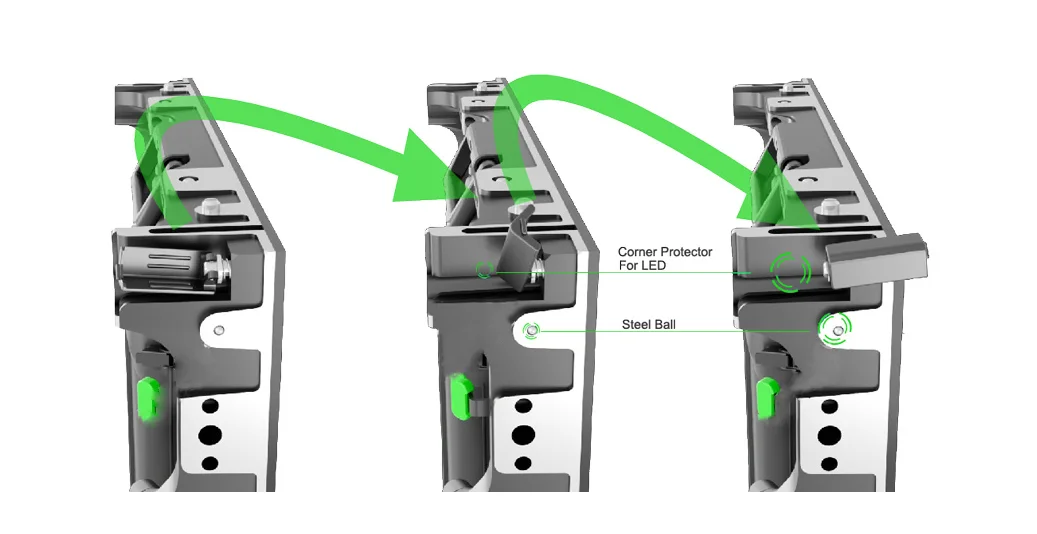

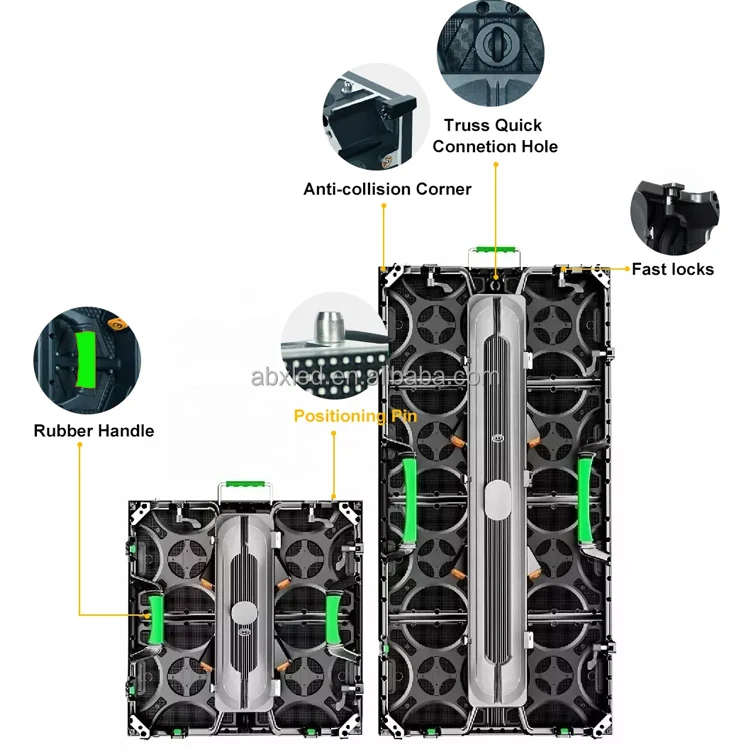

Corner guards can be added to each corner of the ABXLED stage rental LED display to prevent damage to the LED lamp beads.The transportation, installation, operation, disassembly and folding design are safer and more convenient to use.

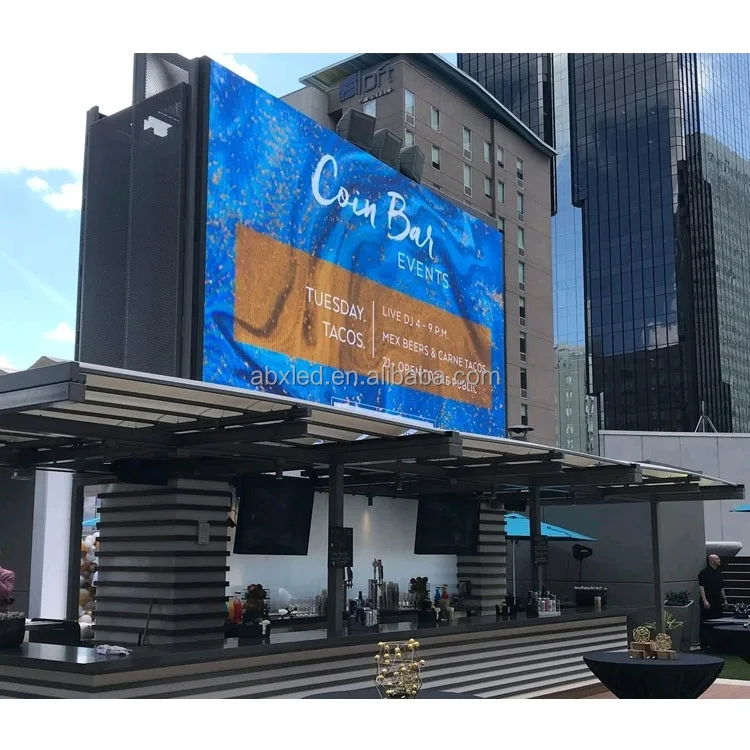

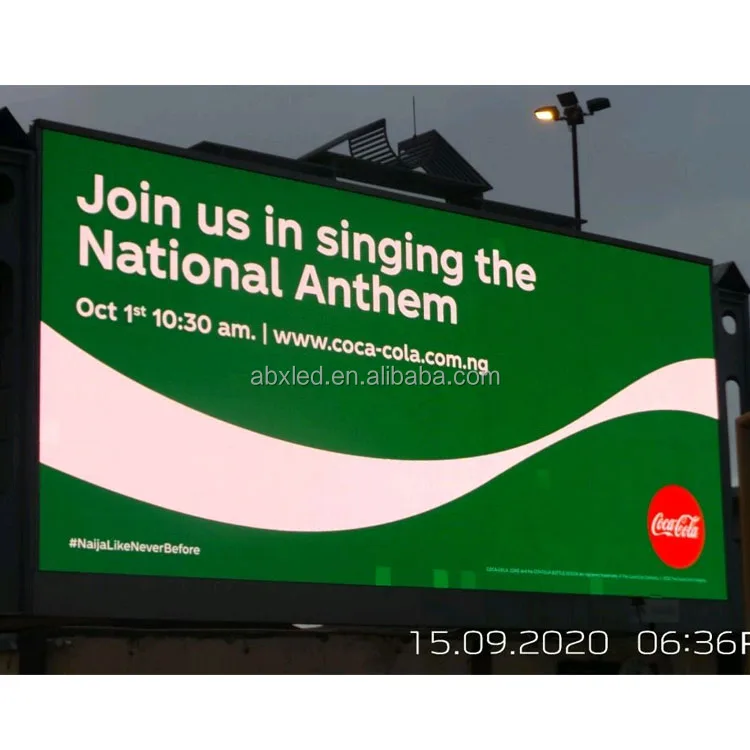

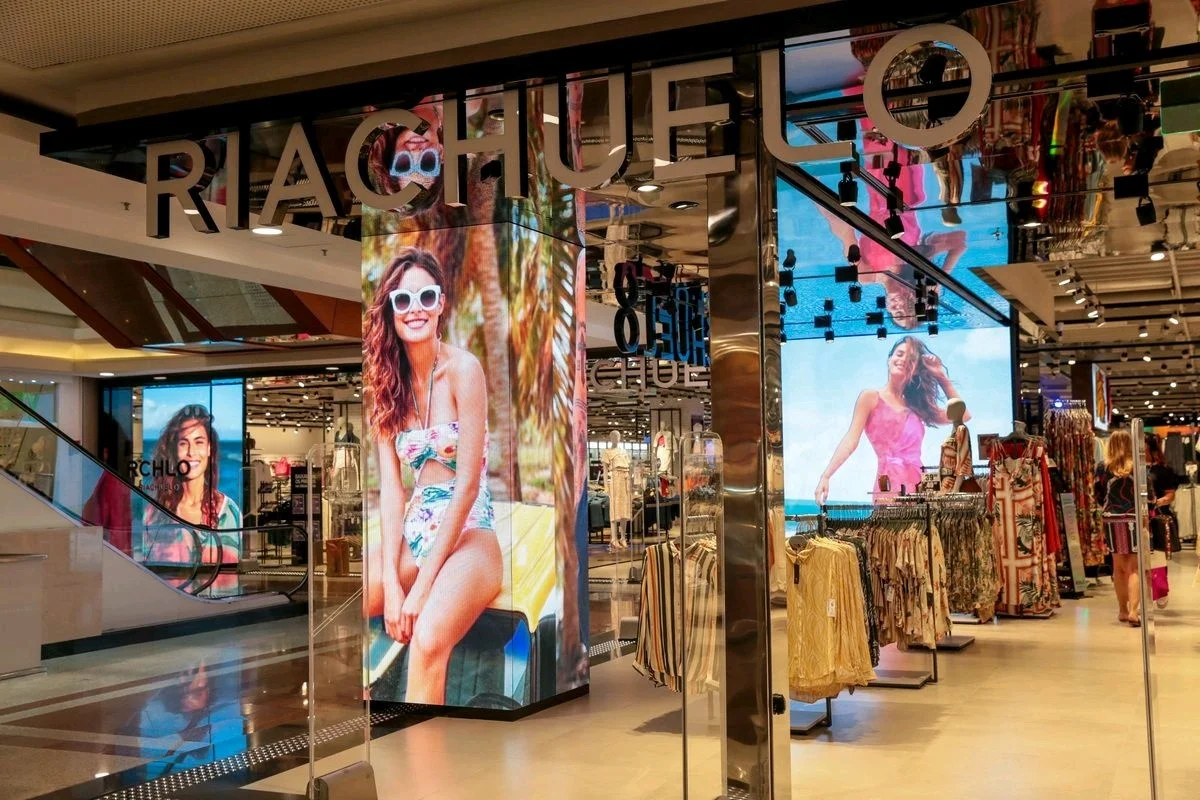

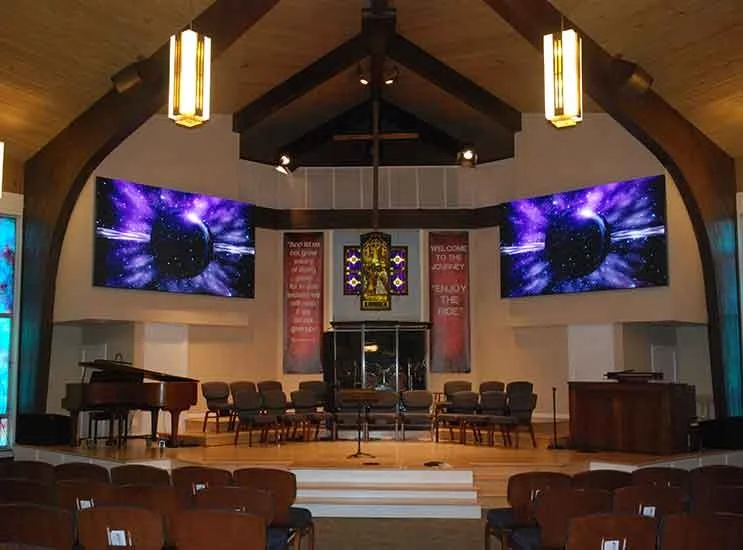

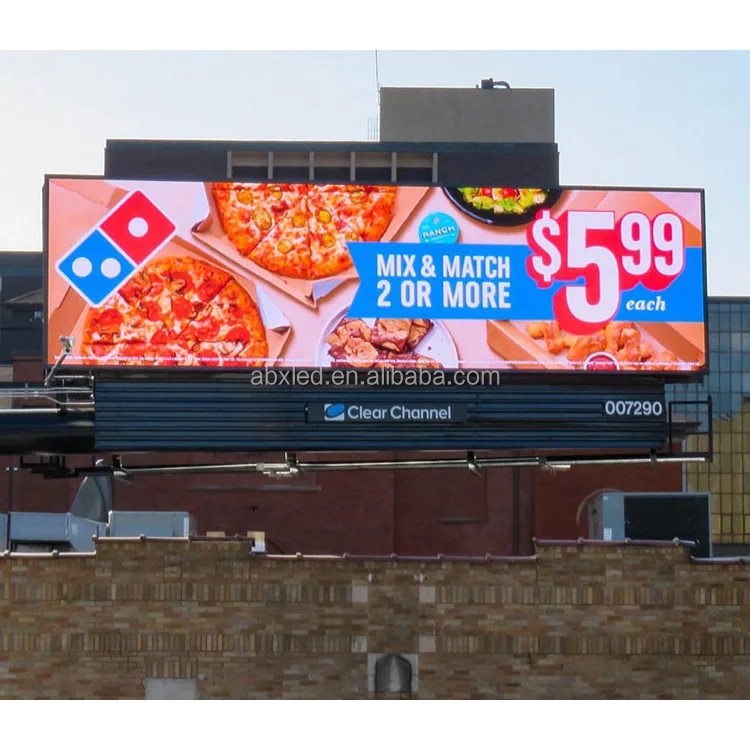

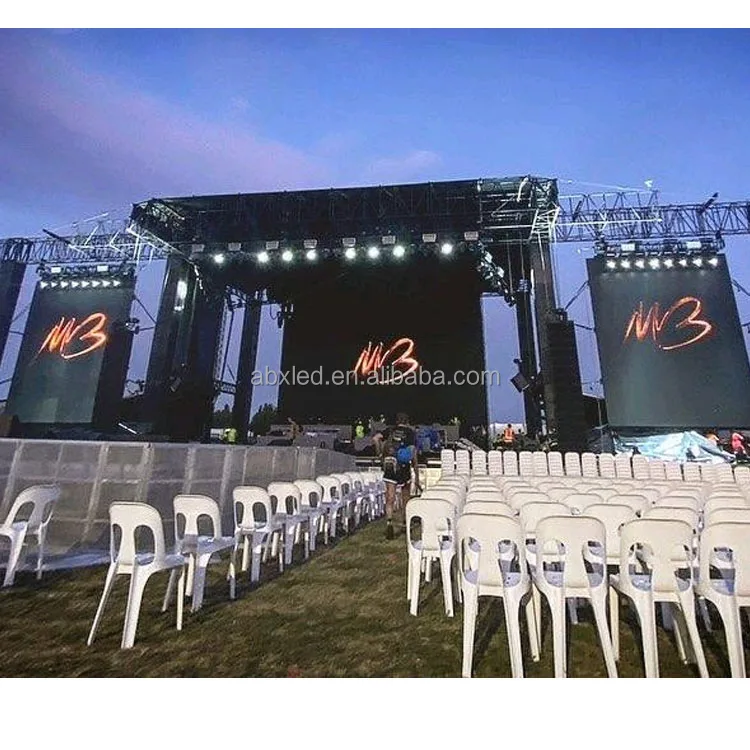

LED display case
All of our LED display will be tested at least 48 hours before shipping. They will be tested full red, green, blue and white color
to see whether there is defect pixels.
to see whether there is defect pixels.
Installation Instructions

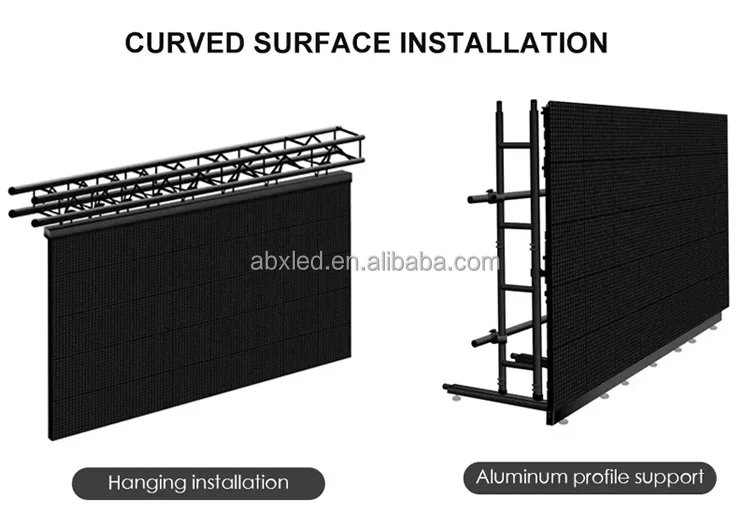

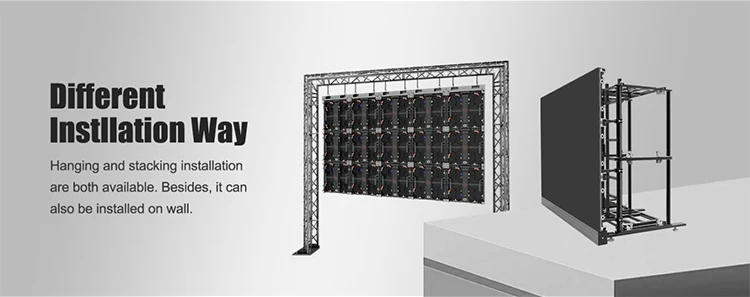

ABXLED stage rental led LED panels can be hanging on truss, stack on ground, make curved LED screen or right angle LED display.
Company Profile
ABXLED is a leading manufacturer of LED screens, equipped with seven state-of-the-art dust-free and anti-static production lines, six advanced high-speed SMT machines, two large-scale lead-free reflow soldering furnaces, and over 150 skilled workers. With a production capacity of over 5,000 square meters, we continuously strive for professional international certifications such as CE, ROHS, FCC, UL, and CCC for our LED display products.
We adhere strictly to the ISO 9001 and 2008 quality management systems. ABXLED maintains long-term and friendly relationships with our clients, earning a high reputation among customers worldwide.
Our facilities include seven modern, dust-free, and anti-static production lines, as well as six new high-speed SMT machines. With a production capacity exceeding 5,000 square meters, we ensure efficient and reliable manufacturing processes. We prioritize international certifications, including CE, ROHS, FCC, UL, and CCC, which reflect our commitment to delivering high-quality LED display products.
Adhering to the ISO 9001 and 2008 quality management systems demonstrates our dedication to maintaining exceptional product quality and customer satisfaction. ABXLED's strong relationships with clients worldwide attest to our reliability, professionalism, and outstanding reputation in the industry.
We adhere strictly to the ISO 9001 and 2008 quality management systems. ABXLED maintains long-term and friendly relationships with our clients, earning a high reputation among customers worldwide.
Our facilities include seven modern, dust-free, and anti-static production lines, as well as six new high-speed SMT machines. With a production capacity exceeding 5,000 square meters, we ensure efficient and reliable manufacturing processes. We prioritize international certifications, including CE, ROHS, FCC, UL, and CCC, which reflect our commitment to delivering high-quality LED display products.
Adhering to the ISO 9001 and 2008 quality management systems demonstrates our dedication to maintaining exceptional product quality and customer satisfaction. ABXLED's strong relationships with clients worldwide attest to our reliability, professionalism, and outstanding reputation in the industry.

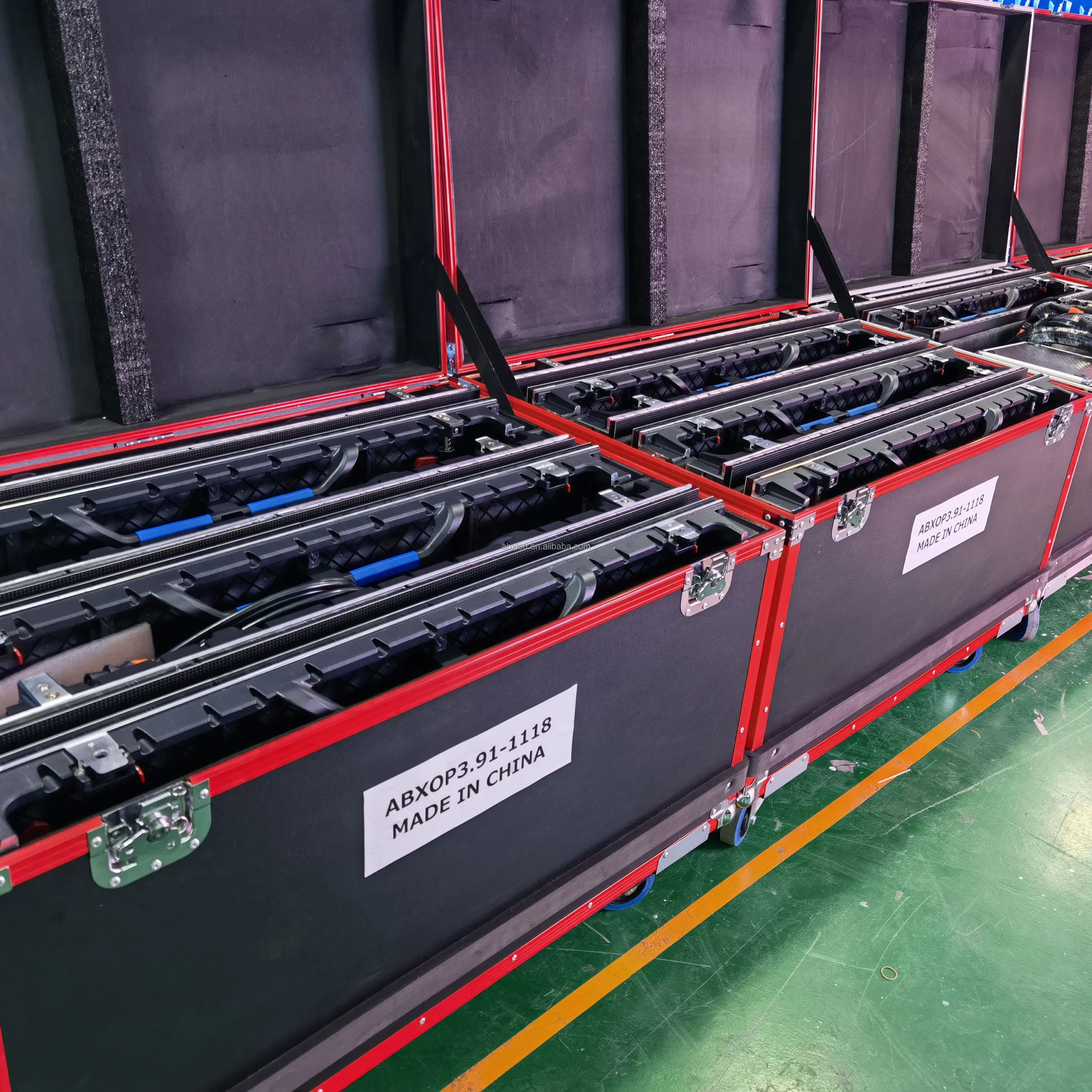

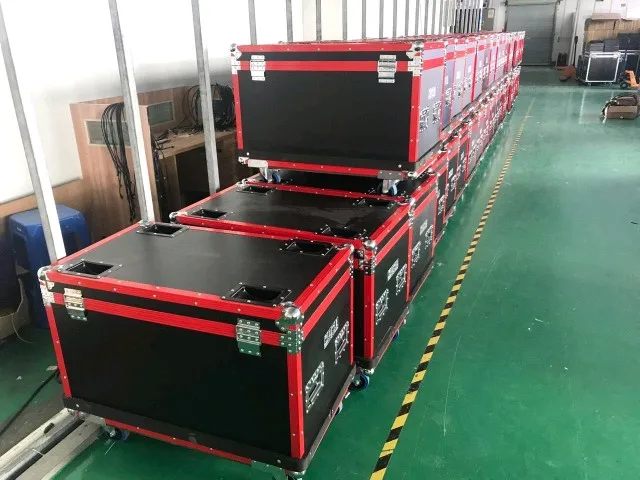

Product packaging
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is
smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the
customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then
I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the
production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is
smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the
customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then
I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
We can also send our engineers to the site to guide the installation if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the
production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product quality of our products and service.
