difful solar water pumps dc submersible pump
- Category: >>>
- Supplier: Zhejiang Dingfeng Electrical Appliance Co. Ltd.
Share on (1600872850482):
Product Overview
Description
Product Description

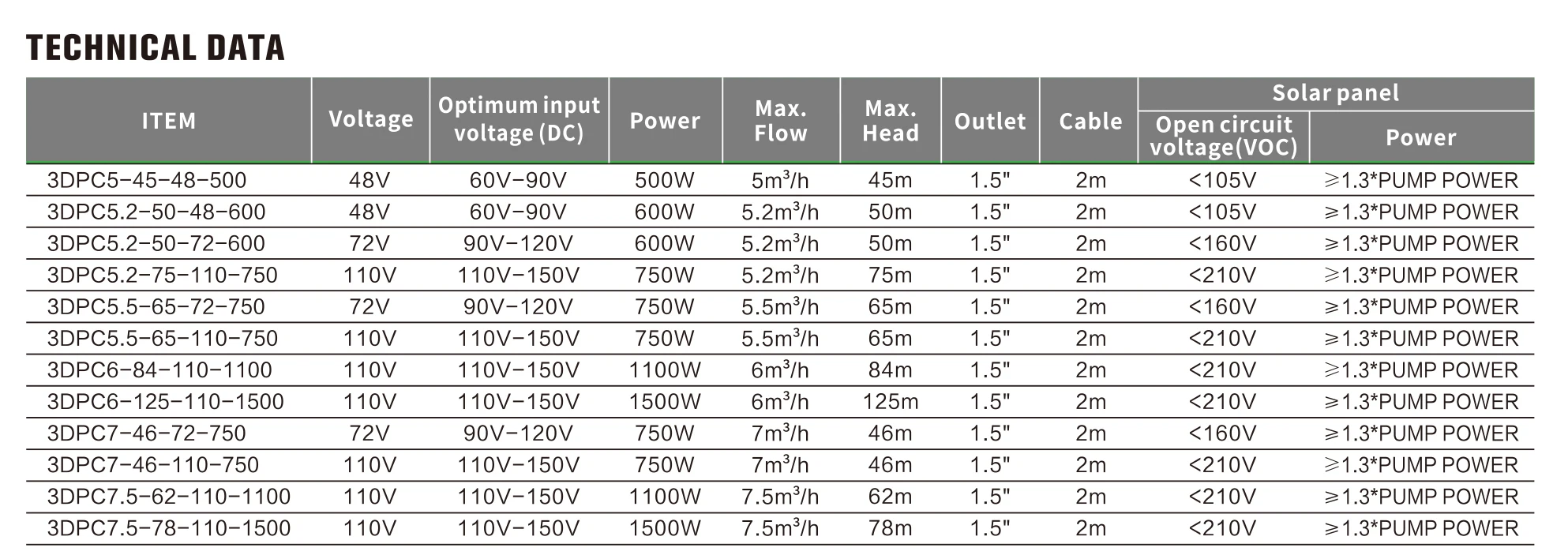

Model | 3DPC5.5-65-72-750 |

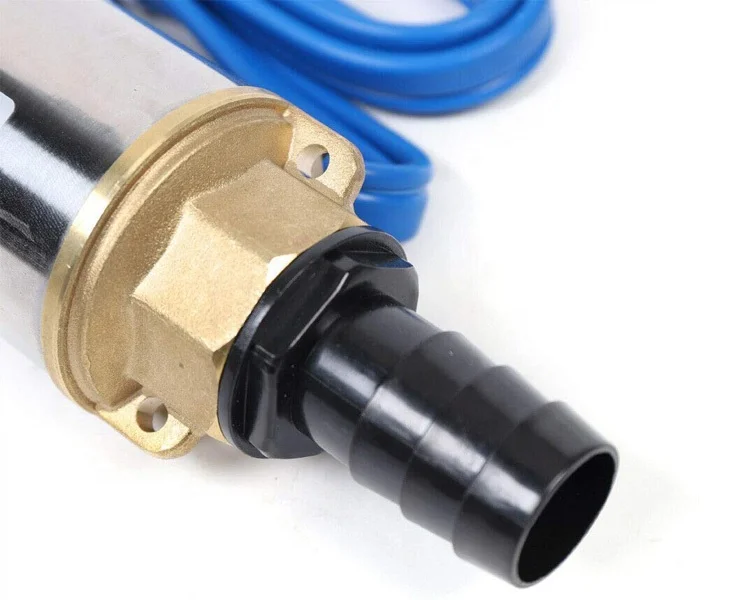

Pump Outlet Diameter | 1.5inch |
Max. Flow | 5500 liter per hour |
Max. Head | 65 meters |
Voltage | DC72V |
Power | 750W (1HP) |
Cable | 2m |
Tips:
In addition to this solar pump model, we have a total of more than 100 models to meet the different requirements of customers
DIFFUL Pump Advantages
OUR SOLAR PUMP ADVANTAGES:
1,Permanent magnet DC brushless synchronous motor: the efficiency is improved by 15- 20%; Save energy; Reduce the consumption of solar pump
2,304 Stainless Steel pump shaft
3,Double bearing,motor base work better under more axial pressure
4,Alloy mechanical seal ,longer working life and high reliability
5,Intelligent water shortage protection
6,MPPT controller
3,Double bearing,motor base work better under more axial pressure
4,Alloy mechanical seal ,longer working life and high reliability
5,Intelligent water shortage protection
6,MPPT controller
How to Connect the Solar Pumps:
Pump connects U V W ,float switch connects TH COM
Very simple connection .
Very simple connection .
Tips 1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips 2: Before you start wiring the controller box, switch must be in the off position

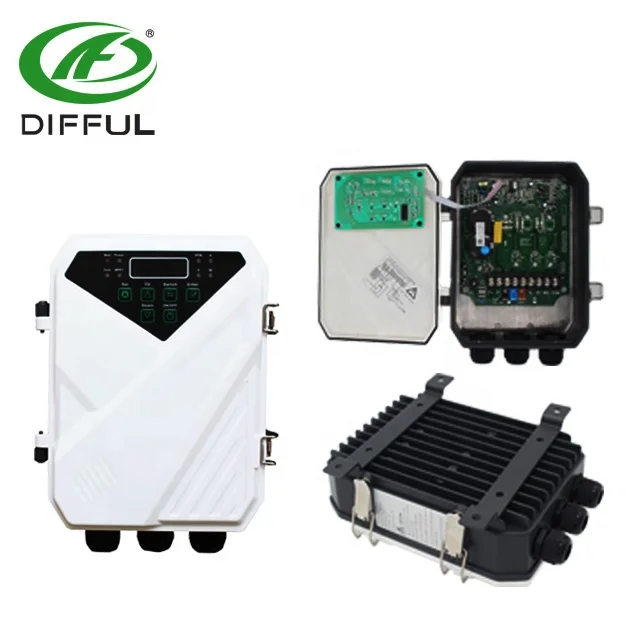

MPPT Controller Features
Automatically run when power enough or tank is not full. Automatically off when tank is full.
Double seal effect in waterproof and leak-proof .
Soft start technology: No impulse current, longer life for the pump motor.
High voltage/Low voltage/Over-current/High temperature protection
Soft start technology: No impulse current, longer life for the pump motor.
High voltage/Low voltage/Over-current/High temperature protection
How to Choose Solar Pump
How to choose and buy the correct solar water pump model?
HEAD CALCULATE:
The horizontal water pumping distance and vertical water pumping distance, especially the vertical distance.FLOW CALCULATE:
How many cubic meter water per hour/per day is needed for irrigation use?

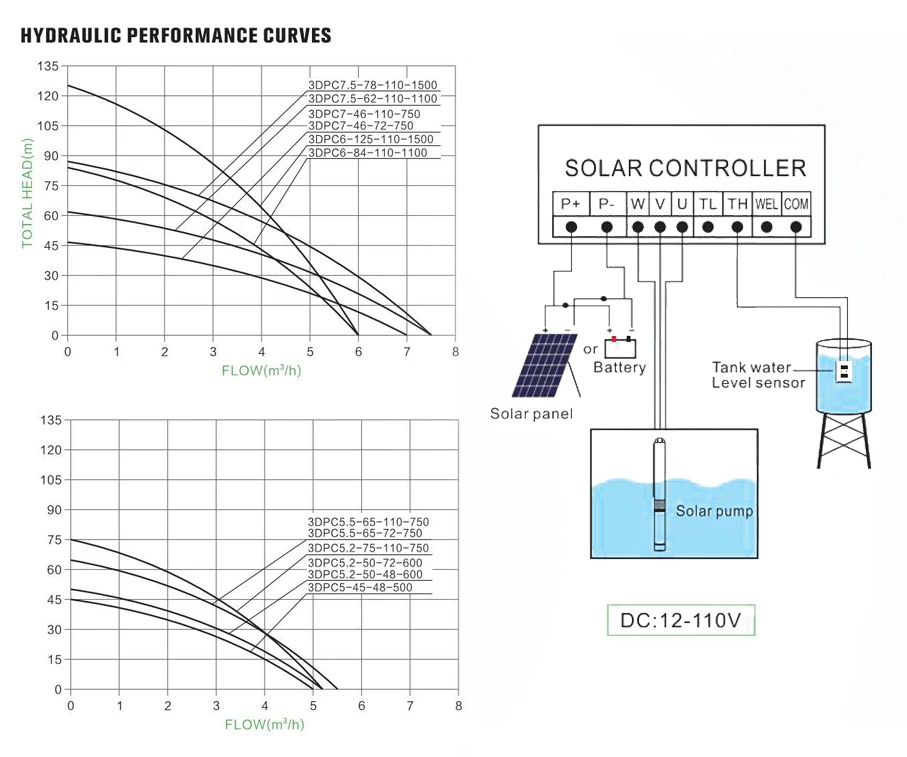

After you estimate Head and Flow,please refer to the technical data diagram below to select the solar pump model
Packaging
Packing Details:
Outer Packaging: high-quality strong export wooden box
Outer Packaging: high-quality strong export wooden box
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation

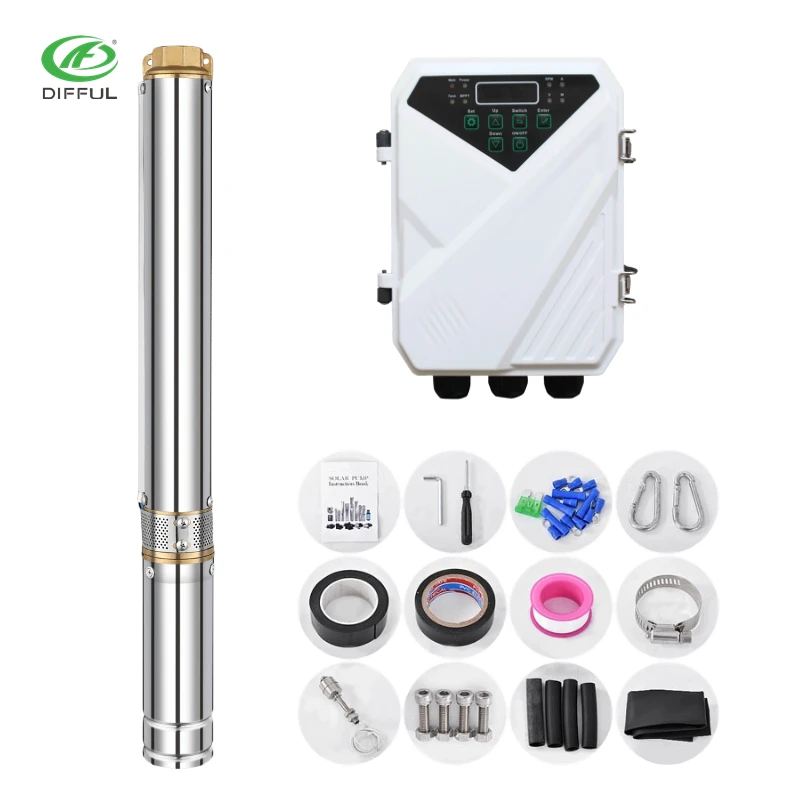

What We Get For You (Package Include):
- 1 x DC brushless solar Pump with 2m cable
- 1 x Pump controller with MPPT function
- 1 xStainless steel or plastic float switch (sensor for the tank)
- 1 x Box of installation parts
Customer Reviews

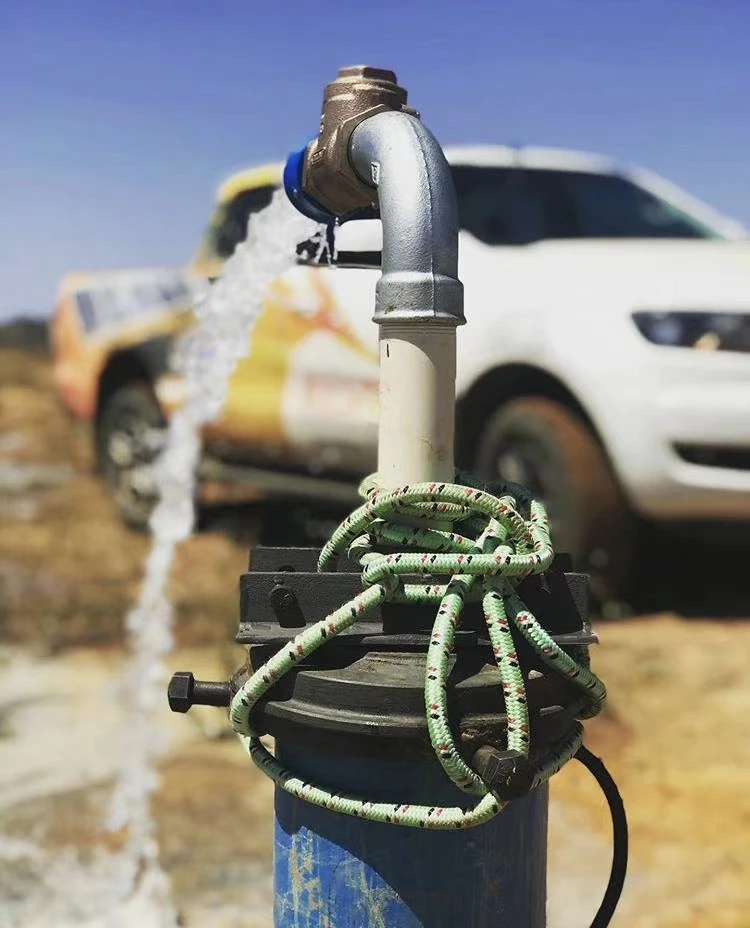

①Application of deep well solar pump to irrigation
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Environment friendly
⑥Pumping and drip irrigation
②Village and town water supply
③Clean drinking water
④Garden watering
⑤Environment friendly
⑥Pumping and drip irrigation
Why Choose Us
① We are among the top three in all solar pump factories in China, both in terms of professionalism and market share.
② According to last year’s annual report, the unqualified rate of our products was three out of one thousand.
③ Our factory will continue to develop new solar water pump products to meet customer needs for various types of solar water pumps.
② According to last year’s annual report, the unqualified rate of our products was three out of one thousand.
③ Our factory will continue to develop new solar water pump products to meet customer needs for various types of solar water pumps.
④The controller, pump body, and motor are all produced in our own factory. The quality inspection of the whole set of solar water pump products is more comprehensive than that of other factories, and customers can get better prices.
⑤ We use good production materials to manufacture our solar water pumps, which greatly extend the service life and use efficiency of the pumps.
⑤ We use good production materials to manufacture our solar water pumps, which greatly extend the service life and use efficiency of the pumps.
About Us

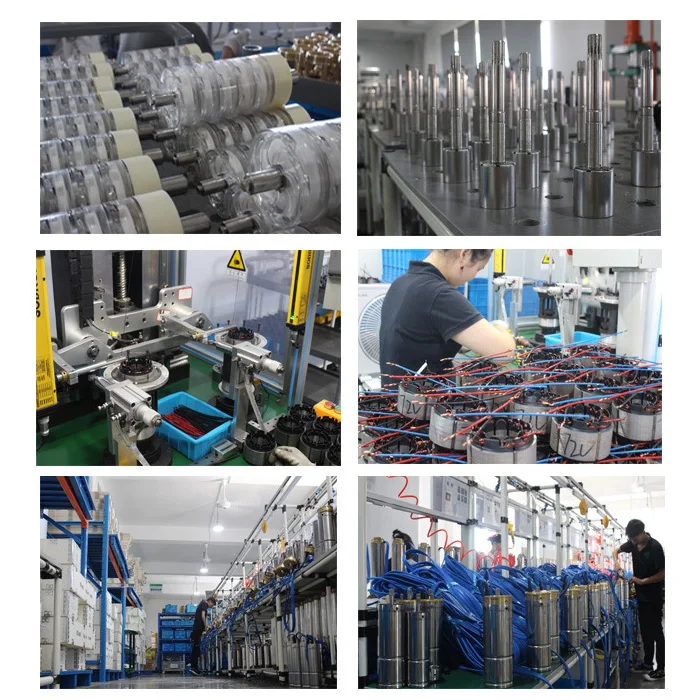

Zhejinag Dingfeng Electrical Appliance Co., Ltd is a professional manufactory for submersible solar pumps, surface solar pumps and deep well pumps. Our head office is located in Wenling, Zhejiang, which is established in 1989. And we found our branch office specially for solar pumps in 2016 in Ningbo, Zhejiang. We have kinds of advanced automatic winding machines and processing machines, 7 assembling lines and testing machines to control the quality. And we already got CE certificate, ISO9001, technical patents etc. Every month, we export at least 180200 pcs of solar pumps all over the world, and got countless buyer praise. We never stop the steps to improve and innovate our solar pumps to reach the different market requirements.
FAQ
1. Q:What's your MOQ?
A:Trial sample order is OK.
2. What's your payment terms?
A: T/T,L/C,PayPal, Credit Card etc.
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy your pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electricity ?
Other conditions from customer if possible : pump type,motor ?
With complete information, then we selected the pump and feedback to you
