High bright white led 5mm flashing diode 3mm blinking led diode
- Category: >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (1600872855656):
Product Overview
Description
Product Description

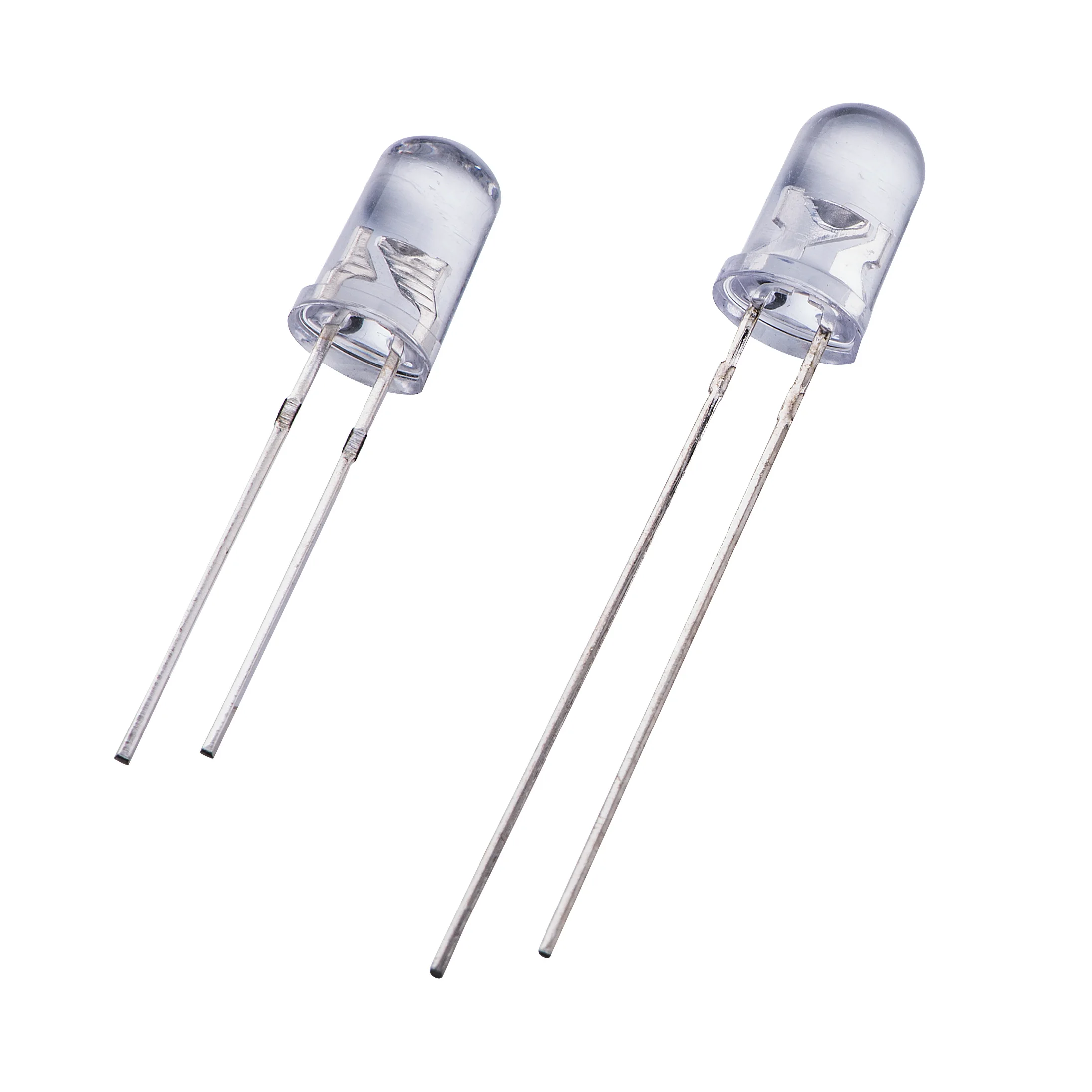

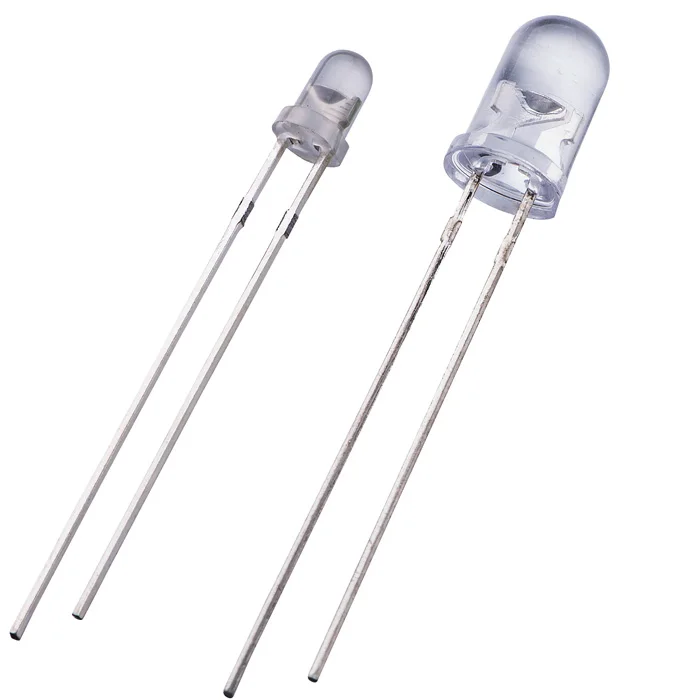

Jstronic White Diffused Lens 3mm 5mm flashing led diode
Specification
1. DC forward voltage (VF): 3.5V
2.Intensity luminous: 10000mcd
2.Intensity luminous: 10000mcd
3. IC(Hz): 1.5Hz, 6.8Hz flashing
4. Beam angle: 30 degree
5.Forward Current: 20mA
Electrical and optical characteristics(Ta = 25℃):
4. Beam angle: 30 degree
5.Forward Current: 20mA
Electrical and optical characteristics(Ta = 25℃):
Parameter | Symbol | Test Condition | Value | Unit | ||||
Min. | Typ. | Max. | ||||||
Forward Voltage | VF | IF = 20mA | 3.0 | 3.5 | ----- | V | ||
Reverse Current | IR | VR = 5V | —— | —— | 30 | μA | ||
Wavelength | λd | IF = 20mA | 6000 | ----- | 6500 | K | ||
Luminous Flux | Iv | IF =20mA | 6000 | 8000 | 10000 | mcd | ||
Viewing Angle | 2θ1/2 | IF = 20mA | —— | 30 | —— | Deg. | ||
LED DIODES

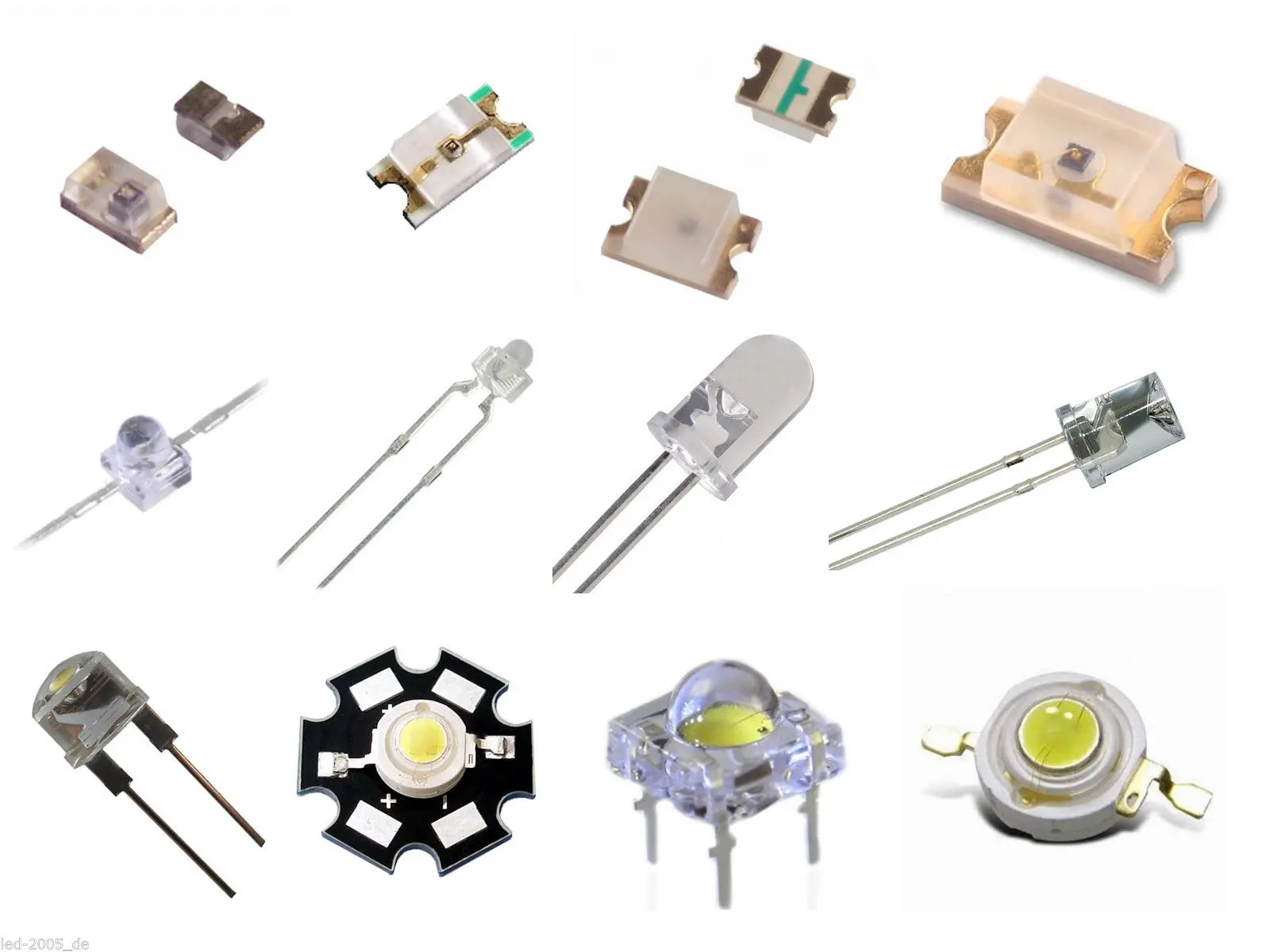

1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.
2.Chip material: InGaN. AlGaIn

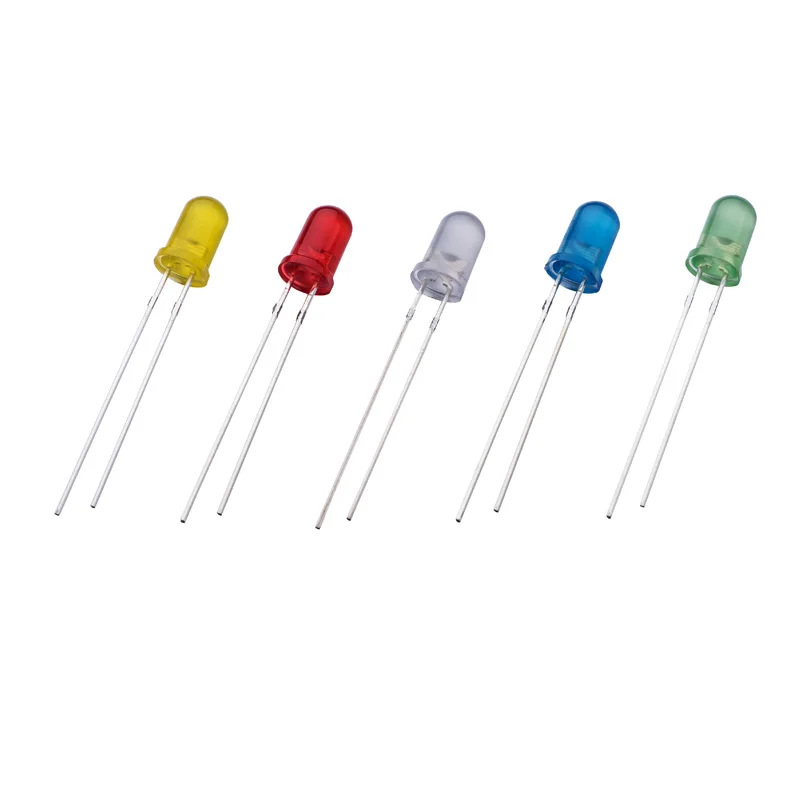

3. Emitting color: White, Red, Yellow, Pure Green, yellow green ,Blue, Amber, Orange.

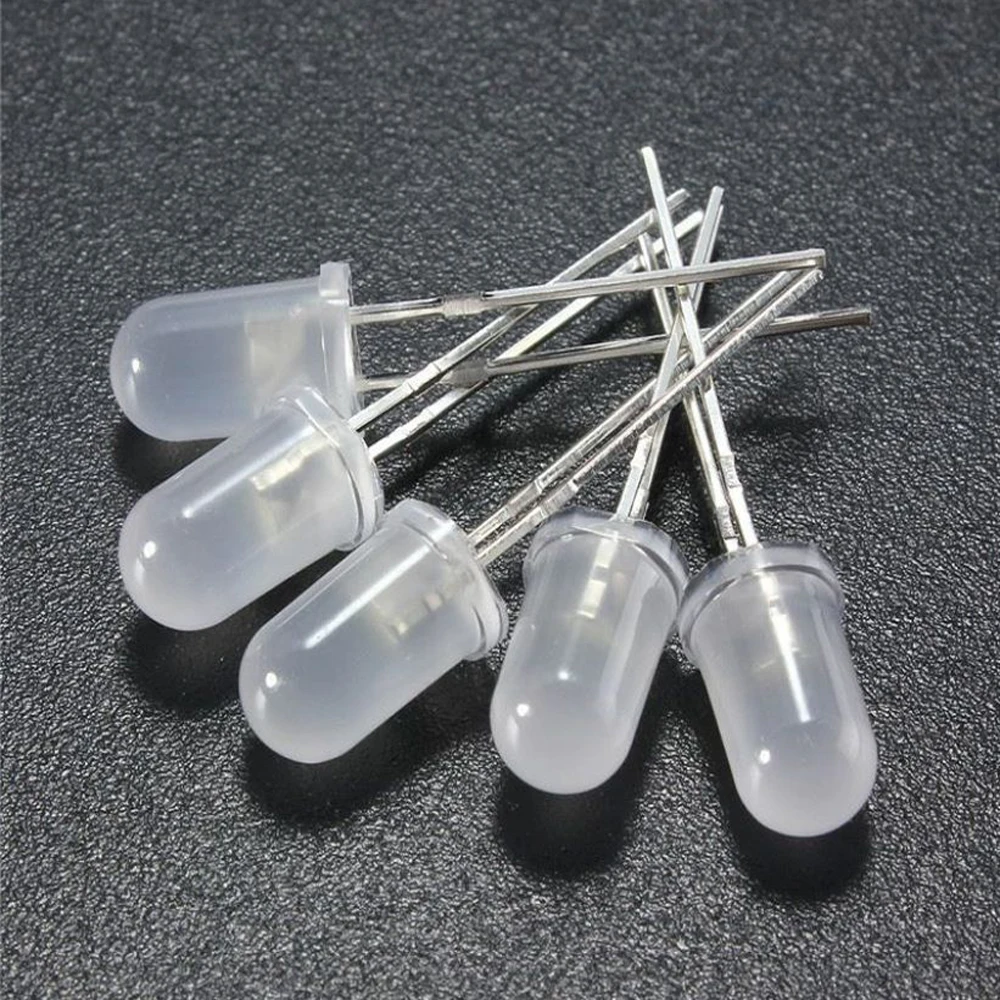

4.Lens color: Water clear, color transparent, color diffused, white diffused
5. Available Wavelength: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm(Tolerance of measurement of peak Wavelength 5.0nm)
6.Available Temperature color: 3300K, 6500K,7000~8000K
7.Application: Lighting, Upholster, Project Building, Display, Traffic Light, etc.
8. Available Angle: 20 degree, 30degree, 40degree, 45degree, 70degree, 110degree
9.Superior performance in outdoor/indoor environment
10.The sample delivery time: Within 3-5days; The order delivery time: Within 7~15days upon payment done
Dominant Wavelength
Red: 640nm to 645nm
Hight bright red: 620nm to 625nm
Blue: 460nm to 475nm
Pure green: 515nm to 525nm
Yellow: 585nm to 595NM
Amber: 600nm to 605nm
Forwarder Voltage:
Red / Yellow / Yellow Green: 1.8-2.1V
Blue / Pure Green / White: 3.0~3.6V
1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.
2.Chip material: InGaN. AlGaIn
3. Emitting color: White, Red, Yellow, Pure Green, yellow green ,Blue, Amber, Orange.
4.Lens color: Water clear, color transparent, color diffused, white diffused
5. Available Wavelength: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm(Tolerance of measurement of peak Wavelength 5.0nm)
6.Available Temperature color: 3300K, 6500K,7000~8000K
7.Application: Lighting, Upholster, Project Building, Display, Traffic Light, etc.
8. Available Angle: 20 degree, 30degree, 40degree, 45degree, 70degree, 110degree
9.Superior performance in outdoor/indoor environment
10.The sample delivery time: Within 3-5days; The order delivery time: Within 7~15days upon payment done
Dominant Wavelength
Red: 640nm to 645nm
Hight bright red: 620nm to 625nm
Blue: 460nm to 475nm
Pure green: 515nm to 525nm
Yellow: 585nm to 595NM
Amber: 600nm to 605nm
Forwarder Voltage:
Red / Yellow / Yellow Green: 1.8-2.1V
Blue / Pure Green / White: 3.0~3.6V
