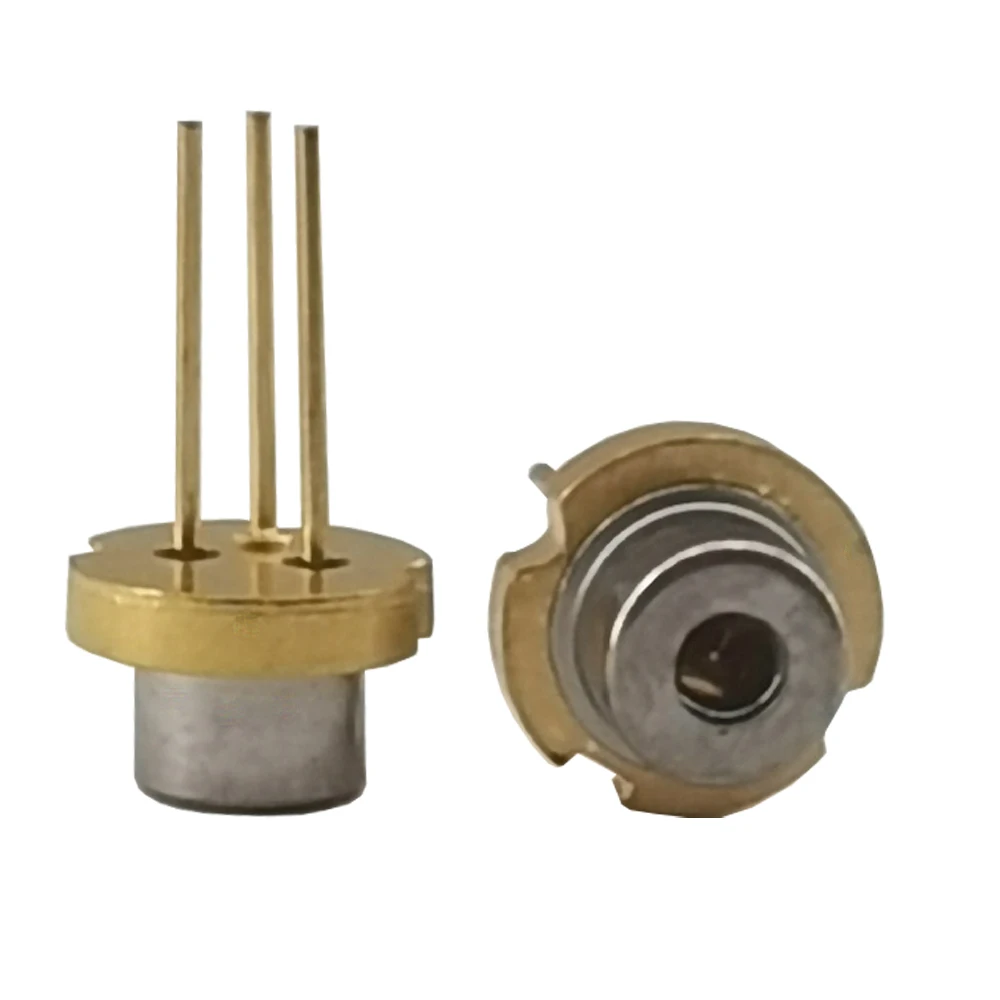

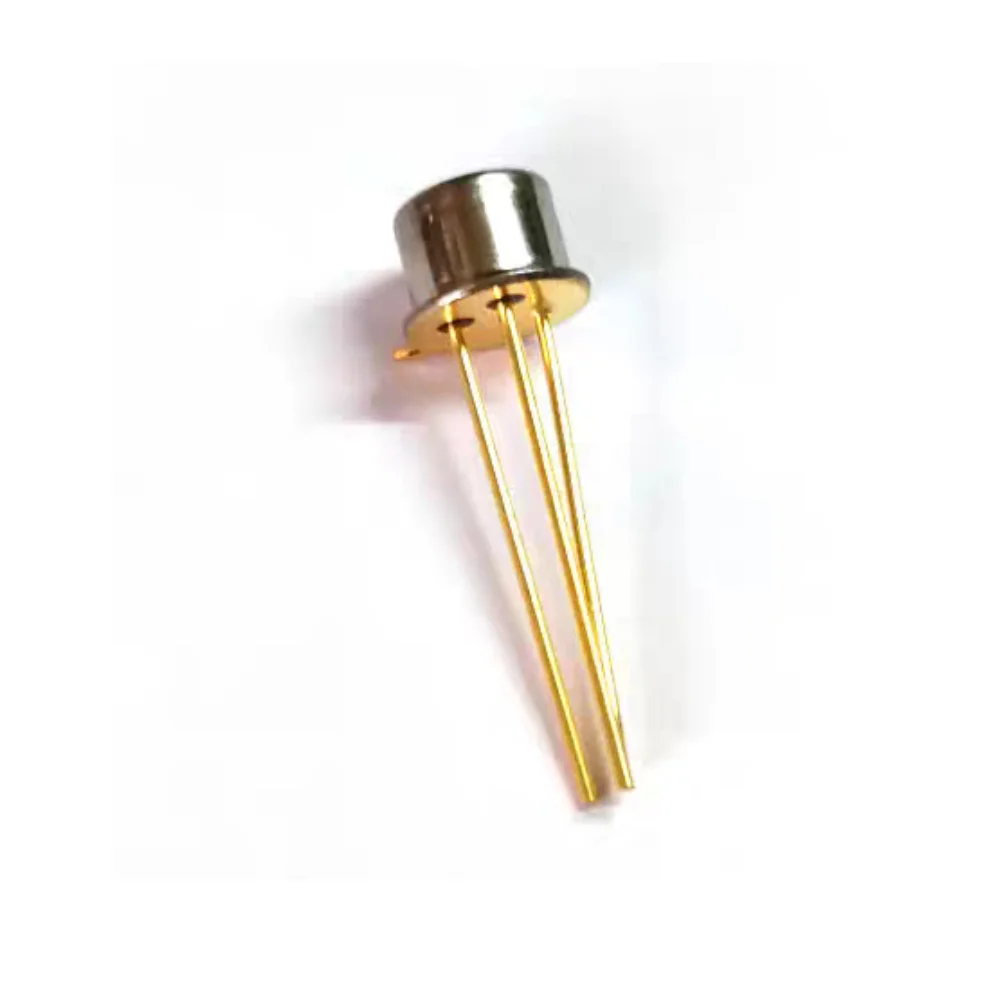

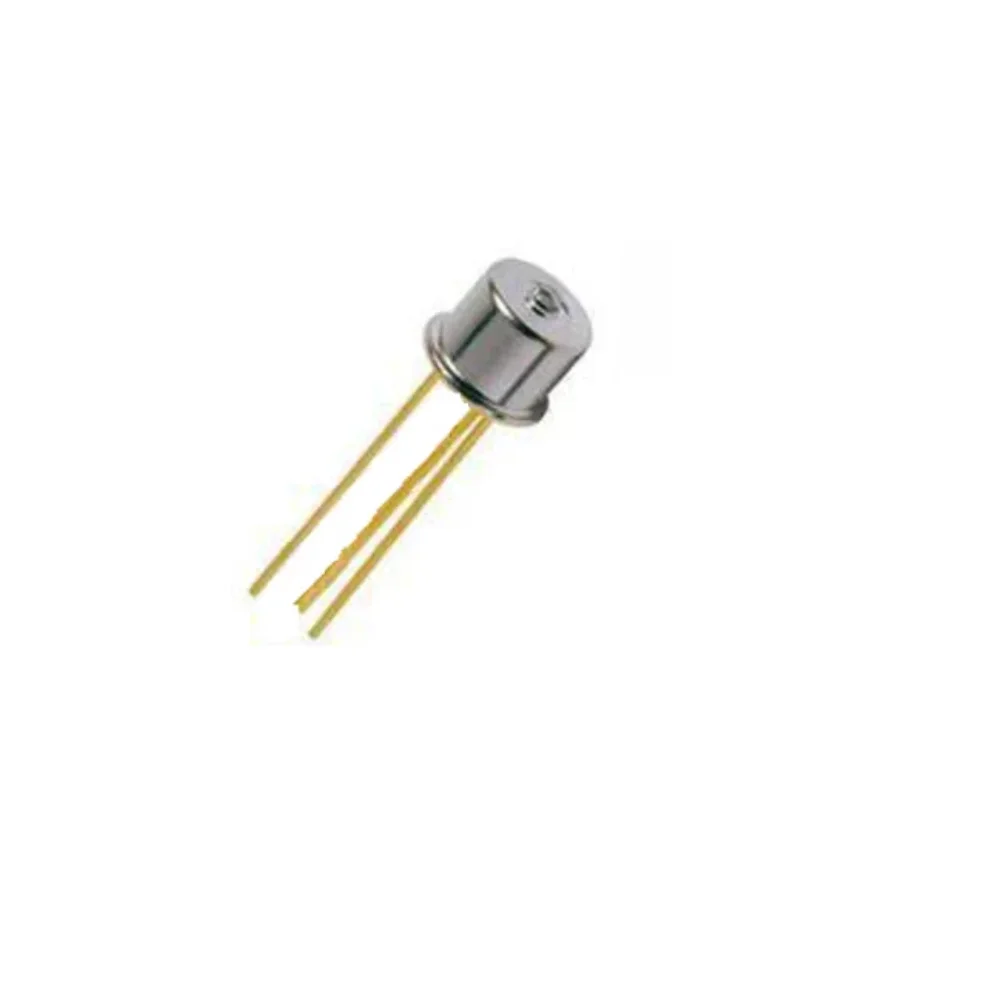

High End 850nm 10mW VCSEL Laser Diode TO46 Proximity sensors Active optical cables Range finder sensors DIY
- Category: >>>
- Supplier: ZHUHAI EMC ELECTRONIC TECHNOLOGY CO. LTD
Share on (1600872880904):
Product Overview
Description
ET46-85010
Laser Diode Key features
Absolute Maximum Rating at Tc=25℃
Items | Symbols | Values | Unit |
Operating Current power | Po | 10 | mw |
Reverse Voltage | VR | 2 | V |
Operating Temperature | Tcase | -10~+70 | ℃ |
Storage Temperature | Ts | -40~+80 | ℃ |
Electrical and Optical Characteristics at Tc=25℃
Item | Symbols | Min | Typ. | Max. | Unit | Condition |
Threshold Current | Ith | - | 22 | 40 | mA | - |
Operating Current | Iop | - | 84 | 120 | mA | Po=80mW |
Operating Voltage | Vop | - | 5.1 | 6 | V | Po=80mW |
Peak Wavelength | λ p | 840 | 850 | 860 | nm | Po=80mW |
Beam Divergence (FWHM) | θ// | 7.5 | 8.5 | 9.5 | deg | Po=80mW |
Beam Divergence (FWHM) |  | 14 | 16 | 18 | deg | Po=80mW |
