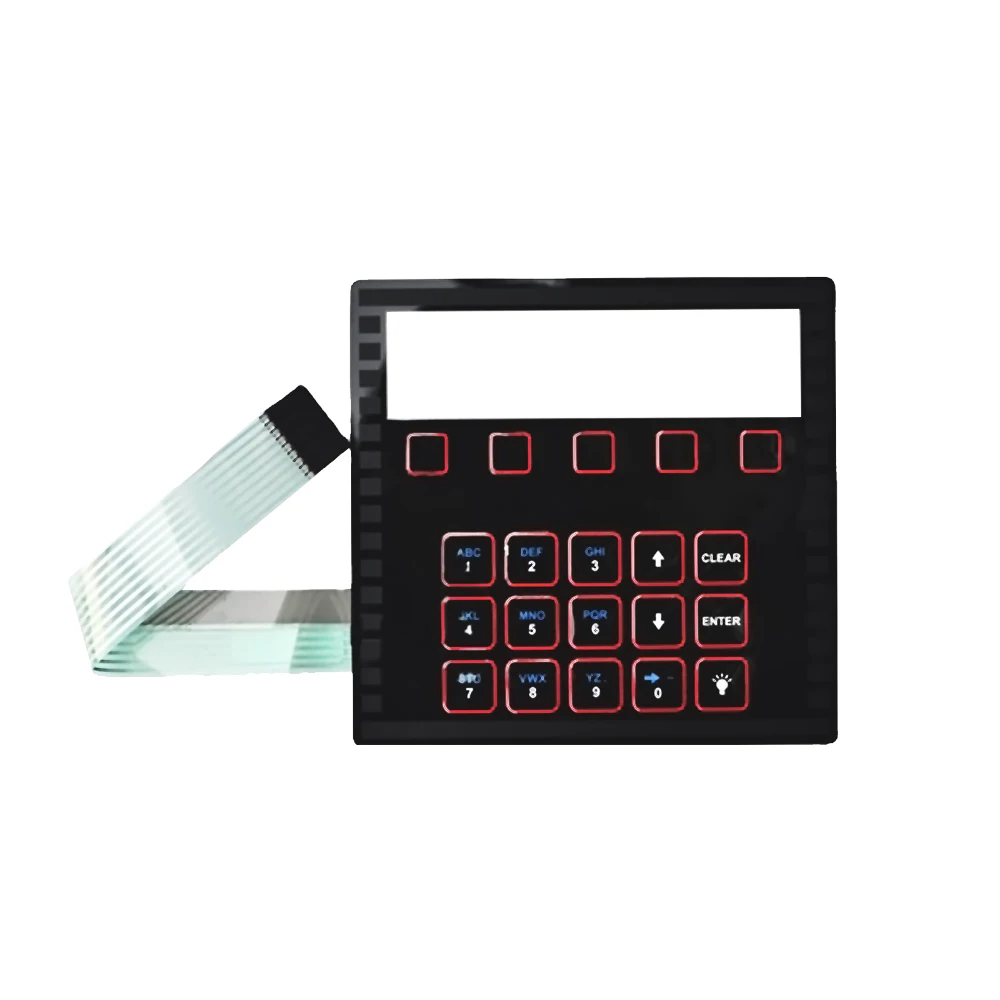

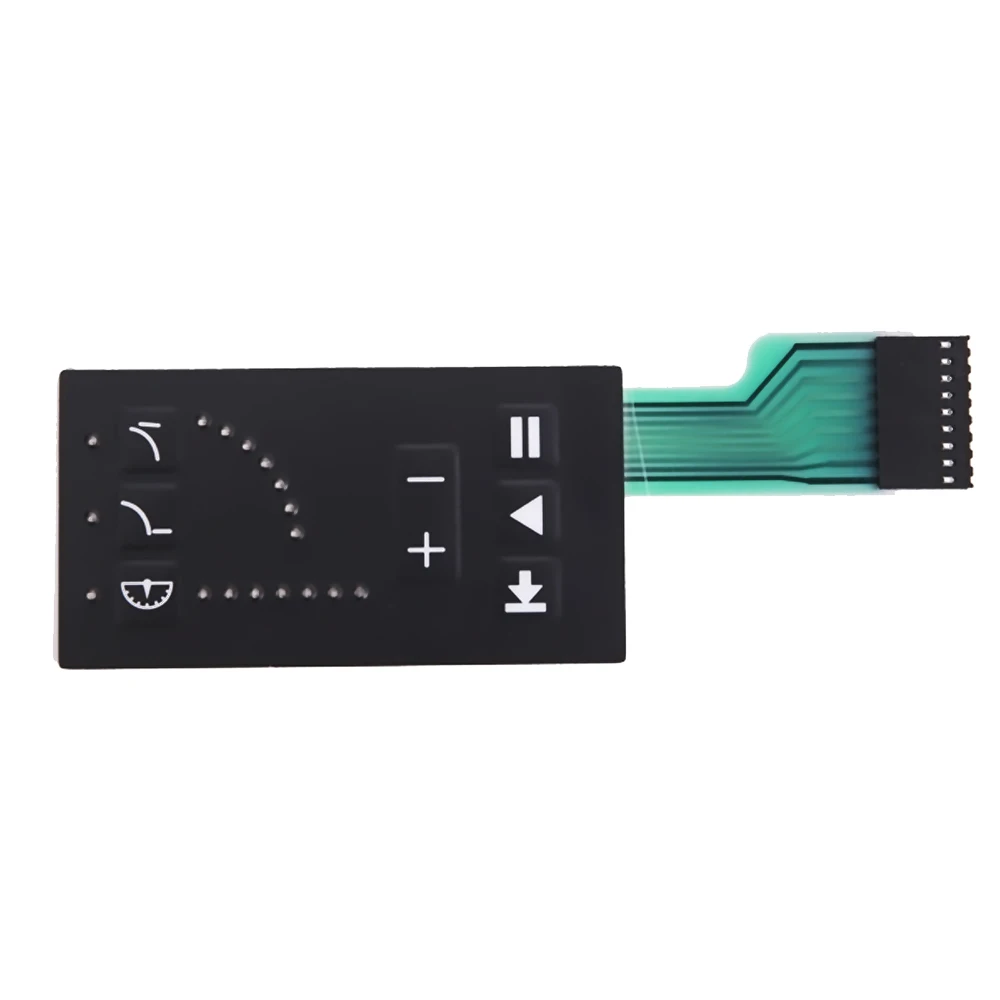

wholesale price membrane switches thin film keypad keyboard control panel embossed push buttons adhesive stickers
- Category: >>>
- Supplier: Dalian Geeton Electronics Co. Ltd.
Share on (1600872913221):
Product Overview
Description
Products Description
product | Thin film switch | |
Product structure | Base material +Spacer+Upper circuit layer+Spacer+down circuit layer+Adhesive | |
Electronic characteristics | ||
Circuit rating | 35V(DC),100mA,1 W | |
Contact resistance | 10Ω - 500Ω( According to the trace length and materials to confirm) | |
Insulation nresistance | >100MΩ 250V(DC) | |
Contact bouce | ≤5ms | |
Dielectric withstand voltage | 250VRms(50 - 60Hz/1 min) | |
Mechanical Properties | ||
Responsiblity Working life | flat type≥500 million times; | |
Tactile type:≥100million times. | ||
Operating pressure | Flat type 57-284g(2-10 OZ); | |
Tactile type 170-397g(6-14 Oz). | ||
Switch stroke | flat tyep 0.1-0.5mm; | |
Tactile type: 0.6-1.5mm | ||
Environment parameters | ||
Operating Temperature | -30°C - +85°C | |
Humidity | 40°C,90%-95%,240H | |
Company Profile
Certifications
Our Advantages
FAQ
Q1:Are you a factory or trading company ?
We are the factory,located in Dalian,China. You are highly welcomed to visit us.
Q2:What information will I have to provide for the quotation ?
For the exact price, please inform us the material,thickness,size,with adhesive or not,how many colors for printings,quantity required. Or send us the sample or design drawing for our check.
Q3:Can you offer samples ?
5pcs free samples after receiving the set up cost.
Q4:What is the software you are using for the drawing ?
Format: DWG,DXF,AI,CDR,PDF etc.
Q5:How long is the delivery time of the sample and bulk order ?
Sample lead time: Around 7-10 working days
Bulk order lead time: Around 20-30 working days depends on the quantity and printing colors.
Bulk order lead time: Around 20-30 working days depends on the quantity and printing colors.
Q6:How do you deliver the cargo ?
By FedEx, DHL, UPS, TNT or other carrier specified. Or by sea.
