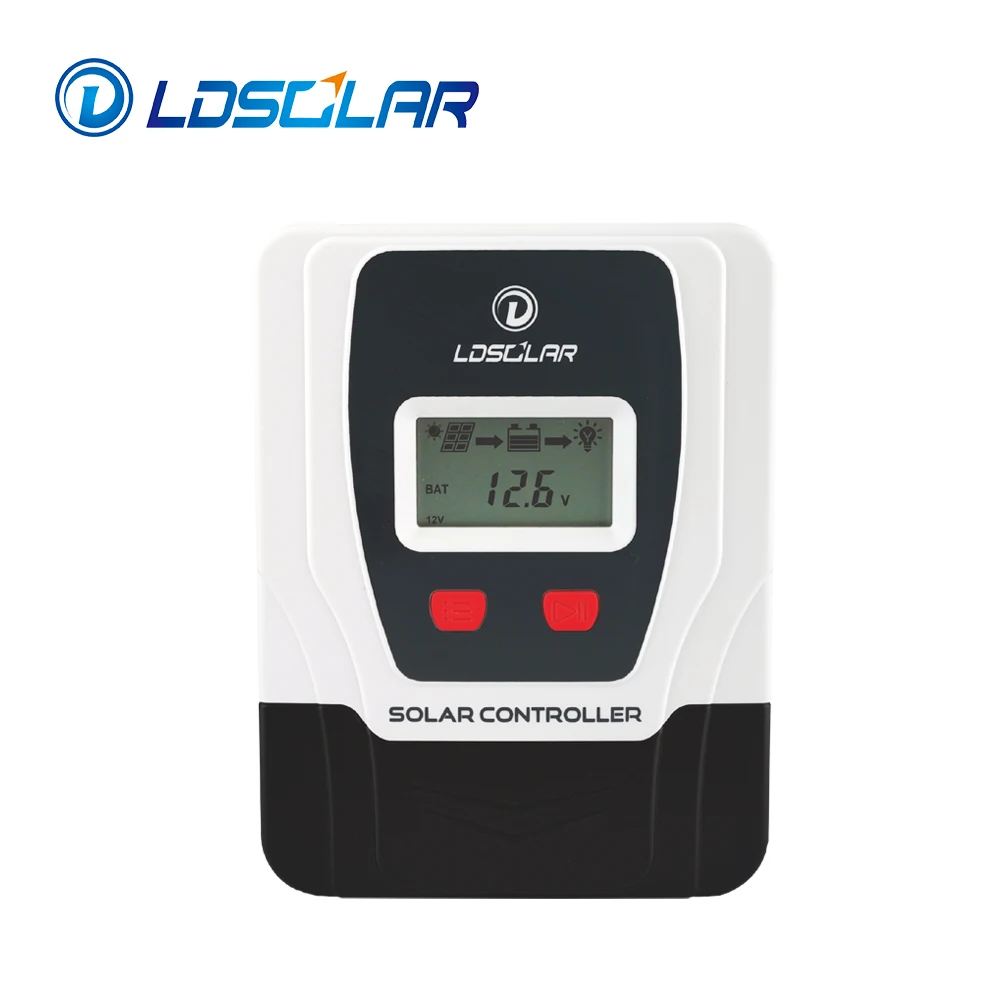

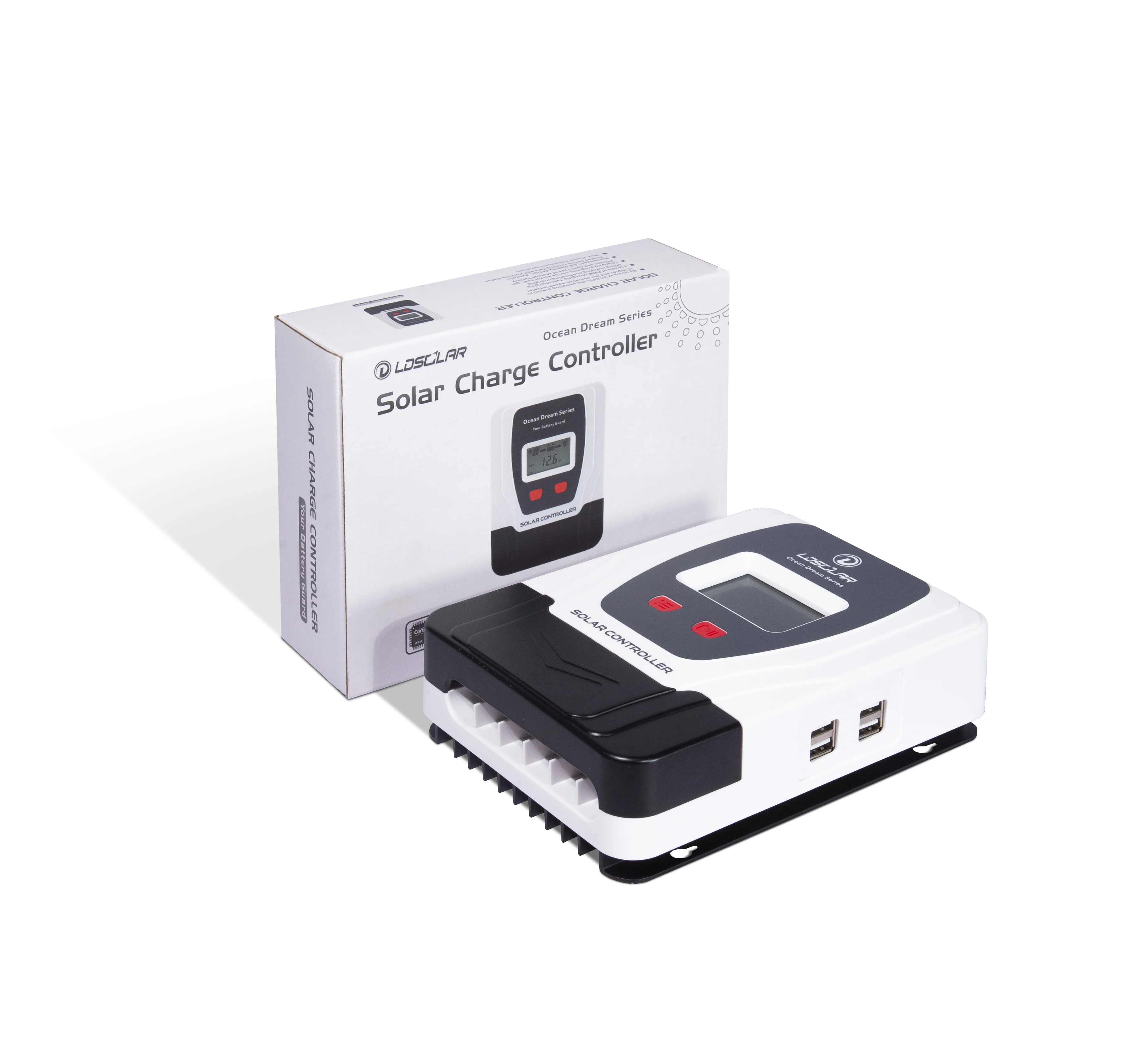

LD SOLAR Smart Solar Panel Controller Regulator 24v 12v Dc 10a 30a 50a 60a 20a Manual Pwm Solar Charger Controllers
- Category: >>>
- Supplier: Wuhan Welead New Energy Co. Ltd.
Share on (1600872946973):
Product Overview
Description
Products Description

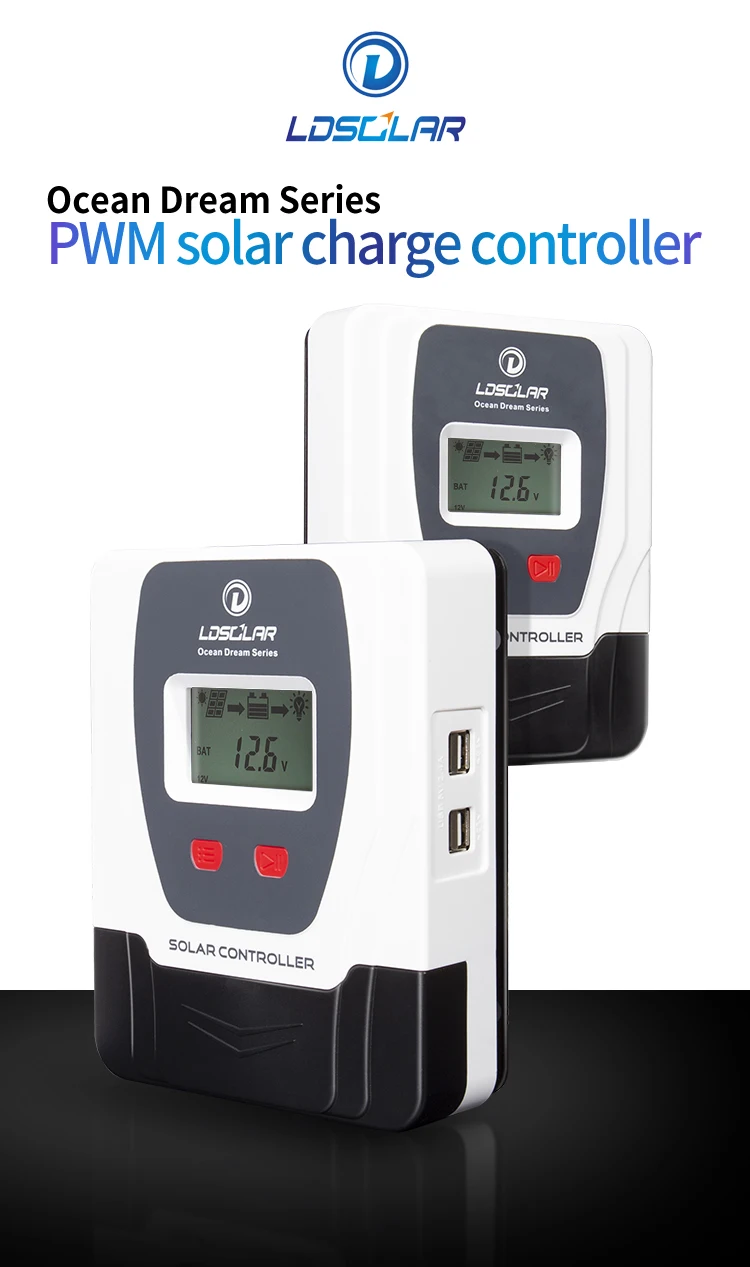

Ocean Dream Series

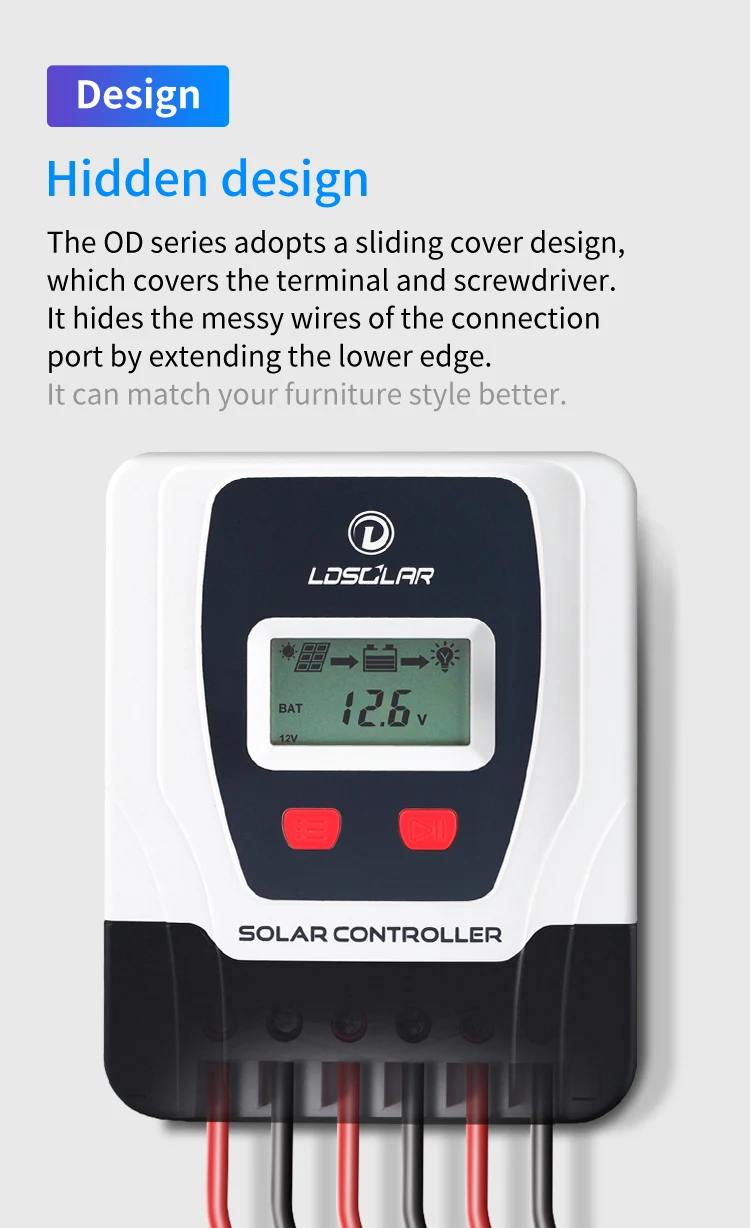

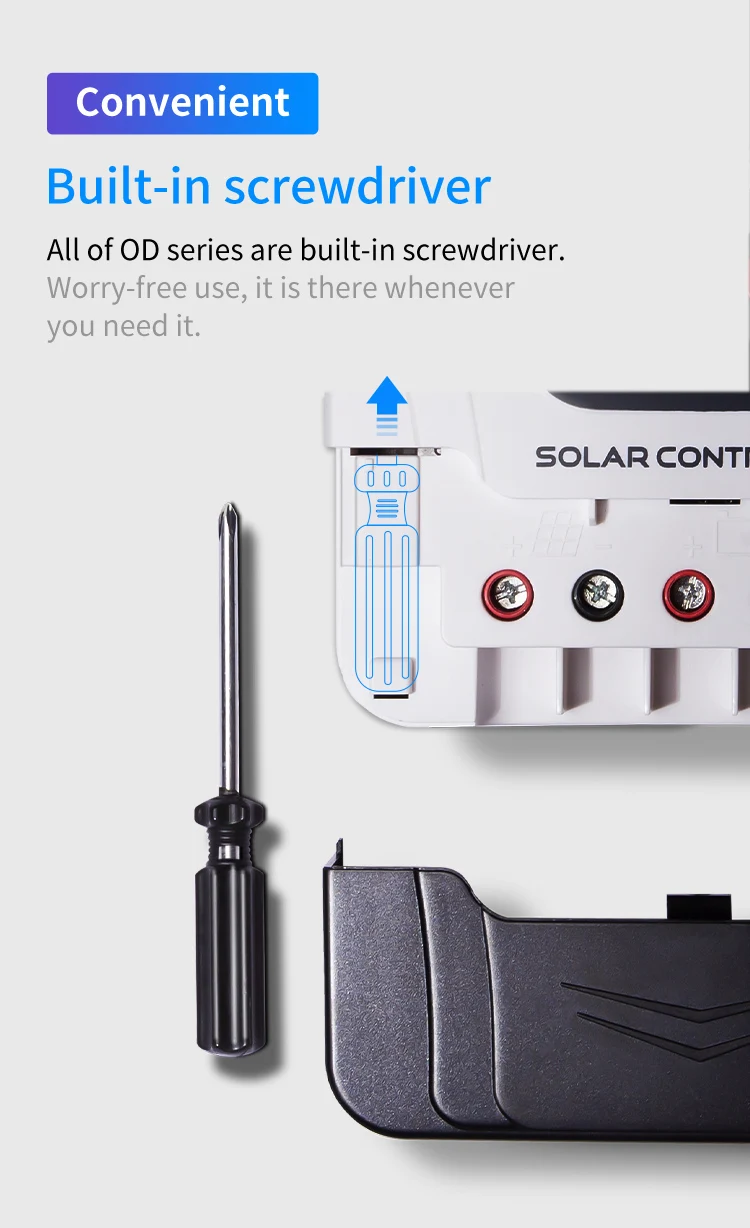

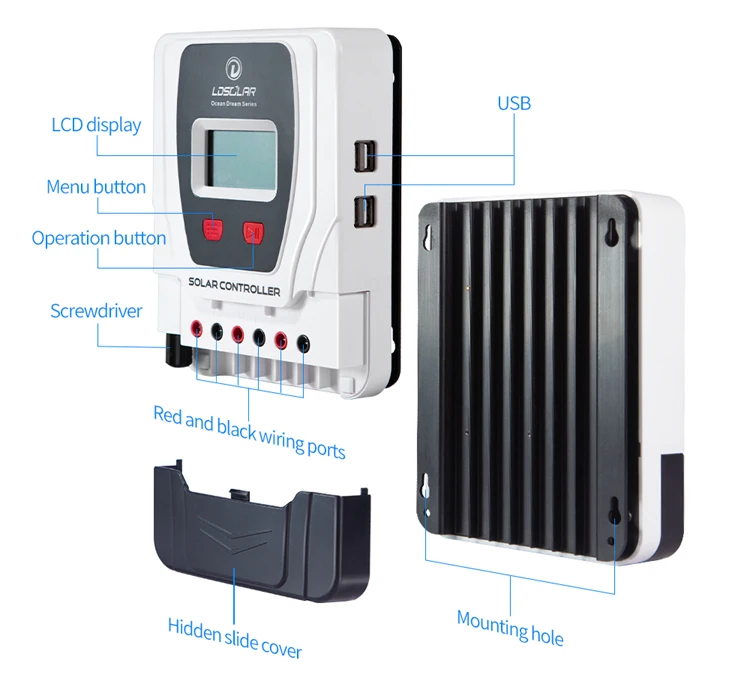

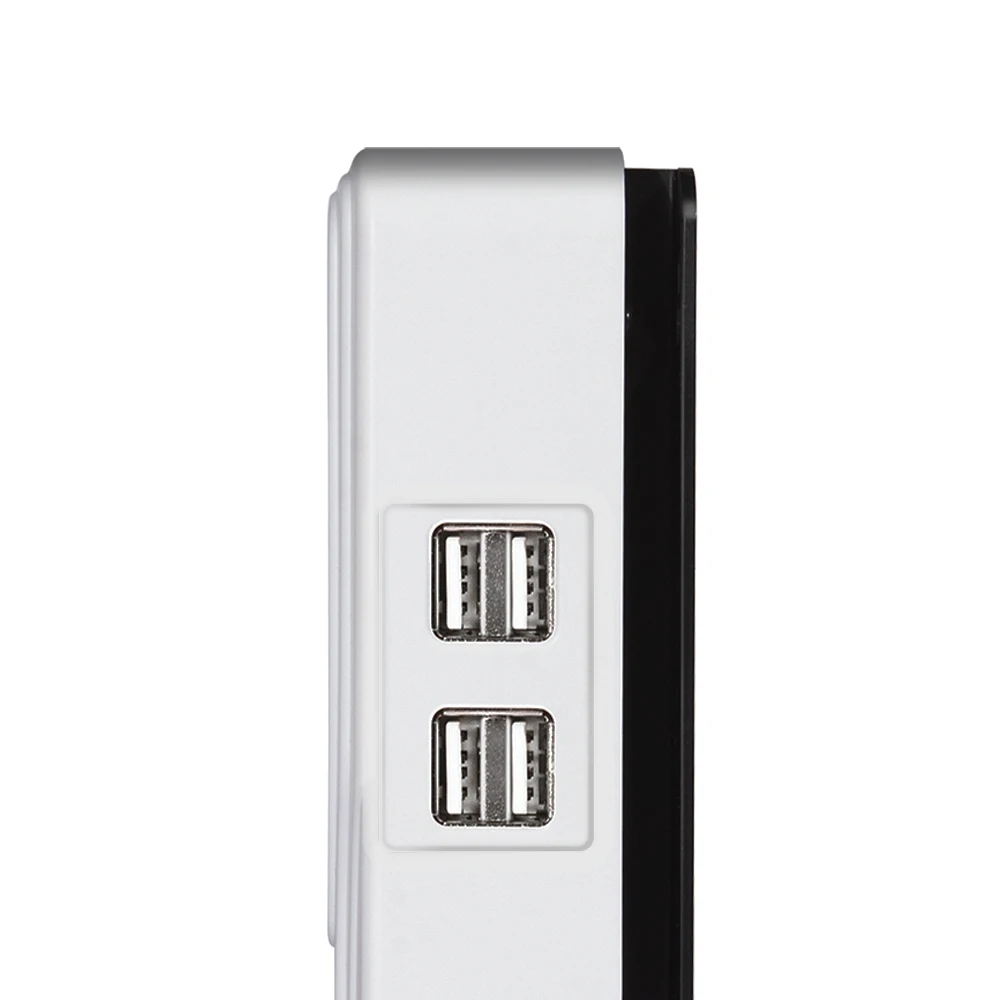

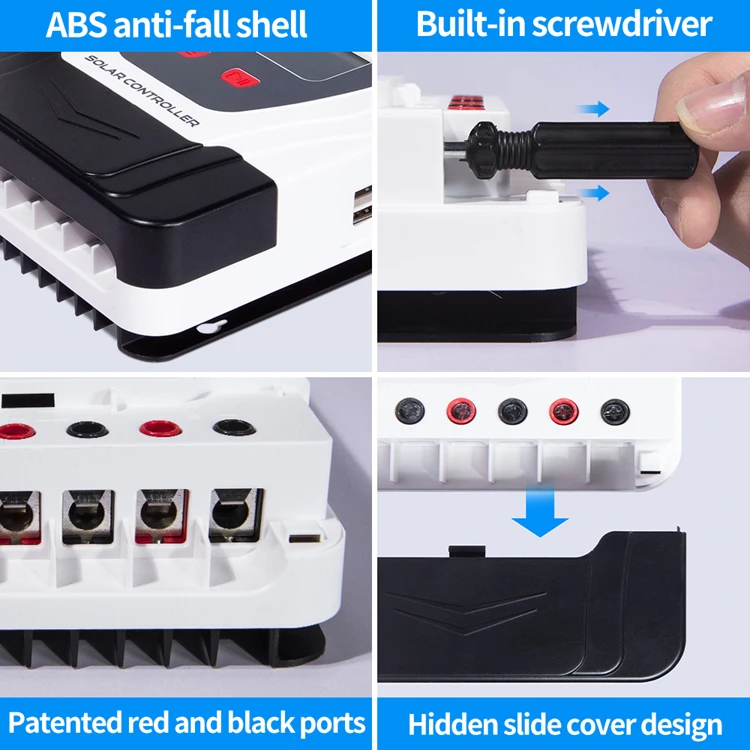

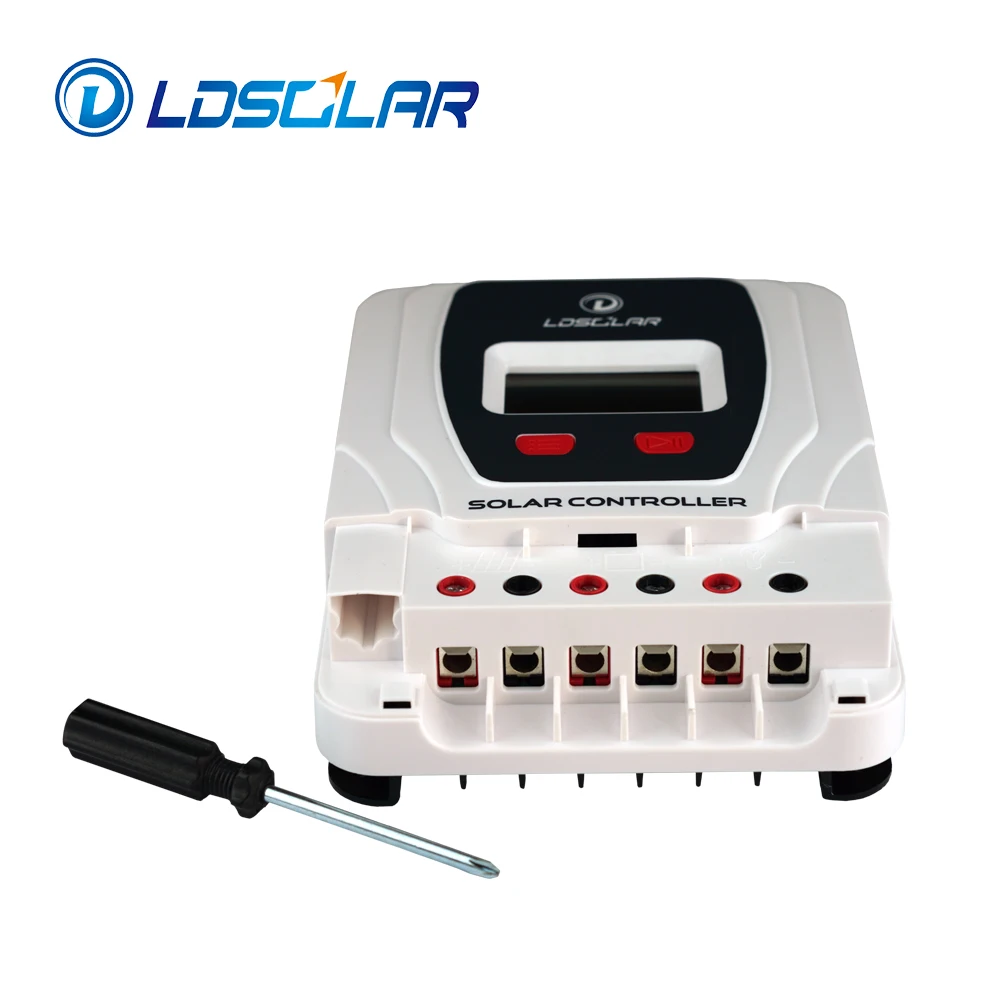

Ocean Dream Series (OD in short) is our newest designed PWM solar controllers. Its specialty lies in the inner 32 bits CPU, Which enables the controllers to work faster and more stable. It built 4USB port and a screw driver inside.Beside, Our unique black & Red big terminals design facilitate your connection in real application. The white frosted plastic shell is very natural no matter where it is placed in your home or RV.
Product Details
Product Paramenters
Model | Charging Current | Discharging Current | Terminals | Net Weight | Overal dimension |
OD2410C | 10A | 10A | 10mm² /6AWG | 225g | 165x120x39.4mm |
OD2420C | 20A | 20A | 10mm² /6AWG | 350g | 165x120x39.4mm |
OD2430C | 30A | 20A | 10mm² /6AWG | 380g | 165x120x39.4mm |
OD2430S | 30A | 30A | 16mm² /8AWG | 480g | 170x130x50mm |
OD2440S | 40A | 40A | 16mm² /8AWG | 520g | 170x130x50mm |
OD2450S | 50A | 50A | 25mm² /8AWG | 690g | 190x145x55mm |
OD2460S | 60A | 60A | 25mm² /8AWG | 780g | 190x145x55mm |
OD4830S | 30A | 30A | 16mm² /8AWG | 500g | 170x130x50mm |
OD4840S | 40A | 40A | 16mm² /8AWG | 540g | 170x130x50mm |
OD4850S | 50A | 50A | 25mm² /8AWG | 710g | 190x145x56mm |
OD4860S | 60A | 60A | 25mm² /8AWG | 800g | 190x145x56mm |
Model | OD series | ||||||||
Self-consumption | <10mA | ||||||||
Battery type | Sealed(Default)/Gel/Flood/Lithium | ||||||||
LVD | 11.0V ADJ 9V...12V ; x2/24V ; x4/48V | ||||||||
LVR | 12.6V ADJ 11V...13.5V ；x2/24V ; x4/48V | ||||||||
Float Voltage | 13.8V ADJ 13V... 15V ; x2/24V ; M/48V | ||||||||
Boost Voltage | 14.4V ADJ 13V...17V ；x2/24 ; x4/48V | ||||||||
Battery Over Voltage | 16.5V ; x2/24V ; x4/48V | ||||||||
Reverse Connection Protection | yes | ||||||||
Load Over Current Protection | Yes, each 30s auto restart again | ||||||||
Controller Over Temperature | Yes | ||||||||
Charging Type | PWM | ||||||||
Charge circuit voltage drop | <=0.25V | ||||||||
Discharge circuit voltage drop | <=0.1V | ||||||||
Temperature Consumption# | For 12Vsystem:-24mV /°C ; x2/24V ; x4/48V | ||||||||
Relative humidity | ≤95%, N.C. | ||||||||
WorkingTemperature | -20°C~+55°C℃(Product can work continuously at full load) | ||||||||
LCD temperature range | -20°C~+70°C | ||||||||
Waterproof grade | IP32 | ||||||||
Mounting hole size | Φ5mm | ||||||||
