Automation Garage Door Opener Controller Receiver 2 relays output for remote control gate

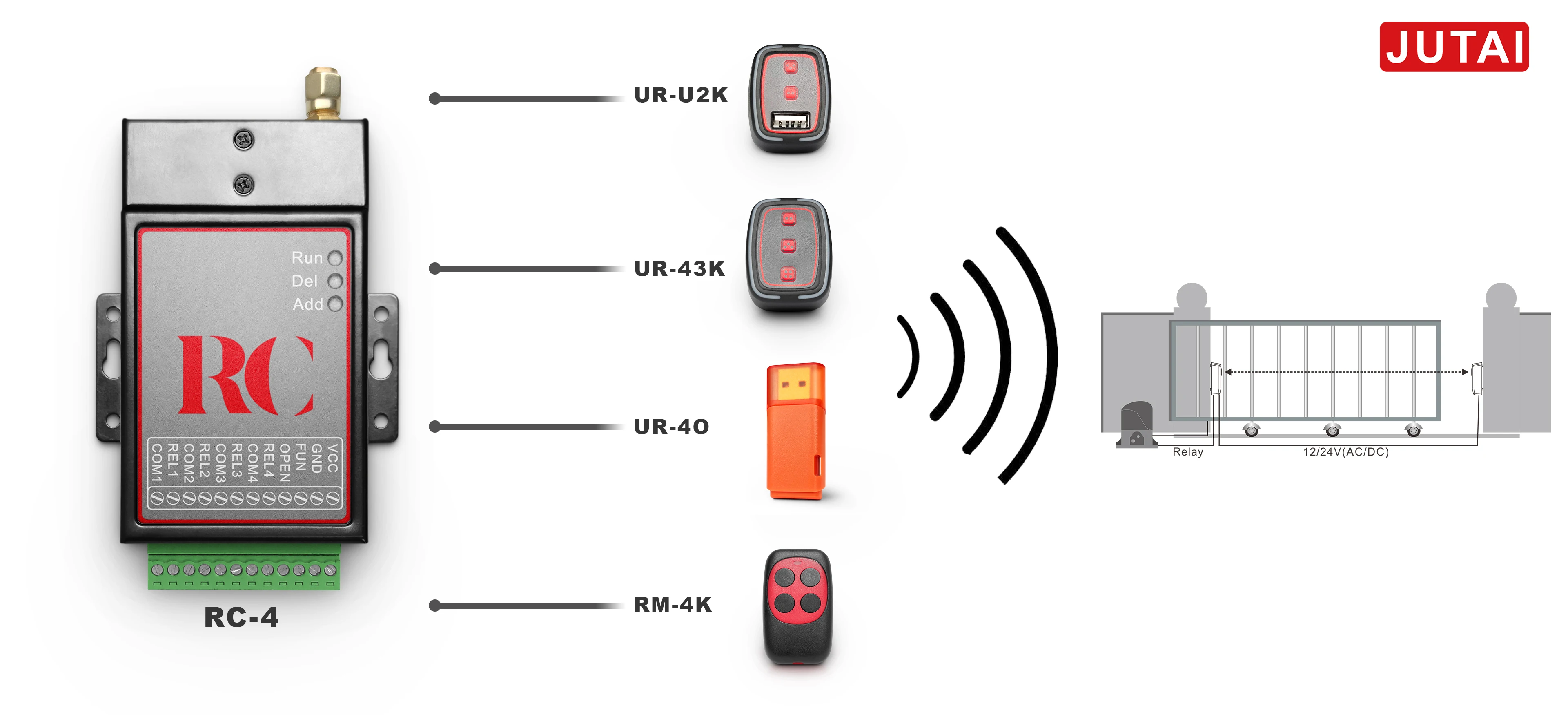

This product Suitable for all kinds of Gate Entrance control systems.

working with the UR-4O USB auto opening gate (plug in the car);

working with the UR-43K auto opening gate with remote button ( plug in the car);

working with RM-4K 4buttons remote control ( remote by your hand).

working with RM-2K 2 buttons remote control (remote by your hand).

Technology Parameter

1. Frequency: 433MHZ

2. ASK system

3. Code: anti-cracking rolling coding

4. Working distance: >35 meters in the air

5. Add and delete ID mode: through short-circuit or special remote controller

6. Encryption: via USB cable (line should be customized)

7. Working voltage: 12-24VDC,12VAC

8. Storage capacity: 32 ID numbers, larger capacity should be customized.

Applications

Autogate entry access control

Boom barrier gate entry management

smart auto parking lock application

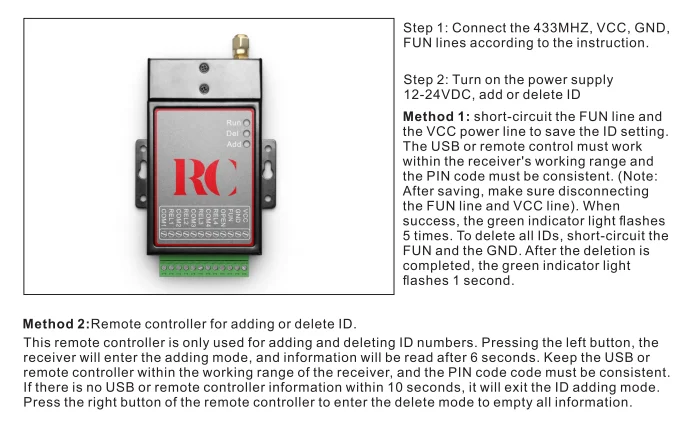

How to add/delete the remote control ID
