TESmart new 4 in 3 out triple monitor kvm console switcher mixer video support 3 screen extended display hdmi kvm switch
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd.
Share on (1600873018222):
Product Overview
Description
Product Description
4x3 HDMI KVM Switch

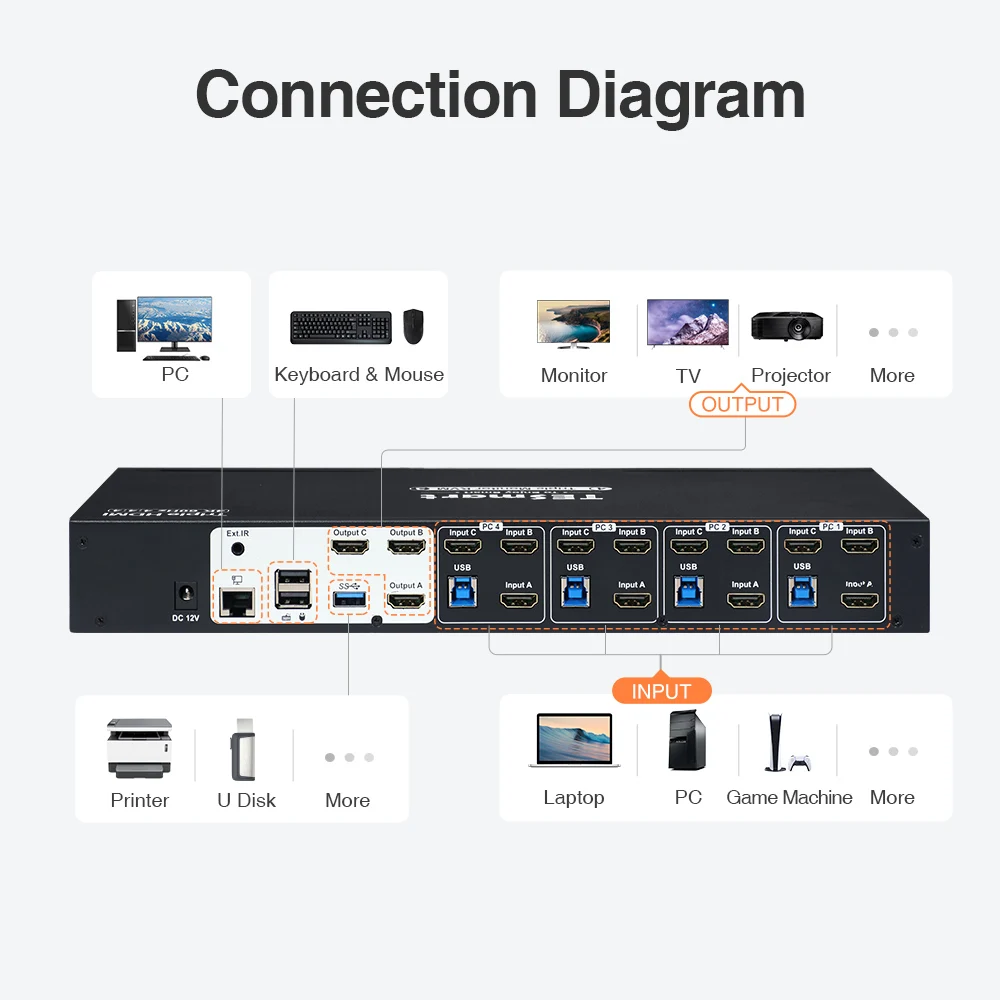

HDMI KVM Switch can easily integrate cross-platform computer devices and greatly simplify
the devices management. Support managing a triple-display multimedia workstation. If
you connect 3 HDMI ports of the same PC to one group of input ports on the KVM, you will
realize 3-screen extended display or copy display.
the devices management. Support managing a triple-display multimedia workstation. If
you connect 3 HDMI ports of the same PC to one group of input ports on the KVM, you will
realize 3-screen extended display or copy display.
Features:
⭐Using 3 monitors, 1 set of keyboard and mouse to control 4 computers
⭐Support resolution up to 3840x2160@60Hz 4:4:4
⭐HDCP 2.2 compliant
⭐Support 2 display modes
⭐Support Unix/Windows/ Debian/ Ubuntu/Fedora/ MacOS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux based systems
⭐Integrated microphone and L/R audio output por
⭐Support USB 3.0 ports with super-speed data transfer rate
⭐Using 3 monitors, 1 set of keyboard and mouse to control 4 computers
⭐Support resolution up to 3840x2160@60Hz 4:4:4
⭐HDCP 2.2 compliant
⭐Support 2 display modes
⭐Support Unix/Windows/ Debian/ Ubuntu/Fedora/ MacOS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux based systems
⭐Integrated microphone and L/R audio output por
⭐Support USB 3.0 ports with super-speed data transfer rate
⭐Support locking L/R audio and USB 3.0 devices to a fifixed PC or switching between PCs
⭐With 1 USB-C and 1 USB-A port on the front panel, which can be used as USB data transfer ports, and can also be used to charge your phone, tablet, etc.
⭐Support wired network connection, 4 PCs connected to KVM can access to the network with only one network cable
⭐With EDID emulators in each input port, it can keep PCs always having correct display information
⭐Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility
⭐Support IR signals, front panel buttons and keyboard hot keys to switch input ports
Packing List:
1 * 4x3 HDMI KVM Switch
4 * KVM Cables
8 * HDMI Cables
1 * IR Remote Control
1 * IR Extension Cable
1 * DC 12V Power Adapter
1 * User Manual
2 * Rack-ears
⭐With EDID emulators in each input port, it can keep PCs always having correct display information
⭐Support keyboard and mouse pass through mode to improve mouse and keyboard compatibility
⭐Support IR signals, front panel buttons and keyboard hot keys to switch input ports
Packing List:
1 * 4x3 HDMI KVM Switch
4 * KVM Cables
8 * HDMI Cables
1 * IR Remote Control
1 * IR Extension Cable
1 * DC 12V Power Adapter
1 * User Manual
2 * Rack-ears

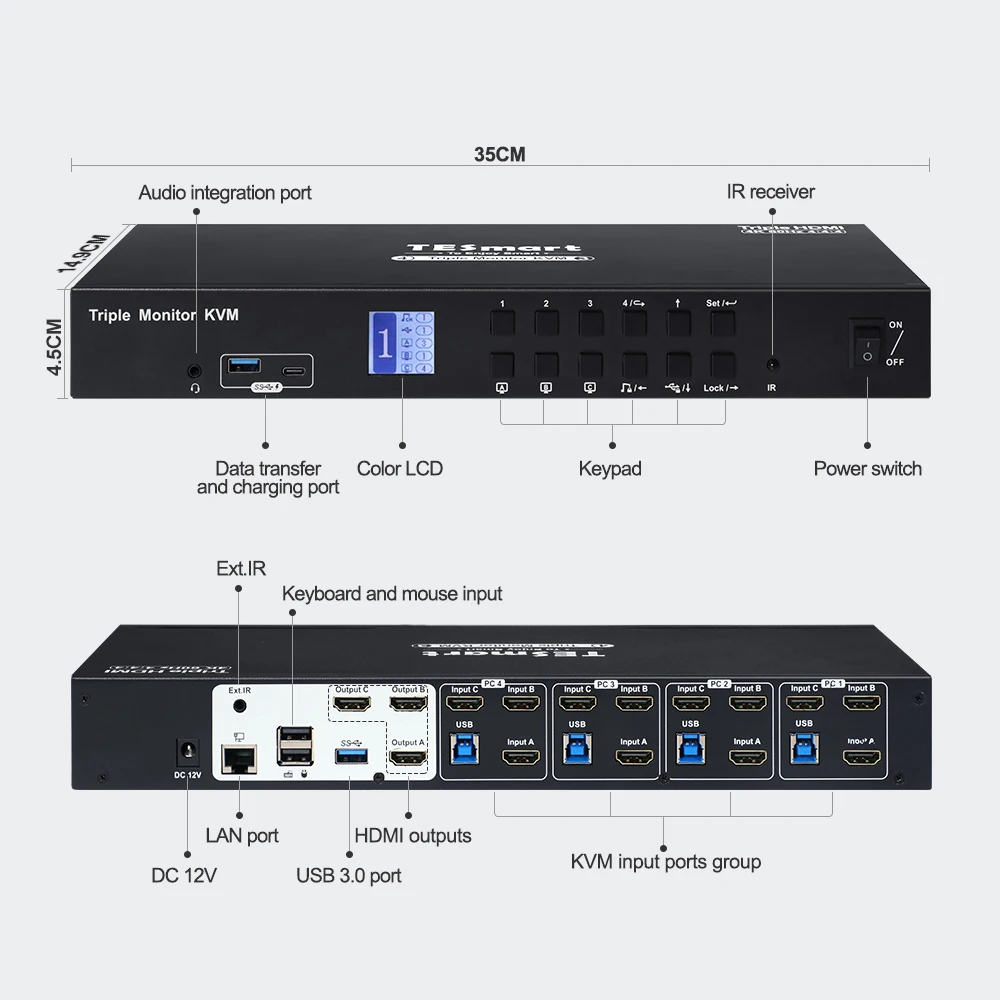

Specification
HKS0403A1U | 4x3 HDMI KVM Switch | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Technical: | ||||
Resolution | Up to 3840x2160@60Hz 4:4:4 | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 1~3600 Seconds | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Product dimensions | 350 (L) x 149 (W) x 44.5(H) mm | |||
Item weight | 1700g | |||
