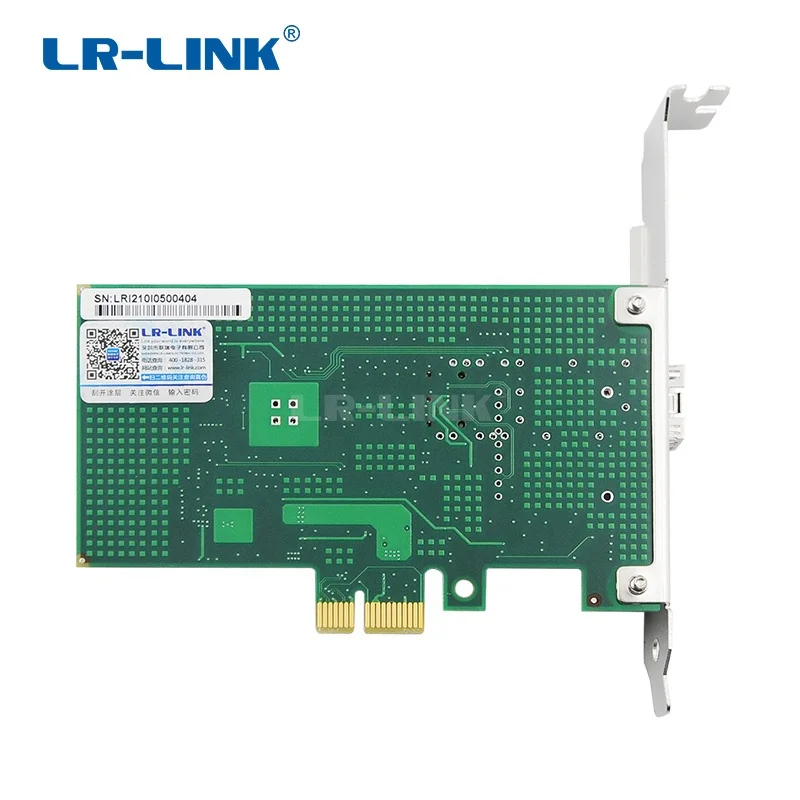

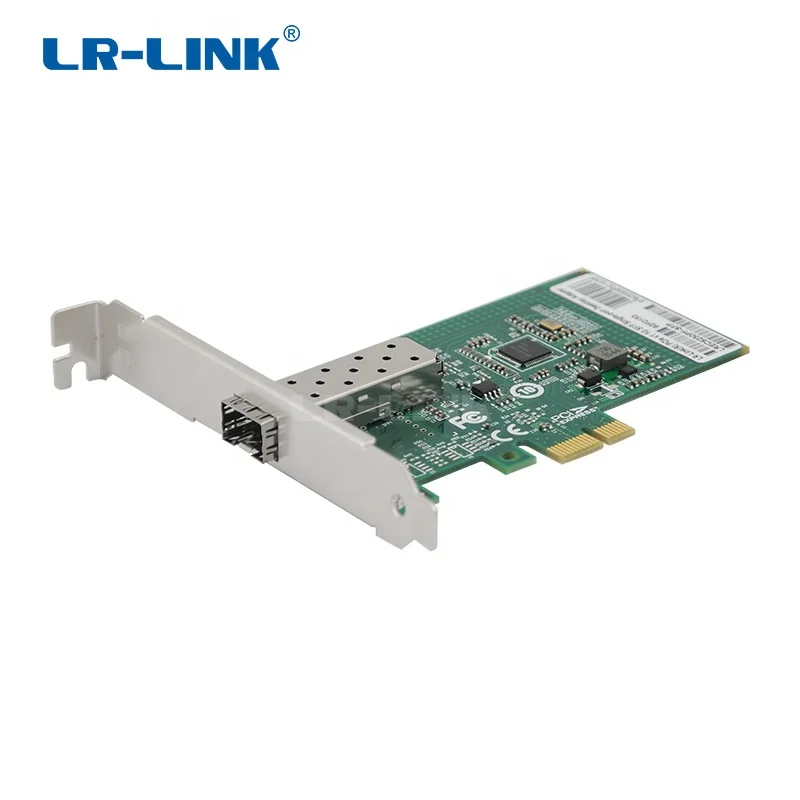

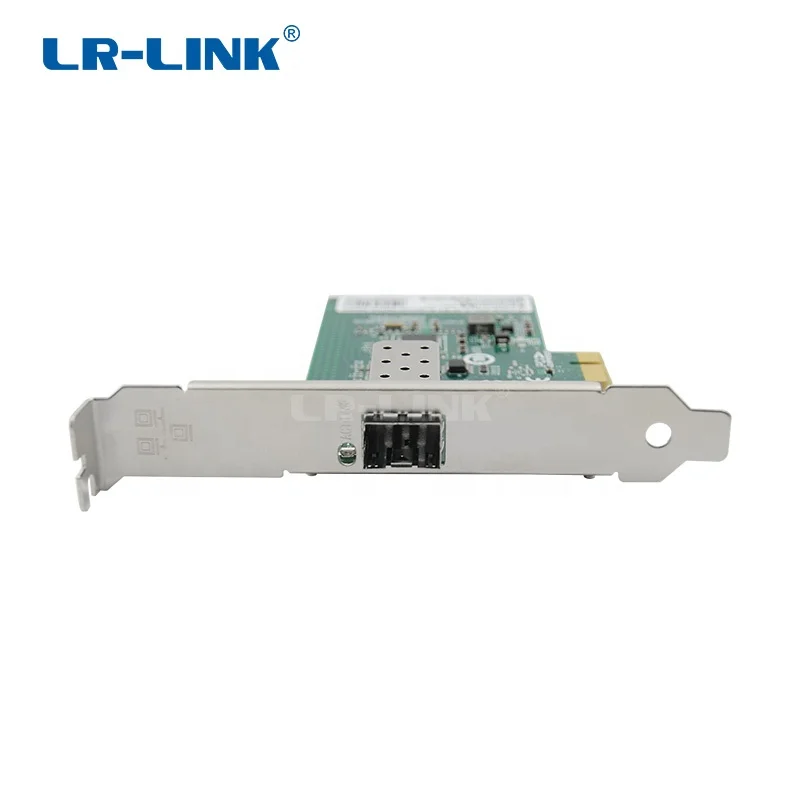

LR LINK LREC6230PF SFP 1000Base SX LX PCIe X1 SFP Port Network Interface Card (1 x SFP)
LR-LINK LREC6230PF-SFP 1000Base-SX-LX PCIe X1 SFP Port Network Interface Card (1 x SFP)
LR-LINK LREC6230PF-SFP 1000Base-SX-LX PCIe X1 SFP Port Network Interface Card (1 x SFP)
LR-LINK LREC6230PF-SFP 1000Base-SX-LX PCIe X1 SFP Port Network Interface Card (1 x SFP)
LR-LINK LREC6230PF-SFP 1000Base-SX-LX PCIe X1 SFP Port Network Interface Card (1 x SFP)

LR LINK LREC6230PF SFP 1000Base SX LX PCIe X1 SFP Port Network Interface Card (1 x SFP)

Share on (1600873105644):


Price:

Quantity:


Product Overview

Description



LR-LINK Brand LREC6230PF-SFP 1G Fiber Optic Network Card PCI Express x4 SFP Network Cards Intel I210 Stock Nics




LREC6230PF/ LREC6230PF-LX /LREC6230PF-BD /LREC6230PF-SFP/6230PF-LC is a PCIe x1 2.1 1Gbps Single Port Ethernet Fiber Desktop Adapter based on Intel I210 chipset, and is compatible with PCIe x4,x8,x16 slot. System I/O is no longer the bottleneck of network applications. In the networking connections, PCI Express dedicated input /output (I / O) bandwidth to ensure the network card to
use the superior performance without taking up bus bandwidth.
The Desktop Adapter has high performance, high stability, high quality and very good compatibility, compatible with all brands of computers and fiber switches. This adapter is the ideal solution for deploying high-performance fiber-to-the-desktop (FTTD) applications and network security industry.




Single Port 1GBE adapters
PCI Express (PCIe) v2.1, 2.5 GT/s, x1 lanes
PXE,SCSI boot
IEEE 802.3az 1GEthernet Specification Compliance
Data Plane Development Kit (DPDK) support
Low profile and full-height bracket




Specifications
Controller
Intel I210
Bracket
Full-height & half-height bracket
Power Consumption
1W
Bus Type
PCIe v2.1(2.5GT/s & 5.0GT/s) x1
System Support
Windows Server 2012 R2
Windows Server 2012
Windows 8
Windows Server 2008 R2
Windows 7
Windows Server 2008
Windows Vista
Linux Stable Kernel version 3.x, 2.6,x
Red Hat Enterprise Linux 5, 6 SUSE Linux Enterprise Server10, 11
FreeBSD9
VMware ESX/ESXi
Data rate per port
1000MbE
Connector
1*SFP


Technical Features
Network standard
IEEE802.3(1000BASE-SX,1000BASE-LX, 1000BASE-ZX),LC
iSCSI
No
WoL
No
DPDK
Yes
PXE
Yes
FCoE
No
Jumbo Frames
Yes


Environment Features
Operating Temperature
0 ℃ to 55 ℃ (32℉ to +158℉)
Storage Temperature
-40 ℃ to 70 ℃ (-40℉ to 158℉)
Storage Humidity
Maximum: 90% non-condensing relative humidity at 35 ℃


Physical Features
Size(mm)
112.1*120*21


Order Information
P/N
Description
LREC6230PF-SFP
Maximum: 90% non-condensing relative humidity at 35 ℃




















1. Who are we?
We are based in Guangdong, China, is a Design-R&D-Production-Sales-in-one National High-tech Enterprise.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
fiber optic network card,server network card,RJ45 optic card,OCP optic card,ethernet card,PoE frame grabber card

4. Why should you buy from us not from other suppliers?
Independent R&D, Own factory, focus on NIC 16 years ISO 9001:2015 Quality Management Certificate Integrity, Pragmatism, Innovation and Win-win Over 30 intellectual properties and 300 products PCIE Network Adapter

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Chinese PCIE Network Adapter
