Stationary Fixed Gas Monitors Gas Transmitter S400

Product Overview

Description

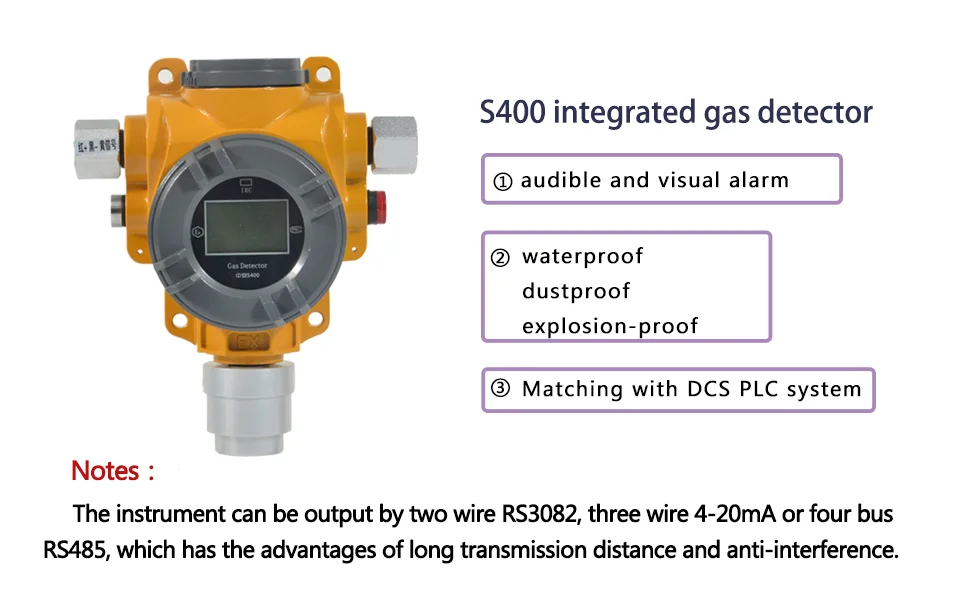

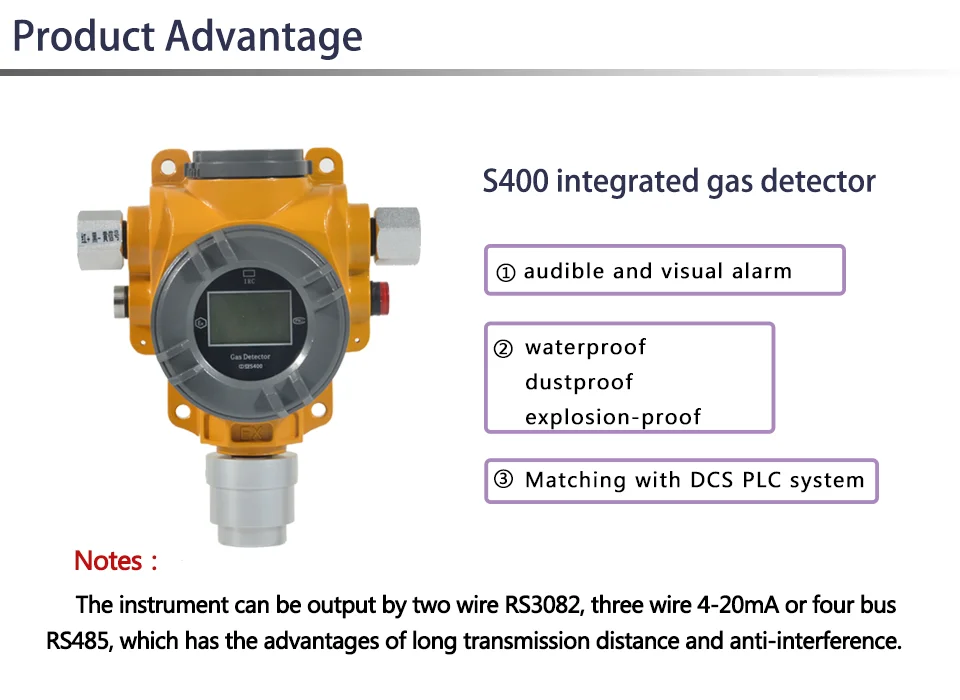

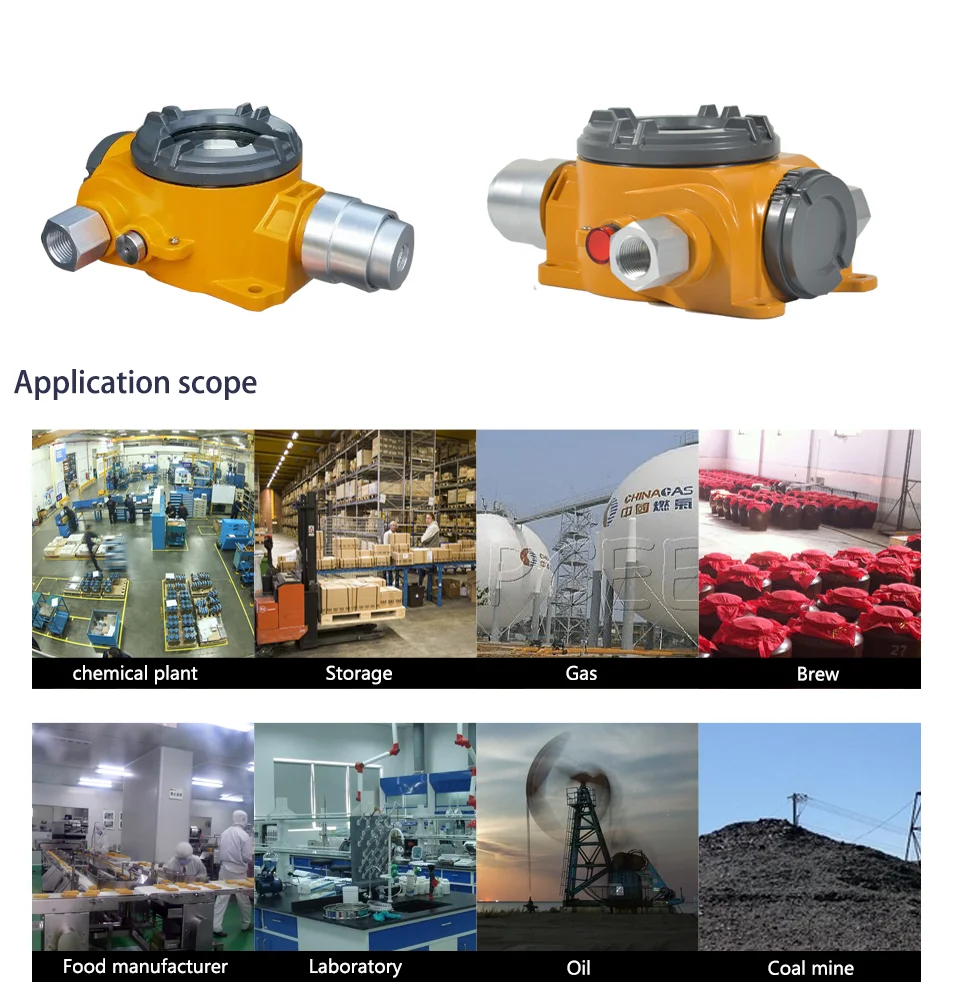

S400 point-type four gas detector



Product Introduction:

ZhongAn S400 is an intelligent multi-function gas detector, (Different gases can be combined into four-in-one or five-in-one)This detector is made of high performance detection components and advanced technology. The product has the functions of on-site buzzing indicator, on-site flashing indicator, and real-time display and monitoring of on-site gas concentration.

ZhongAn S400 multi-function point type gas detector can convert the gas concentration signal in air into electric signal display and remote transmission. The output mode of RS485 based on two-wire system or four-wire system has the characteristics of long transmission distance and good anti-interference.



Product Parameters

S400 multi-function point-type gas detector
Detection principle	catalytic/ Electrochemical
Gas detected	lel/o2/co/h2s   Or other gases are optional
Sampling mode	Natural diffusion
Measurement error	Full scale±3%
Status indication	LCD
Output signal	RS485;
Debugging mode	Controller
Response time	<20s
Recovery time	<30s
Environment temperature	(-20~50)℃(indoor)     (-20~60)℃(outdoor)
Power	DC24V/36V±10%
Relative humidity	<95%
Explosion proof grade	Ex d IIC T6 Gb
Explosion proof number	CNEx16.2867
Ingress protection	IP66
Weight	≤2000g
Measurement number	No. 2016C243-41
Size	(22×19×9)cm
