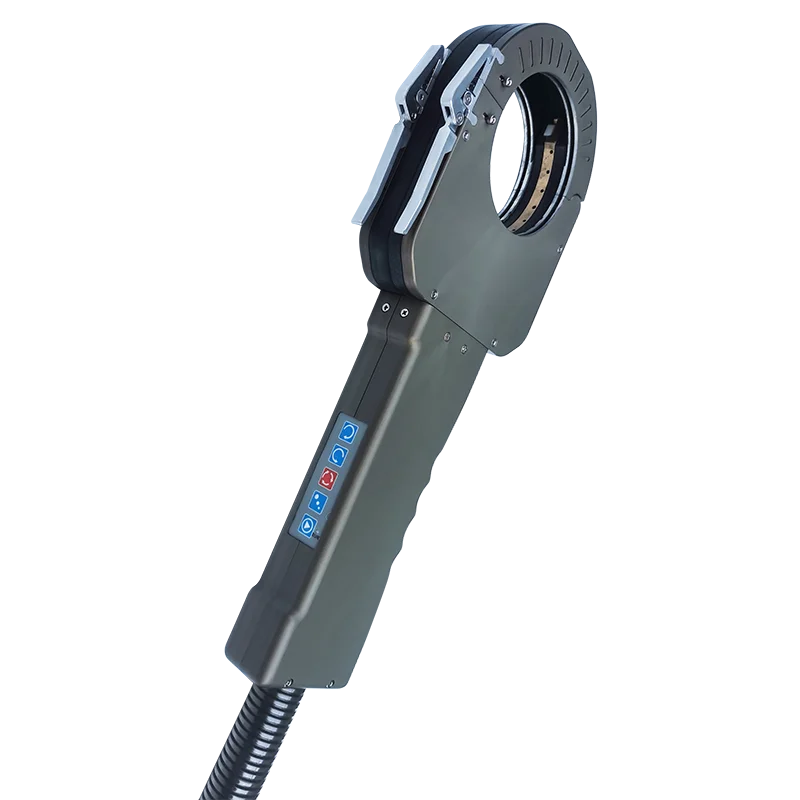

10 76.2mm tube welding thickness 3mm Closed welding machine tig welding machine
- Category: >>>
- Supplier: Shanghai Xindun Automation Technology Co. Ltd.
Share on (1600873166403):
Product Overview
Description
Products Description
Orbital welding is a specialized area of welding whereby the arc is rotated mechanically through 360° (180 degrees in double up welding) around a static workpiece, an object such as a pipe, in a continuous process. The process was developed to address the issue of operator error in gas tungsten arc welding processes (GTAW), to support uniform welding around a pipe that would be significantly more difficult using a manual welding process, and to ensure high quality repeatable welds that would meet more stringent weld criteria set by ASME. In orbital welding, computer-controlled process runs with little intervention from the operator.

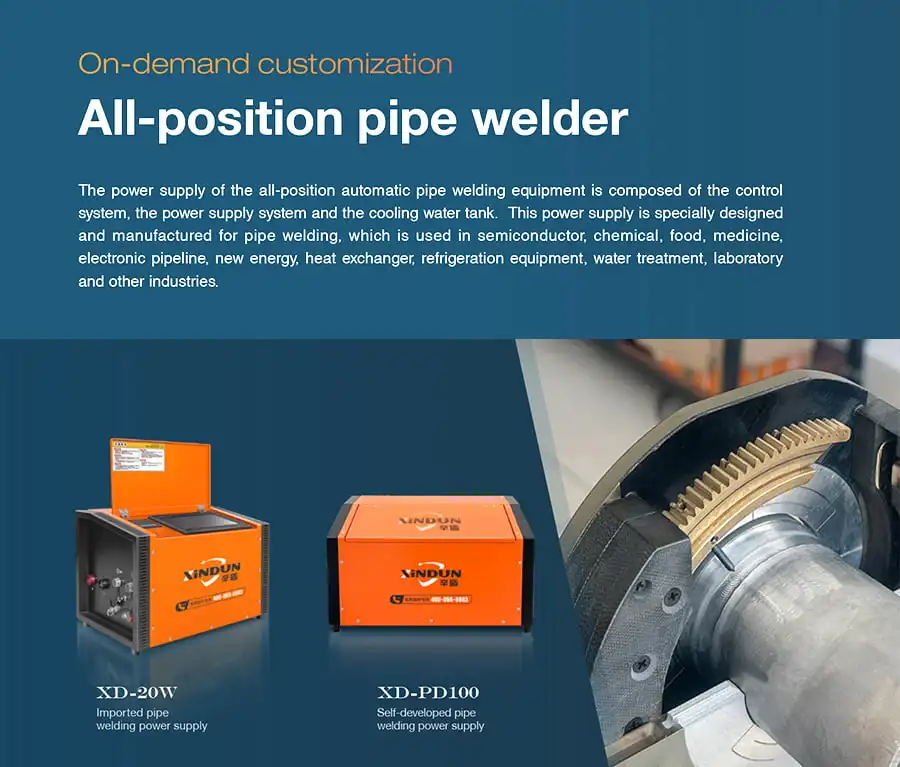

All - position automatic pipe welding equipment

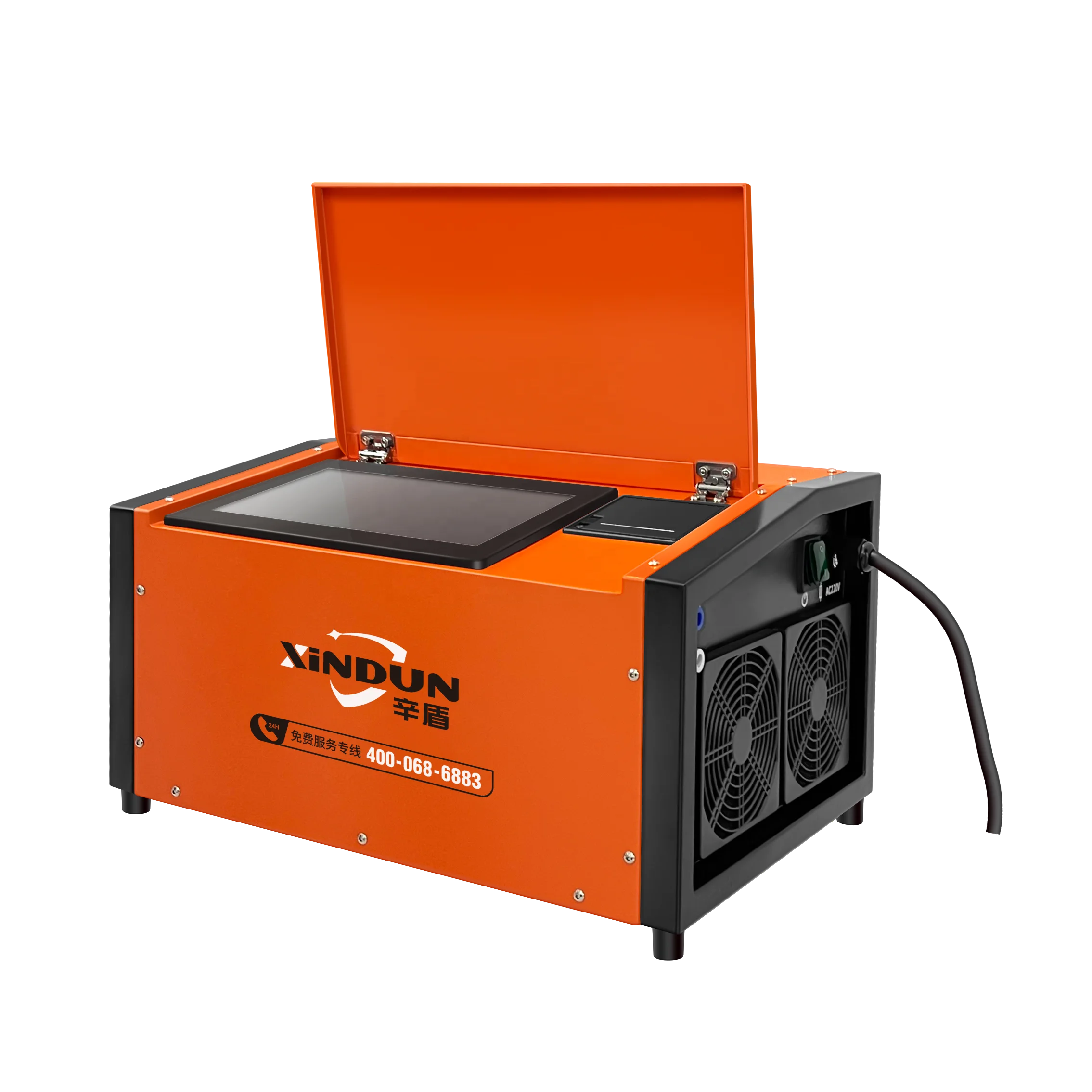

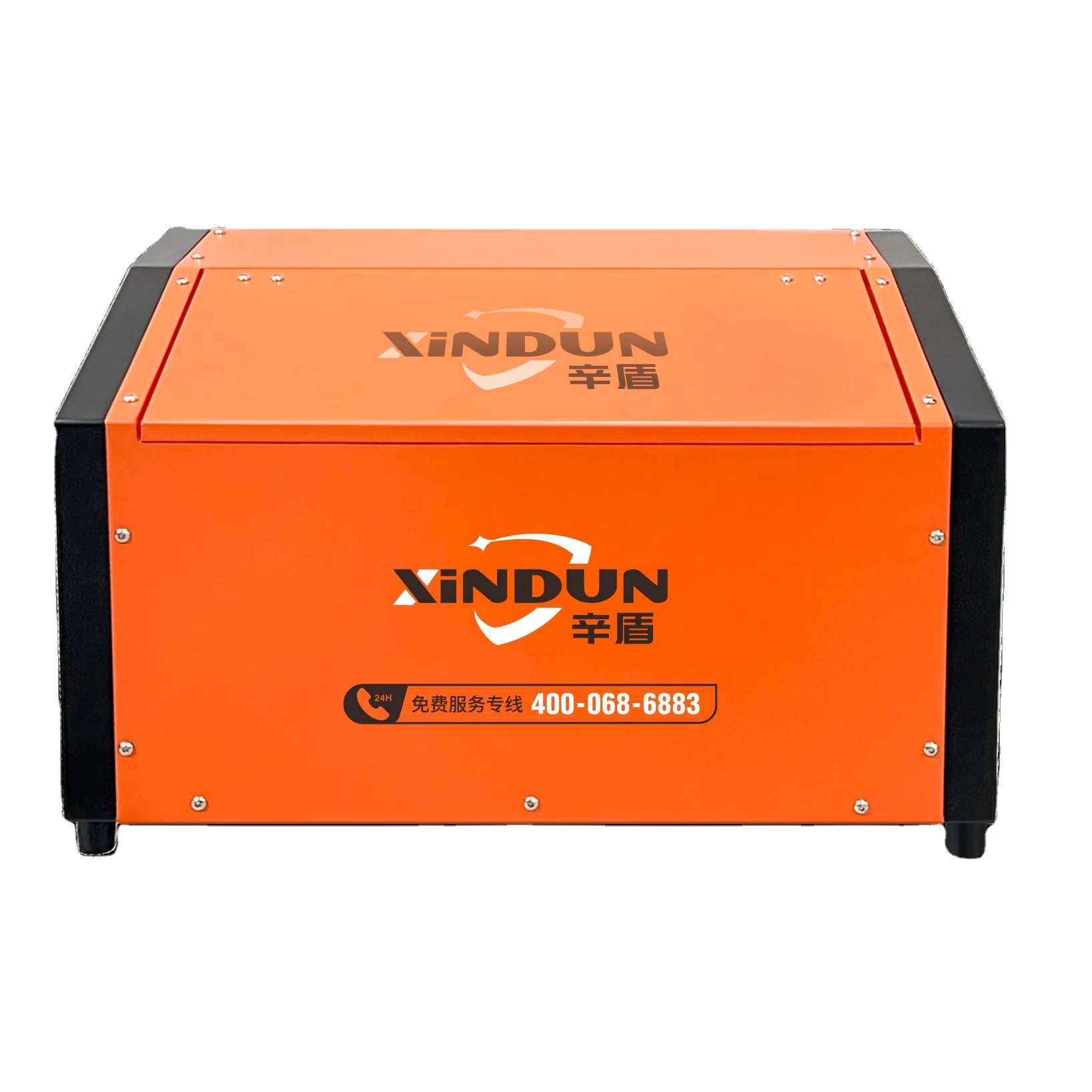

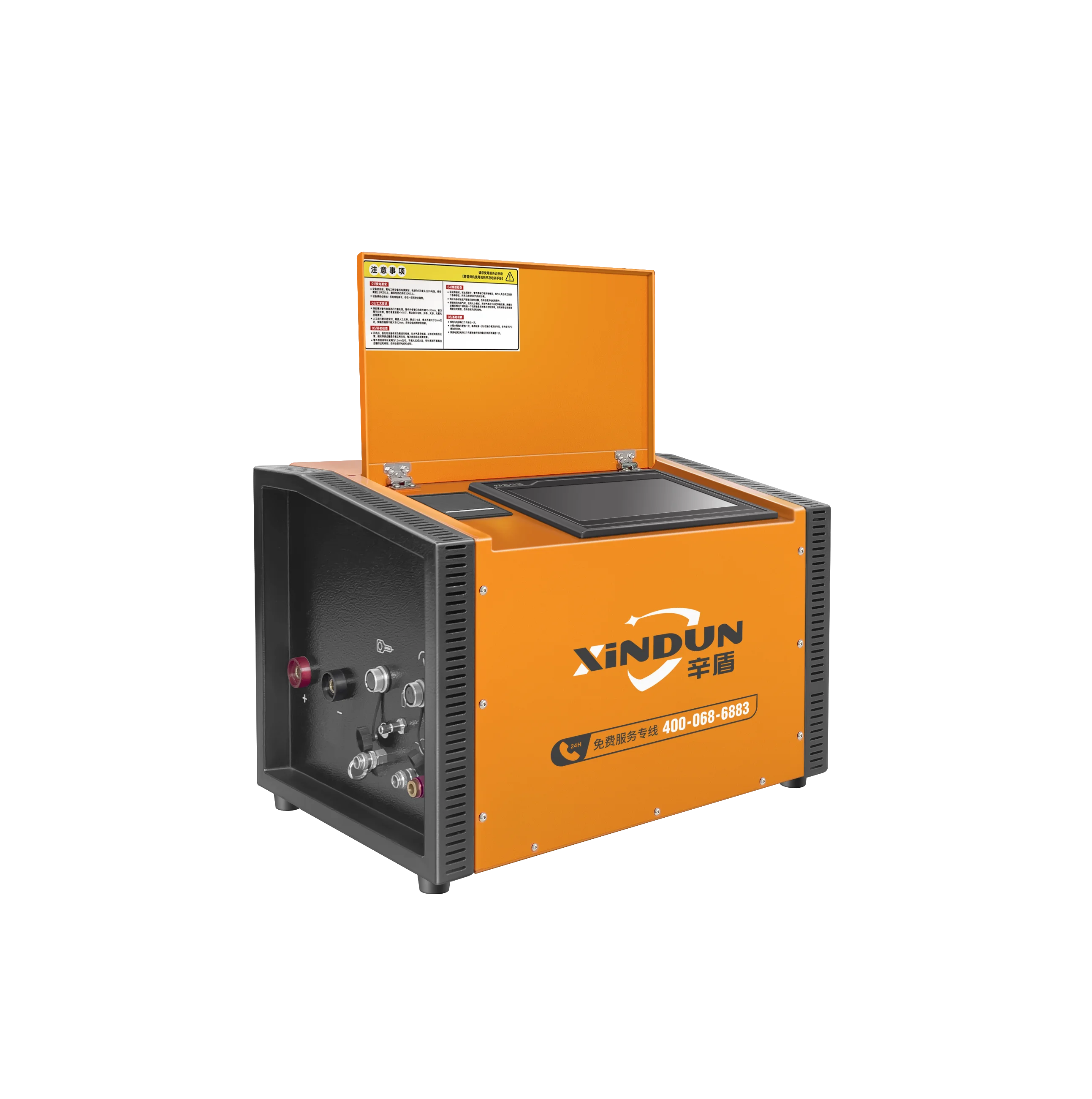

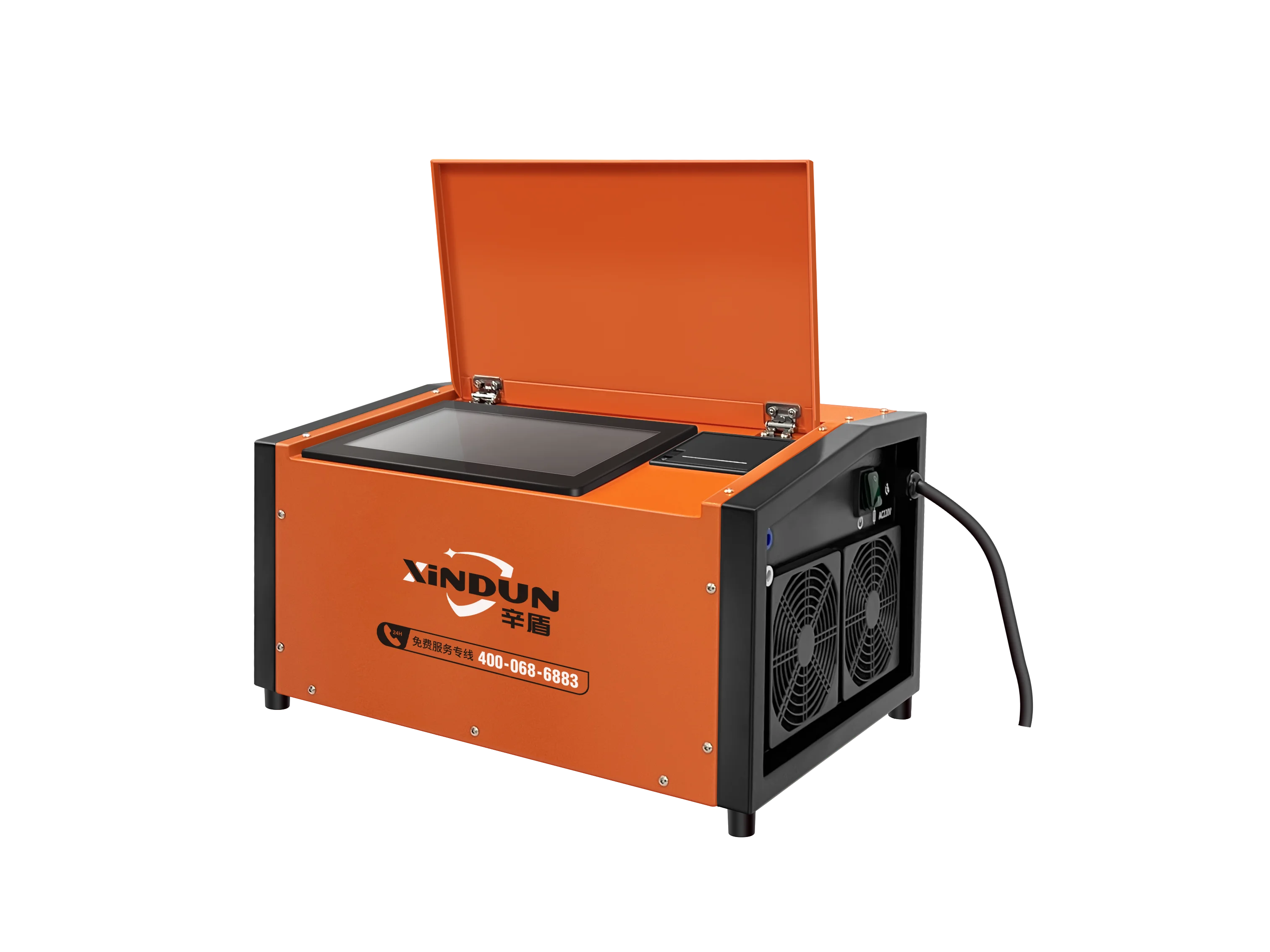

XD-20W digital programmed welding power supply is composed of control system, power supply system and cooling water tank. It has the characteristics of digital, easy operation and reliability. The control system adopts an open and up gradable operating system to centrally set, store and synchronously control all functional parameters in the all-position welding. This power supply is specially designed and manufactured for thin-walled pipe/pipe welding. Mainly used in semiconductor, chemical, food, medicine,electronic pipeline and other industries.The overall design tends to be convenient,energy saving, intelligent, human-machine interaction. Reduced volume and weight by one third compared with the original split type. The integrated design is oriented to the construction with small space on sit.
Our Advantages
Product advantages | 5、Real-time welding monitoring, simple and direct. | |
1、10-inch color screen, reasonable graphic design, in line with ergonomic operation habits | 6、Light weight, makes the operation more efficient, more safety when working at height. | |
2、Siemens PLC control system, to ensure the rapid operation of welding process parameters, accurate and reliable. Low maintenance cost in later stage. | 7、Welding torch design exclusive patent technology can ensure the quality of welding. | |
3、Double cooling system, greatly improve the welding torch temporary load rate | 8、With one key printing and automatic printing functions, built-in micro free maintenance printer. | |
4、Accumulated welding data for many years, and made direct call by summarizing big data. | 9、The core components imported from Germany ensure the stability of the equipment. | |
5、Real-time welding monitoring, simple and direct. | ||

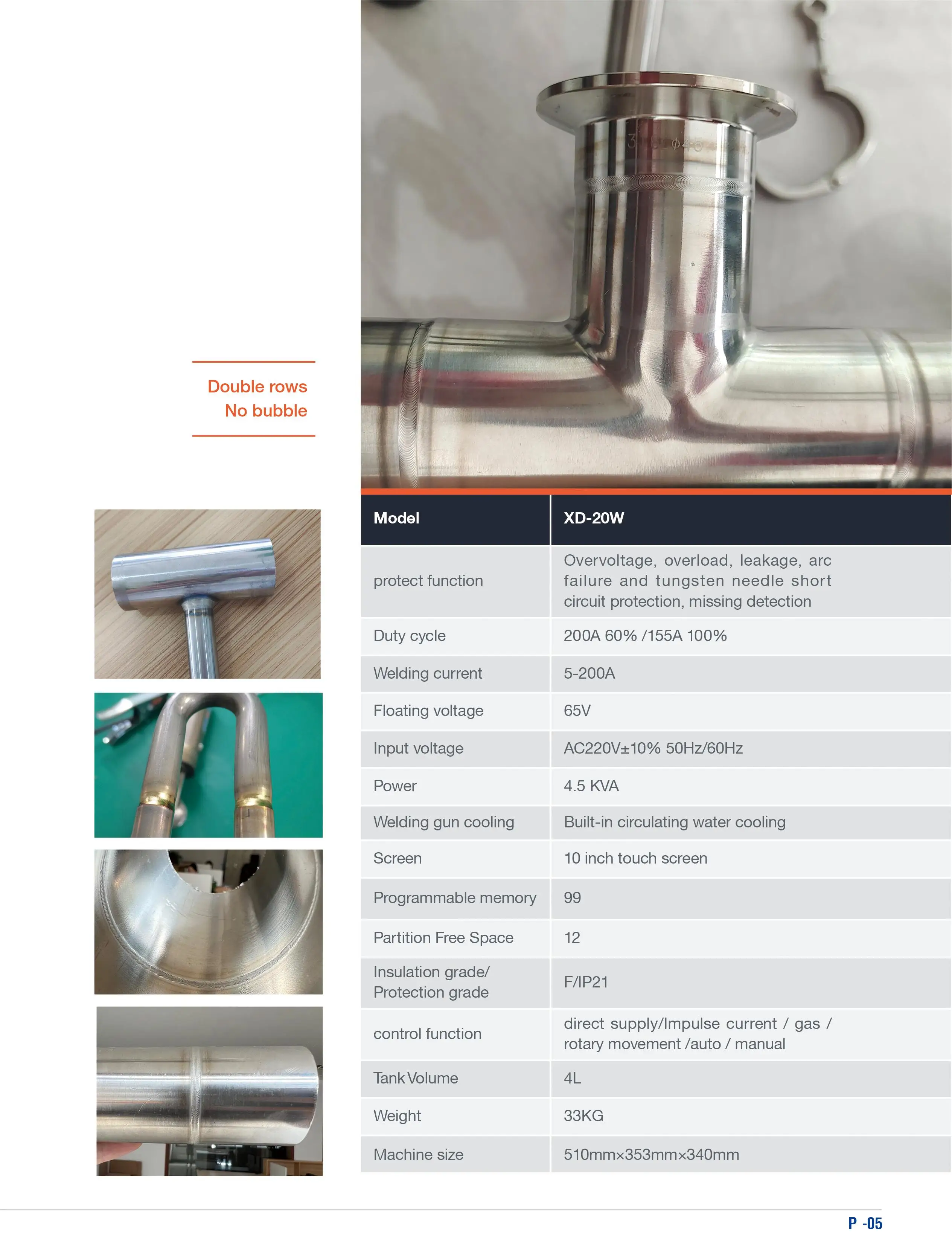

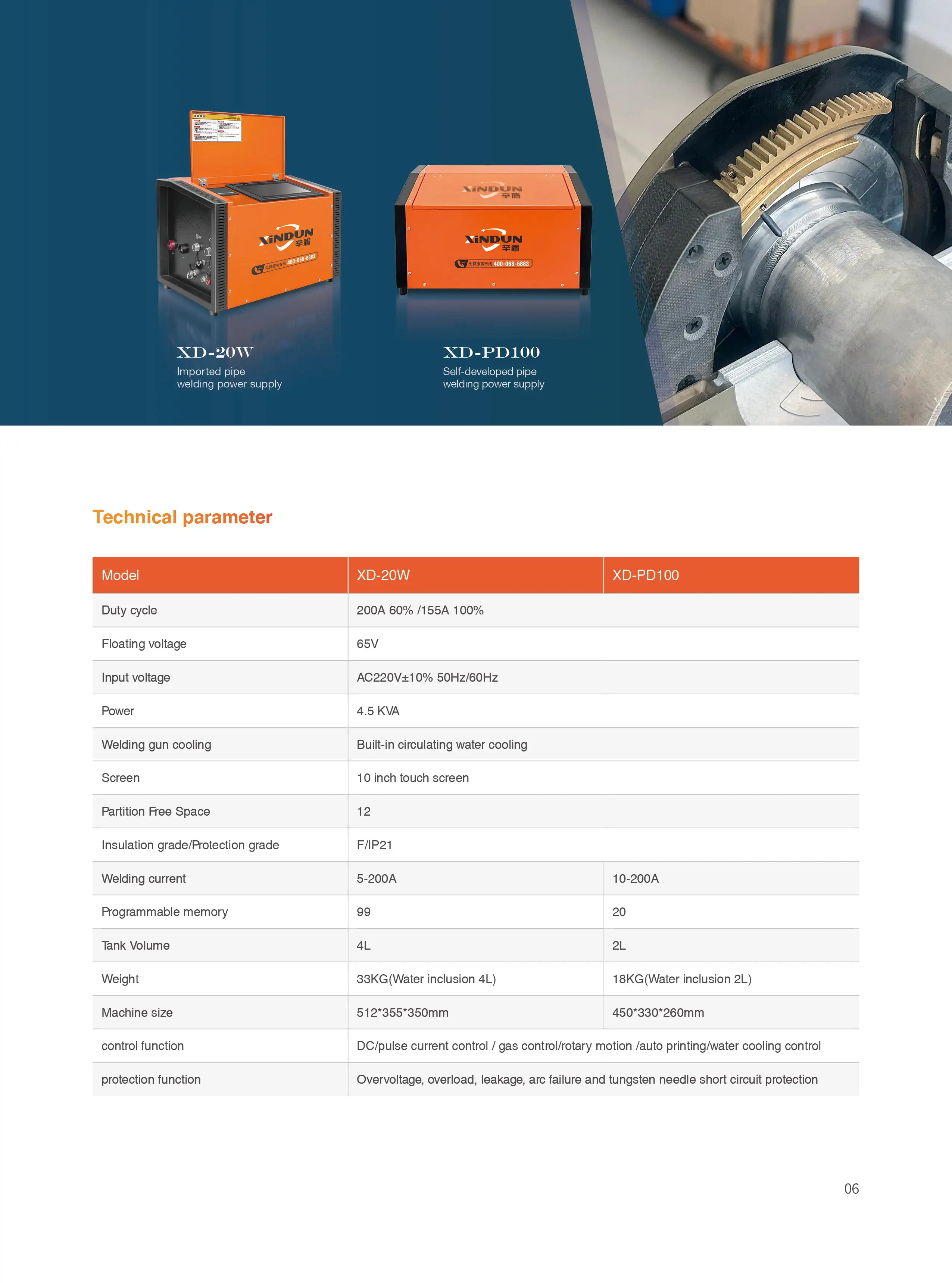

Machine Parameters

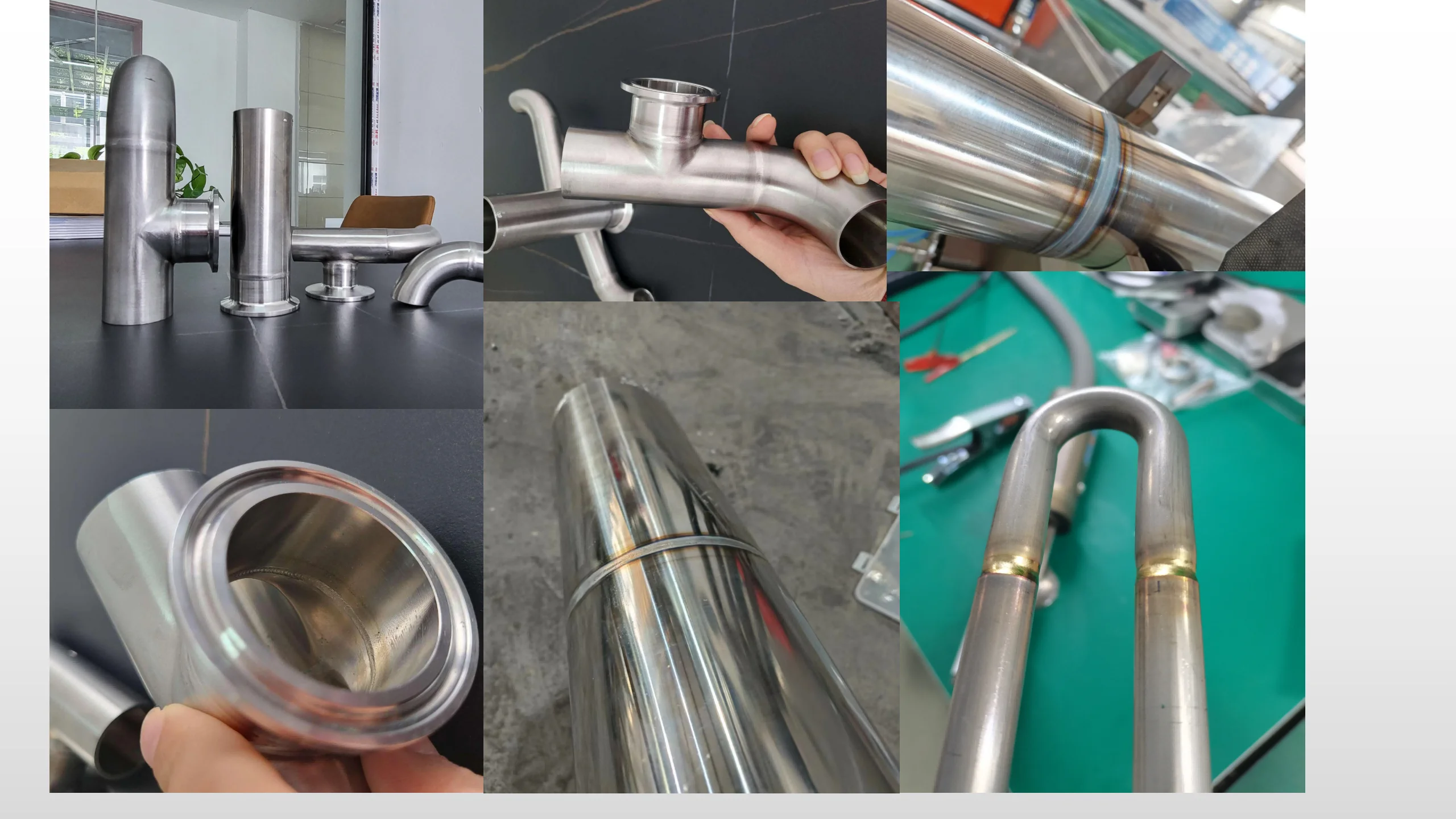

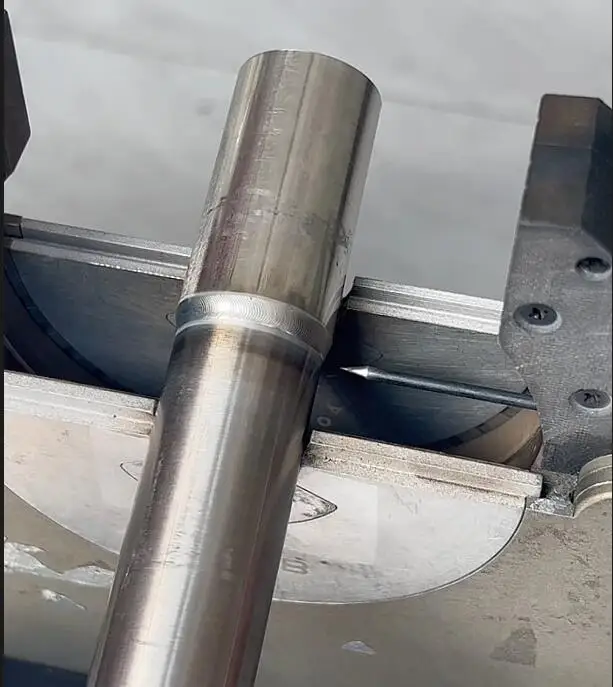

Welding Effects
