Product Overview

Description



Product description


Features:
1.Rack stainless steel structure, durable corrosion.
2.Dual-channel detection, the two signals detected Ferrous, non-ferrous,
stainless steel metals.
3.Good stability, strong anti-interference, can be placed in a larger place vibrations.
4.Can support production lines or automatic control devices.
5.Have a strong ability to inhibit the effect of the product on the waste material, high temperature materials etc, such great
material also has high sensitivity

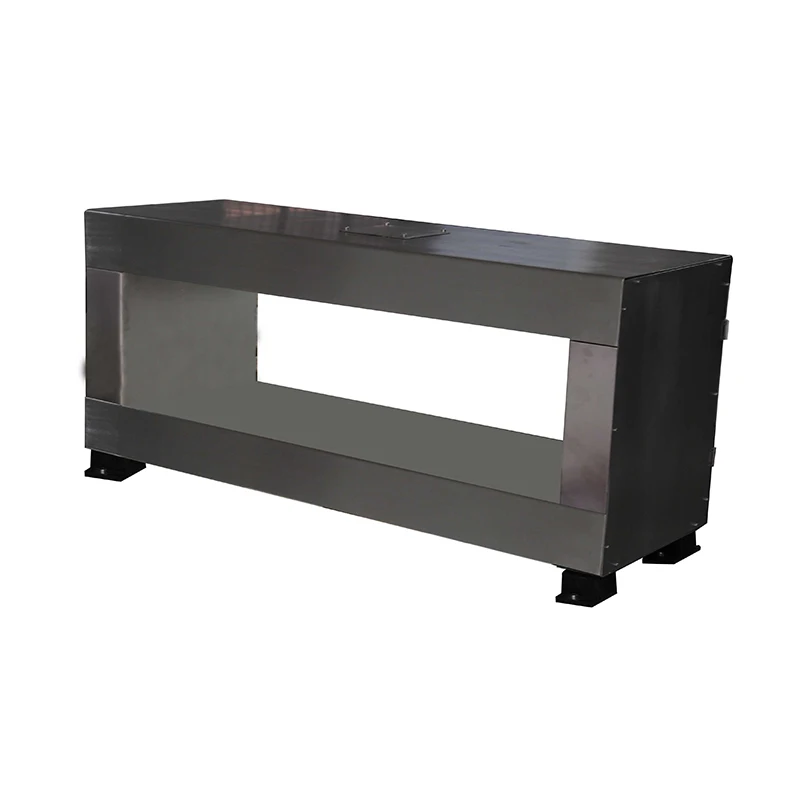

6.The detector head can be split, easy to install.


Technical specifications
Main material: stainless steel 304.
Power supply: 220/380V 50Hz/60Hz,power 90/120W.
Belt speed:10 to 40 m/min(adjustable).
Alarm system: sould and light alarm, output signal


Table of Sensitivity


Sensitivity table
With
30cm
35cm
40cm
45cm
Height
fe
sus
fe
sus
fe
sus
fe
sus
Height(cm)
5
0.5
1.2
0.5
1.2
0.5
1.2
0.5
1.2
8
0.6
1.5
0.6
1.5
0.6
1.5
0.6
1.5
10
0.8
1.8
0.8
1.8
0.8
1.8
0.8
1.8
12
0.8
1.8
0.8
1.8
0.8
1.8
0.8
1.8
15
1.0
2.0
1.0
2.0
1.0
2.0
1.0
2.0
20
1.2
2.5
1.2
2.5
1.2
2.5
1.2
2.5
25
1.5
3.0
1.5
3.0
1.5
3.0
1.5
3.0
30
1.8
3.5
1.8
3.5
1.8
3.5
1.8
3.5
35
2.0
4.0
2.0
4.0
2.0
4.0
2.0
4.0
40
2.2
4.5
2.2
4.5
2.2
4.5
2.2
4.5


Sensitivity table
With
50cm
55cm
60cm
65cm
Height
fe
sus
fe
sus
fe
sus
fe
sus
Height(cm)
5
0.5
1.2
0.6
1.5
0.6
1.5
0.6
1.5
8
0.6
1.5
0.8
1.8
0.8
1.8
0.8
1.8
10
0.8
1.8
1.0
2.0
1.0
2.0
1.0
2.0
12
0.8
1.8
1.0
2.0
1.0
2.0
1.0
2.0
15
1.0
2.0
1.2
2.5
1.2
2.5
1.2
2.5
20
1.2
2.5
1.5
3.0
1.5
3.0
1.5
3.0
25
1.5
3.0
1.8
3.5
1.8
3.5
1.8
3.5
30
1.8
3.5
2.0
4.0
2.0
4.0
2.0
4.0
35
2.0
4.0
2.2
4.5
2.2
4.5
2.2
4.5
40
2.2
4.5
2.5
5.0
2.5
5.0
2.5
5.0


Remark: the above data is empty machine sensitivity. The real sensitivity will be lower on condition of different products being tested.






The "Balanced Coil" System

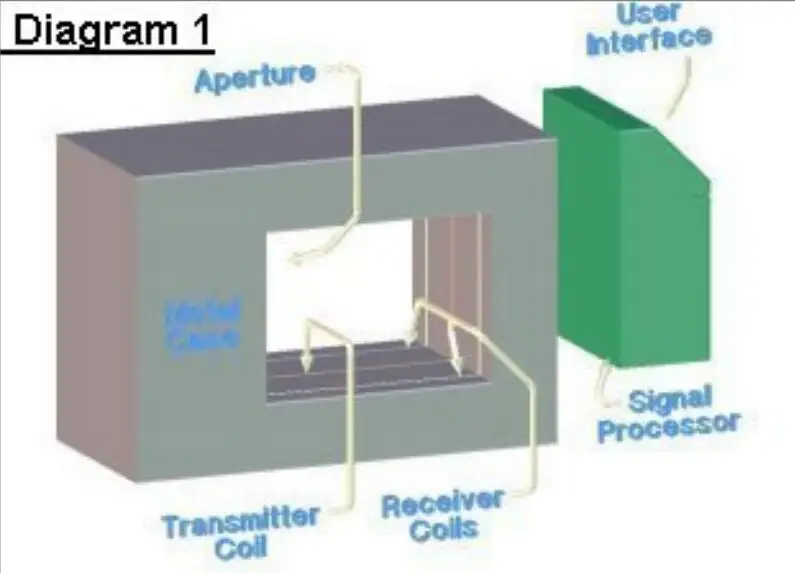

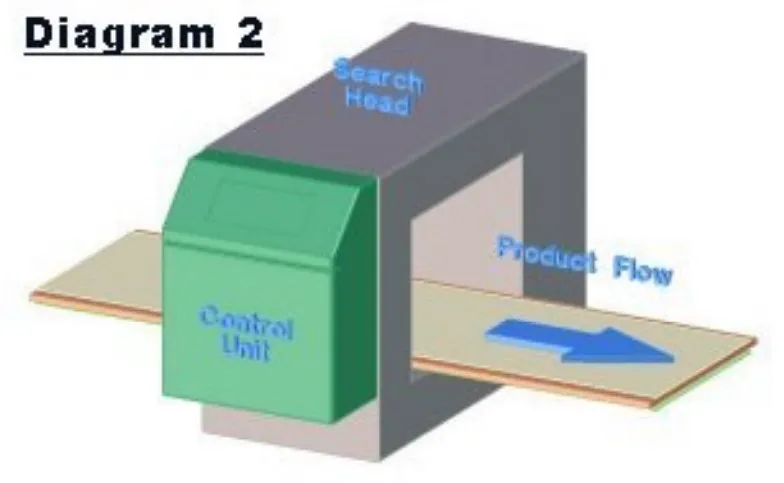

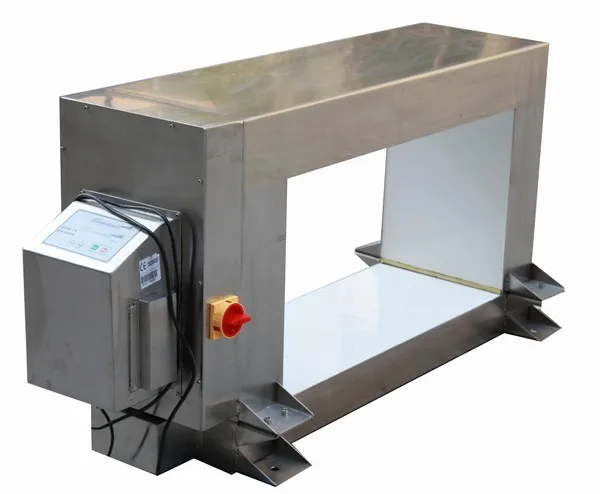

How it Works All general purpose metal detectors work essentially in the same way, although for optimum performance you should select a metal detector which has been designed specifically for your application. Construction techniques ensure that independent mechanical movement of the search head's components, and the ingress of water and dirt, are prevented. "For optimum performance you should select a metal detector which has been designed specifically for your application" As you will see in diagram 1, the typical detector is encased in a metal box. This houses the coil components, and provides a shield to protect them. The aperture -the tunnel through which the products pass - is lined with a non-metallic material (usually plastic), which provides an hygienic environmental seal for the internal components.

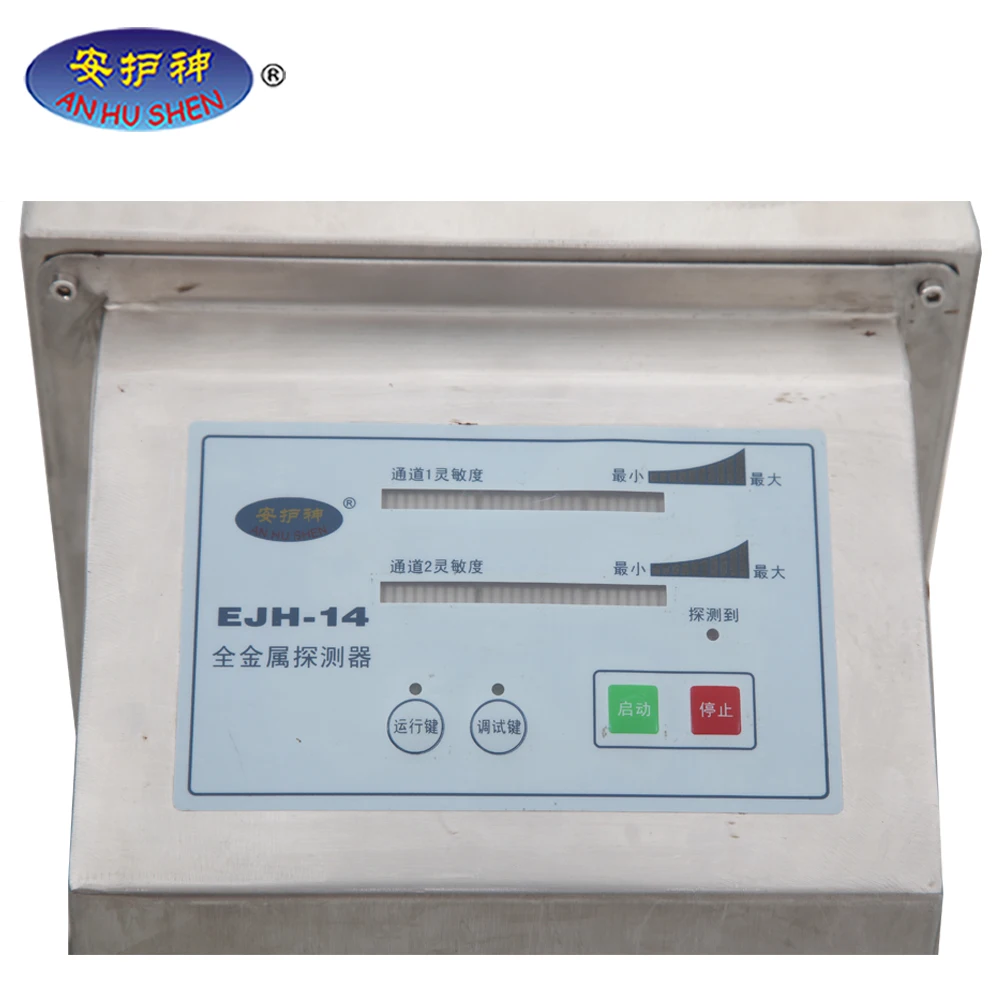

The ratio of the aperture size to the size of the product is important, to achieve optimum performance. The sensitivity of the detector is measured at the geometric centre of the aperture, which is the least sensitive point. This is inversely proportional to the size of the aperture - in particular, to the smaller of the two sides. In all, there are three coils in the system. The transmitter coil generates a field, rather like a radio transmitter. This process, designed to make a metal particle identifiable,is called "illuminating" the metal particle. The second and third coils are receivers, connected together to detect the presence of an "illuminated" metal particle. The response is related to the conductive and magnetic properties of the metal. Control and the Signal Processor Controls can be mounted on the search head itself, or remotely, depending on the design and the application of your system. Where the controls are mounted does not affect the performance of the system. The signal processor is highly sophisticated. When a typical metal particle is "illuminated", the signal value at the receiver coils is one millionth of a volt. First this is amplified by a highperformance RF amplifier, then modulated down to low frequency. This provides amplitude and phase information. Finally the signals are digitised and digitally processed, to optimise the sensitivity.
