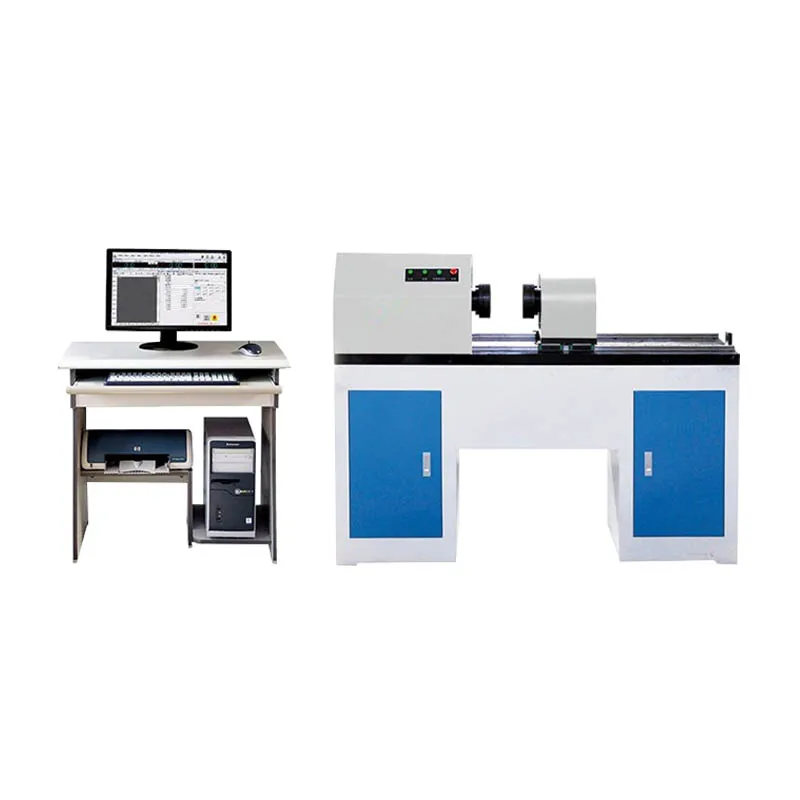

High Quality Material Metal material torsion tensile testing machine Price
- Category: >>>
- Supplier: Jinan Nake Test Equipment Co. Ltd.
Share on (1600873606774):
Product Overview
Description

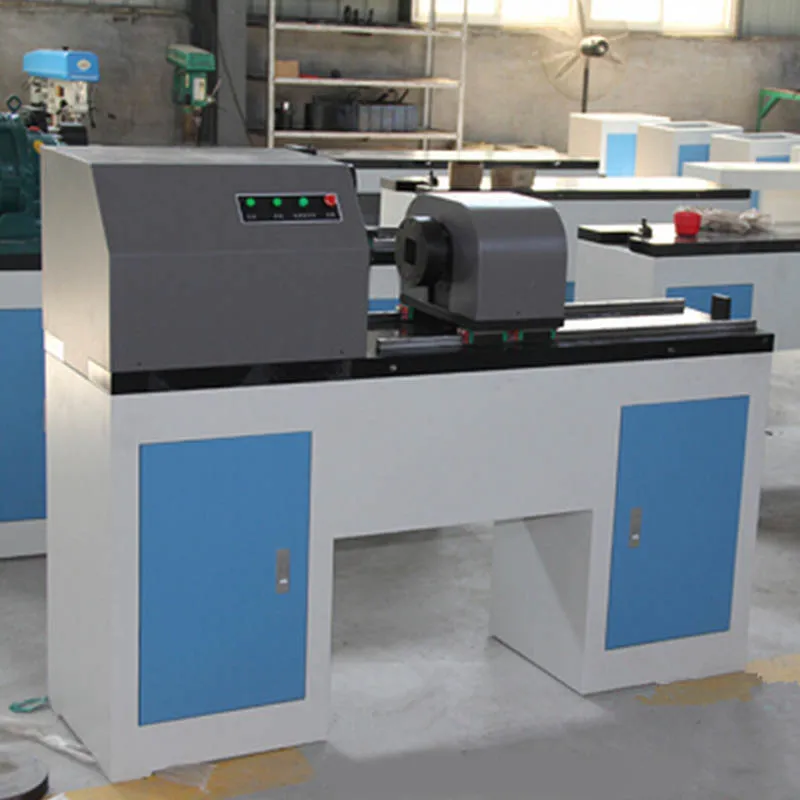

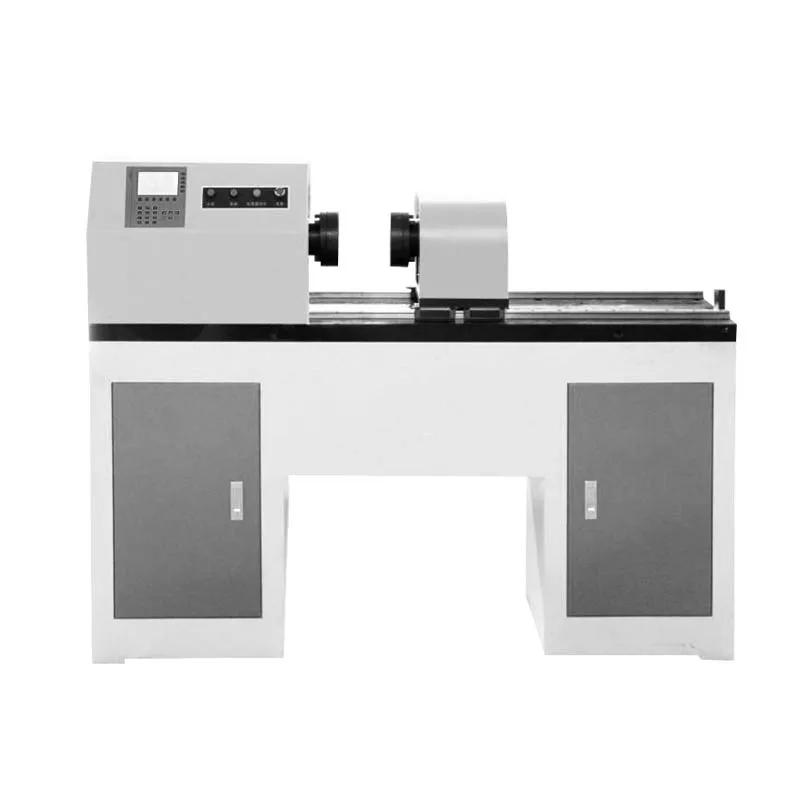

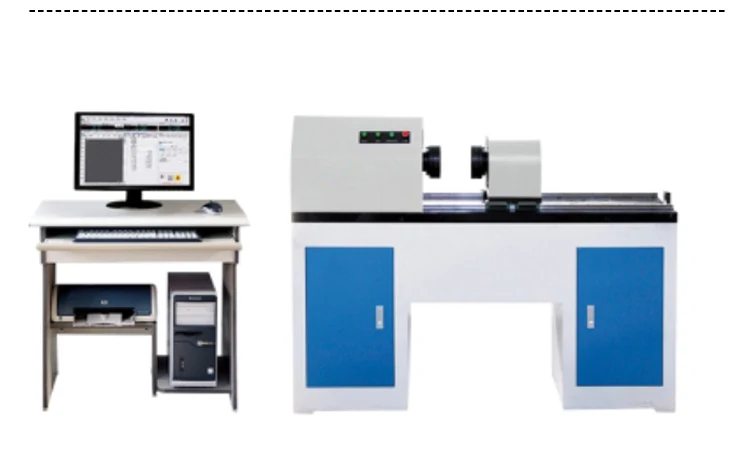

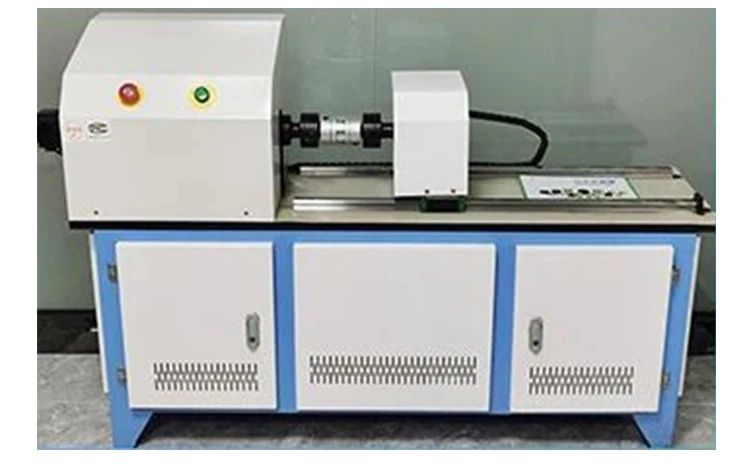

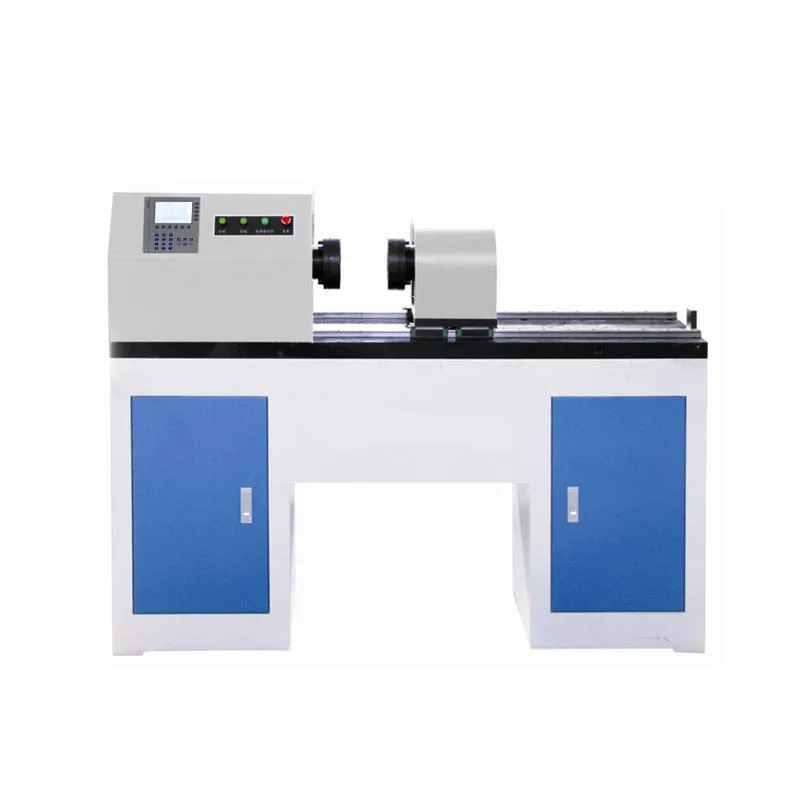

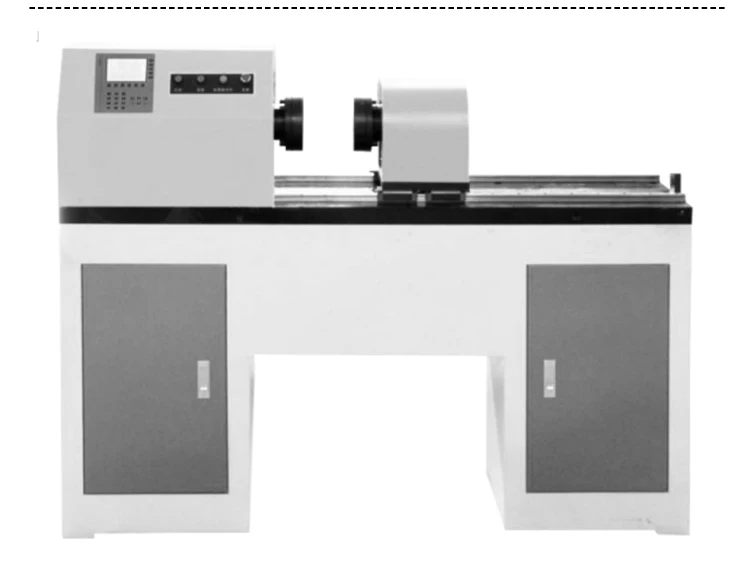

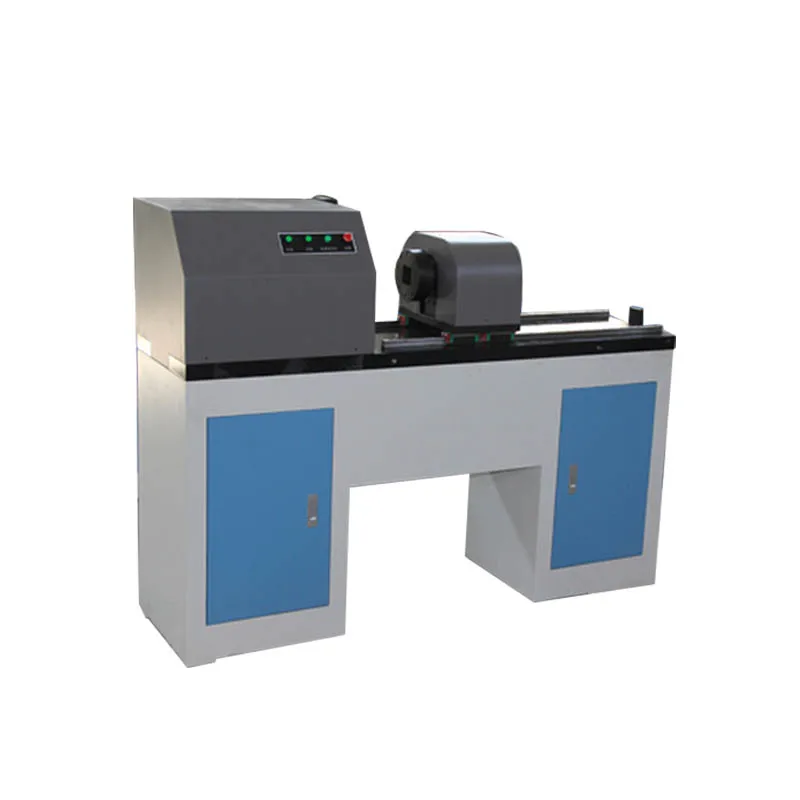

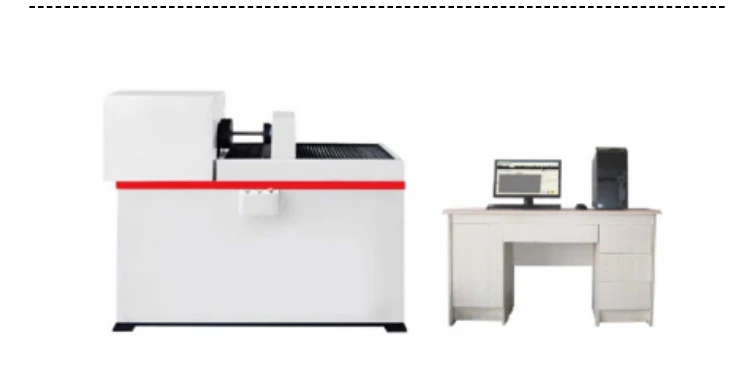

NKNZ series torsion testing machine torsion testing machine is composed of loading system, transmission system, digital data acquisition and processing system and computer measurement control display system. It is suitable for static mechanical performance testing of various components such as drive shafts, half shafts, etc. and screw torsional mechanical performance testing. The machine adopts horizontal structure. Computer screen display, digital data acquisition control system and all-digital AC servo system form closed-loop control. It adopts precision reducer for transmission, which has the characteristics of uniform loading, stable, no impact phenomenon, and accurate data acquisition and control.
The main parameters | Model | NKNZ-200 | NKNZ-500/1000 | NKNZ-3000 | NKNZ-5000 | |||
Maximum torque (N.m) | 200 | 500、1000 | 3000 | 5000 | ||||
Torque measurement range | 1%～100%FS (full scale) | |||||||
Testing machine level | better than level 1 | |||||||
Relative error of torque indicating value | ±1% | |||||||
Torque resolution | 1/300000 of torque | |||||||
Torsion angle measurement range | 0º-9999º | |||||||
Relative error of torsion angle indication | ±1% | |||||||
Torsion angle small resolution | 0.01º | |||||||
Torsion speed | 3.6-1080º/min stepless speed regulation | |||||||
Torsional speed relative error | Within ±1.0% of the set value | |||||||
Collet spacing（mm） | 500 | |||||||
Test rotation direction | uni/bidirectional | |||||||
Testing machine spindle center height（mm） | 100 | 170 | ≥120 | ≥120 | ||||
Specimen diameter | Do according to customer requirements | |||||||
Voltage | 0.4 | 0.75 | 2 | 4 | ||||
Voltage | 220V 50Hz /380V 50Hz | |||||||
Reliable Testing:
Utilizing advanced technology and precise sensors, the metal material testing machine performs accurate and reliable tests to meet quality control and quality inspection requirements.
Multiple Testing Capabilities
Supports mechanical performance testing of various metal materials, such as tension, compression, bending, hardness, etc., providing comprehensive material performance evaluation.
Supports mechanical performance testing of various metal materials, such as tension, compression, bending, hardness, etc., providing comprehensive material performance evaluation.
Easy Operation
User-friendly interface design, simplified operation procedures, quick acquisition of testing data, improved testing efficiency, and reduced human errors.
User-friendly interface design, simplified operation procedures, quick acquisition of testing data, improved testing efficiency, and reduced human errors.
Our Metal Material Testing Machine can test the physical and mechanical properties of various metal materials with high precision and reliability, using multiple testing methods such as tension, compression, bending, and shearing to meet various testing needs.User-friendly interface design, simplified operation procedures, quick acquisition of testing data, improved testing efficiency, and reduced human errors.
Packaging&Shipping
About Us
FAQ
1.Can you tell me the prices of your products?
Of course. Please feel free to send us an email here or contact us through other ways. You will receive our reply within 24 hours.
2.Can we print our logo/website/company name on the products?
A:Yes, you can. Many foreign customers often entrust us with OEM products.
3.How long is the lead time for non-customized products?
A:Usually 7-15 days after order.
4.Can you customize products according to our requirements?
A:es, we have our own R & D design team, so we can customize according to your requirements.
5.Do you have your own production site?
A:Yes, we have 1000 square meters of mechanical processing workshop, 2500 square meters of product assembly workshop and 700 square meters of R&D and design office building.
6.Do you check the finished products before delivery?
A:Yes, every production step and finished products are inspected by QC department before shipment, and all design and production procedures are in accordance with ISO9001:2015 management system.
7.How do you do after-sales service?
A:Generally, we ship with text manuals and detailed video operation explanations to ensure that users can easily learn how to install and use the products. We can also provide remote video instruction via social software at any time! We can even send technicians to your site for paid service!
Of course. Please feel free to send us an email here or contact us through other ways. You will receive our reply within 24 hours.
2.Can we print our logo/website/company name on the products?
A:Yes, you can. Many foreign customers often entrust us with OEM products.
3.How long is the lead time for non-customized products?
A:Usually 7-15 days after order.
4.Can you customize products according to our requirements?
A:es, we have our own R & D design team, so we can customize according to your requirements.
5.Do you have your own production site?
A:Yes, we have 1000 square meters of mechanical processing workshop, 2500 square meters of product assembly workshop and 700 square meters of R&D and design office building.
6.Do you check the finished products before delivery?
A:Yes, every production step and finished products are inspected by QC department before shipment, and all design and production procedures are in accordance with ISO9001:2015 management system.
7.How do you do after-sales service?
A:Generally, we ship with text manuals and detailed video operation explanations to ensure that users can easily learn how to install and use the products. We can also provide remote video instruction via social software at any time! We can even send technicians to your site for paid service!
