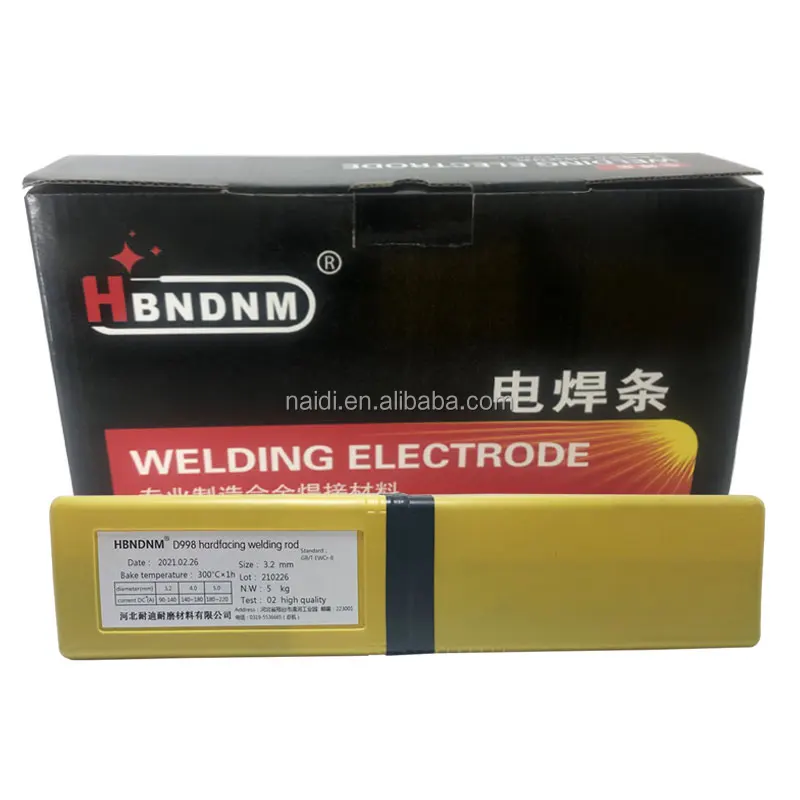

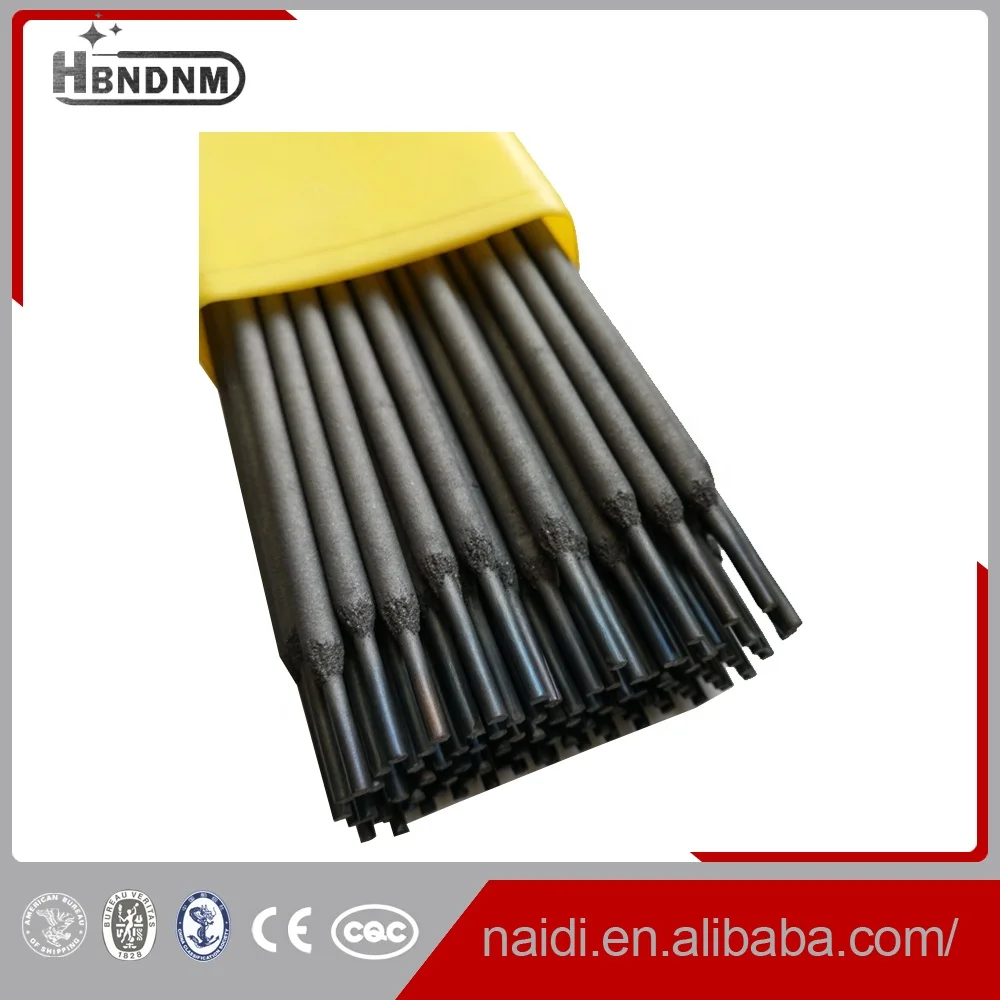

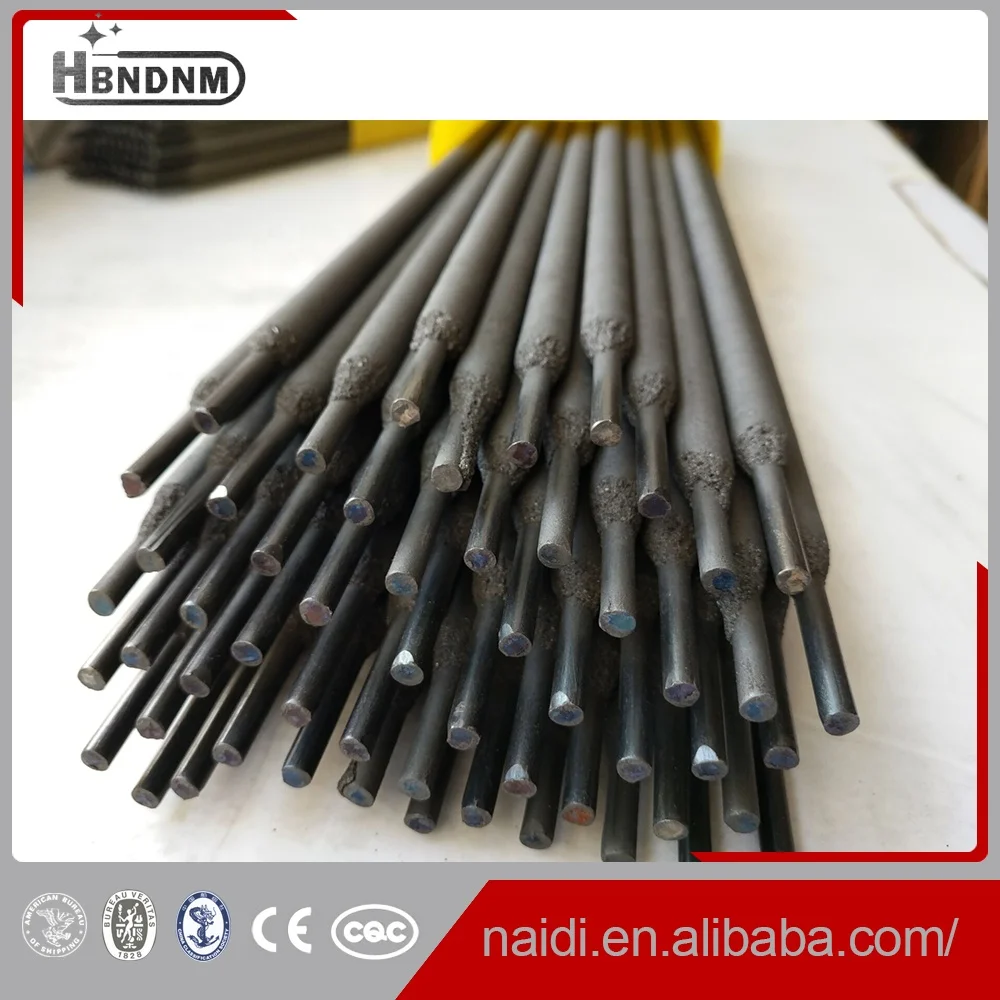

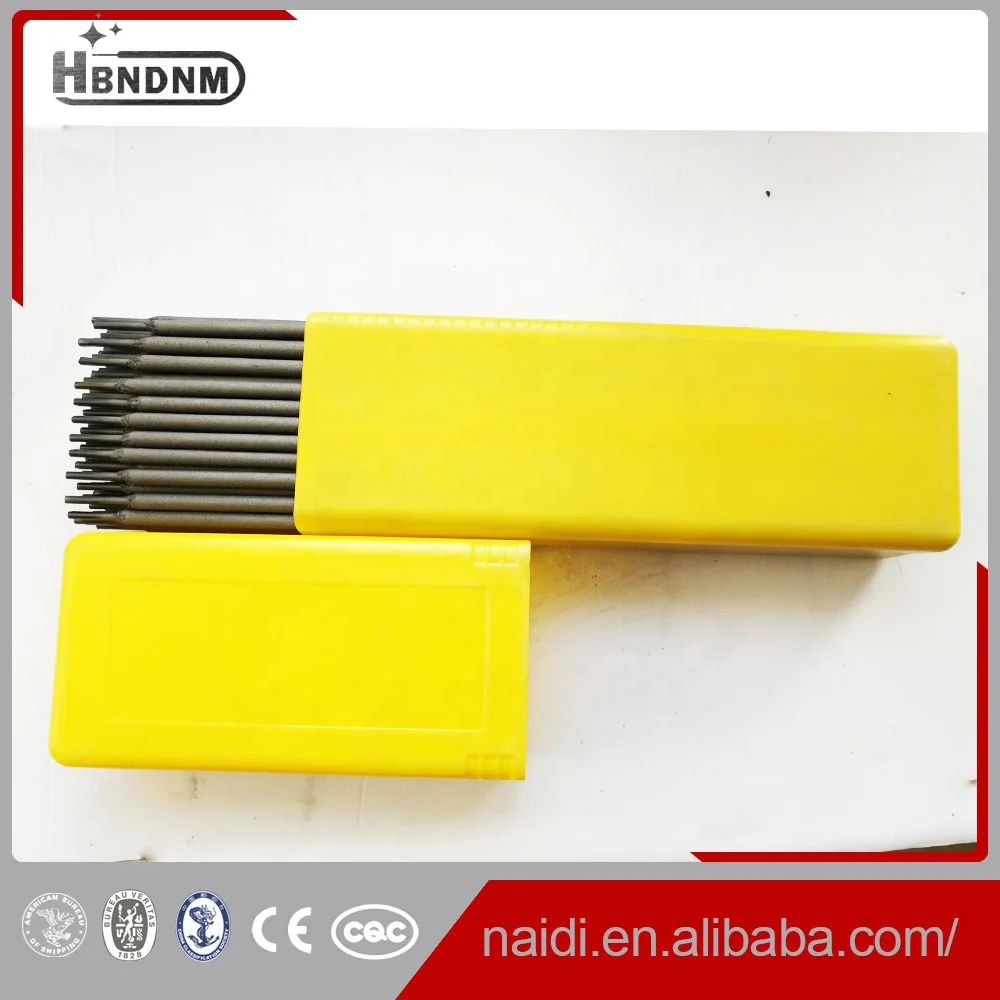

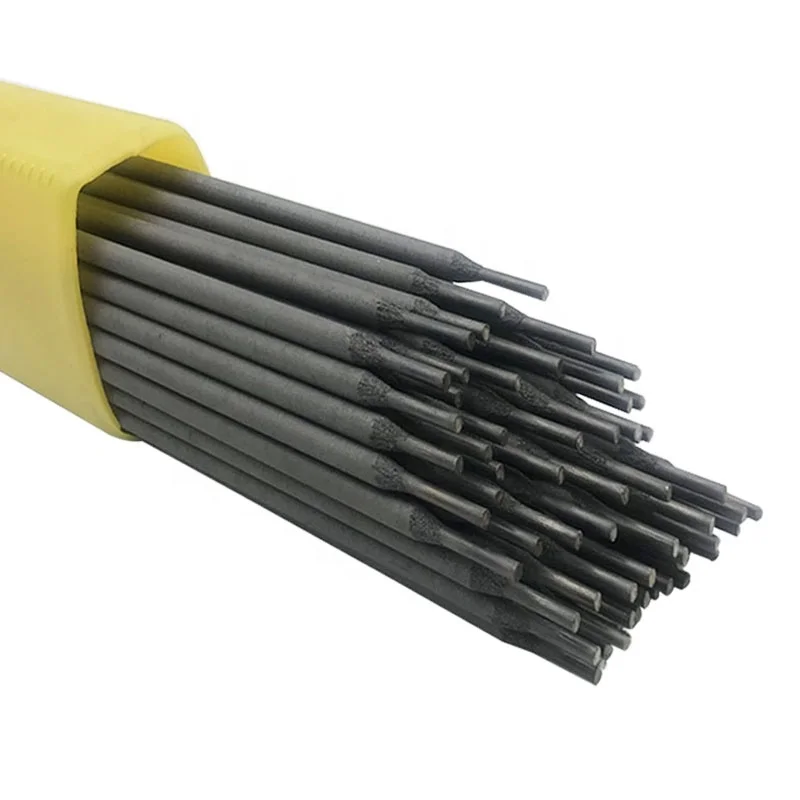

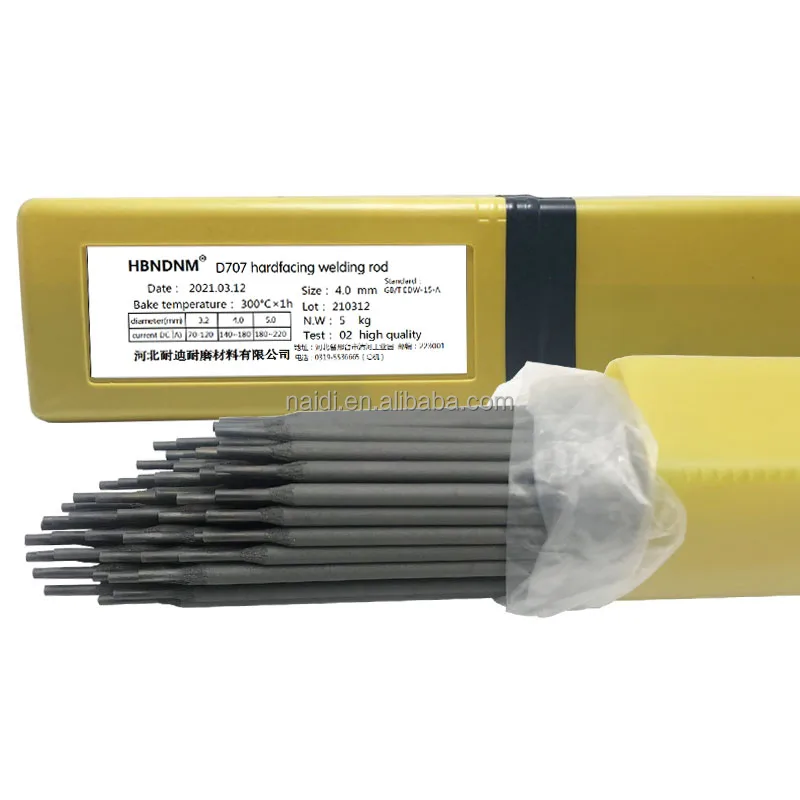

Cobalt Based Alloy Stellite 12 Welding Rods for hardfacing surfacing

Product Overview

Description

Chemical composition of deposited metal (%)

C	Si	Mn	Ni	Fe
2.5-3.3	2.8-4.2	≤2.0	3.2-5.0	Allowance

Hardfacing metal hardness

HRC≥48

Reference current: DC+

Diameter of welding rod(MM)	3.2	4.0	5.0	6.0
Welding Current(A)	90-130	120-160	140-190	150-210



Notes: 1. The electrode shall be baked at 200 ° C for 1 hour before welding.

2. The oxide on the surface of the workpiece must be brushed clean before welding, after 500-600 ° C preheating and then surfacing welding.

3. After welding, the workpiece should be tempered at 600-700 ° C for 1 hour before slow-cooling, or the workpiece immediately into the dry and hot sand box or ash in slow-cooling.

4.The surfacing layer shall be roughed first. If defects are found, the surfacing layer shall be welded and cooled slowly according to the above steps.



Description: D667 is low hydrogen sodium type coating, casting solmayite alloy welding core surfacing electrode. Using DC reverse connection, electrode positive electrode. The surfacing layer under 500 ° C has good wear resistance, corrosion resistance and cavitation resistance. Above this temperature, the hardness of surfacing layer drops sharply.

Usage: used for surfacing welding occasions which require strong wear resistance, corrosion resistance or cavitation resistance. For example, the oil industry in the centrifugal cracking pump bushings, ore crusher parts and diesel engine valve cover.

About Us:

1. What are our main products?

The main products are welding rod, wire, solder, flux, alloy powder and

other five categories, more than 100 kinds of products. Among them,

welding electrodes include nickel-based cast iron electrode, copper

and copper alloy electrode, cobalt-based surfacing electrode, nickel

and nickel alloy electrode; brazing fillers include copper-zinc, copperphosphorus and silver-based filler metals; fluxes include gas welding and

brazing, silver, copper, aluminum and other flux; alloy powder includes

spray welding and spraying, including nickel-based, cobalt-based,

iron-based and other varieties. The products are manufactured in full

accordance with American Standards (AWS).

2.Why did you choose our company?

our company can organize R&D, trial production and supply in time according to the special needs of users. Our products are advanced in production technology, with the first-class inert gas protected continuous casting production line in China, vertical, horizontal hot extrusion, continuous tie, continuous pull, polishing production equipment, ultrasonic cleaning and other production lines and complete testing equipment.
