API 11E Surface Unit Sucker Rod Type Beam Crank Balance Pump Jack Pump Unit

Product Overview

Description

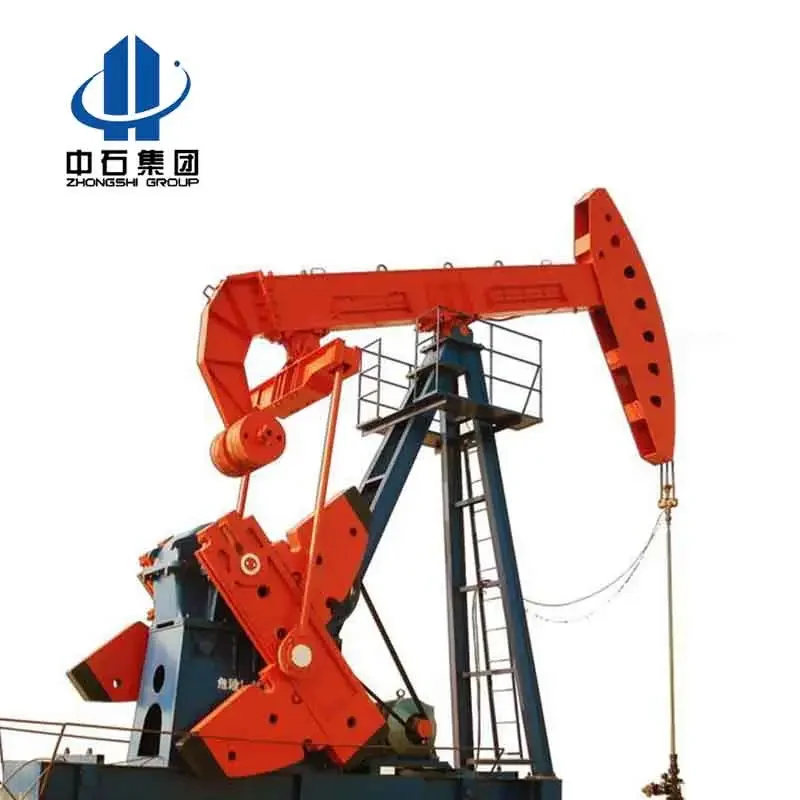

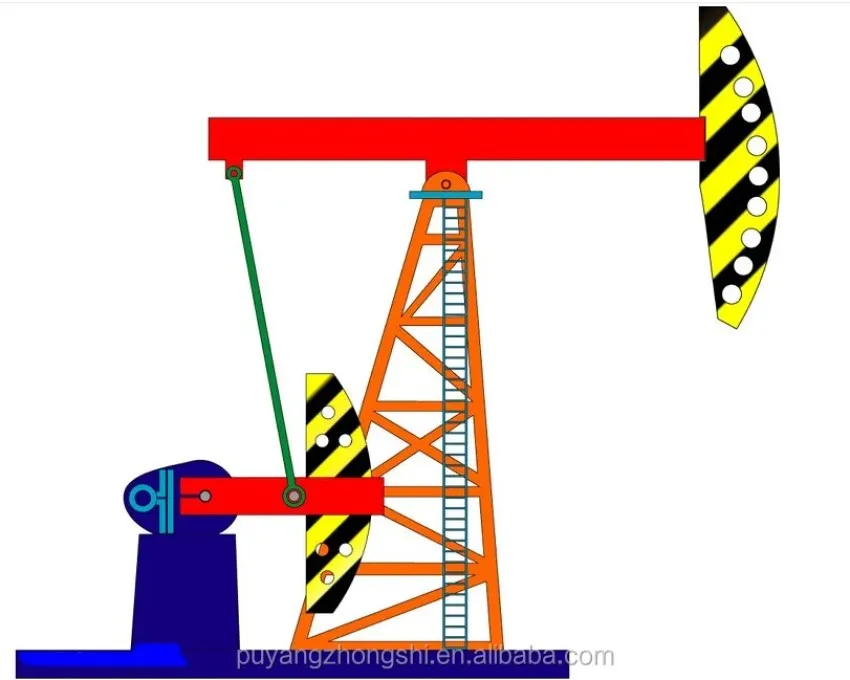

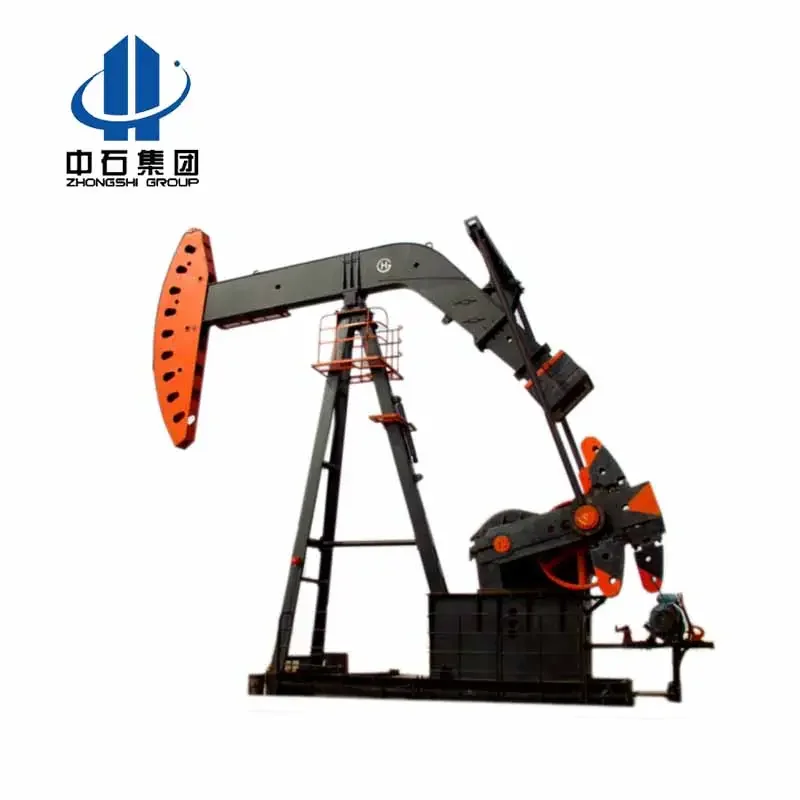

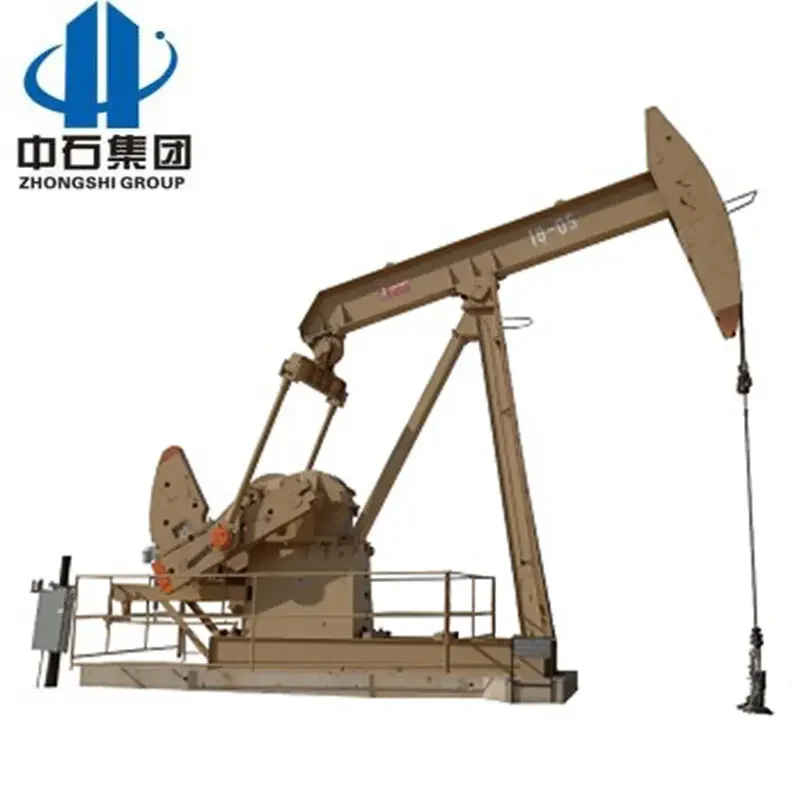

     API 11E  C series of pumping units

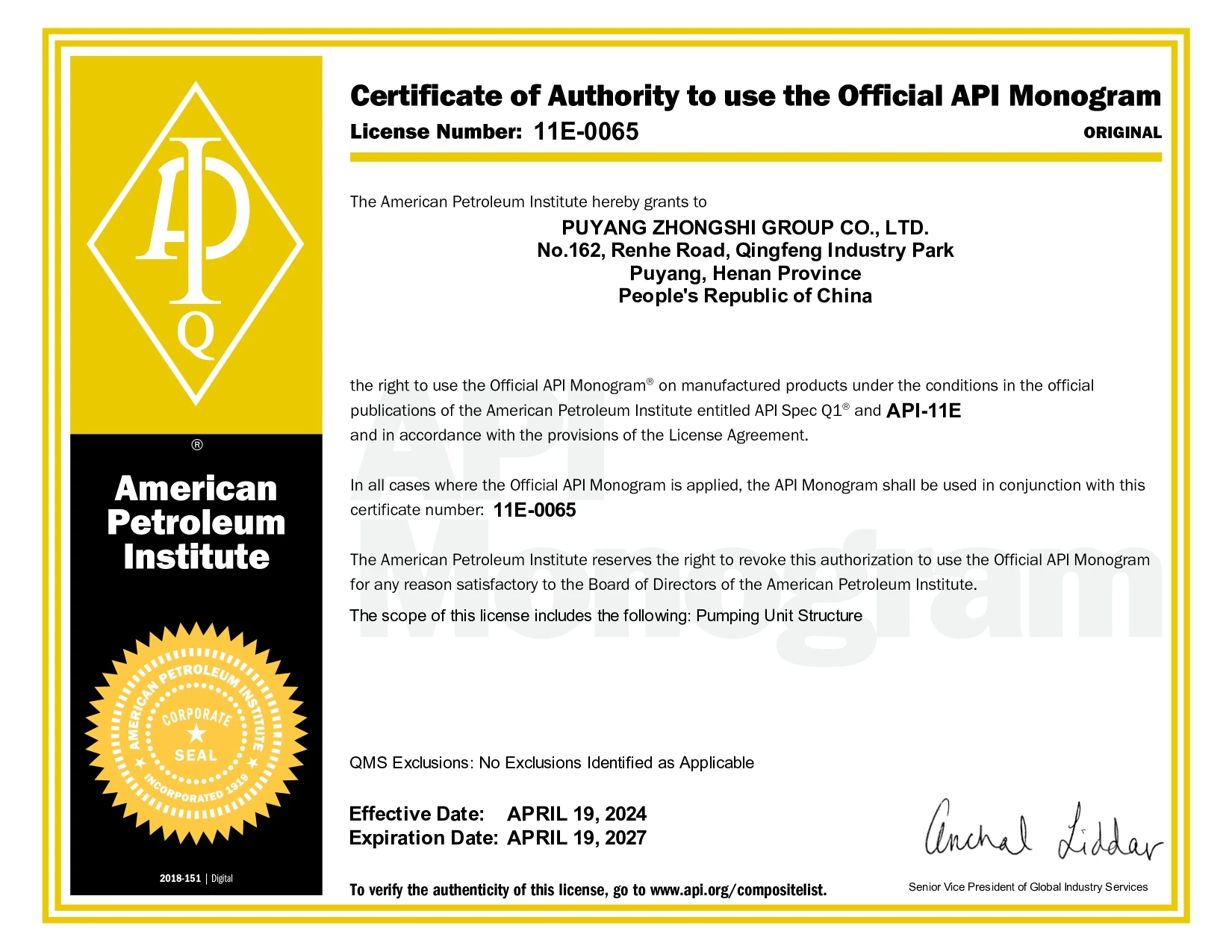

Product overview:   API C series of oilpumping unit is a kind of conventional beam pumping unit with the crank balanced method , and it is the most common and in the most extensive application of ground power device in the rod oil  production.The product conforms to the API Spec 11E oil pumping unit specification and other relevant standards, and attains API Monogram using license .

Technology characteristics:

1.The using of modular design and virtual manufacturing technology to make product structure optimizated and parts with high degree of "standardization, generalization, seriation" .

2.Studying on finite element analysis of key structure with stable performance and high reliability.

3. The speed reducer adopts symmetrical shunt type involute or double circular-arc herringbone gear transmission, with good sealing, low noise, stable operation, reliable and durable.

4. the operation is simple, easy maintenance and long service life.

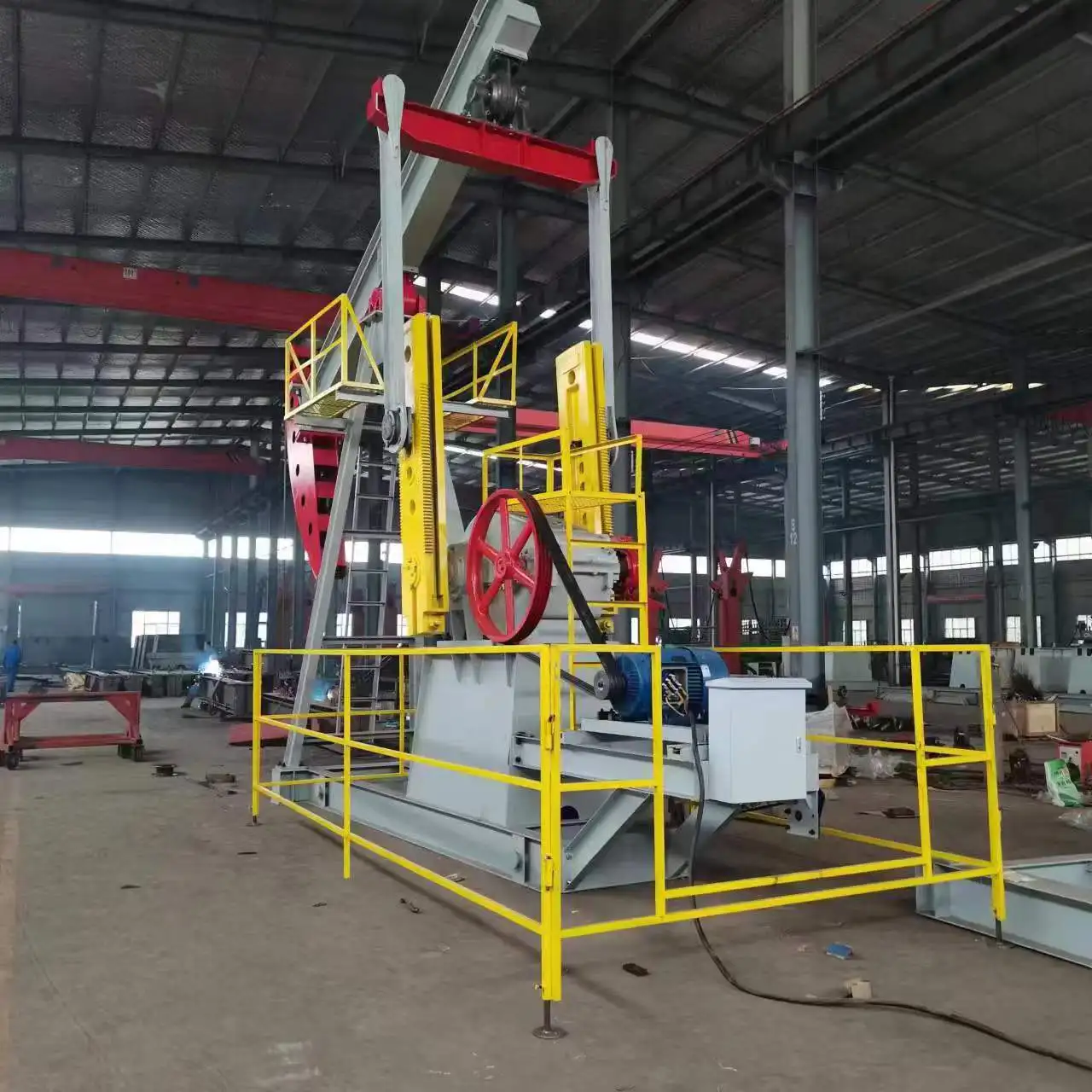

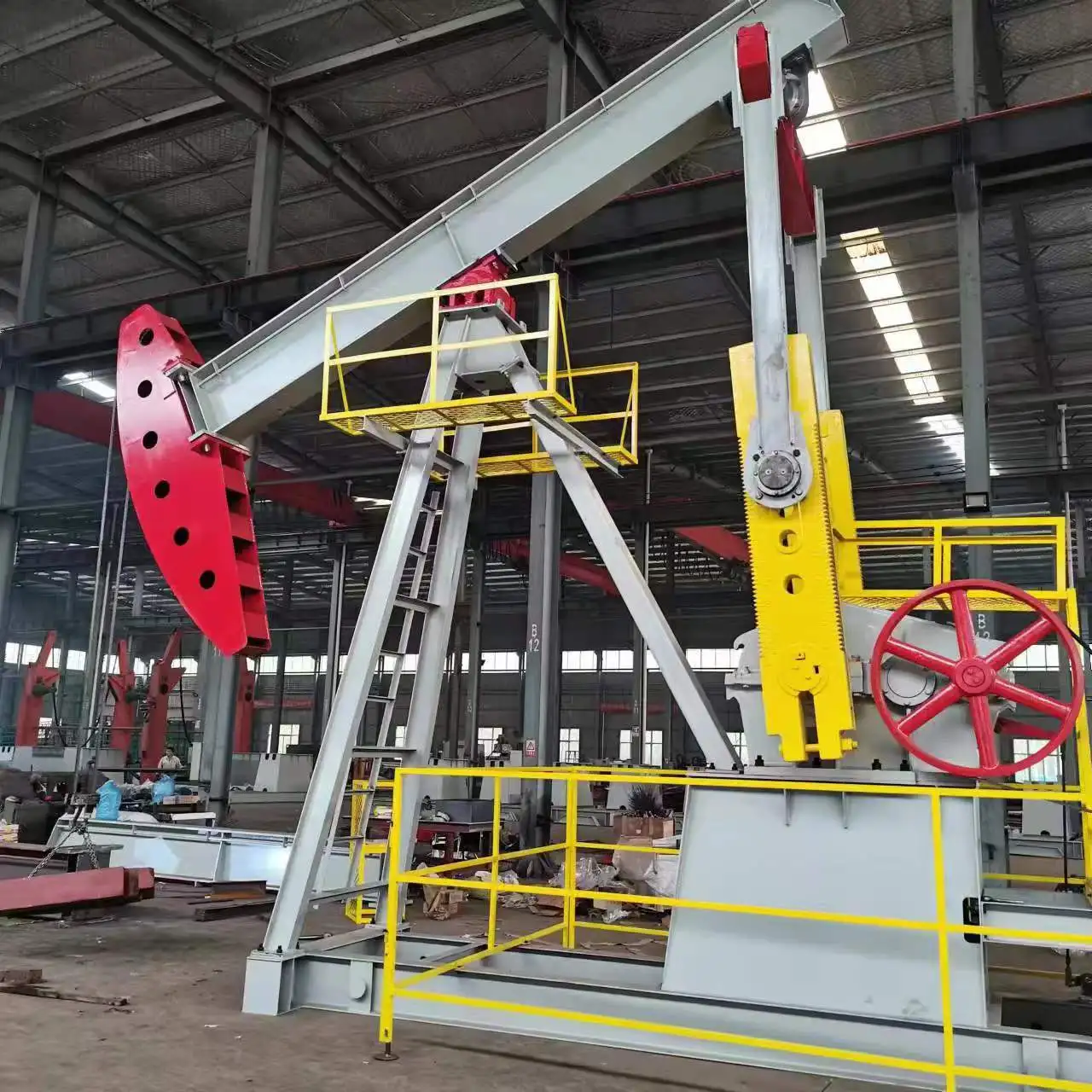

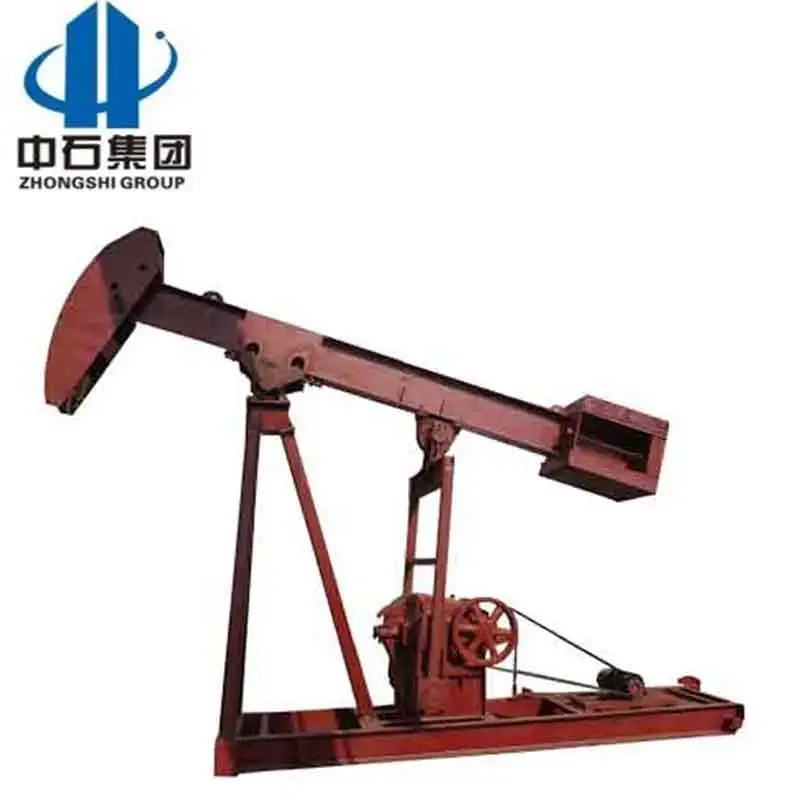

CYJ series of pumping units



Product overview:    CYJ series of oil pumping units is a kind of conventional beam pumping unit, and is the moscommonand in the most extensive application of ground power device in the rod oil production.The product conforms to the API Spec 11E pumping unit specification,SY/T5044-2003 beam pumping unit and other relevant standards, and attains API Monogram using license . In addition to the production of conventional beam pumping unit, we also develop the phase balance beam pumping unit, the interference of beam pumping unit and other energy-saving pumping unit to meet the requirements of energy saving oil.

Technology characteristics:  1.The using of modular design and virtual manufacturing technology to make product structure optimizated and parts with high degree of "standardization, generalization, seriation" .

2.Studying on finite element analysis of key structure with stable performance and high reliability.

3. The speed reducer adopts symmetrical shunt type involute or double circular-arc herringbone gear transmission, with good sealing, low noise, stable operation, reliable and durable.

4. the operation is simple, easy maintenance and long service life.



Main technical parameters:
