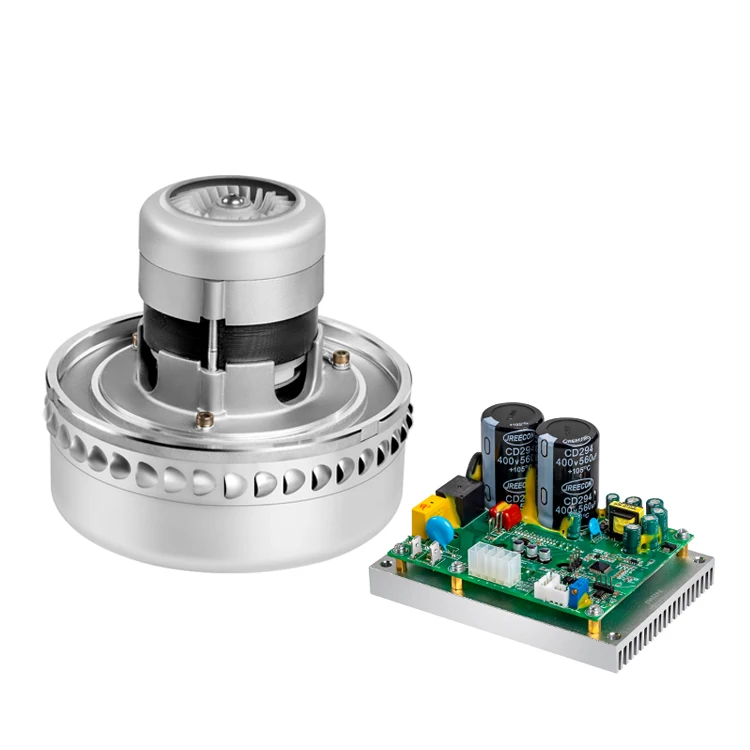

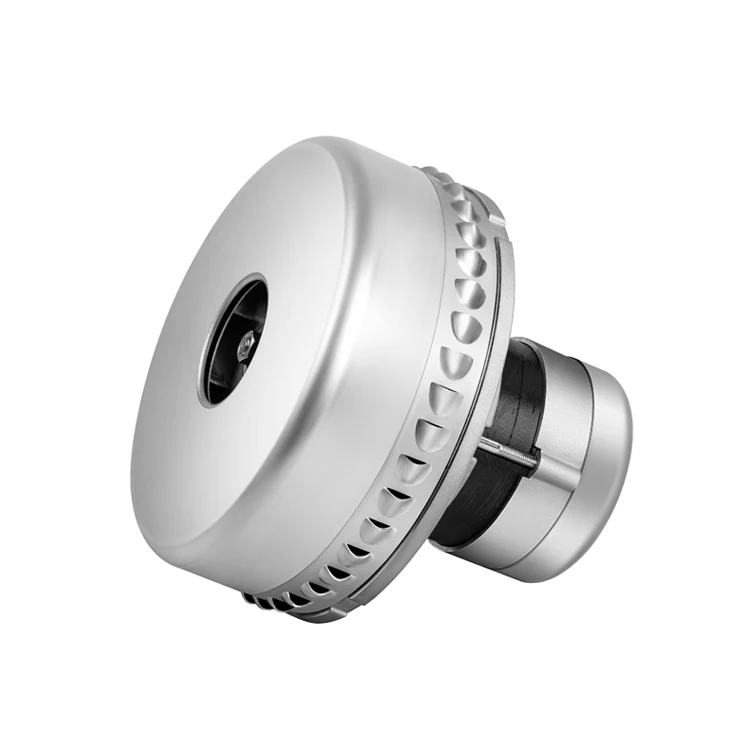

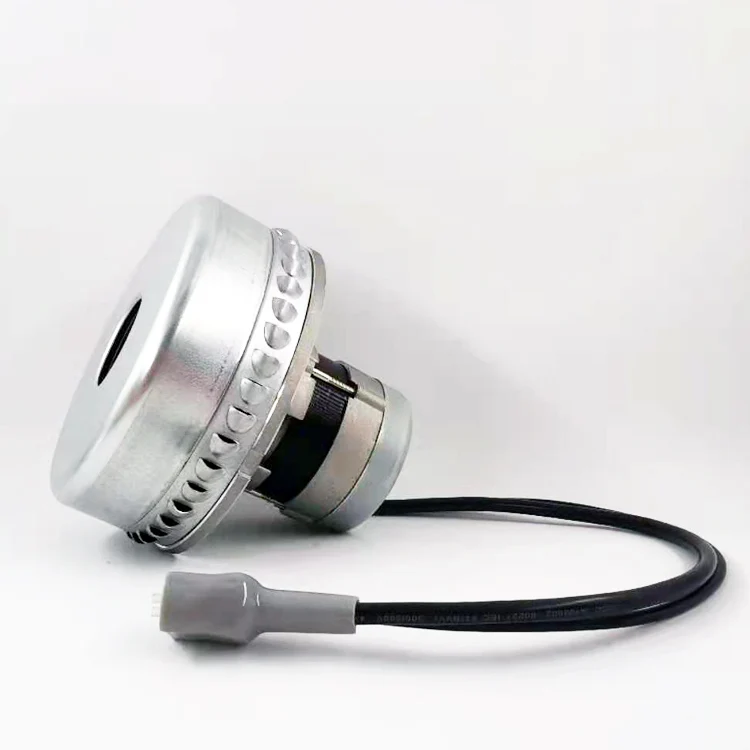

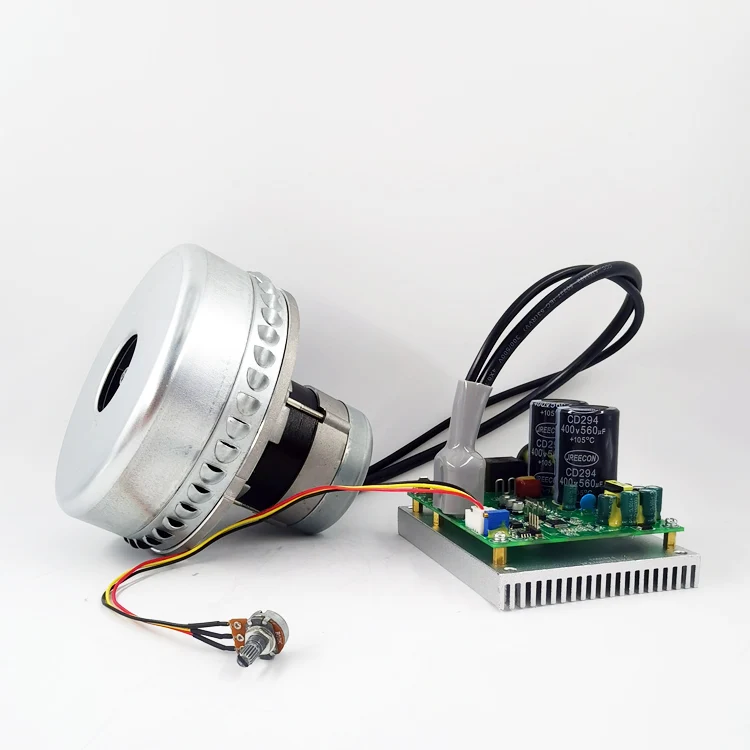

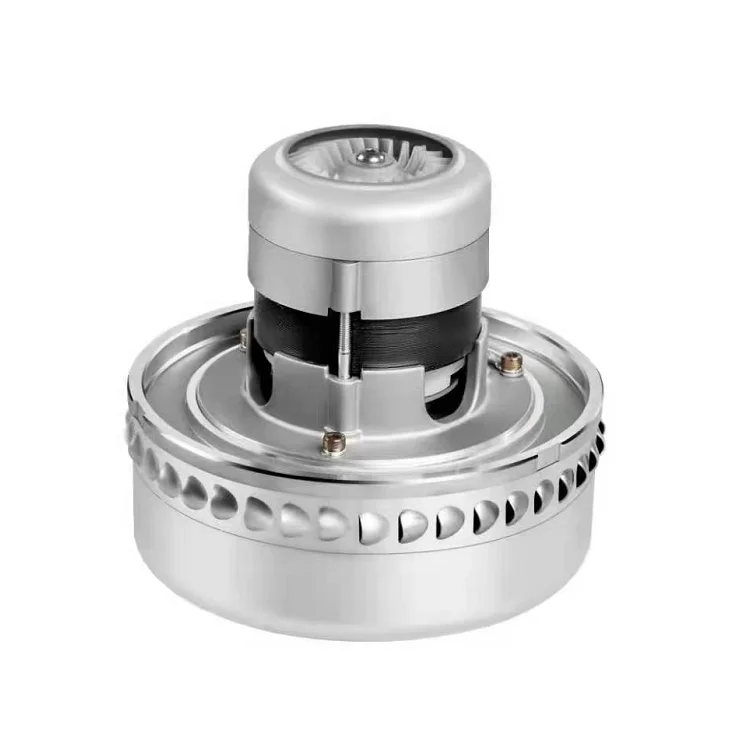

OEM ODM Wet & dry high pressure bldc vacuum motor
- Category: >>>
- Supplier: Ningbo Newthink Motor Co. Ltd.
Share on (1600873680187):
Product Overview
Description
Product Description
Model | NXK60C801Y21 | NXK60C122Y21 | Tolerance |
Max. Power (W) | 800 | 1200 | ±10% |
Voltage (V) | 230 | 230 | ±10% |
Frequency (Hz) | 50/60 | 50/60 | |

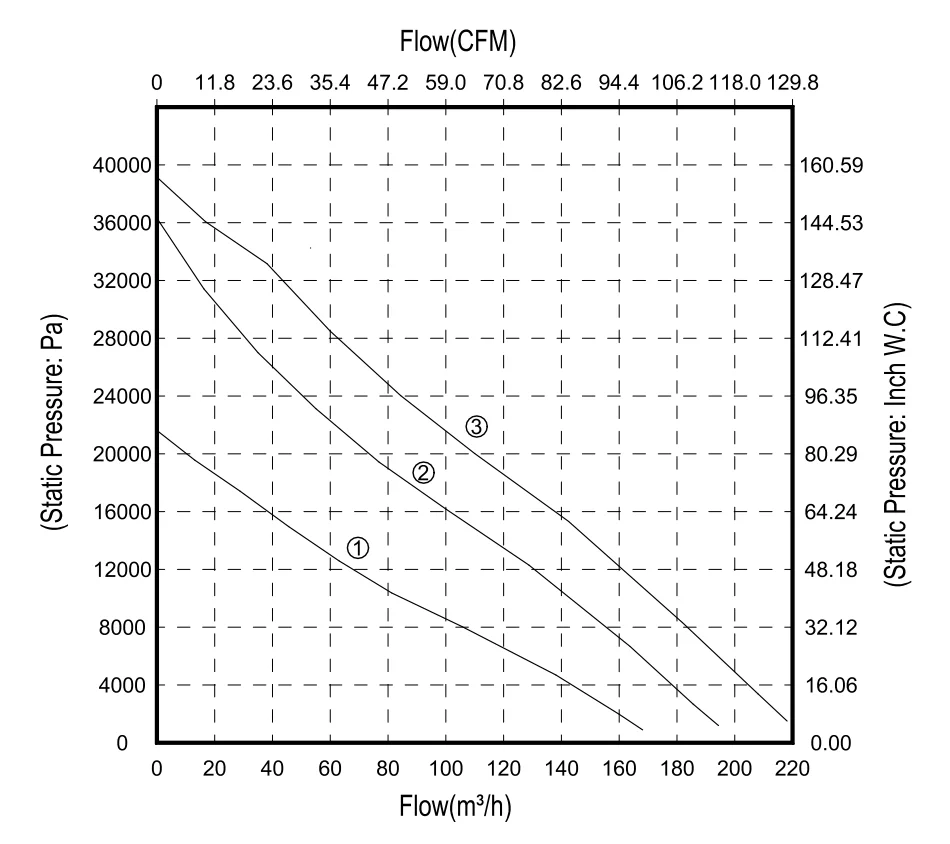

Performance Curves No. | ② | ③ | |
Max.Air Flow (m3min) | 2.95 | 3.27 | ±10% |
Max. Vacuum (kPa) | 25.85 | 32.50 | ±10% |
Max. Speed(rpm/min) | 22500 | 28500 | ±10% |

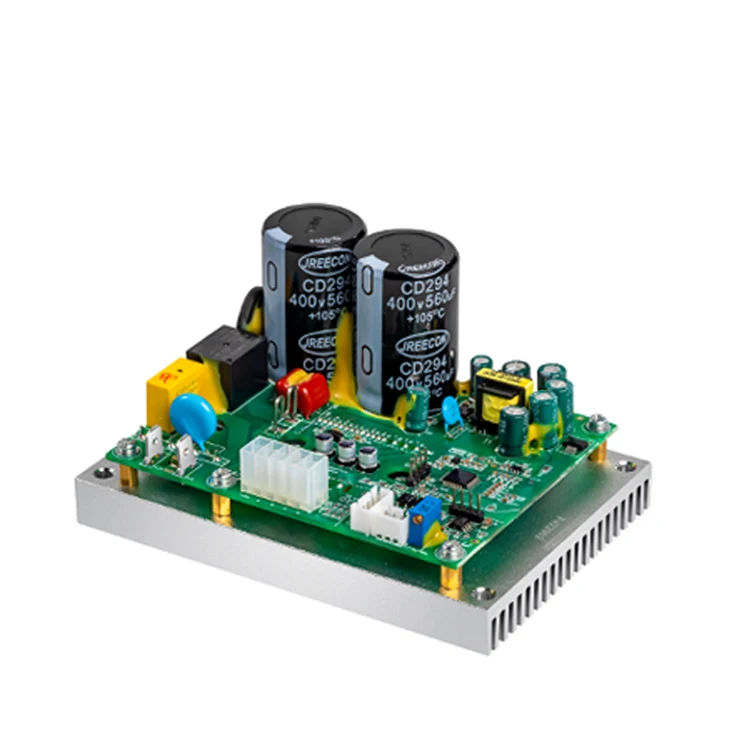

Speed Control | 0~5V DC/PWM | 0~5V DC/PWM | |
Net Weight (kg) | 2.60 | 2.70 | ±10% |
Application
Company Profile
Ningbo Newthink
is a manufacturer which specialize in researching and developing brushless motors and blower. The application of products mainly cover vacuum cleaner equipment, home appliance, medical machine, garden instruments, sewing machine and automatic industrial devices etc.
is a manufacturer which specialize in researching and developing brushless motors and blower. The application of products mainly cover vacuum cleaner equipment, home appliance, medical machine, garden instruments, sewing machine and automatic industrial devices etc.
Since founded in 2011, locates in Ningbo city and covers an area of over 5000㎡. Annual output reach to 600,000~ 800,000 pcs. The production strictly according to ISO9001:2015, and passed CE, RoHS, UL, ETL and etc. The number of patents is more than 30. Nowadays, our motors have been sold in more than 20 countries and regions including the US, Asia, and Europe.
Obeying to the creed ”Devoted to technology innovation, define china creation”, Newthink has provided solutions for the overall application of professional, all-inclusive, energy saving and environment friendly brushless motor in wide areas. After many years of engineering practice, products has satisfied the demand of many clients in both overall solutions and key requirement specifications as well as in after sale service. Cooperating with their customers to their best extend and creating extraordinary value to solve application difficulties, Newthink has become the best partner of innumerable client.
Obeying to the creed ”Devoted to technology innovation, define china creation”, Newthink has provided solutions for the overall application of professional, all-inclusive, energy saving and environment friendly brushless motor in wide areas. After many years of engineering practice, products has satisfied the demand of many clients in both overall solutions and key requirement specifications as well as in after sale service. Cooperating with their customers to their best extend and creating extraordinary value to solve application difficulties, Newthink has become the best partner of innumerable client.
Certifications
FAQ
1. who are we?
Ningbo Newthink Motor found in 2011, a trailblazer in DC brushless motor technology, has nowadays become one of the important bases in brushless motor R&D in China.
2. * What's your MOQ?
Personally, I want to offer the need you wanted, but Automatic production need to start in one thousand set. Whatever,
I'll try my best to arrange it.
3.Could you offer oversea after-service?
Engineers in NEWTHINK MOTOR has been and still are ready to supply the best solution for your problems.
4. May I ask for the technical information?
Dear sir or madam, What I'm able to offer is the former product test performance, showing in the EFFECT DATA. More information, please send me your inquiry in detail. I'll check it from engineers in electric and mechanical. BTW, secret data are unable to offer. Thanks for your consideration.
Ningbo Newthink Motor found in 2011, a trailblazer in DC brushless motor technology, has nowadays become one of the important bases in brushless motor R&D in China.
2. * What's your MOQ?
Personally, I want to offer the need you wanted, but Automatic production need to start in one thousand set. Whatever,
I'll try my best to arrange it.
3.Could you offer oversea after-service?
Engineers in NEWTHINK MOTOR has been and still are ready to supply the best solution for your problems.
4. May I ask for the technical information?
Dear sir or madam, What I'm able to offer is the former product test performance, showing in the EFFECT DATA. More information, please send me your inquiry in detail. I'll check it from engineers in electric and mechanical. BTW, secret data are unable to offer. Thanks for your consideration.
