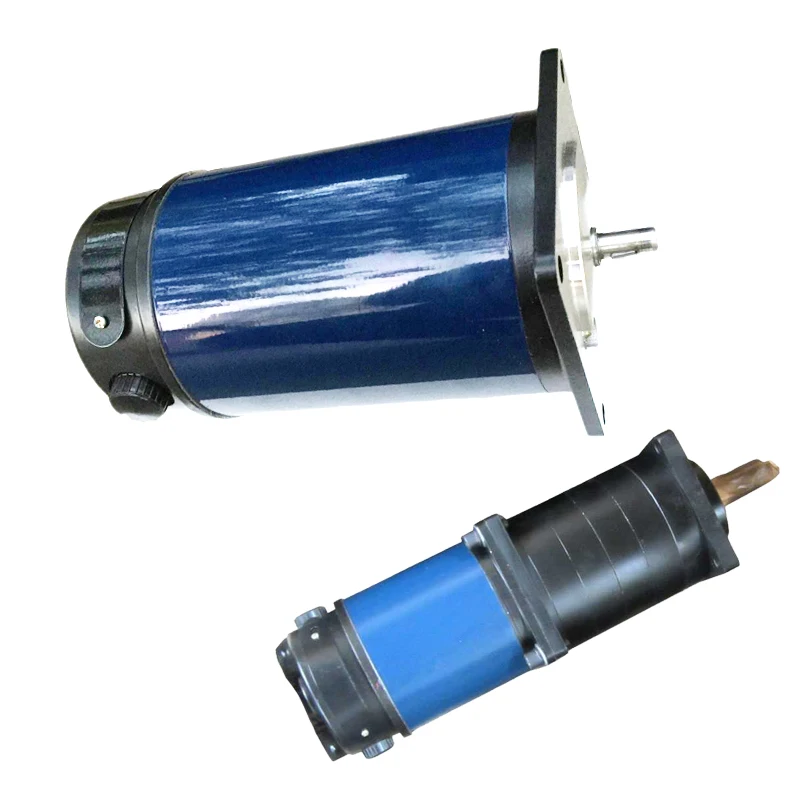

110W 120W 130W 150w 200w Brushed dc motor 24v/36v/48v/72v Carbon Brush permanent magnet motor

Power: 100W 110w 120w
Armature voltage: 48v 96V; excitation voltage: 48v 96V
Speed: 3000 r / min
Armature current: 5.5A; excitation current: 0.27A
Torque: 1274 (mN.m)
Installation: vertical, horizontal optional
Also can be equipped with reducer ratio 1: 4; 1: 6; 1:16; 1:24; 1:36; one sixty-four; 1: 216; 1: 256; 1: 1296 and other options I factory specializing in the production ZYT series permanent magnet motor, DC gear motors, DC variable speed motors, Any special needs, please call detailed consultation. I plant motors are one year warranty, please new and old customers feel comfortable buying.
1. Model Explanation
80ZYT. 90ZYT
1.80, 90 indicates motor frame No,. The frame No,is indicated with 55,70,90,110,130

(The frame No, corresponds with frame Dia. 55,70,90,110,130mm).

2.ZYZ indcates PM DC Motor.

3.08 indicates the lamination length No,.01-49 refers to short lamination types, 51-99 refers to long lamination types and 101-149 refers to special long lamination types.

4.H1 refers to derivative structure , its No, is indicated with H1,H2,H3…(Each frame No, is arranged on custemor ‘s requirement in order.)

5.Mounting Model
1.Housing Mounting: A5(single shaft extension),AA5(double shaft extension) and frame No,(55-130).
2.Flange Mounting:A3(single shaft extension),AA3(double shaft extension) and frame No,(55-130).
3.Foot Mounting: A1(single shaft extension),AA1(double shaft extension) and frame No,(90-130).
ZYT Series PM DC Motor is used with Ferrite PM magnet, clouse and self-cooling. It is used for driven element in any equipment system.

ZYT Series PMDC Motor/Brushed DC Motor

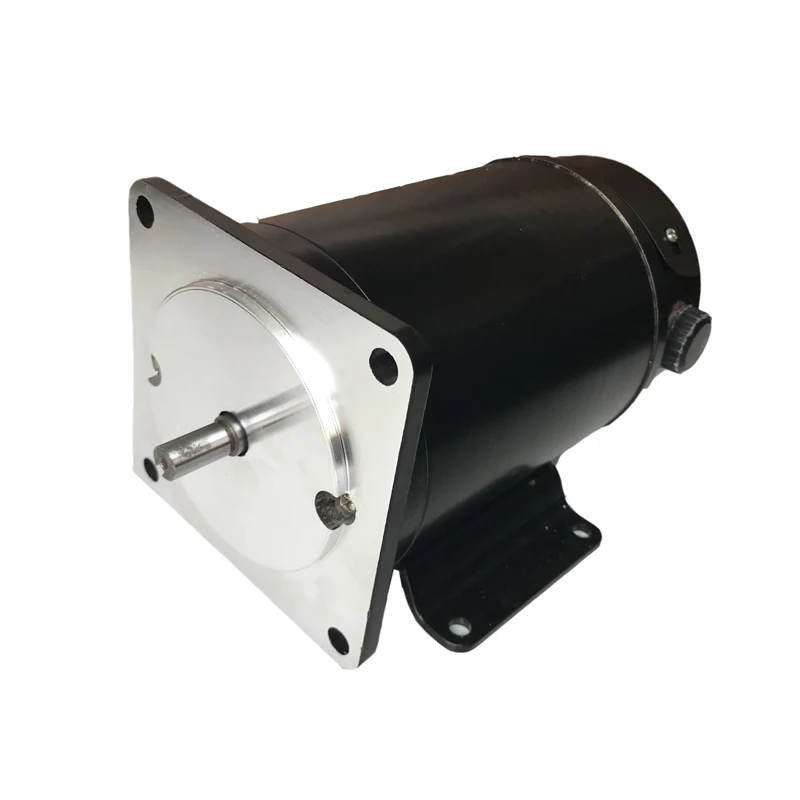

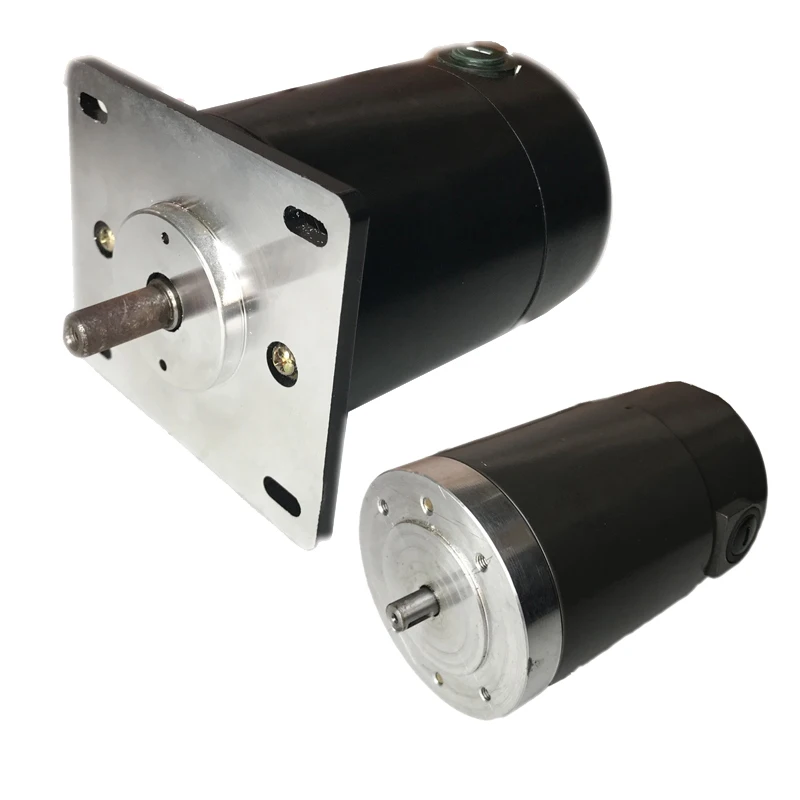

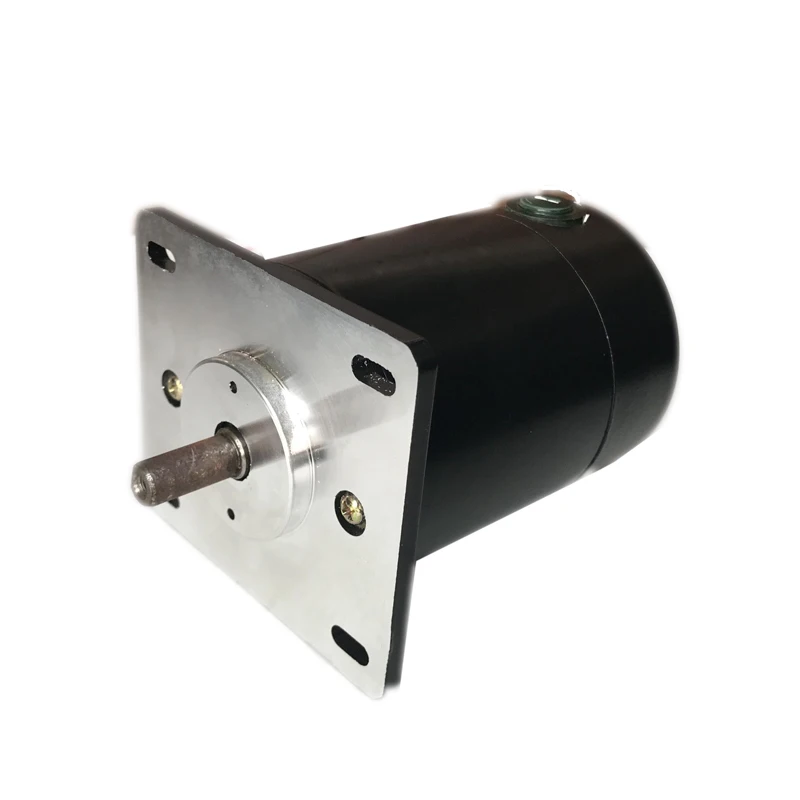

24VDC 100W 3000RPM flange mounted
Permanent Magnet DC Motor
ZYT Series PMDC Motor/Brushed DC Motor
1. Summery
ZYT Series PM DC Motor is used with Ferrite PM magnet, clouse and self-cooling. It is used for driven element in any equipment system.

2. Mounting Model
Flange Mounting:A3(single shaft extension),AA3(double shaft extension)

3. Usage
a. No more than 4000m above sea level.
b. Ambient temperature:--25°C--+40°C
c. Relative humidity ≤95%(at +25).
d. The followed temperature rise: no more than 75K(when 1000m above sea level).

4. Technical Data
The following data changes within range depending on exact model,customer can refer to them when making selection.

A.Certificates passed:All products tests passed for most of our motors and can supply reports.

B.Fast feedback for customers:24 hours reply for all customers' inquiries.
C. Competitive prices.
D. Quality guarantee:We have shipped much motors to Italy, Spain, and other European and USA customers with high quality.
E. Fast and Timely delivery:Usually 10-15 days for goods production.
F. Professional Technical support and After-sale service.
G.Customized service for kind of motor according to your requirement.

Q1: What kind motors you can provide?

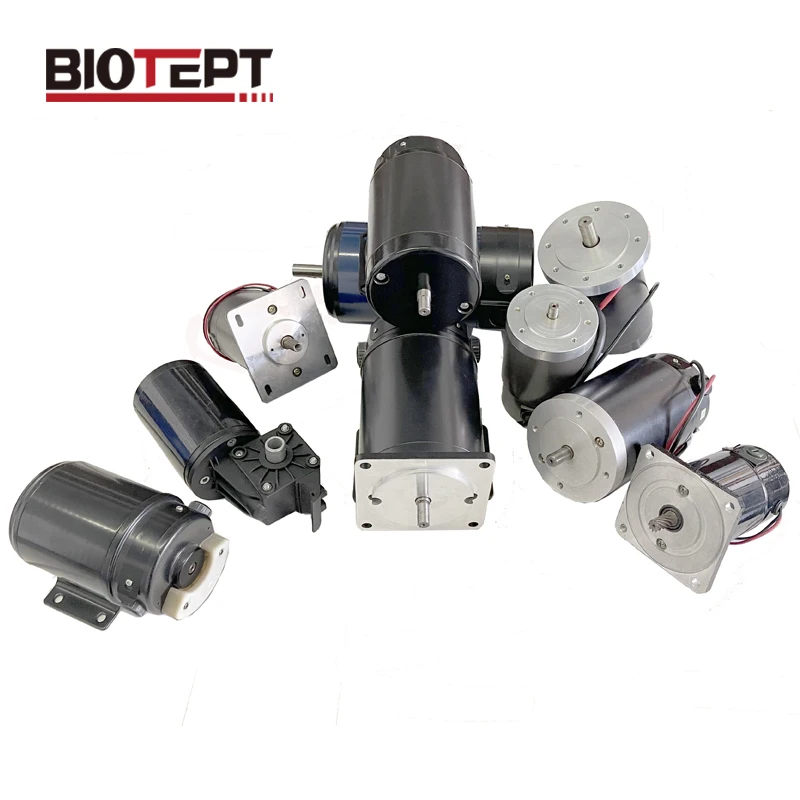

A1: For now, we mainly provide Permanent Magnet Brush DC motors, Brushless DC Motor, DC Gear Motor, Micro DC Motor, AC Gear Motor, Planetary Gear Motor, with diameter range in 42~110mm. NEMA dc motor. NEMA DC Motor. Stainless Steel motor

Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.

Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it’s really difficult for us to provide a price list. If you can share your detailed specification and order qty, we’ll see what offer we can provide.

Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.

Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.
