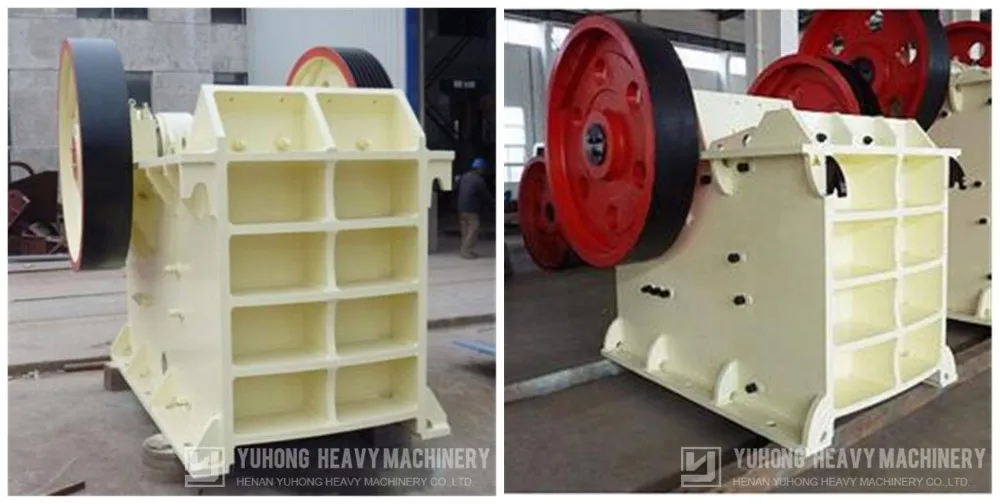

Pe 400x600 Jaw Crusher Gypsum Aggregate Concrete Stone Jaw Crusher Machine Price For Mineral Processing
- Category: >>>
- Supplier: Henan Yuhong Heavy Machinery Co. Ltd.
Share on (1600873976945):
Product Overview
Description
6 ADVANTAGES OF PRODUCT STRUCTURE

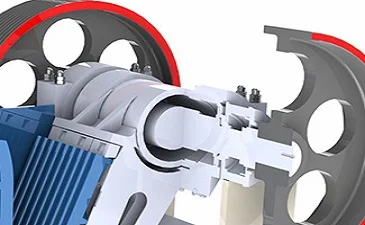

1. Unique jaw head structure and perfect seal lengthen bearing’s service life.Unique flywheel design reduces the shock of machine to guarantee stable operation

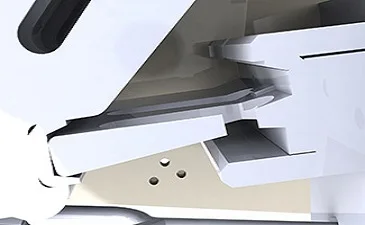

2. Spacer type discharge port adjustment device is very reliable, wide range of adjusting, flexibility of the machine is increased.

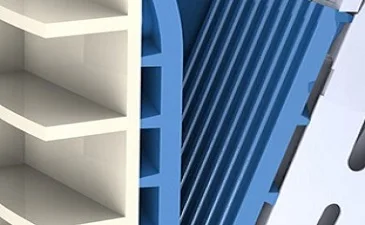

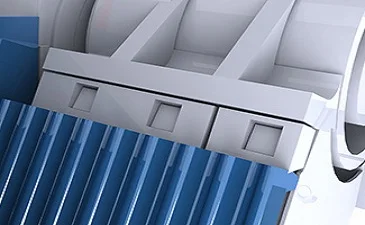

3. Deep crushing cavity, no dead corner. Input size range and capacity are increased; big crushing radio, even final product, new oil-way design can match up with oil pump, easier and effective operation

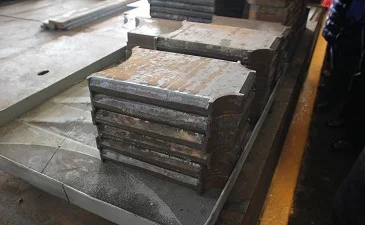

4. Yuhong Machine thought deeply in selecting the materials for core parts, and adopted high-quality high manganese steel casting which is most recognized in the world at present. This casting greatly extends the service life of core parts and effectively avoids too many shutdowns and maintenance tasks
5. Mono-Block Cast & High Safety Factor: Adopting mono-block cast and and new assembly technology could make it match up with rack perfectly, radial strength is increased.

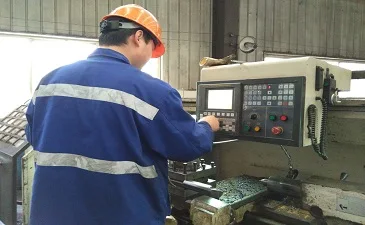

6. Yuhong Machine formulates strict quality inspection procedures and uses advanced machining equipment to deliver perfect jaw crushers.
APPLICABLE MATERIALS
The Jaw Crusher is ideally suitable for the material's primary and secondary crushing. such as: quartz, feldspar, calcite, talcum, barites, fluorite, tombarthite, marble, ceramic, bauxite, manganese ore, iron ore, limestone, dolomite, potassium, bentonite, medical stone, rock phosphate, active carbon, carbon black, potassium, coal, etc.
PRODUCT PARAMETERS
Model | Max feeding size | Adjustable | Capacity | Eccentrical | Motor power | Weight | Overall Dimensions |
(mm) | (mm) | (t/h) | (r/min) | (kw) | (t) | (mm) | |
PE-150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
PE-200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
PE-200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
PE-250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
PE-400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
PE-500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
PE-600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
PE-600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
PE-750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 2660×2430×2800 |

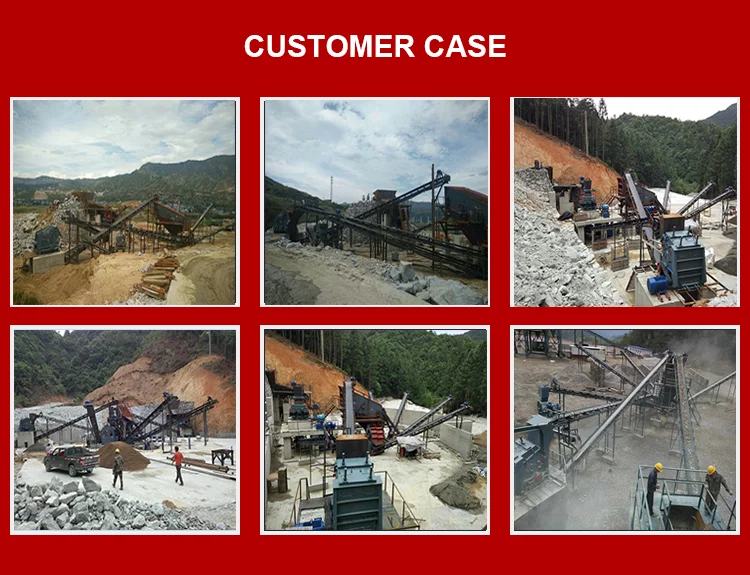

PRODUCTION LINE
The Crushing plants make use of a large range of equipment, such as a pre-screener, loading conveyor, intake hopper, magnetic separator, crushing unit, such as jaw crusher and cone crusher etc.
1. Raw materials are evenly and gradually conveyed into jaw stone crushing equipment for primary crushing via the hopper of vibrating feeder.
2. The crushed stone materials are conveyed to crushing plant by belt conveyor for secondary crushing before they are sent to vibrating screen to be separated.
3. After separating, qualified materials will be taken away as final products, while unqualified materials will be carried back to the stone crushing equipment for re-crushing. And customers can classify final products according to different size ranges. All the final products are up to the related standards within and beyond China. Of course, according to different requirements, customers can adjust the size of their final products from this stone crushing plant.
4. Clients will get the satisfactory products after objects being crushed for several times. Dust is generated during the working process while the dust control units are needed.
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
CONTACT SUPPLIER
Q2: What are the requirements for Jaw crusher material?
A2: Our Yuhong has a high standard on choosing material of Jaw Crusher.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
CONTACT SUPPLIER
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2.Raw material maximum feeding size (mm or mesh)?
3. Final products size (mm or mesh) and usage?
4. What is the capacity per hour?
CONTACT SUPPLIER
HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,prodcution and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need.
