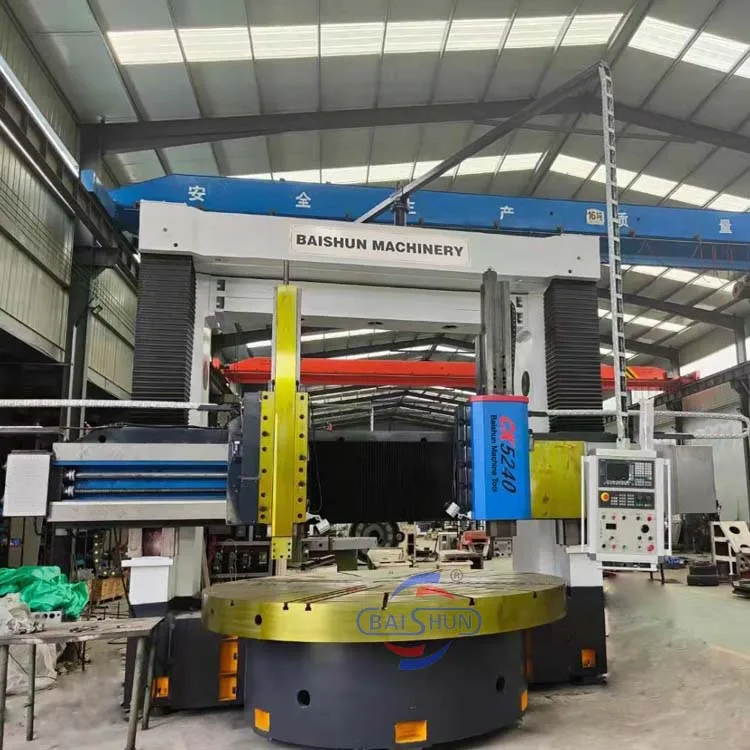

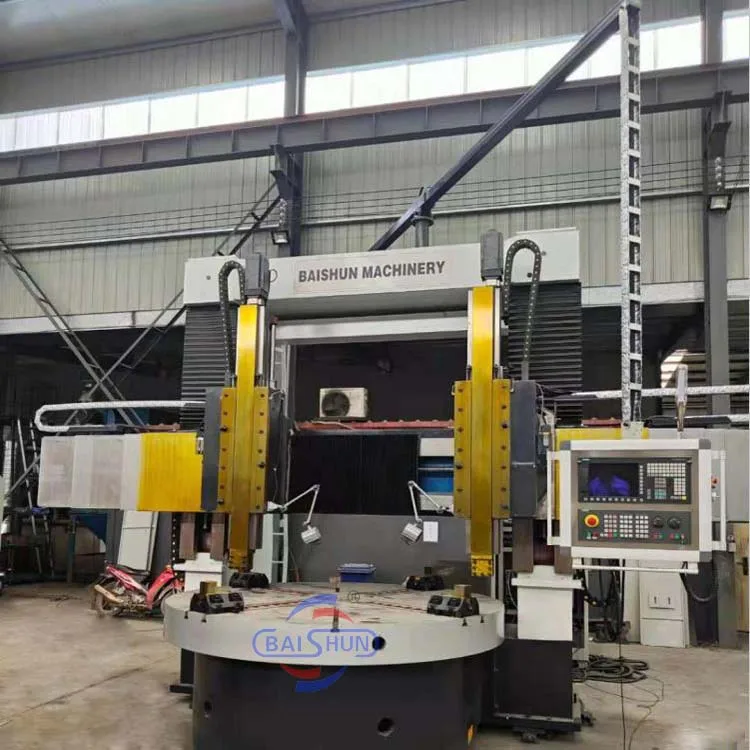

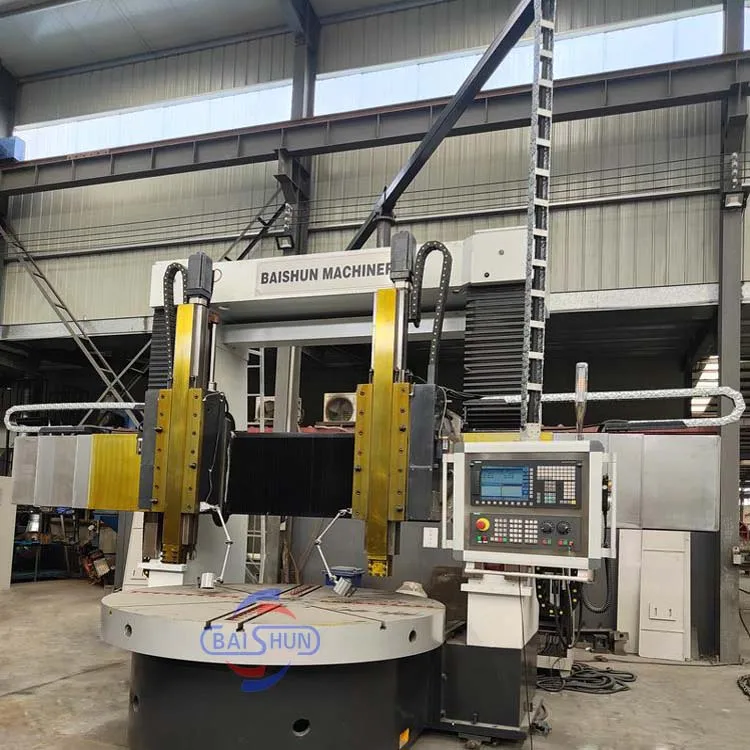

Vertical Brake Drum Cutting CNC Lathe Machine Turning Lathe

Share on (1600873995459):


Price:$76,000.00

Quantity:


Product Overview

Description






Product Description


The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.


CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.


Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.


Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.

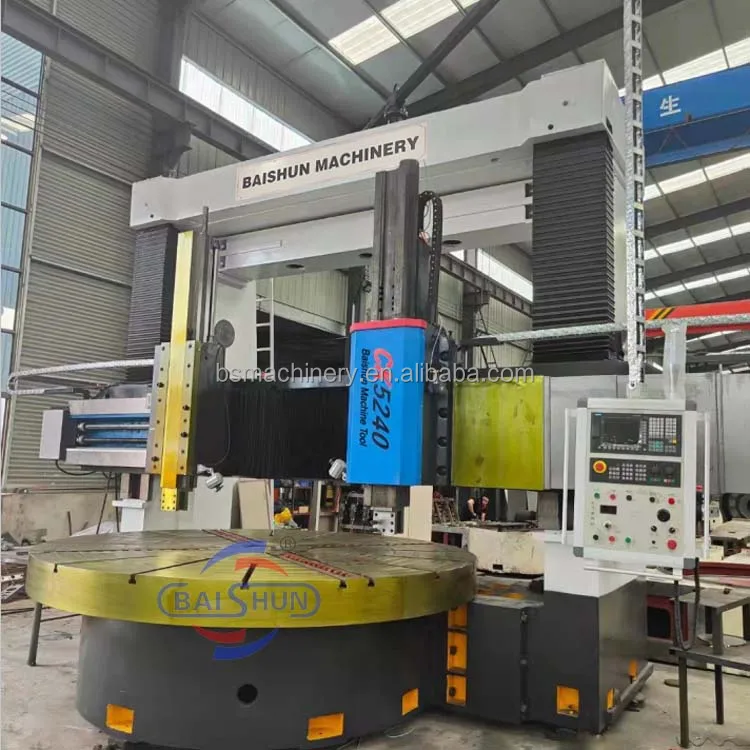

 vertiallathe 01.jpg





verticallathe 02.jpg

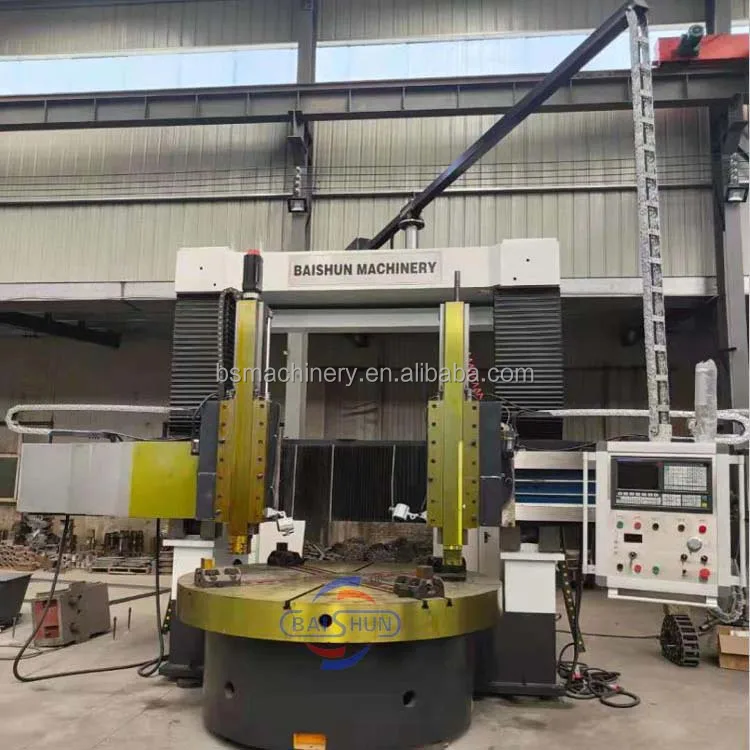

verticallathe 03.jpg

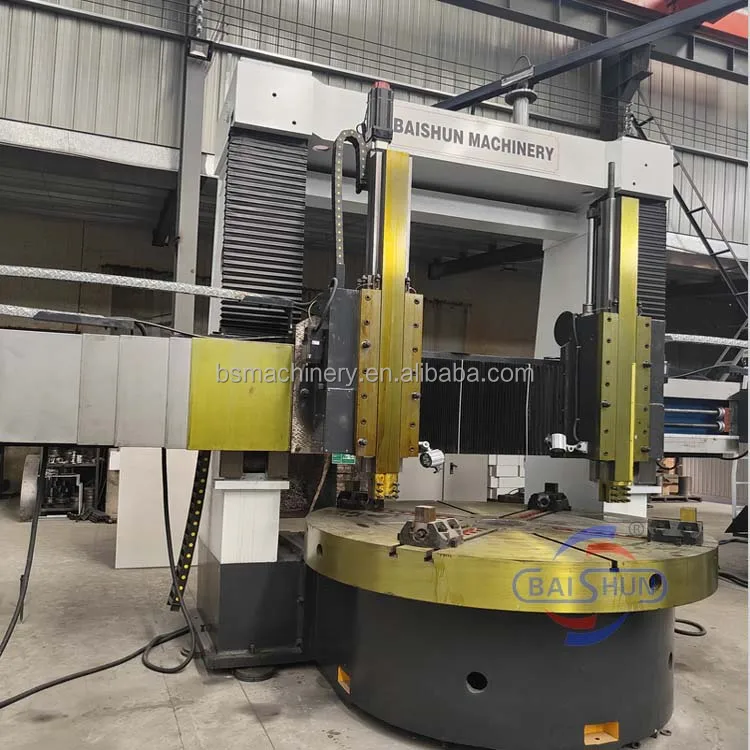

verticallathe 04.jpg





verticallathe 05.jpg

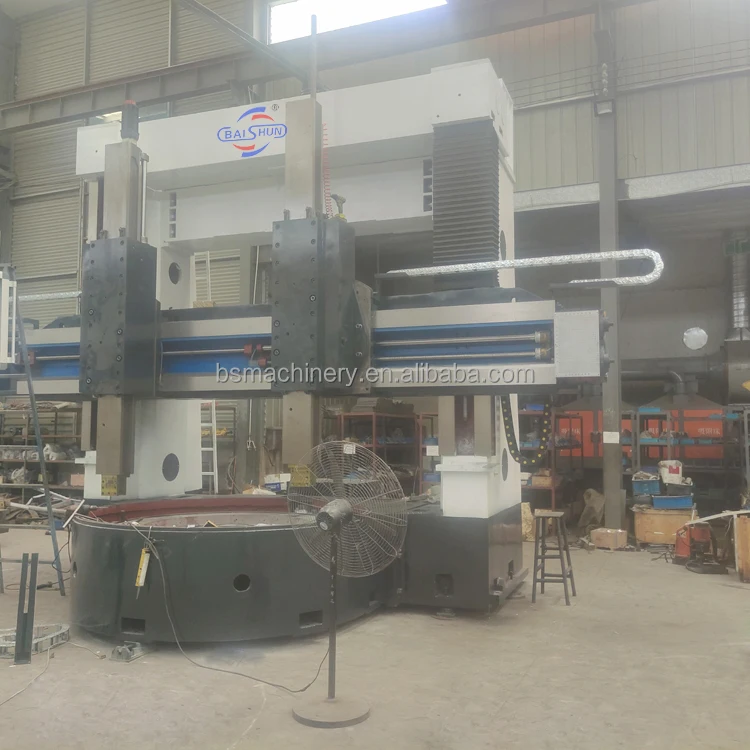

turning lathe vertical02.jpg

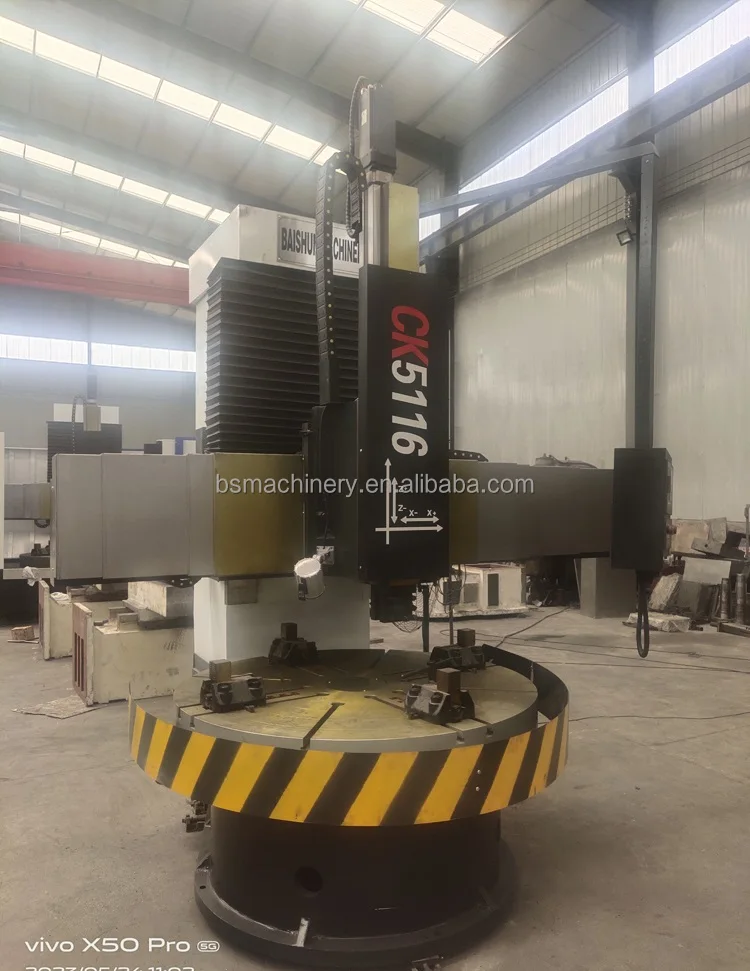

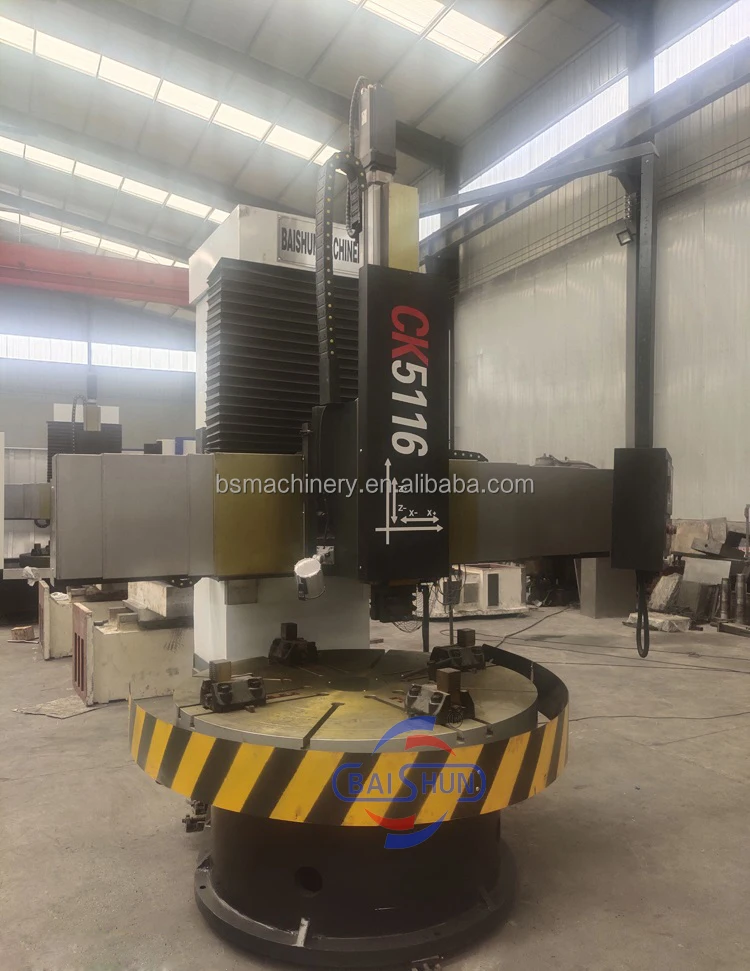

_20230525100359 .jpg

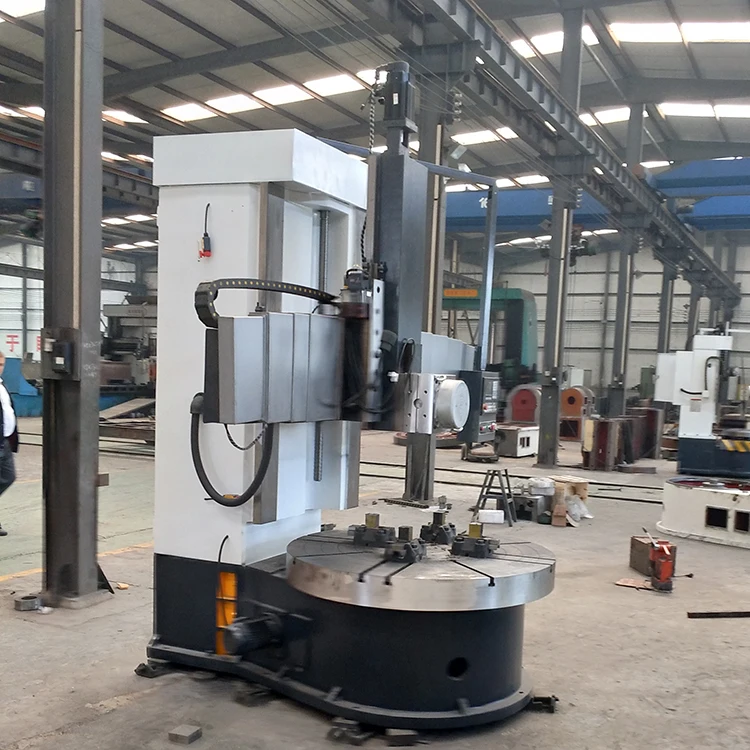

CNC Lathe machine.jpg

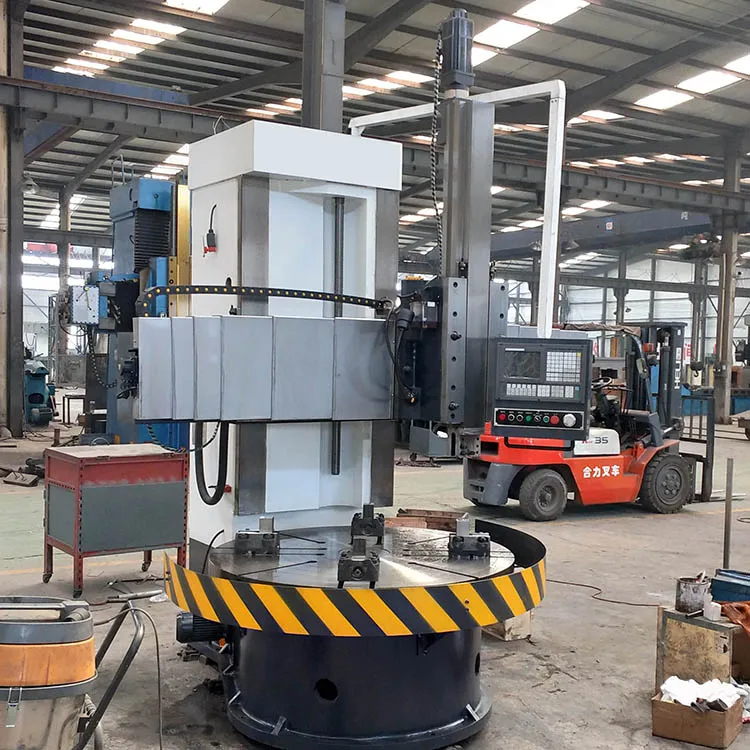

CNC with GSK control lathe.jpg









Machine Parameter

































































































































































Specifications



Unit



CK5225



CK5231



CK5240Q



CK5240



Max.turning diameter



mm



2500



3150



4000



4000



Max. height of work piece



mm



1600/2000/2500



1600/2000/2500



1600/2000/2500



1600/2000/2500



Max. weight of work piece



T



10/20



10/20



10/20



32



Worktable diameter



mm



2250



2830



2830/3150



3200/3600



Range of table speeds



r/min



2-63



2-63



2-63



2-63



Steps







16



16



16



16



Max torque of work table



KN.m



63



63



63



100



Rapid traverse of rail head



mm/min



4000



4000



4000



4000



Ram vertical travel of right railhead



Kn



35



35



35



40



Ram vertical travel of left railhead



kn



30



30



30



30



Range cutting force of right railhead



mm/min



1-50



1-50



1-50



1-50



Range cutting force of right railhead



mm/min



0.1-1000



0.1-1000



0.1-1000



0.1-1000



Travel of arm



mm



1000



1000



1000



1250



Section of arm



mm



255×200



255×200



255×200



240×240



Swivel of left and right railhead



°



±30°



±30°



±30°



±30°



Section of tool



mm



40×50



40×50



40×50



50×50



Power of main motor



Kw



55



55



55



75



Overall dimensions



cm



569×470×480/520



605×440×493/533



690×510×480/520



690×510×480/520
