Vertical hydraulic lifting equipment electric goods lift material handling lifter for warehouse
- Category: >>>
- Supplier: Shandong Tavol Machinery Co. Ltd.
Share on (1600874042902):
Product Overview
Description
Products Description

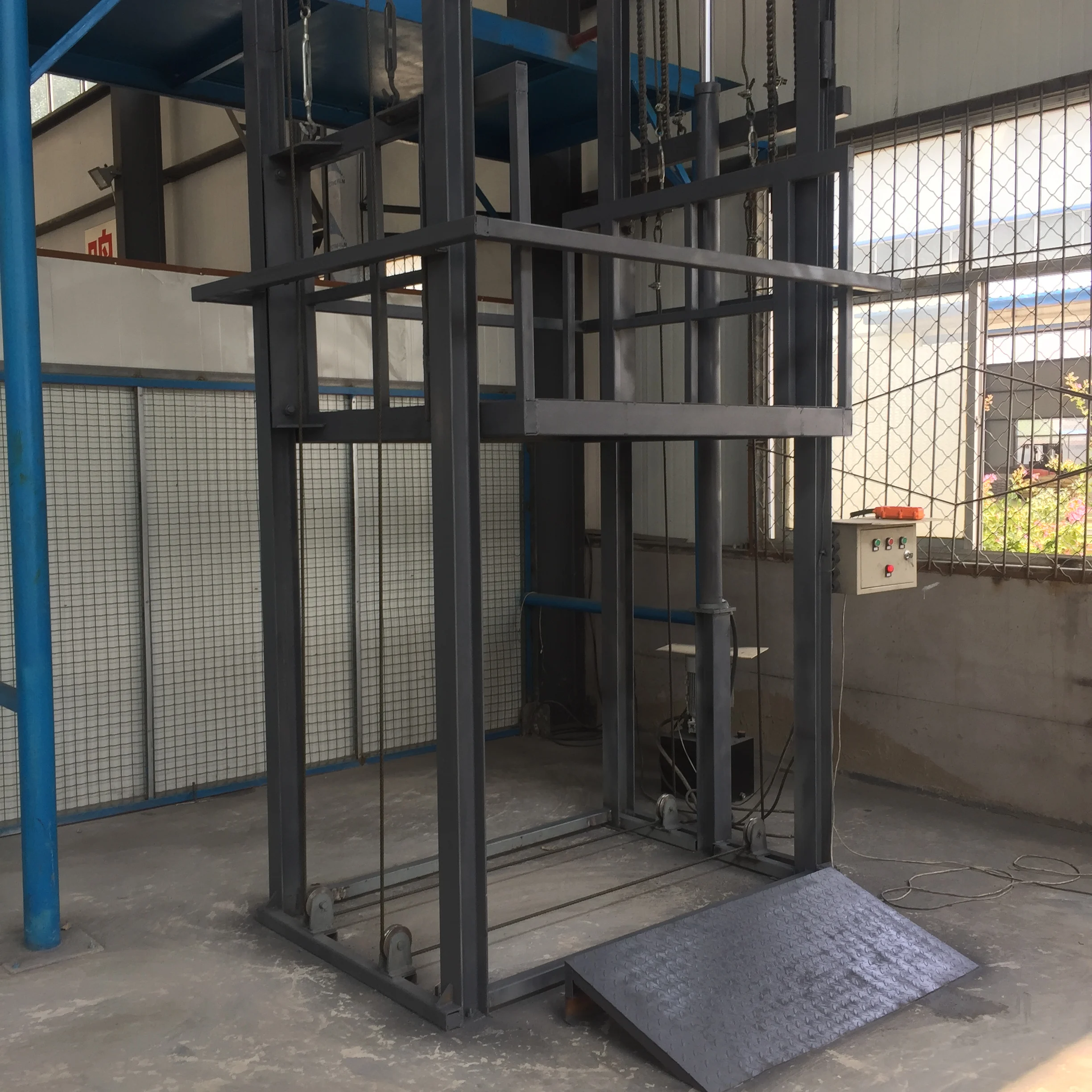

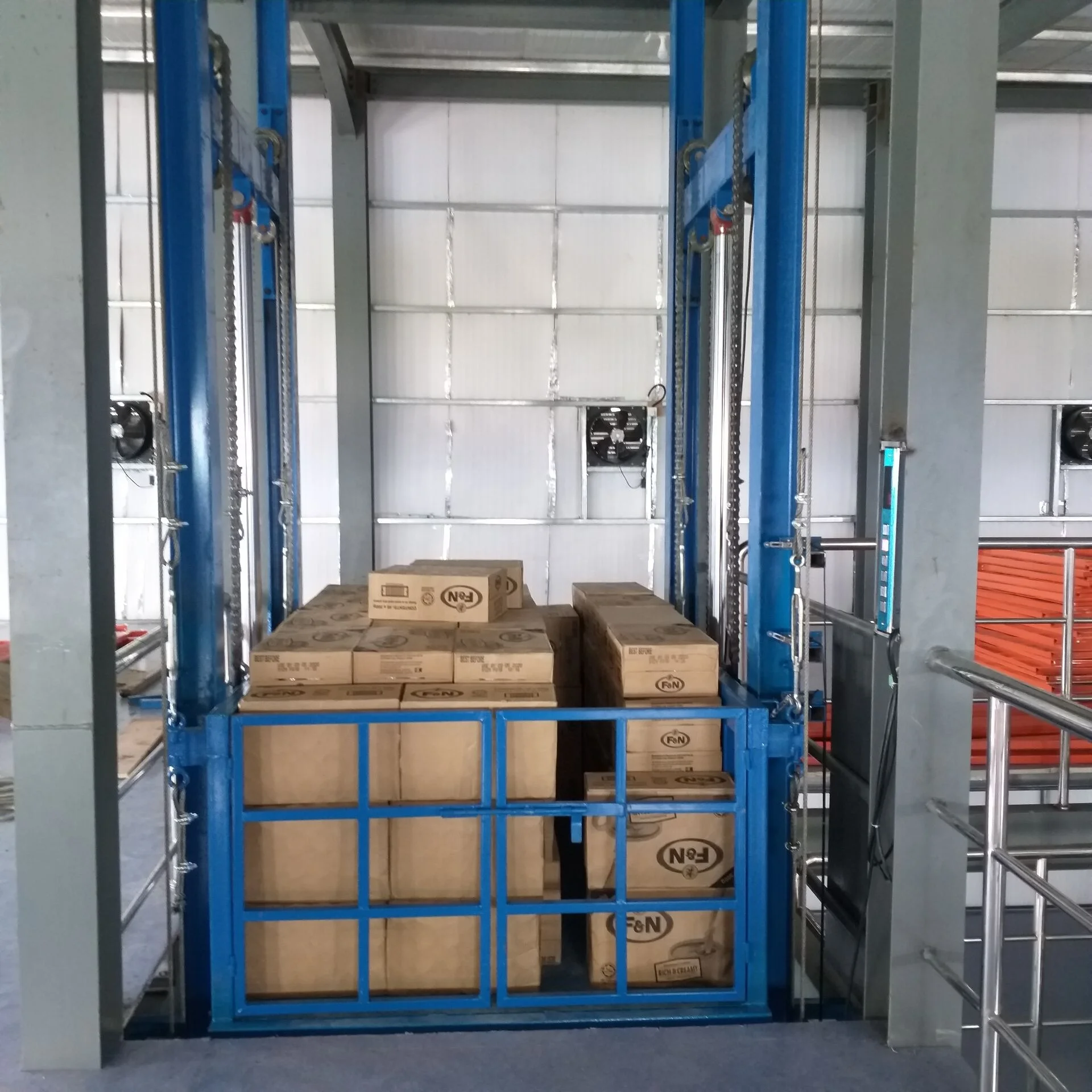

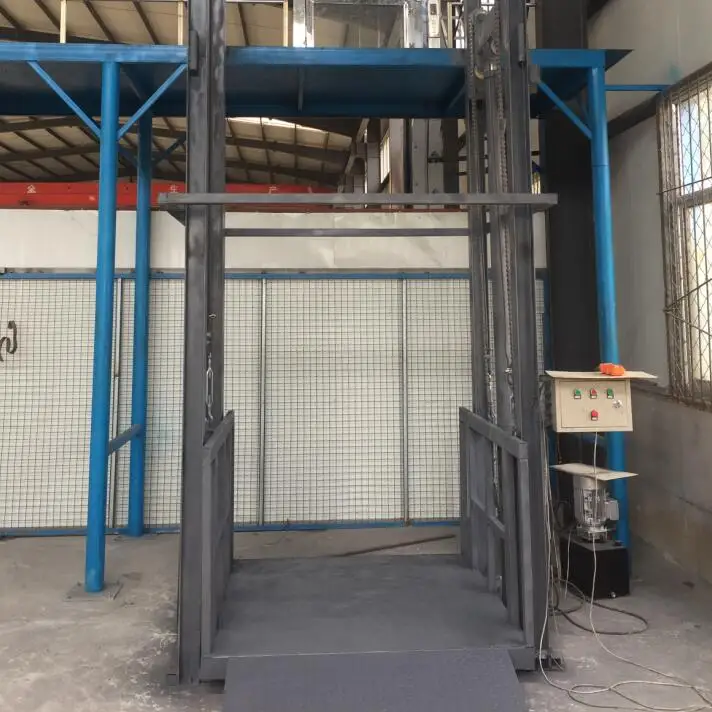

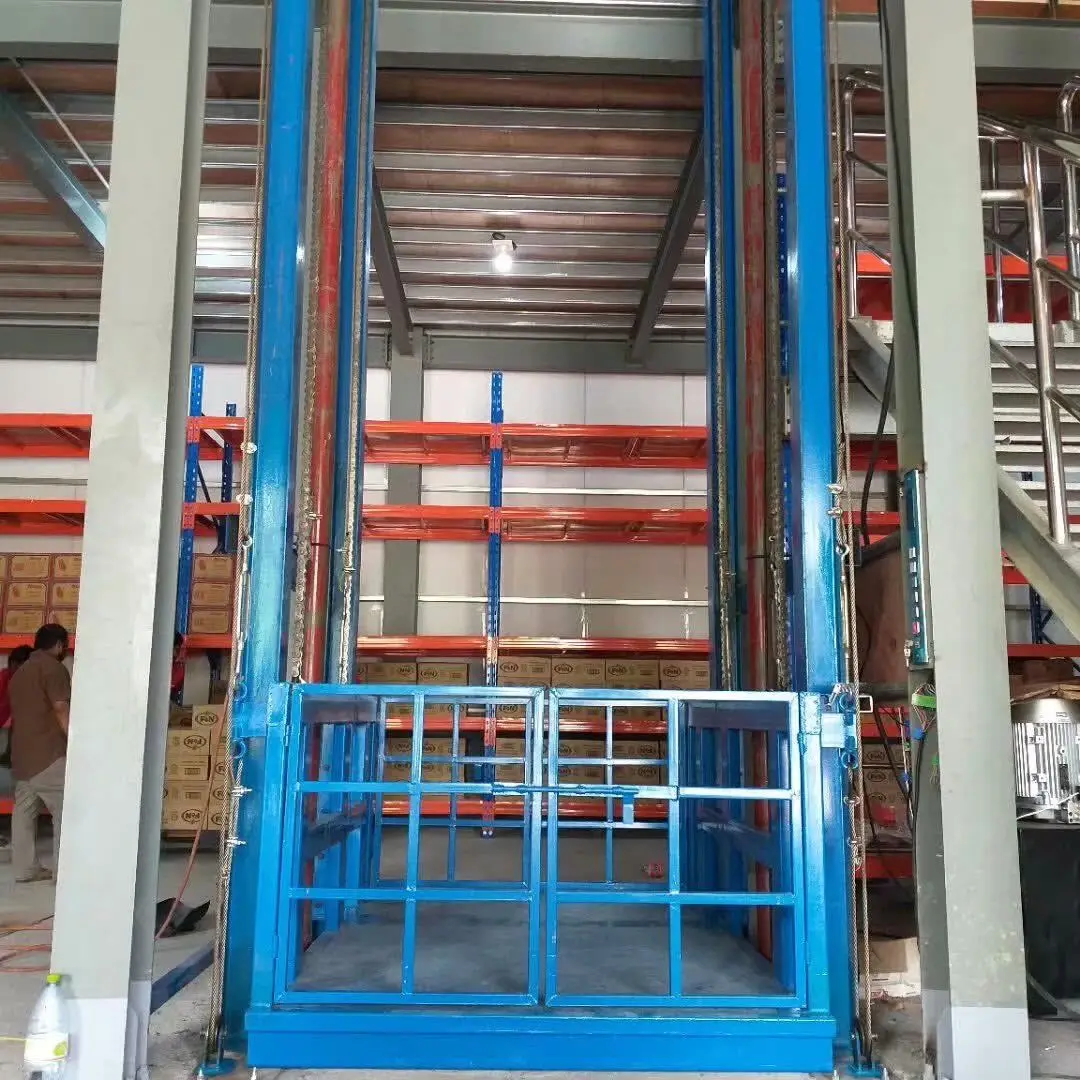

Four post cargo lift is widely used in indoor and outdoor workplaces of the building and warehouse,lifting goods or pallets among different vertical floors.
Its loading capacity can be varied from 300 kg to 10 tons,being applicable for many kinds of working conditions.
TAVOL cargo lift custom design is available in loading capacity,platform size and travel height,based on your work requirements.
Products Parameters | ||||||||
Model | Load Capacity | Platform Size | Travel Height | Pit Depth | ||||
SJD0.3-4.5 | 300kg | 1000x800mm | 4500mm | 350mm | ||||
SJD1.0-4.5 | 1000kg | 1500x1000mm | 4500mm | 350mm | ||||
SJD2.0-4.5 | 2000kg | 1500x1500mm | 4500mm | 350mm | ||||
SJD3.0-4.5 | 3000kg | 2000x1000mm | 4500mm | 350mm | ||||
SJD3.0-6.5 | 3000kg | 2200x1600mm | 4500mm | 350mm | ||||
SJD5.0-6.5 | 5000kg | 2200x1900mm | 4500mm | 350mm | ||||
SJD10-13.9 | 10000kg | 2800x2500mm | 13900mm | 350mm | ||||
Other model | Customized design is available in loading capacity, platform size and travel height, based on your work requirements | |||||||
Product Details
Working Platform Guide Rails
Made of Anti-skid checkered steel plate
Made of heavy duty H steel beam of Q345B
Pump
Highly efficient hydraulic power unit with great working pressure and no risk of leakage

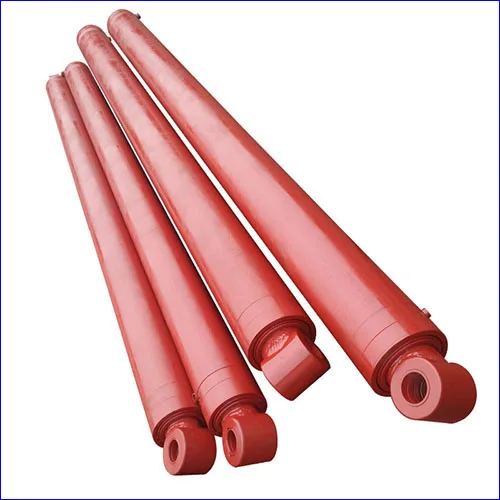

Cylinder
Heavy workload hydraulic cylinder system with smooth performance and long service time
Digital Call Box
Digital control panels are used to stop the platform at each level of floor.Emergency stop button is available in each control panel
Control Box
Neatly lined PLC,programmable logic controller,control system offers an easy and safe operation.
Product Application
Our Company
Shandong Tavol Machinery Co., Ltd (TAVOL GROUP) is a professional manufacturer of cargo lifts,scissor lift tables,TAVOL has been specialized in delivering one stop hydraulic lift platform solutions to worldwide customers for 30 years.
Our cargo lifts,scissor lifts are widely used in workshop,supermarket,factory and many other industries.
In addition,we can also design and manufacture the lifts according to your needs,including load capacity,platform size,lift height,different power sources etc.
Product innovation, quality assurance and customer satisfaction are our long term commitment to all of our partners. All of our products passed ISO9001, CE and PVC.
Product innovation, quality assurance and customer satisfaction are our long term commitment to all of our partners. All of our products passed ISO9001, CE and PVC.
FAQ
Interested in the cargo lift?welcome to contact us:
1- Lift height? (M)
2- Load capacity(Kg)
3- Platform size(mm)
4- Local voltage: 380V/50HZ/3P or others?
1- Lift height? (M)
2- Load capacity(Kg)
3- Platform size(mm)
4- Local voltage: 380V/50HZ/3P or others?
