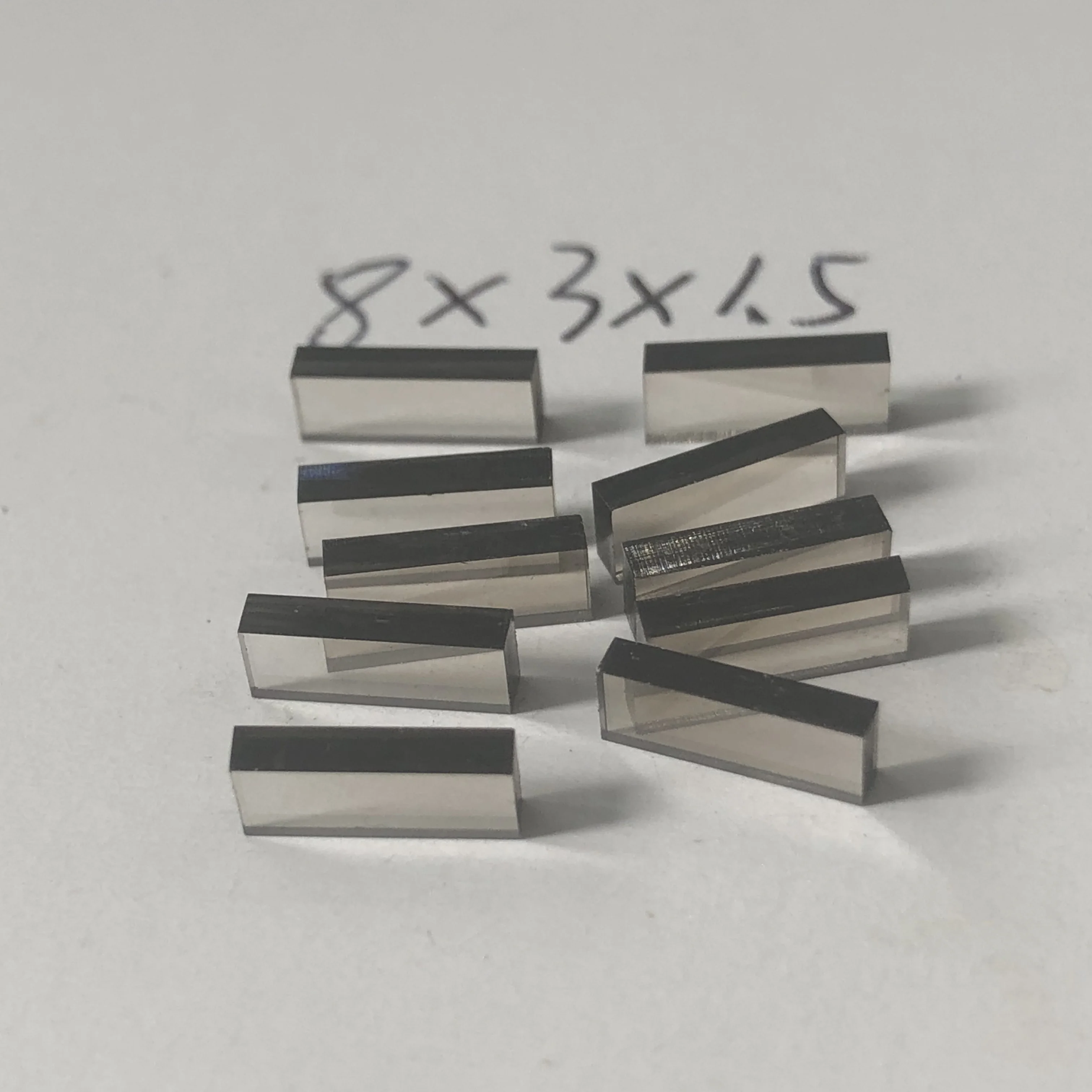

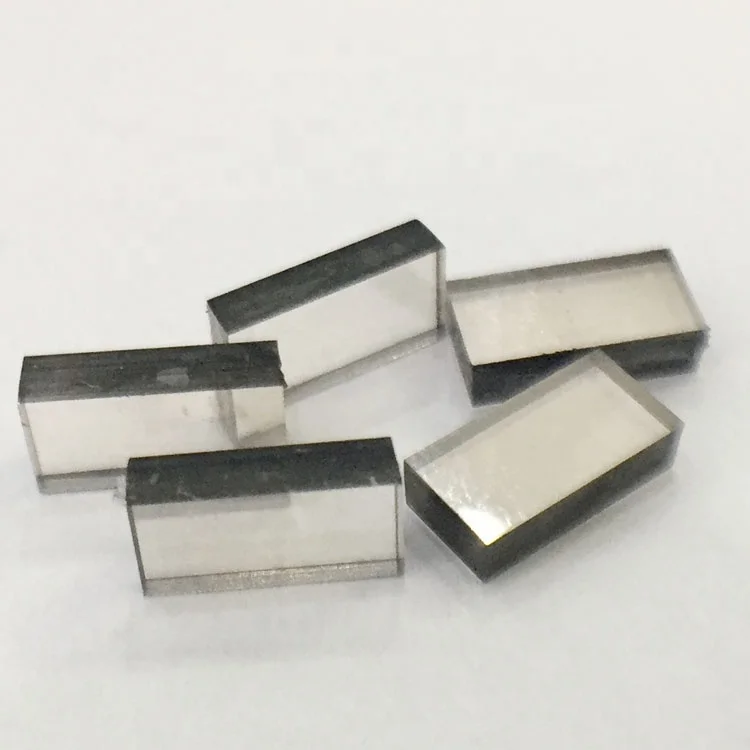

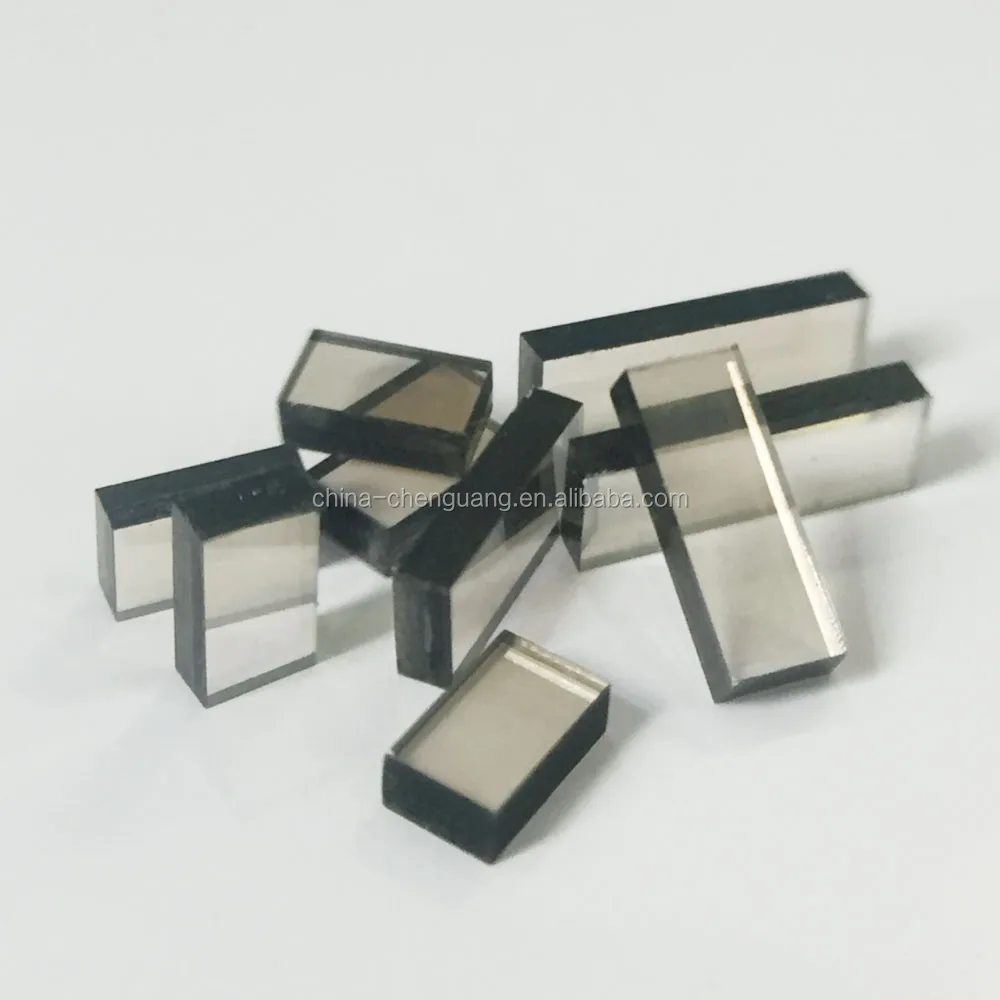

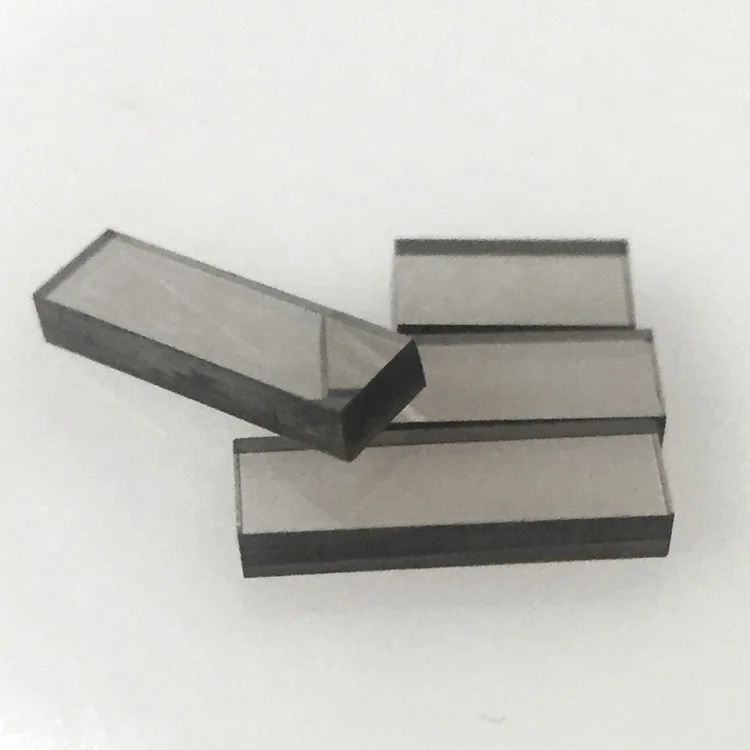

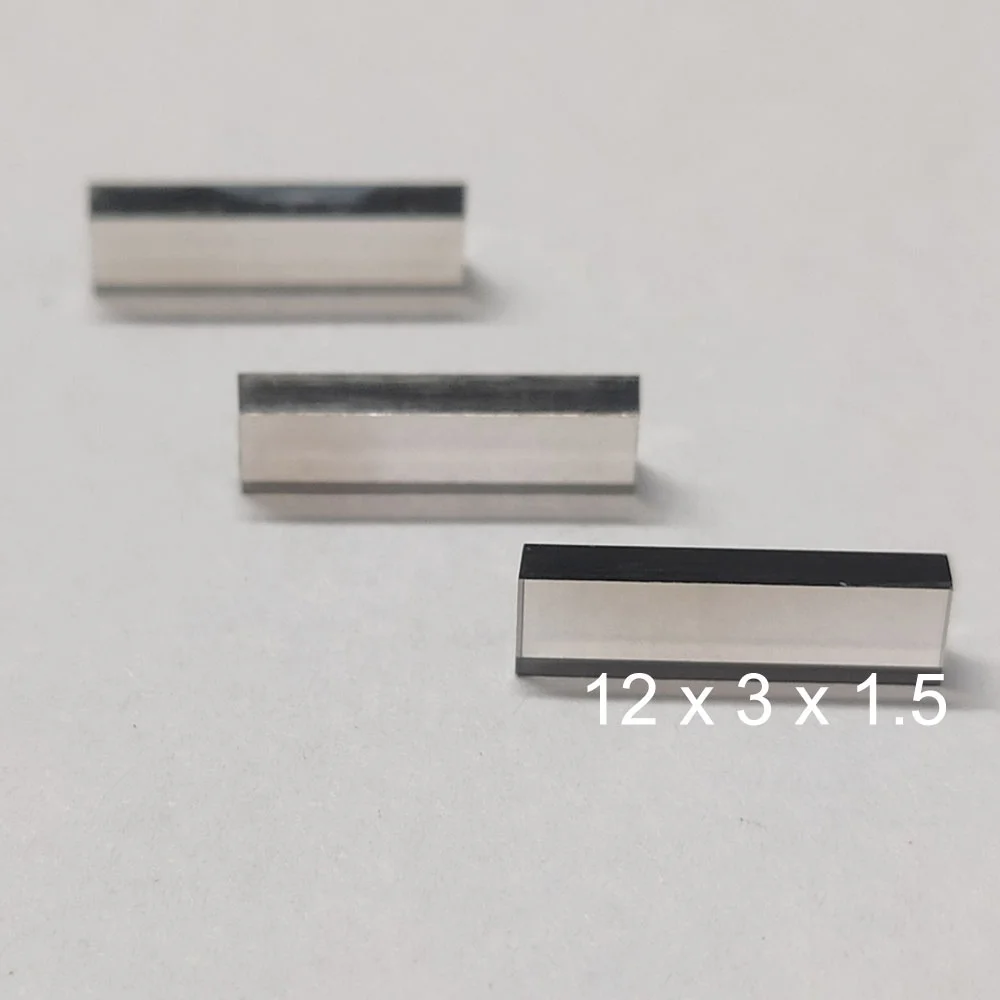

SCD CVD Diamond Single Crystal Diamond IIA Type Chemical Vapor Deposition Diamond Tools
- Category: >>>
- Supplier: Chenguang Machinery & Electric Equipment Co. Ltd.
Share on (1600874054828):
Product Overview
Description
Product Description
Specification
Crystal growth process: | Mono CVD diamond |
Color: | Normal grade - Near colorless, Mechanic grade - Brown |
Advantage: | 1) Regular shape, uniform size. The size can be strictly controlled according to customer needs. |
2) High repurchase rate and high cost performance, well received by customers. | |
3) No visible growth lines,under 100x microscope, no black spots, no impurities, no crack. | |
4) The stress is good, the number of times of reuse is high, and it is not easy to crac | |
Size | 3*3 4*4 5*5 6*6 7*7 8*8 9*9 10*10 11*11 12*12 Thickness: 0.1-0.5mm |
Orientation: | 4pt/100 |
Shape: | Square |
Lateral Dimensions Measured | to smaller side |
Edges | Laser Cut |
Laser Kerf | < 3° |
Lateral Tolerance: | +0.1/-0 mm |
Roughness, Ra | 1. Two sides polished, Ra < 30 nm |
2. One side polished, the other size is The other side is the cutting surface, or grow | |
3.Both sides are unpolished |
Industry CVD diamond
Application

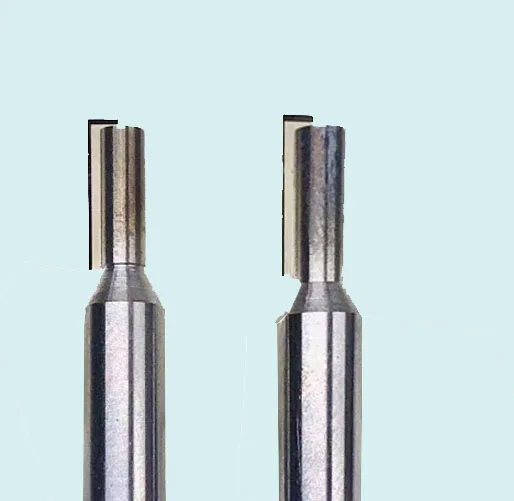

a, cutting tools for non-ferrous and non-metallic materials.
b, dressers for wheel dressing
c, a variety of speciallity knives
d, burnishing tools, cutting tools
e, wear parts
f, wire drawing dies
a, cutting tools for non-ferrous and non-metallic materials.
b, dressers for wheel dressing
c, a variety of speciallity knives
d, burnishing tools, cutting tools
e, wear parts
f, wire drawing dies
Available Sizes of CVD Diamonds seeds( Square Shape) | ||||||
Orientation | Size | Orientation | Orientation | |||
110 or 100 | 7x7x0.3 mm | 110 or 100 | 12x12x0.4 mm | |||
110 or 100 | 8x8x0.3 mm | 110 or 100 | 13x13x0.4 mm | |||
110 or 100 | 9x9x0.3 mm | 110 or 100 | 15x15x0.5 mm | |||
110 or 100 | 10x10x0.4 mm | 110 or 100 | ||||
110 or 100 | 11x11x0.4 mm | 110 or 100 | ||||
Delivery Time: 1 week for sizes smaller than 9x9 mm. | ||||||
Available Sizes of CVD Diamonds seeds (Rectangle shape) | |
Orientation | Size |
110 or 100 | 12x9.5x0.4mm |
110 or 100 | 12x10x0.4mm |
110 or 100 | 13x11x0.4mm |
110 or 100 | 14x11x0.4mm |
Grade
1. VVS clarity, no edge damage.
2. High quality and strict quality control
3,The length,width and thickness are are positive tolerance,L + W tolerance(+0.2 mm),thickness tolerance(+0.1).
3,The length,width and thickness are are positive tolerance,L + W tolerance(+0.2 mm),thickness tolerance(+0.1).
4,The product is uniform in color.Observed under a 20x magnifying glass,there are no black spots or cracks.
