Product Overview
Description
Products Description

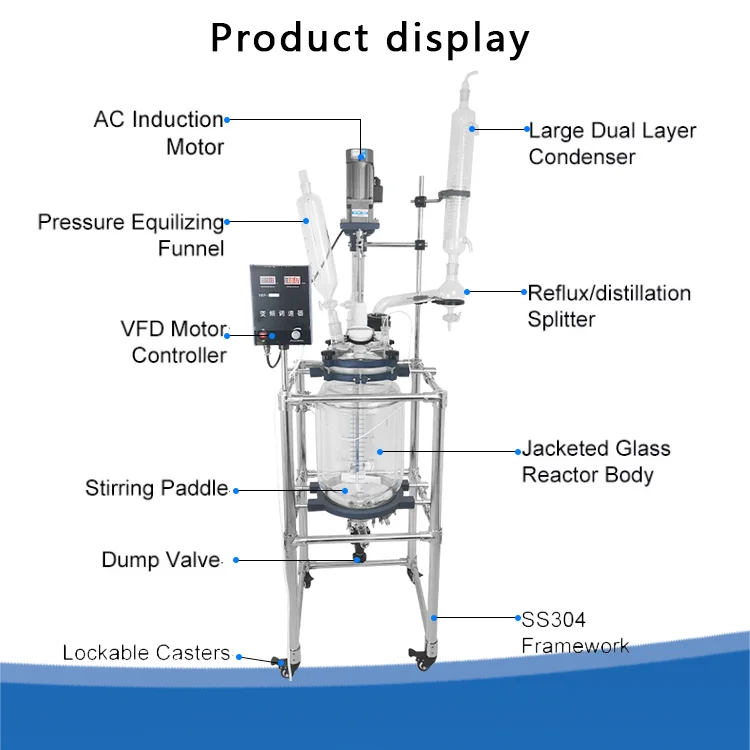

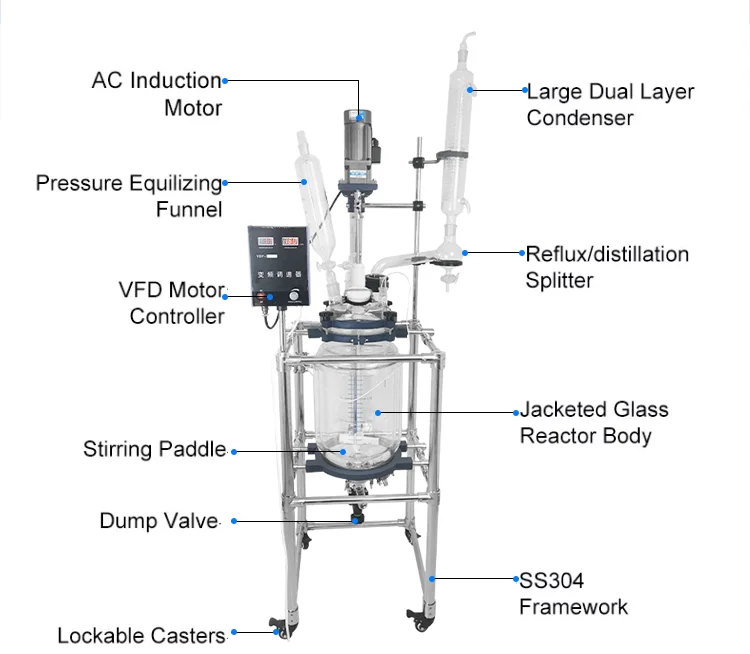

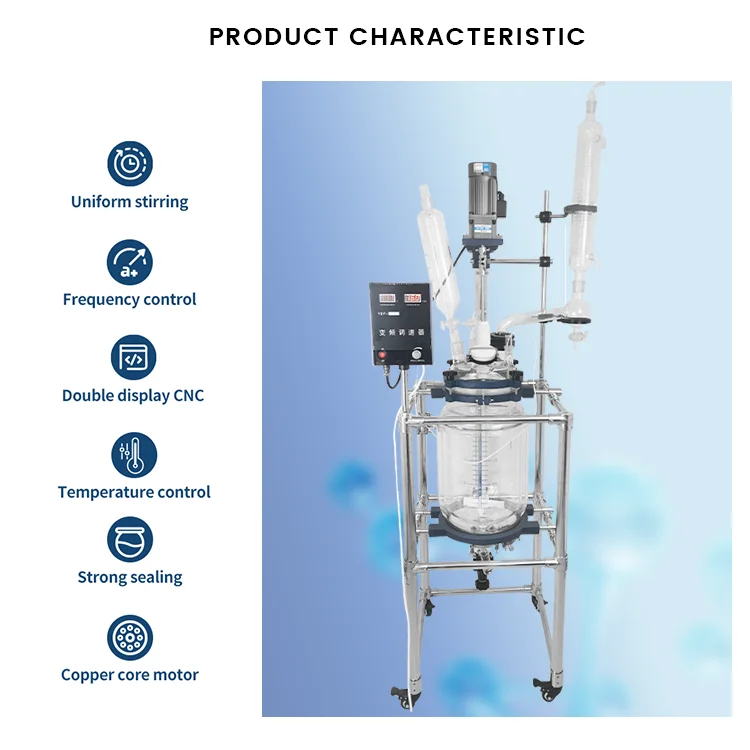

For special applications, jacketed glass reactor is designed with a jacket for heating or cooling. Jacket is sealed to the vessel with Viton 'O' ring and other sealing compositions. The seal prevents high stresses between vessel and jacket by allowing the movement flexibility between two due to thermal expansion. This Jacketed glass reactor can be used for vacuum stirring reaction, high temperature and low temperature reaction, constant speed operation mixing reaction, distillation, reflux, concentration reaction,negative pressure operation and so on.
Jacketed glass reactors' capacity range:1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,fully meet the request of small laboratory experiments and pilot production in plant
Our Advantages
Why Choose Us
High borosilicate glass
Adopting high-tech firing methods, high borosilicate glass has stable chemical properties, high strength, high hardness, and high transmittance. High and low temperature conversion is not prone to cracking, and low-quality products have been phased out for safer use.

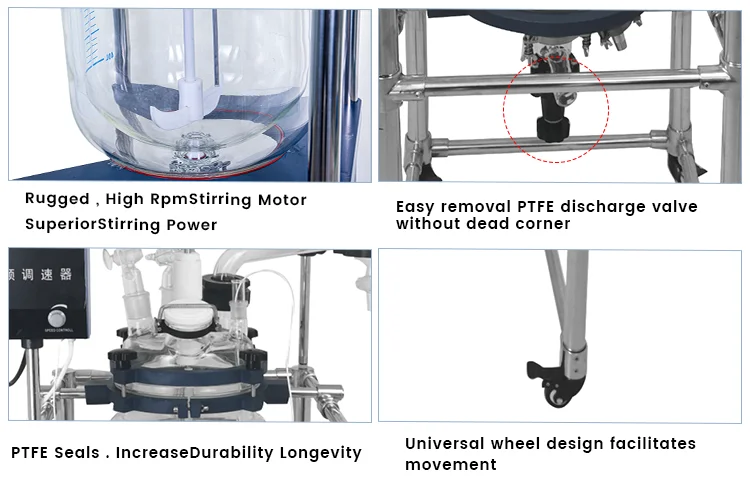

Various stirrers
Stirrer material is 316L stainless steel wrapped with PTFE coat, which has high corrosion resistant performance. (316L stainless steel material optional) Stirring blade can be customized. We also provide various blade shape for your reference.

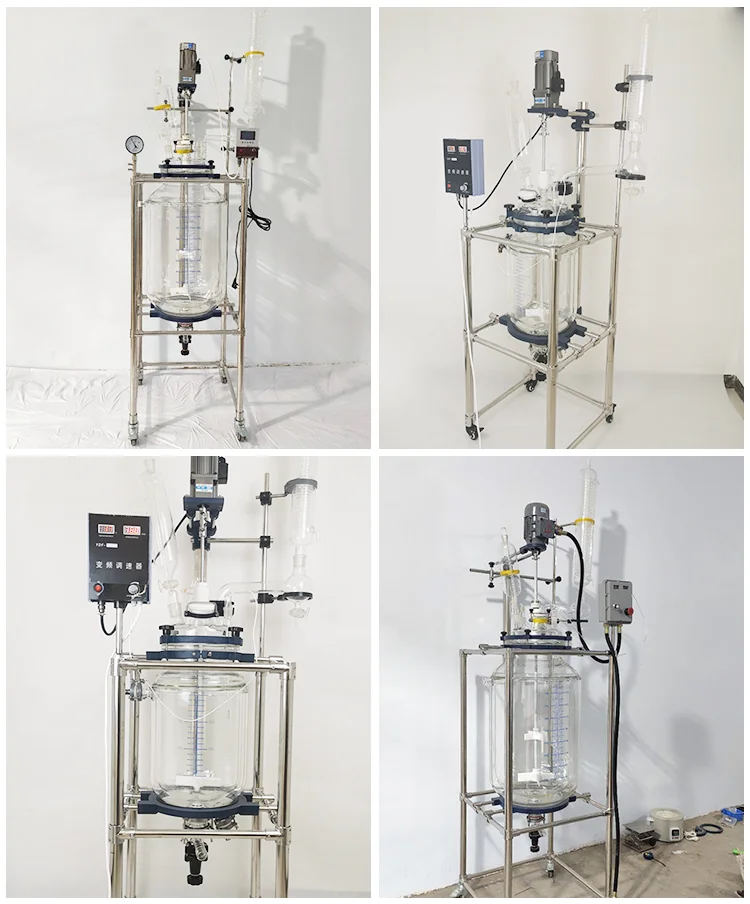

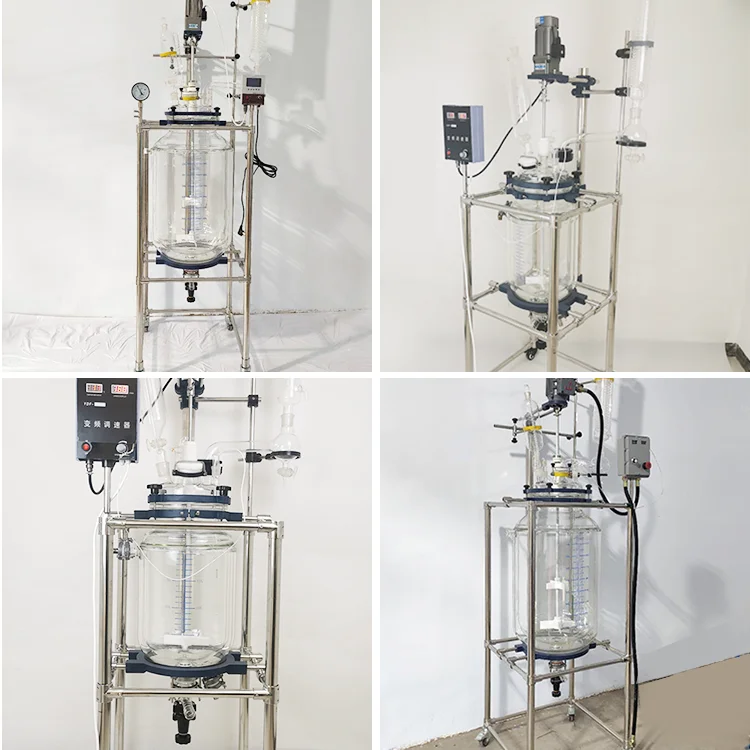

Details Images
Model | S212-1L | S212-2L | S212-3L | S212-5L | S212-10L | S212-20L | |||||
Jacket capacity | 0.6L | 0.6L | 0.9L | 1.5L | 3L | 6L | |||||
Material capacity | 1L | 2L | 3L | 5L | 10L | 20L | |||||
Constant pressure funnel | 0.25L | 0.25L | 0.5L | 0.5L | 1L | 1L | |||||
Mixing speed | 0~1200rpm | 0~600rpm | |||||||||
Condensation area | 0.03m2 | 0.03m2 | 0.04m2 | 0.05m2 | 0.35m2 | 0.45m2 | |||||
Overall size (CM) | 44*36*132.5 | 52*50*151 | 67*65*192 | 72*70*202 | |||||||
Weight | 65KG | 75KG | |||||||||
Power Supply | 110V/60HZ or 220V/50HZ/60HZ | ||||||||||
Power | 120W low-speed booster motor | ||||||||||
Operating pressure | Normal or negative pressure | ||||||||||
Height from the discharge opening to the ground | 80MM | 300MM | |||||||||
Model | S212-30L | S212-50L | S212-80L | S212-100L | S212-150L | S212-200L | |||||
Jacket capacity | 10L | 16L | 24L | 30L | 45L | 60L | |||||
Material capacity | 30L | 50L | 80L | 100L | 150L | 200L | |||||
Constant pressure funnel | 2L | 5L | |||||||||
Mixing speed | 0~600rpm | ||||||||||
Condensation area | 0.5m2 | 0.65m2 | 1m2 | 1m2 | 1.35m2 | 1.35m2 | |||||
Overall size (CM) | 65*75*240 | 75*70*245 | 77*72*248 | 78*73*250 | 124*114*310 | ||||||
Weight | 85KG | 95KG | 115KG | 125KG | 135KG | 145KG | |||||
Power Supply | 110V/60HZ or 220V/50HZ/60HZ | ||||||||||
Motor Power | 120W low-speed booster | 120W | 200W | 400W | |||||||
Operating pressure | Normal or negative pressure | ||||||||||
Height from the discharge opening to the ground | 300MM | 400MM | 500MM | ||||||||
