Epever XTRA2210N Solar Char Controller 20A Max PV 100V MPPT LCD Display 12V/24V System Volta Lighting Controller
- Category: >>>
- Supplier: Huizhou Epever Technology Co. Ltd.Huizhou Ltd.
Share on (1600874102361):
Product Overview
Description
XTRA Series MPPT solar charge controller
XTRA(10A~40A) series is advanced maximum power point tracking (MPPT) charge controllers for off-grid photovoltaic systems, with optional display units (XDB1/XDS1/XDS2). It is designed according to the international standard with higher quality, reliability , and safety. The limitation function of the charging power, charging current, and automatic power reduction function fully ensure stability when working with oversize PV modules(max.1.5 times of rated power) and operating under a high-temperature environment.
Features
Technical Specifications
Model | XTRA2210N-XDS2 | |
Nominal system voltage | 12/24VDC/ Auto | |

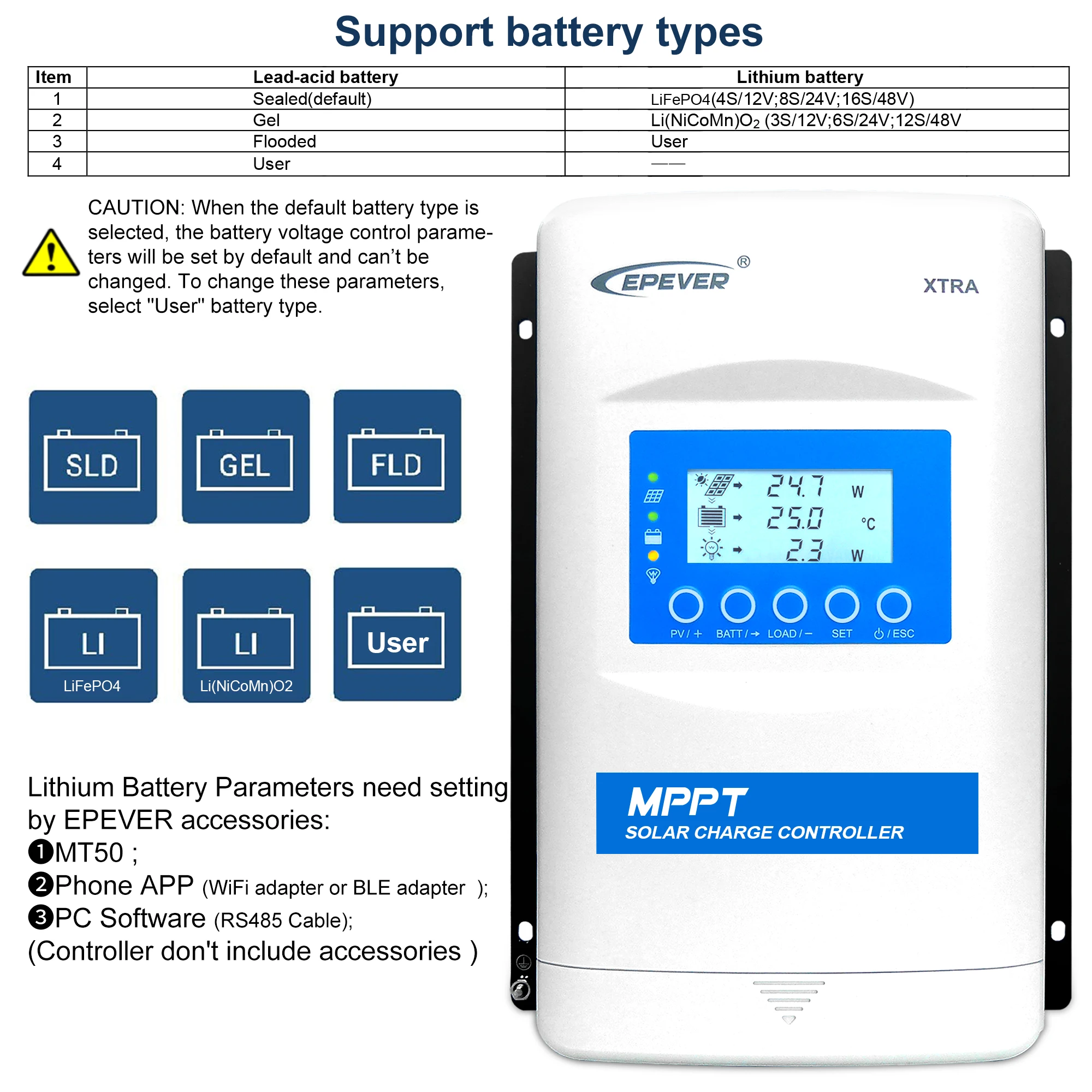

Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User | |
Battery input voltage range | 8~32V | |
Rated charge current | 20A | |
Rated discharge current | 20A | |
Rated charge power | 260W/12V 520W/24V | |
Max. conversion efficiency | 98.30% | |

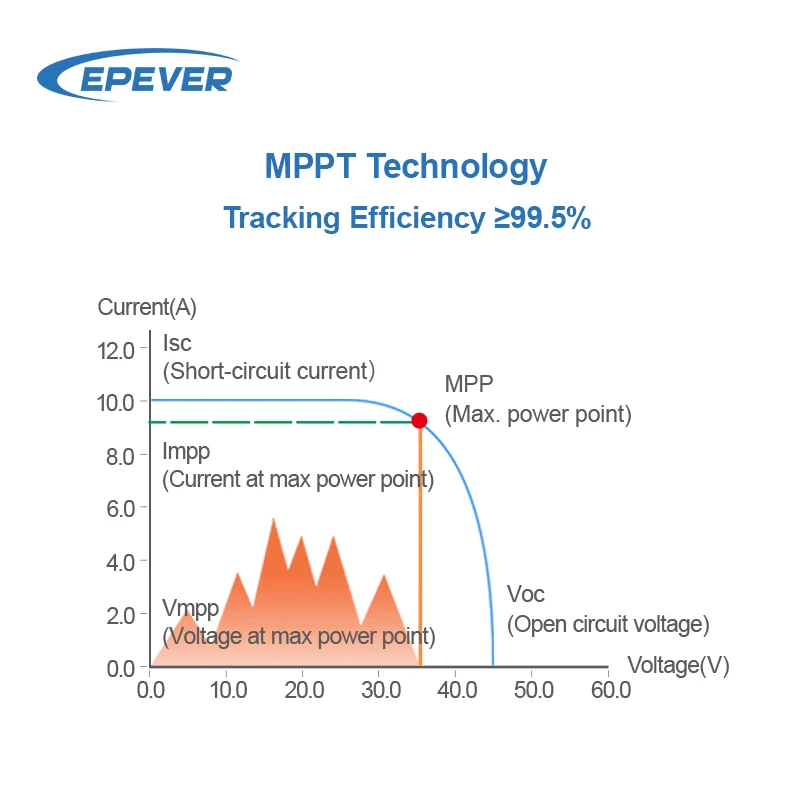

Tracking efficiency | ≥99.5% | |
Max. PV open circuit voltage | 100V (At minimum operating environment temperature) 92V (At 25℃ environment temperature) | |
MPP voltage range | (Battery voltage+2V) ~72V | |
Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V | |
Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V | |
Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V | |
Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V | |
Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V | |
Self-consumption | ≤30mA(12V) ≤16mA(24V) | |
Temperature compensation (for lead-acid battery) | -3mV/℃/2V (Default) | |
Relative humidity | ≤95%, N.C | |
Enclosure | IP33 | |

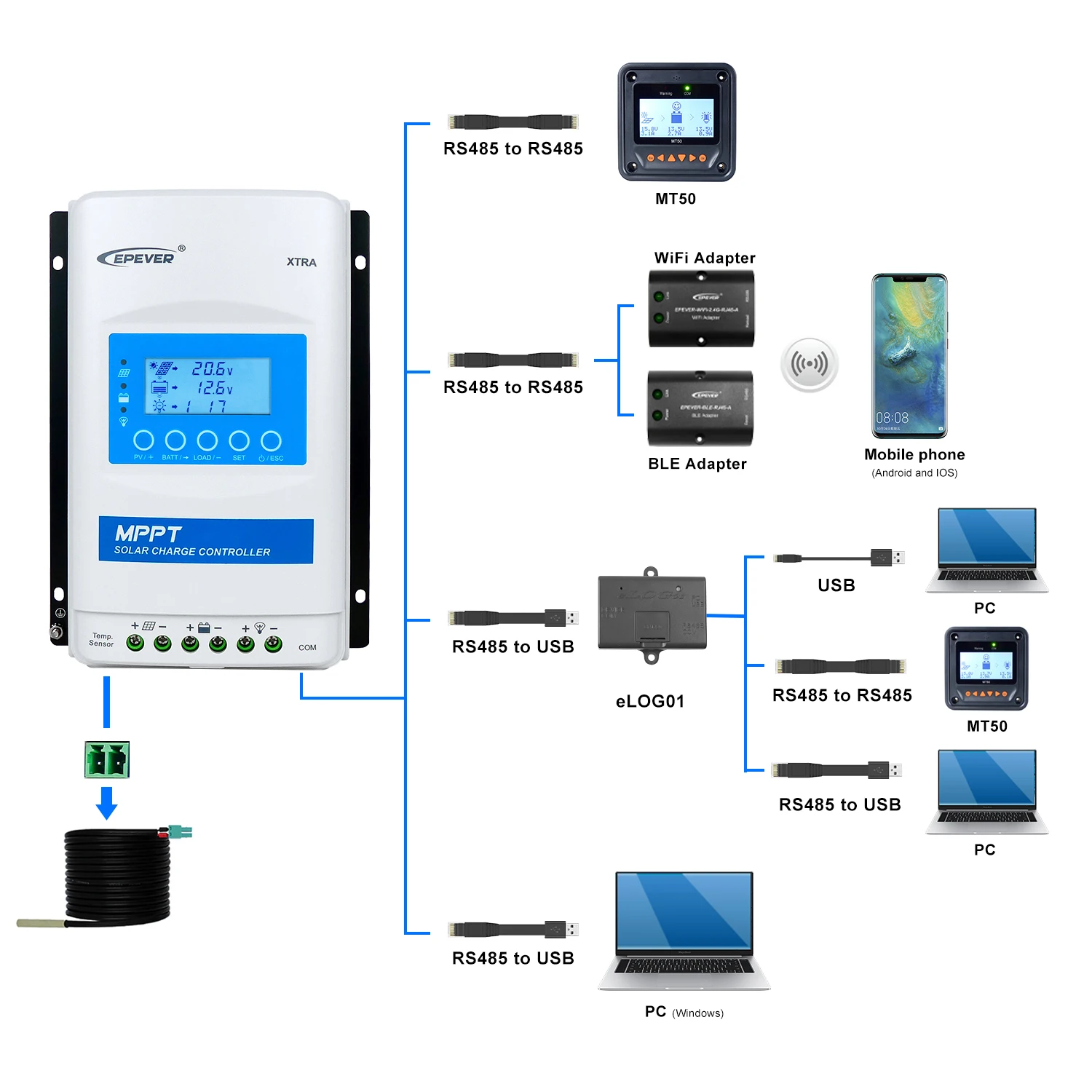

Communication interface | RS485(RJ45) | |
Grounding | Common negative | |
Operating temperature range | `-25℃～+50℃(LCD);-30℃～+50℃(No LCD) | |
Dimensions(LxWxH)(mm) | 217×158 ×56.5 | |
Net weight | 0.96kg | |
1. The controlller can't automatically identify system voltage if lithium batteries were connected. | ||
2. The voltage point is for 12V system, please *2 in 24V system, *3 in 36V system, *4 in 48V system. | ||

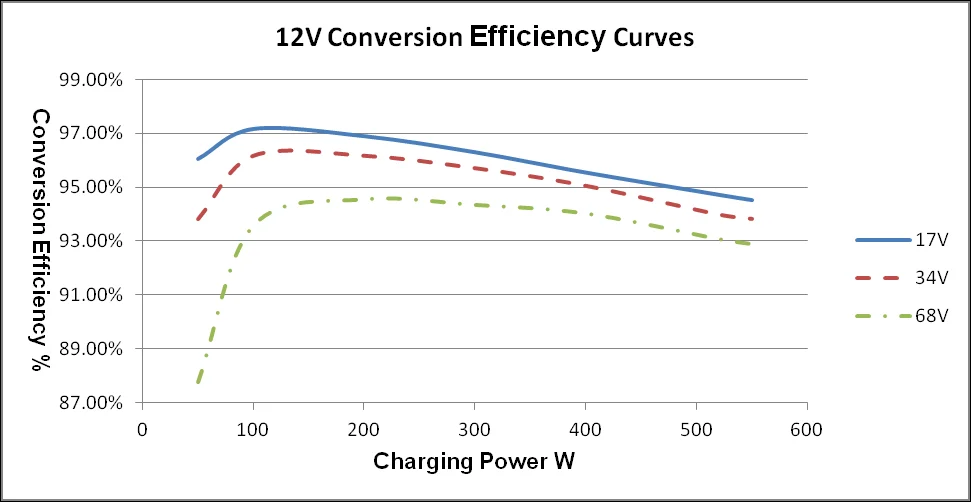

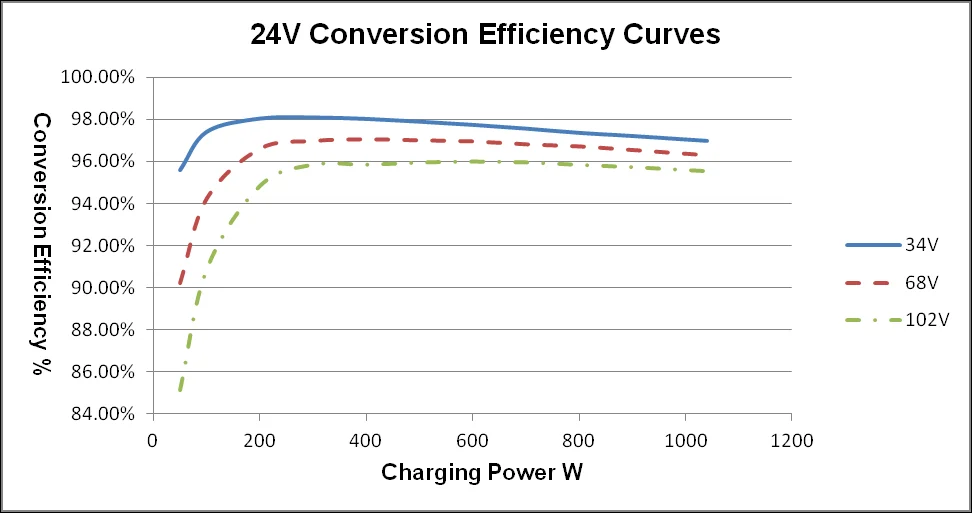

1. Solar Module MPP Voltage(17V,34V,68V)/ Nominal System Voltage(12V)
2. Solar Module MPP Voltage(34V,68V,102V)/ Nominal System Voltage(24V)
PACKING
12PCS/CARTON 14.04KGS/CARTON 50*36*26CM
