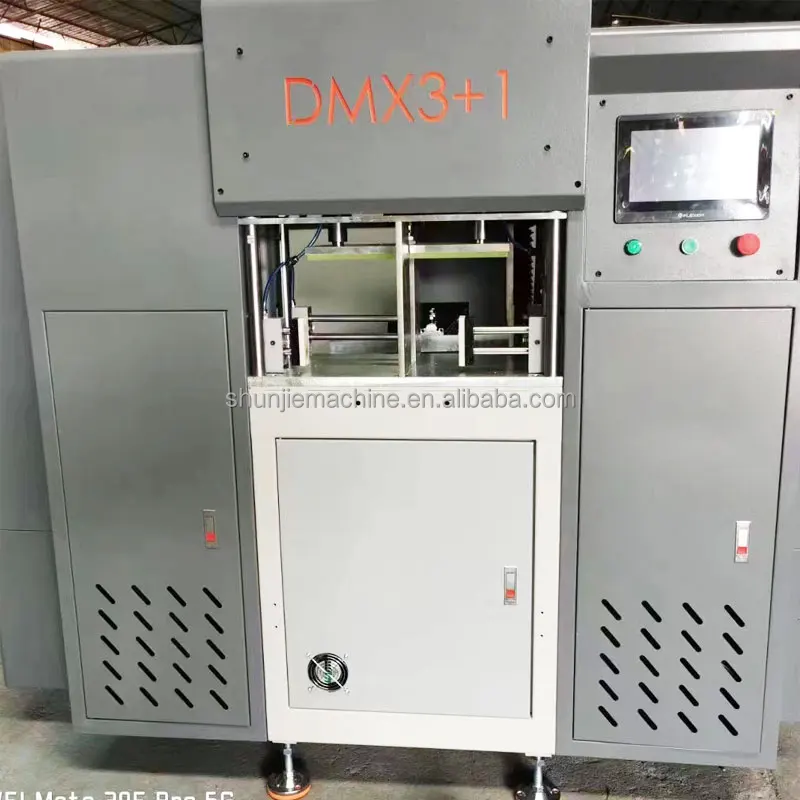

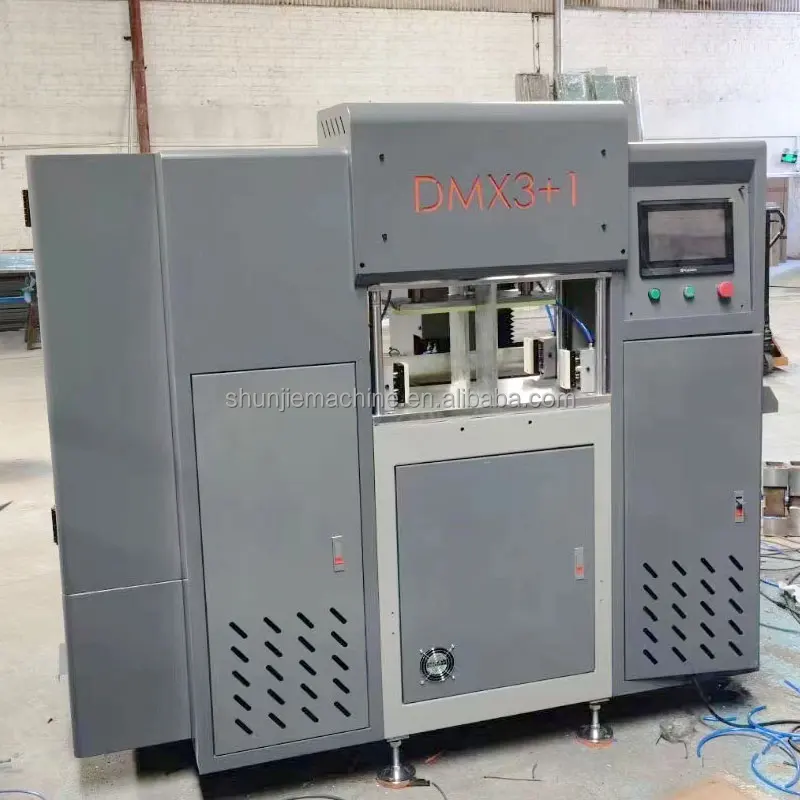

3 Axis CNC Aluminum profile end face milling machine

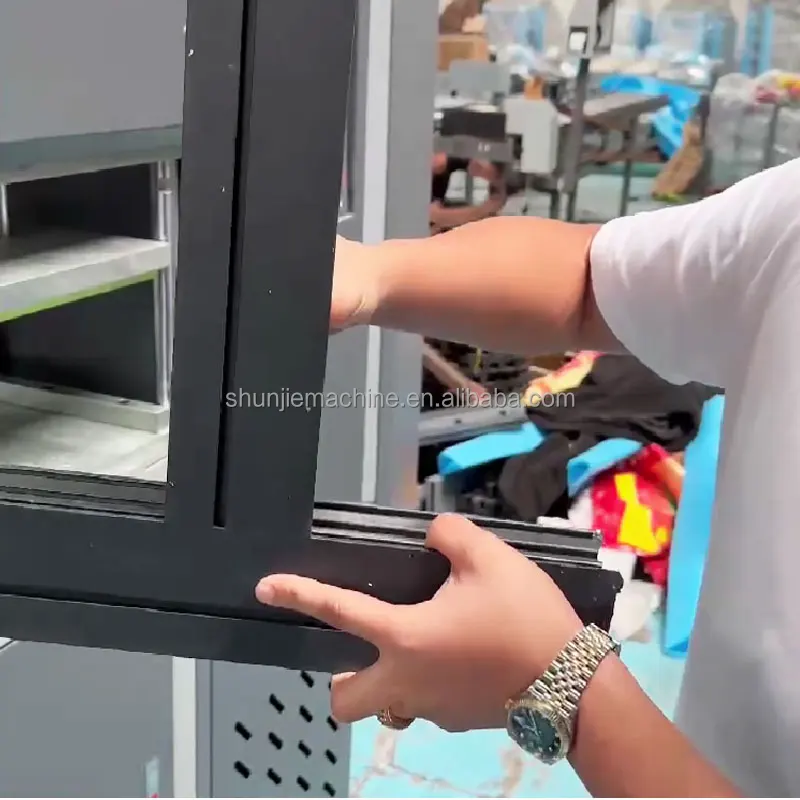

1. This machine is mainly used for milling and tenoning of the central column material of casement windows, and it can also be used for milling and tenoning of upper and lower rails of sliding doors and seamless joint materials.

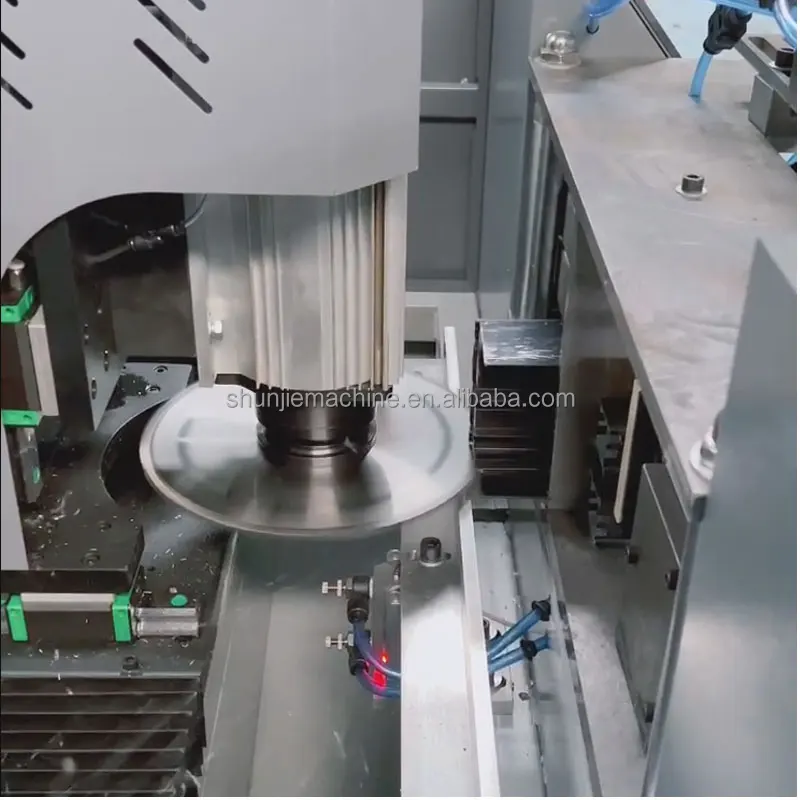

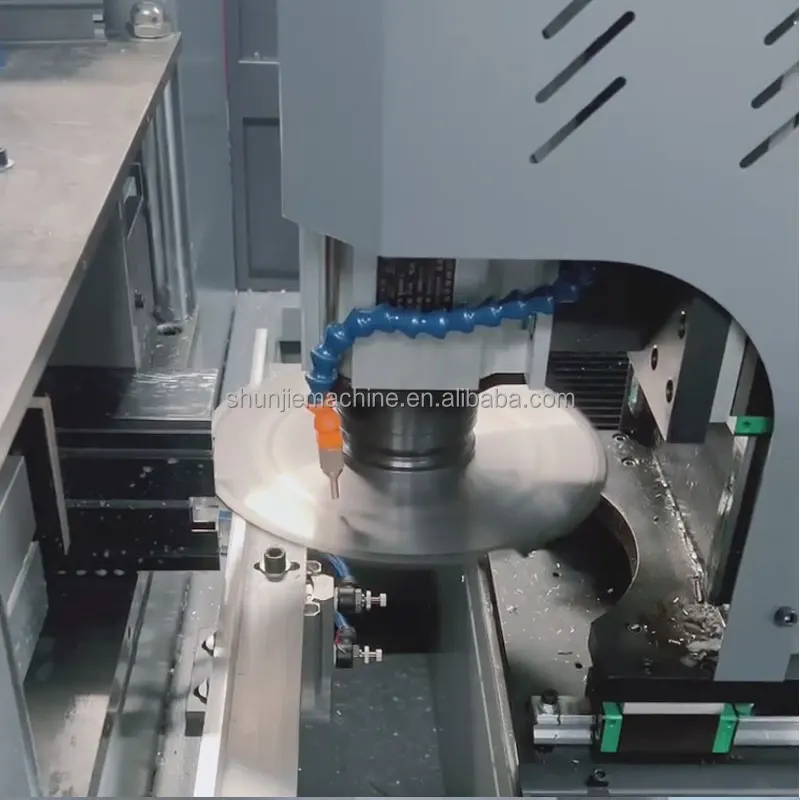

2.One machine head fixes the horizontal knife, and the feed adopts linear orbital motor movement, the saw blade cuts smoothly and the cutting effect is better.
3.The bed of the machine tool adopts a linear guide rail motion pair, and the feed motion of the machine head adopts a rectangular guide rail pair and a spindle motor. The machine tool has high motion accuracy and ensures the accuracy of cutting components.
4.The universal models for doors and windows can be customized, and 95% of the profiles do not need custom-made cushion molds, which are more versatile, more convenient to operate, and higher in efficiency.
2.One machine head fixes the horizontal knife, and the feed adopts linear orbital motor movement, the saw blade cuts smoothly and the cutting effect is better.
3.The bed of the machine tool adopts a linear guide rail motion pair, and the feed motion of the machine head adopts a rectangular guide rail pair and a spindle motor. The machine tool has high motion accuracy and ensures the accuracy of cutting components.
4.The universal models for doors and windows can be customized, and 95% of the profiles do not need custom-made cushion molds, which are more versatile, more convenient to operate, and higher in efficiency.
5.Full CNC programming, 100 profile programs can be edited and saved, which is convenient and fast.
PRODUCT SPECIFICATIONS
Item | 3 Axis CNC Aluminum profile end face milling machine |
Spindle Speed | 2840r/min |
Voltage | 380v/60Hz |
Size | 1750X1500X1700 mm |
X/Y/Z stroke | 700x50x210mm |
Power | 3 kw |
Air pressure | 0.5-0.8Mpa |
Cutting accuracy | Plus or minus 10s |
Saw blade diameter | 255mm |
