Sausage production line cutter/ filler and tying machine for making bologna/hot dog
- Category: >>>
- Supplier: Shandong Osaint Machine Co. Ltd.
Share on (1600874144017):
Product Overview
Description
Title
High quality sausage clipper for pneumatic filling machine sealant
Sausage Making
Product Description

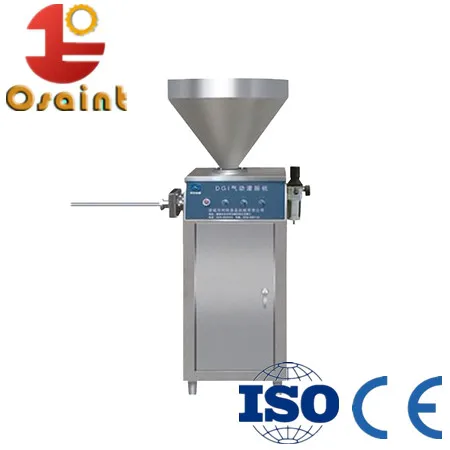

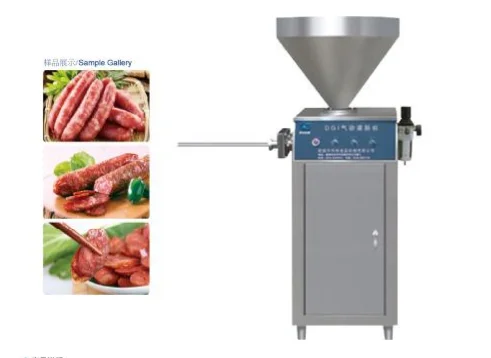

Pneumatic Stuffer
1.Can be connected to any kind of automatic clipper machine.
2.Water proof
3.With high efficiency, easy to operation.
4.The machine can be paste shape material, powder, paste and stir.
Model | OSPS-200 |
Capacity (Kg/h) | 150-750 |
Quantitative Scope(g) | 50-1000 |
Power Supply | 220V,50HZ |
Central Height(mm) | 1000 |
Hopper Volume (L) | 95 |
Pressure (Mpa) | 380 |
Weight (Kg) | 180 |
Dimensions (mm) | 815×650×1580 |

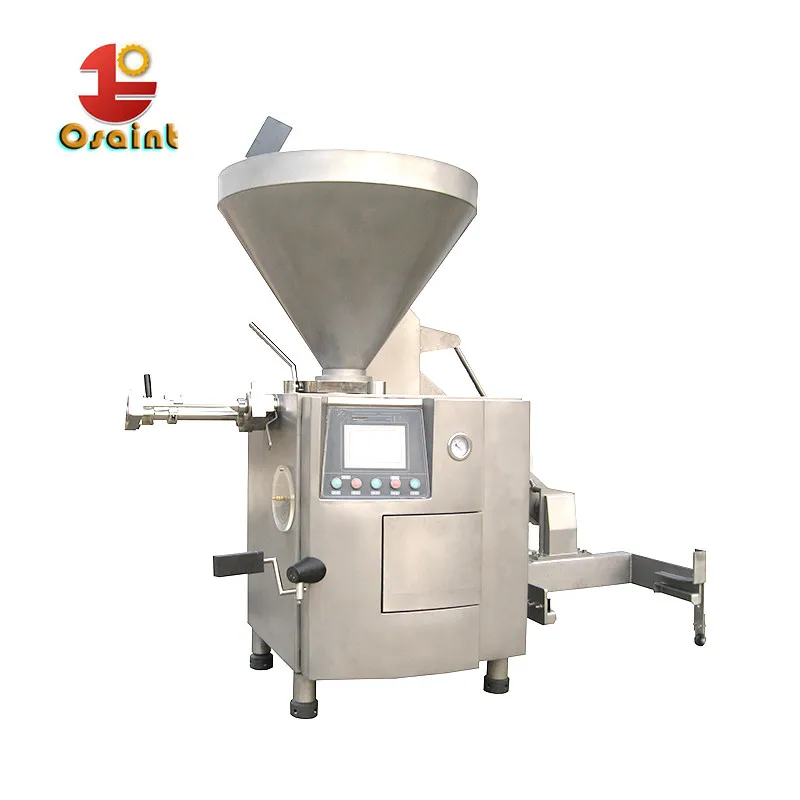

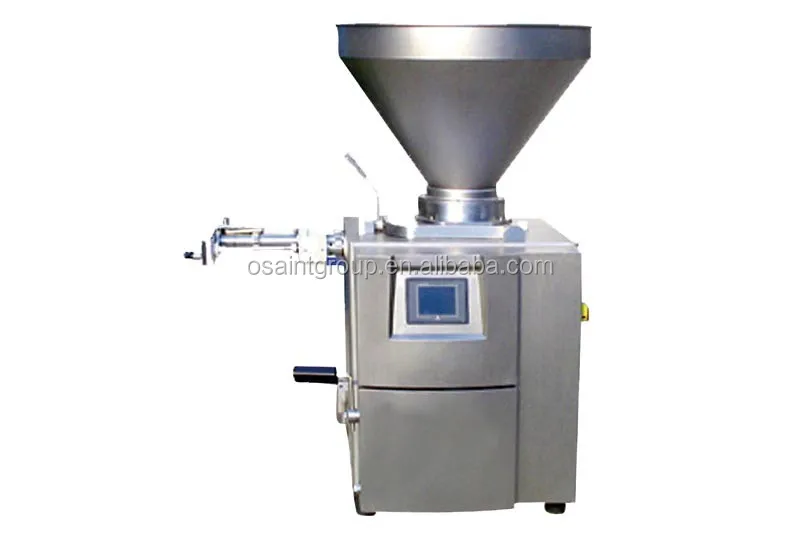

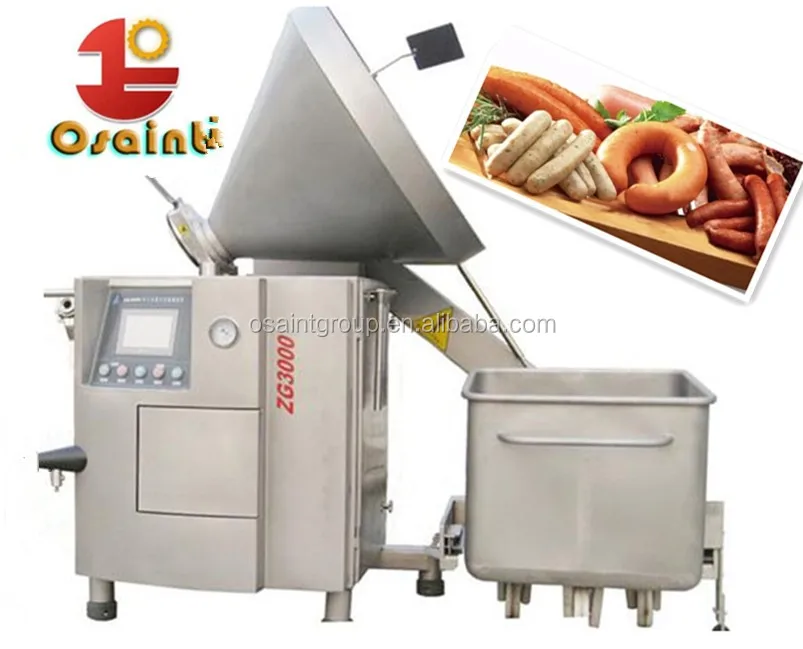

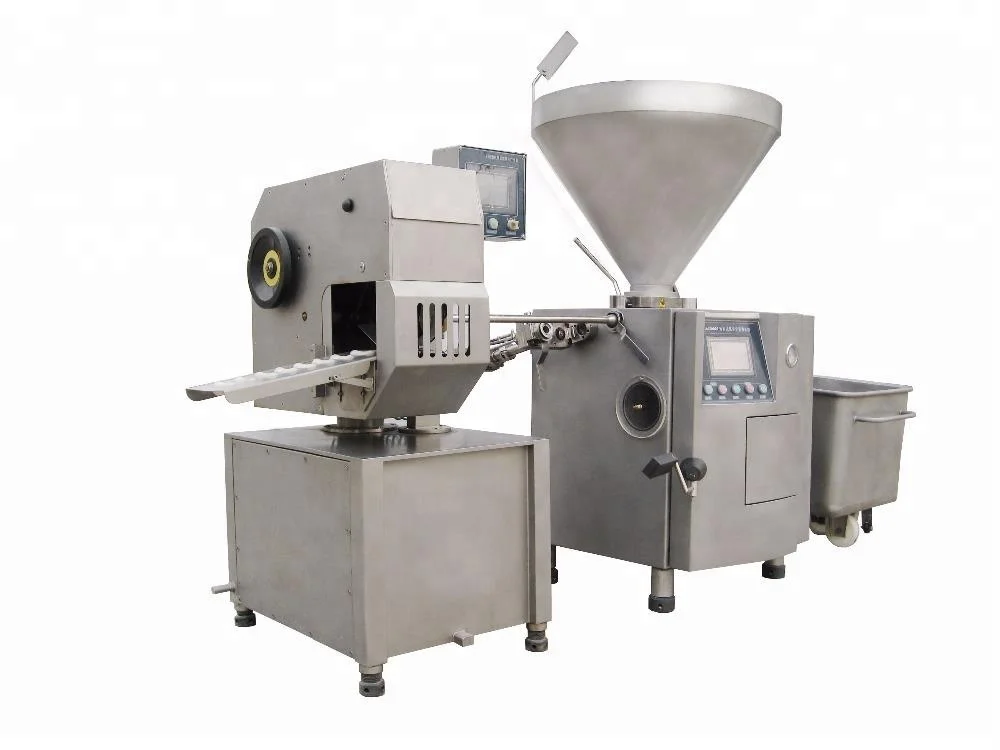

Vacuum Stuffer
1. Automatic sausage filler equipped with automatic casing knot tying device
2.Suits straight-filling artificial, collagen, cellulose or linking natural casings.
3.High weight accuracy, effective production output.
4.Systematically with the clipper of various types, enjoy the benefit of automation production for your business.
5.Easy to clean using standard cleaning equipment. Removable covers on two sides of the automatic sausage filler make the inside of the machine easily accessible for any maintenance work.
6.Maintenance work is automatically displayed on screen as it falls due.
Model | OSST-3000 | OSST-9000 |
Maximum Filling Capacity (Kg/h) | 3000 | 6000 |
Power(KW) | 8.5 | 8.5 |
Twisting Speed | 200/min | 200/min |
Hopper Volume (L) | 200 | 245 |
Rated Voltage (v) | 380 | 380 |
Weight (Kg) | 400 | 850 |
Dimensions (mm) | 1880×850×1750 | 1980×900×1780 |

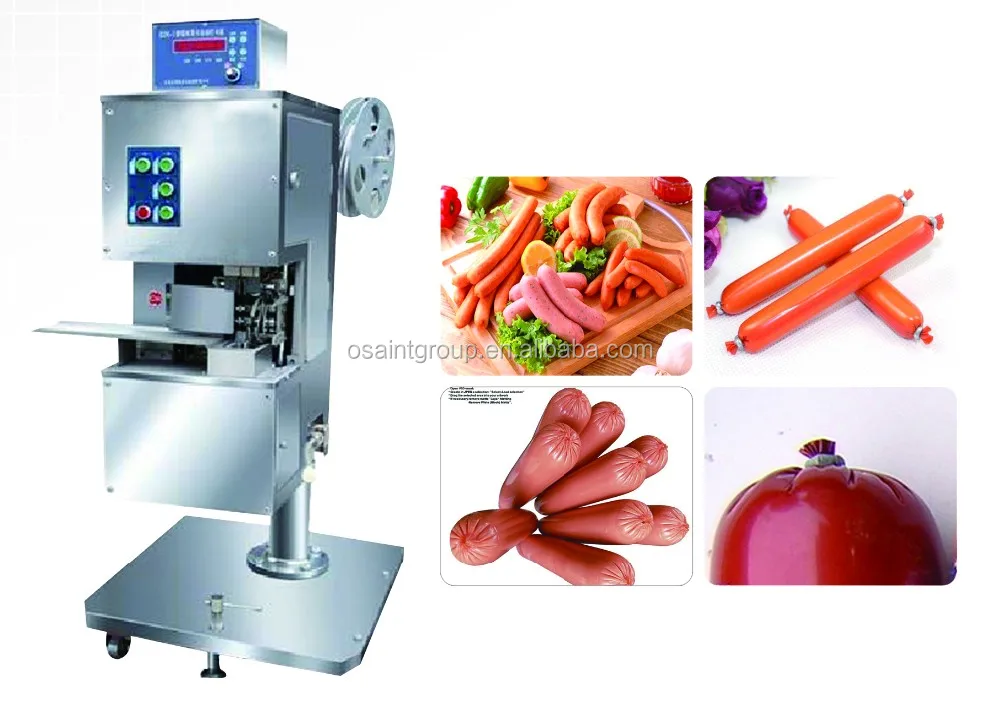

Pneumatic Quantitive Clipper
The machine consists of base, column, rack, rails, skate, drive rod, punch, take the initiative for a large cylinder, and aluminum wire rack wire feeder, and hugging, stretching three supporting institutions and a small cylinder, and pneumatic control, micro-controller and other components. The punch used by EDM with special steel and hardened by heat treatment is made, consistent, high hardness, long life, the machine weighs 290 kg.
Model | SZK-1 |
Clipping Speed (t/min) | 50 |
Clip model (mm) | ￠2.1~￠2.9 |
Casing(mm) | 35-120 |
Pressure (Mpa) | 0.7-1 |
Power Supply | 220V, 50HZ |
Advantage
1. Water proof
2. With high efficiency, easy to operation.

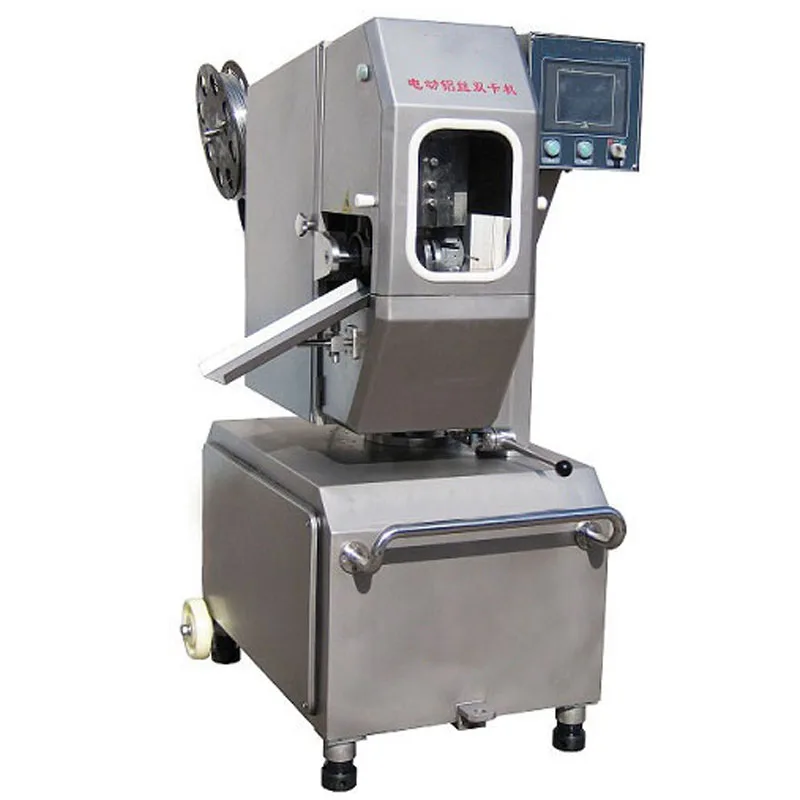

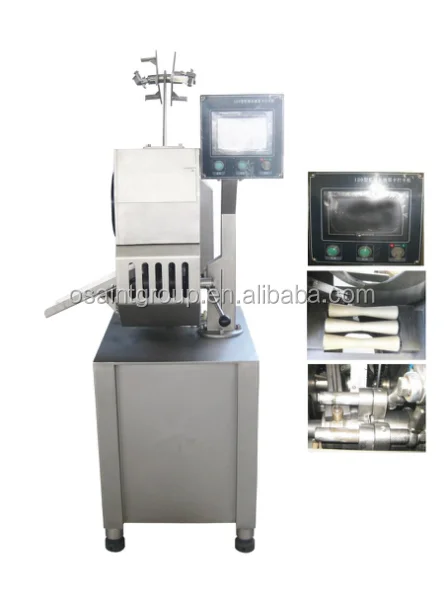

Electric Sausage Clipper
The Sausage Clipper is built with the Japan Panasonic servo motor as the drive system, the man-machine interface from Taiwan and the Japan Mitsubishi PLC.
Model | OSDK-IV |
Power Supply | 380V, 50HZ, 3 Phase |
Clip speed(times/min) | 150 |
Power(KW) | 2.7 |
Applicable wire diameter of aluminum-coil ( mm) | 2.1-2.9 |
Folded diameter of Casing Range (mm) | 35-120 |
Rated Voltage (v) | 380 |
Weight (Kg) | 400 |
Dimensions (mm) | 1450*900*1500 |
Advantage
It is designed with the state-of-the-art wire feeding mechanism by friction, featuring clear and precise action. With the automatic lubricating system being incorporated, this Clipper's service life has been substantially extended for best services, also boasting low faults and high efficiency and productivity.

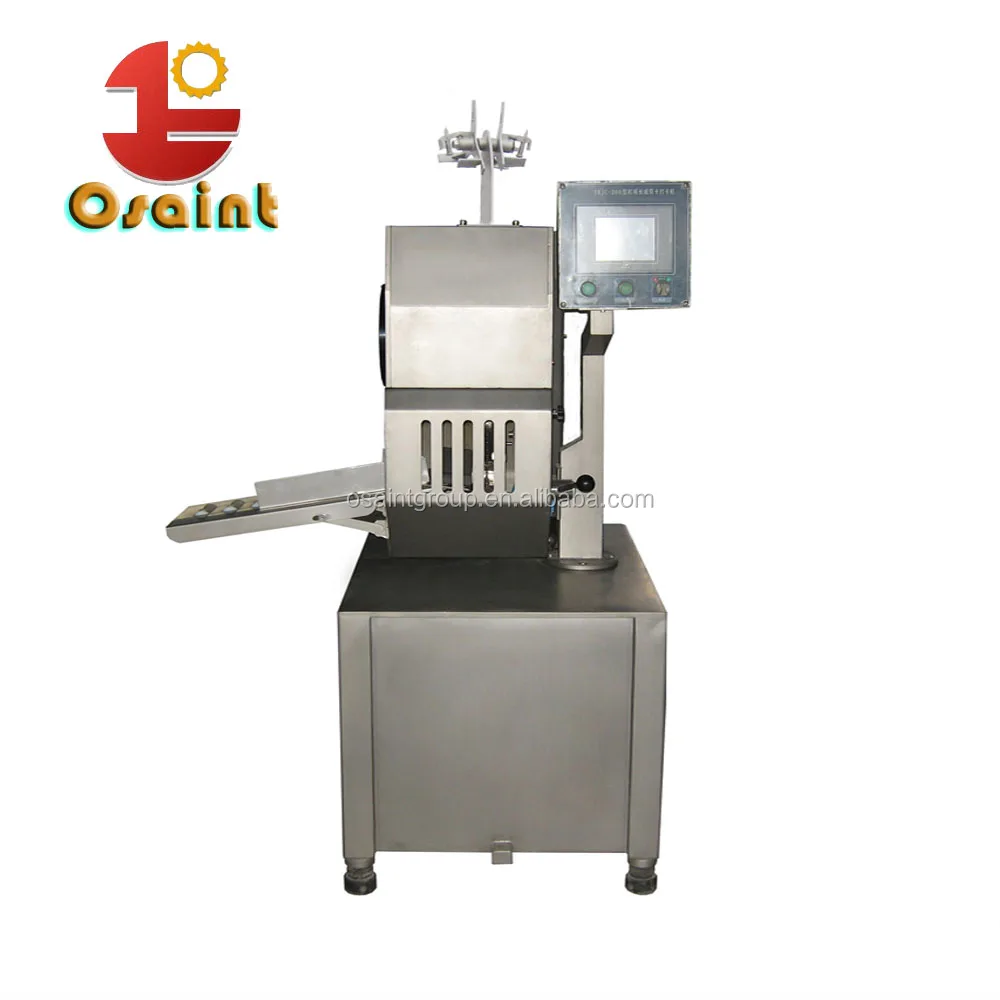

Sausage Clipper
It can be connected with any type quantified to realize automatic production. droved and PLC controlled sample operation ,tightly sealed .the key parts materials are imported . clips delivered accurately and closely . it suits for 15mm chips .at the same time .it can cut the sausage casing automatically .the main parts are made of stainless so that it can resist corrosion and long machine life .
Model | OSDK-120 | OSDK-200 | |
Power Supply | 380V,50HZ,3Phase | ||
Clip speed(times/min) | 120 | 200 | |
Power(KW) | 3.5 | 4 | |
Clip Model(mm) | 12-15 | 15-18 | |
Folded diameter of Casing Range (mm) | 35-120 | 40-200 | |
Rated Voltage (v) | 380 | 380 | |
Weight (Kg) | 460 | 550 | |
Dimensions (mm) | 950*830*1800 | 960*1020*1880 | |
Advantage
it is waterproof and washing conveniently. it is the ideal equipment which ensures the product quality and the high capacity.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Detailed Images
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Our Company
Shandong Osaint is a group company of scientific innovation enterprises, devoted to designing, manufacturing and sales of food machinery. It involves poultry farm, poultry slaughter and meat processing plant. Its main products consist of meat bone separator, slaughterhouse equipment, sausage machines and other meat food machines.
We have cooperated with more than 50 agents or distributors for providing most convenient purchasing and after-sales service. Headquarter is located in Jinan city, Shandong province. There are three central factories in China for designing and production. With more than 20 year experience and advanced technology of food machinery, we supply food machines with high quality, high efficiency for global customers.
