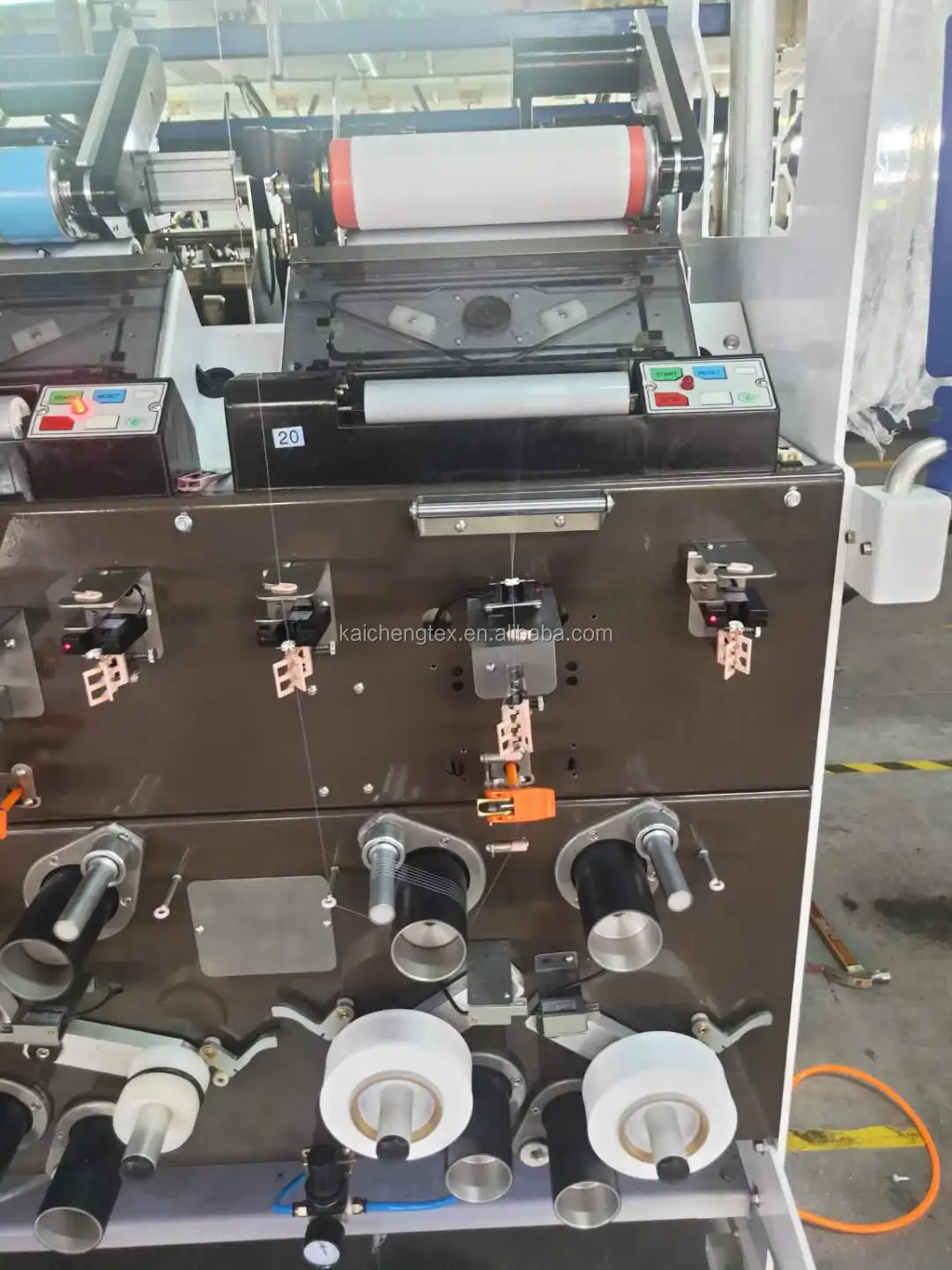

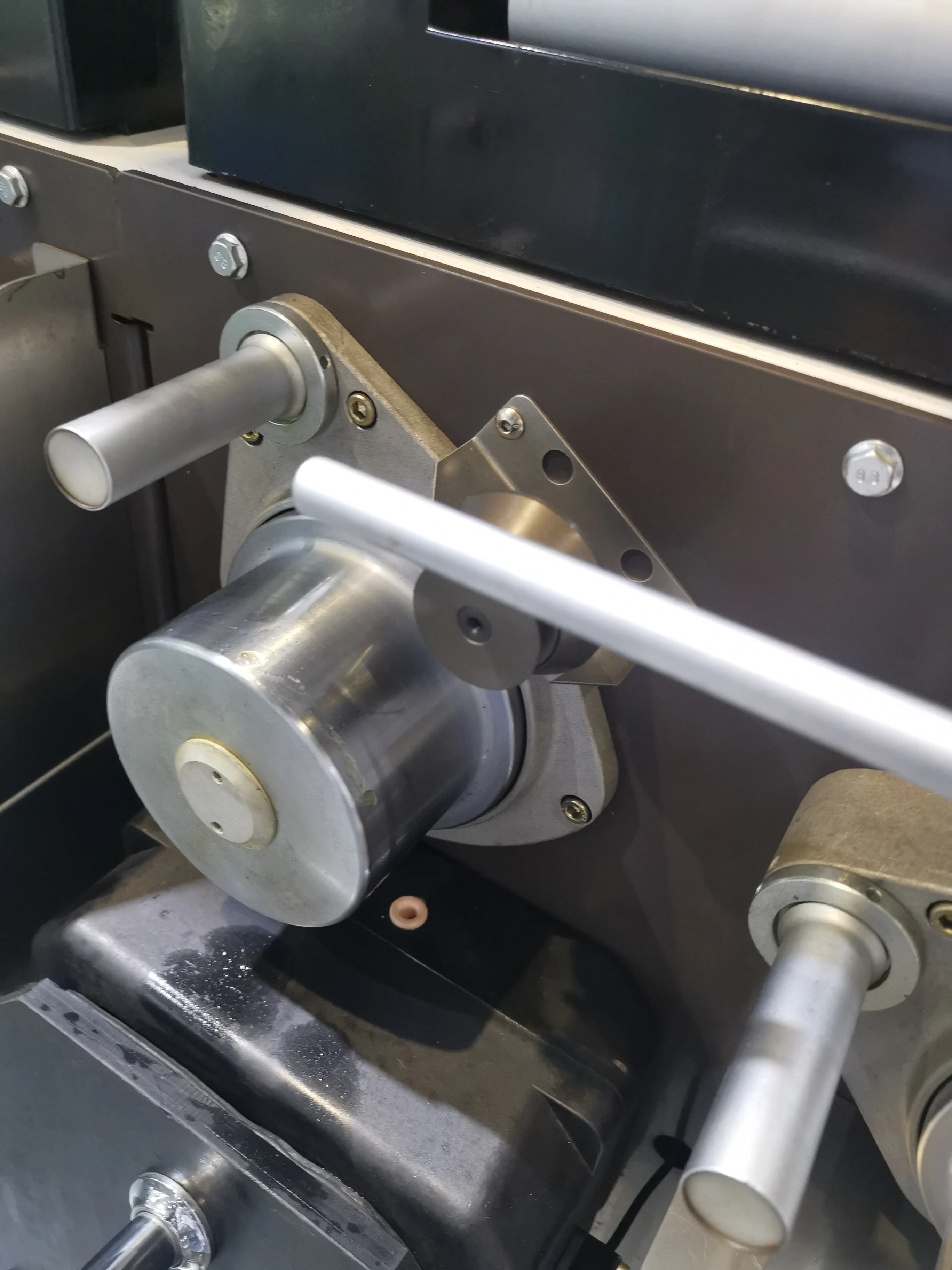

Filament winding KC215B yarn winding machine automatic cone bobbin winder machine
Filament winding KC215B yarn winding machine automatic cone bobbin winder machine
Filament winding KC215B yarn winding machine automatic cone bobbin winder machine
Filament winding KC215B yarn winding machine automatic cone bobbin winder machine
Filament winding KC215B yarn winding machine automatic cone bobbin winder machine
Filament winding KC215B yarn winding machine automatic cone bobbin winder machine
Filament winding KC215B yarn winding machine automatic cone bobbin winder machine

Filament winding KC215B yarn winding machine automatic cone bobbin winder machine

Share on (1600874200422):


Price:$1,950.00 - $2,100.00

Quantity:


Product Overview

Description

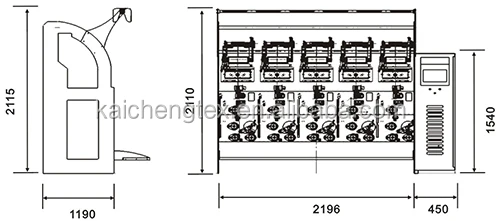

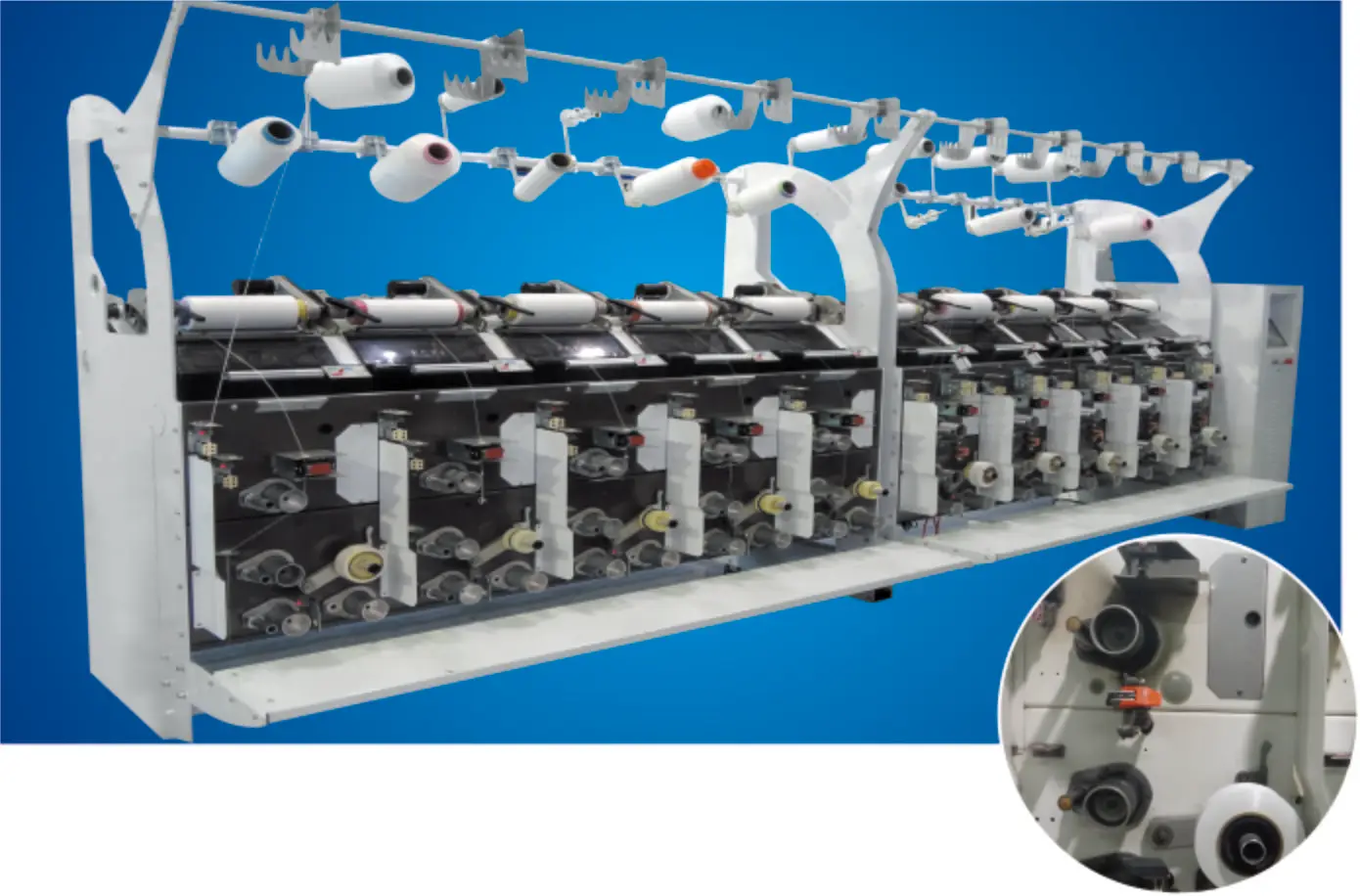

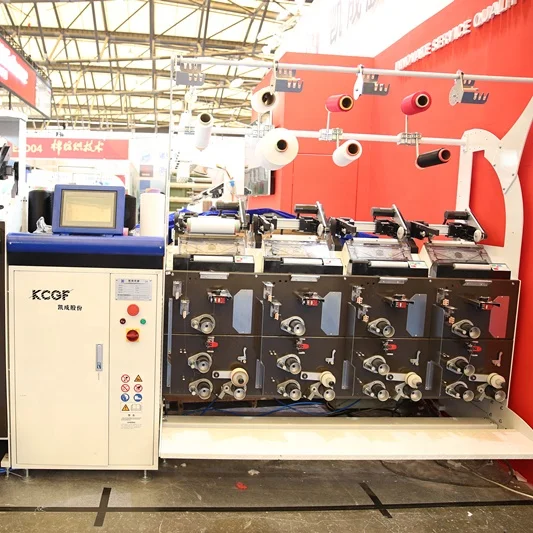

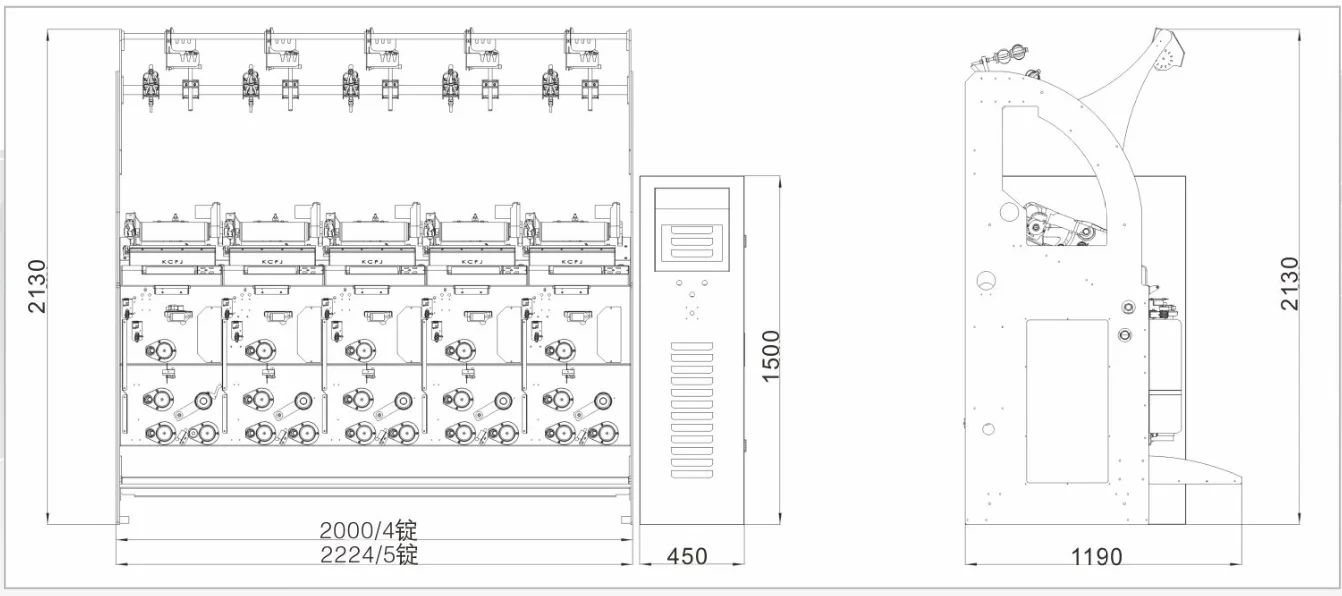

Machine structureSingle size, single layer, 4 spindles per section, 10 sections, 40spindles/set

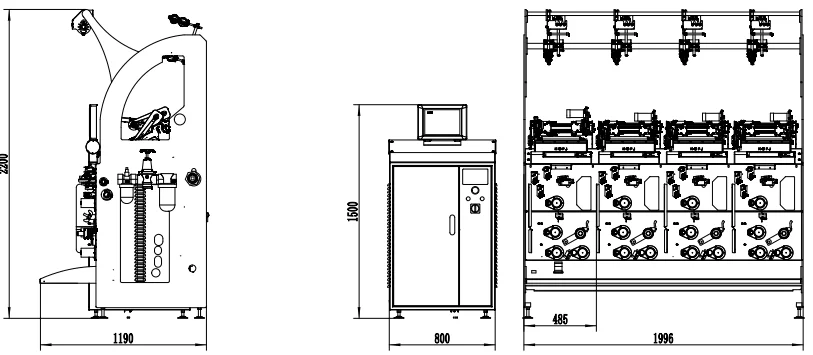

Spindle gauge

485mm


Type of windingDigital winding or precision winding
Linear speedUp to 1100m/min (depend on the process parameters)
Type of tensionGate tension
Take-up tubeCylindrical
Package shapeStraight edge or incline edge shape (The angle can be adjustable)
Traverse130mm~250mm (It can be changed according to actual needs)
TItake-up package diameterUp to 280mm (depend on the tank size, there are certain limitations)
Rated power580W/spindle
Compression air6 Pa (depend on the process parameter)
