Petrol Filling Station Underground Conductive Double Layer Wall Upp Pipes
- Category: >>>
- Supplier: Zhejiang Ecotec Energy Equipment Co. Ltd.
Share on (1600874295583):
Product Overview
Description
Petrol Filling Station Underground Conductive Double Layer Wall Secondary Contained Upp Pipes

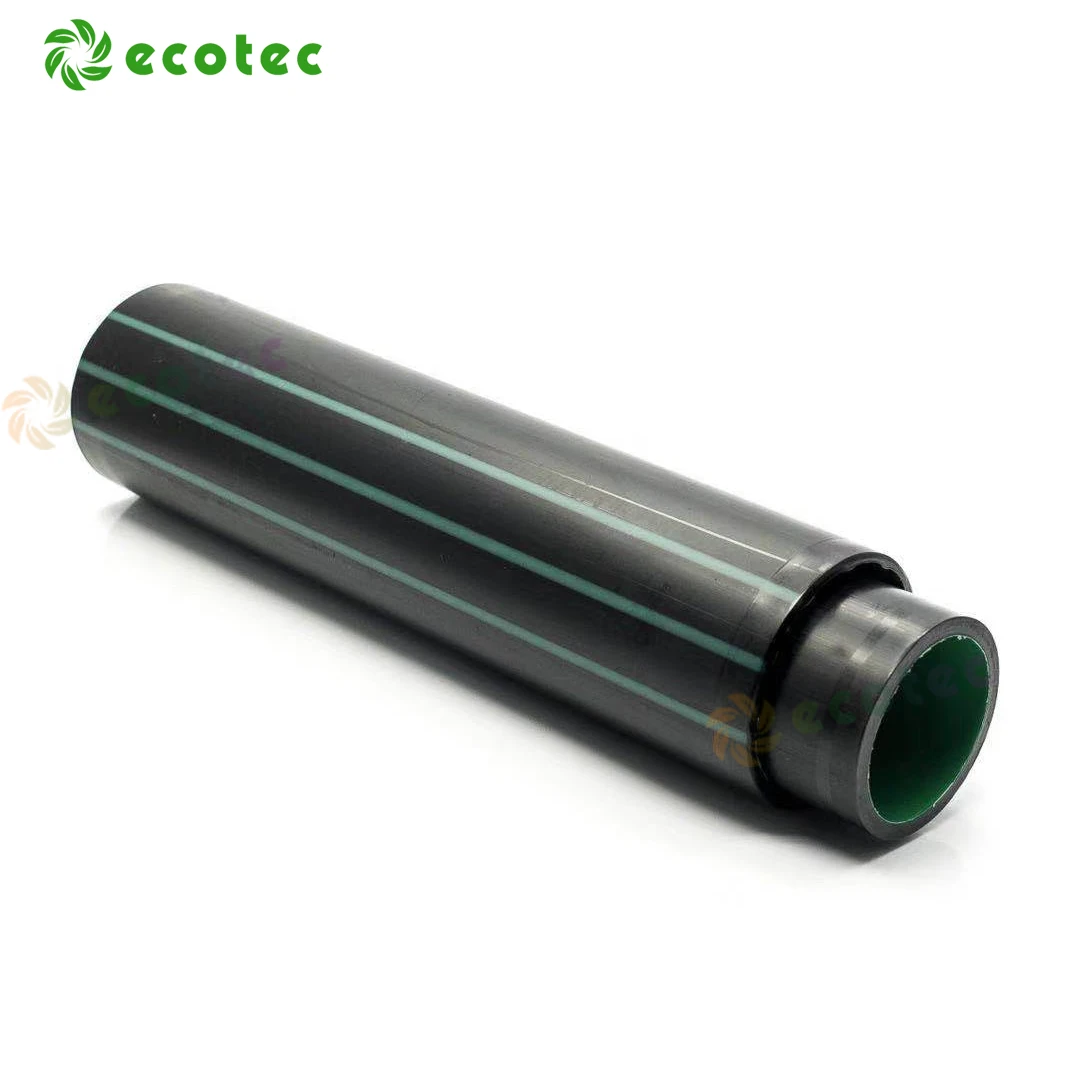

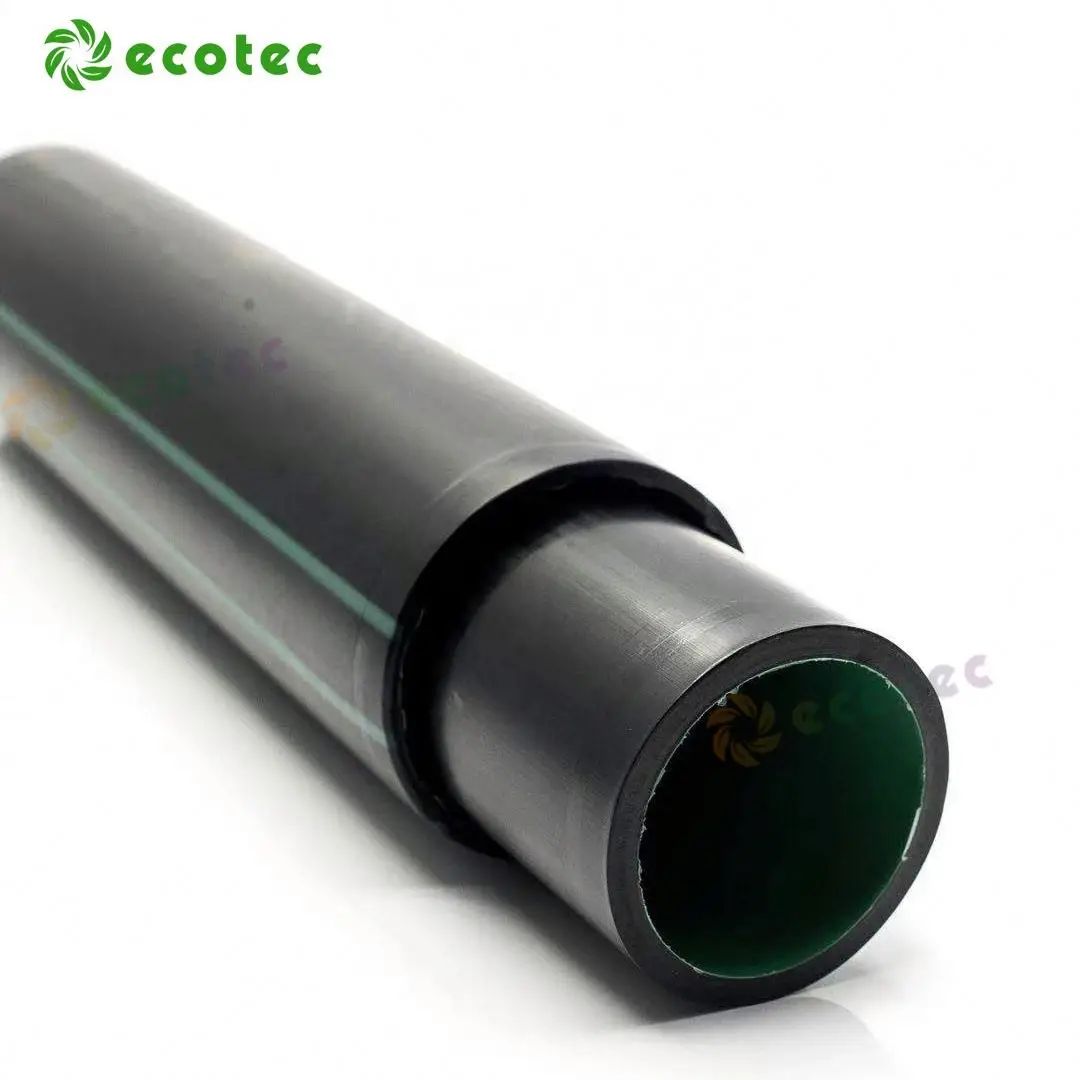

DOUBLE LAYER UPP PIPE
65/54
50 Meter/roll
Place of Origin | Zhejiang, China |
Model Number | 65/54 |
Thickness | 6mm |
Processing Service | Cutting |
Outer pipe diameter | 75mm |
Warranty | 1 YEAR, LIFE TIME 30 YEARS |
Material | HDPE |
Certificate | CE |
Application | Fuel station |
Temperature | -40C~+50C |
Underground HDPE gasoline petrol station pipe

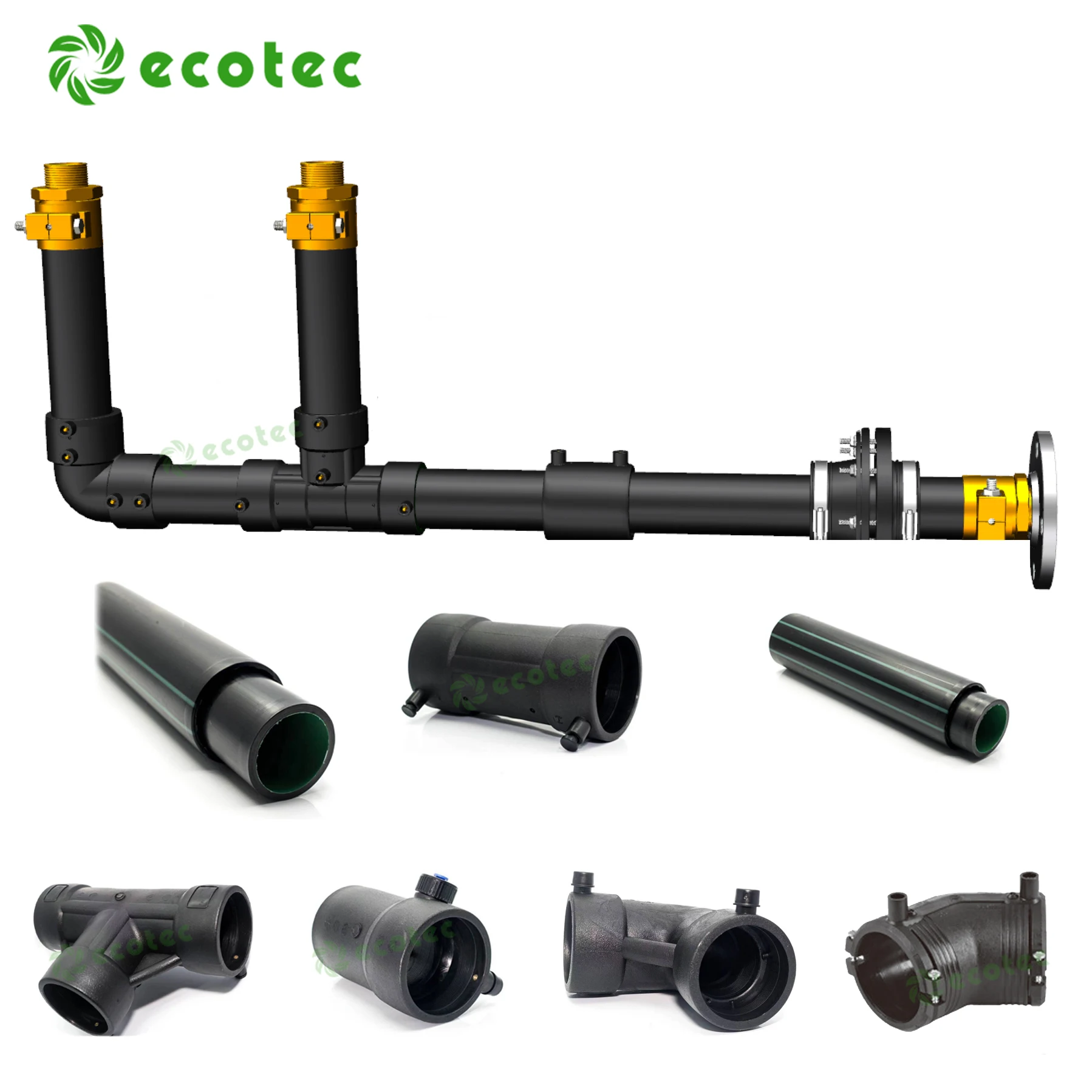

Underground flexible Dual and Secondary Containment Piping Systems is the most advanced and installer friendly double-wall piping system available for use on filling stations. The product range covers all piping needs that may arise on a filling station: Remote fill, pressure and suction, ventilation, vapor recovery or conduits.With zero permeation of hydrocarbons piping keep fuel where it is supposed to be.
1. Impermeable layer is made from pure EVOH without any modification for the best separation impact. This impermeable layer can be used together with all kinds of oil, ethanol mixture and additive, it's ensured to be appropriate for all of types of fuel in the world.
2. The proper five-layer structure makes the layers can be pasted in each other
3. Non-corroding, service life is long, It's able to bear various chemical mediators, no electrochemical corrosion.
4. It's burst pressure exceeds 40 standard atmospheric oressure, ten times of working pressure, so that higher safety can be kept.
5. Working temperature range from -40 to 50℃ , with excellent capability.
6. Lightweight, covenient for transport and installation.
7. Our own R&D team.
8. Meeting the standard of EN14125,ISO9001. With CE certificate.
Packaging & Shipping
Standard Carton or Wooden for transportation
Our Services
Warranty : 12 months
Company Information
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can package service from Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
Customer and Dedication is what we standarding for, we will alwasy focus customer′s need, and struggle for it, Looking forward to cooperate with you
| ump | Type | Optional |
| Inlet Pressure | ≥54kPa. | |
| Flow rate (L/min.) | 55±5 | |
| Suction Distance (m) | 6(vertical meter) / 50(horizontal meter) | |
| Flow Meter | Type | Optional |
| Accuracy | ±0.2% | |
| Motor | Voltage(V) | 110V/220V/380V,50Hz/60Hz |
| Capacity(hp) | 1HP(0.75kw) | |
| Input Voltage | 110V/220V/380V,50Hz/60Hz | |
| Nozzle | Auto Shut-off Nozzle | |
| Environmental Condition | -40ºC~~+55ºC | |
| Control Type | Solenoid Vale Control Type | |
| Preset | Function Provided(Small LCD Indicator) | |
| Display(Counter) | Type | LCD and Bright Backlight |
| Display(Counter) | Digit of Volume | 0~~999,999(6 Digits),Decimal point can be changed |
| Digit of Amount | 0~~999,999(6 Digits),Decimal point can be changed | |
| Digit of Unit price | 0~~9999(4 Digits),Decimal point can be changed | |
| Digit of Total Range | 0~~99,999,999,99 | |
| Optional Display | Type | LCD and Bright Backlight |
| Digit of Volume | 0~~99,999,999(8 Digits),Decimal point can be changed | |
| Digit of Amount | 0~~99,999,999(8 Digits),Decimal point can be changed | |
| Digit of Unit price | 0~~999999(6 Digits),Decimal point can be changed | |
| Digit of Total Range | 0~~99,999,999,99 | |
| Totalizer | 1~~9,999,999 | |
| Hose | 4.5m | |
| Weight | 205kg | |
| Dimension(L×W×H) | 1060*600*2200(mm) | |
| Dimension(L×W×H)Of Qty of Container | 40ft: 44 20ft: 22 | |
