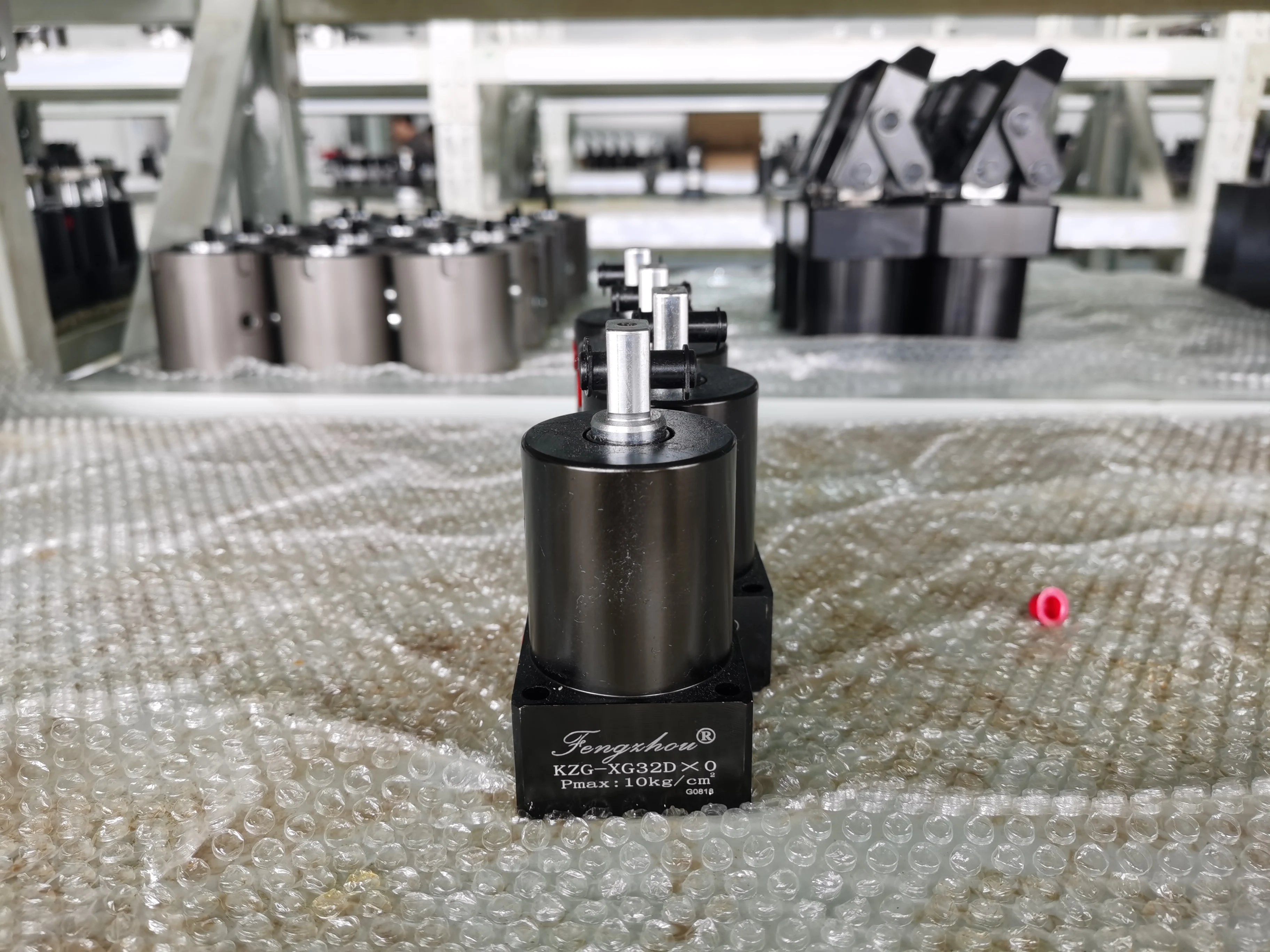

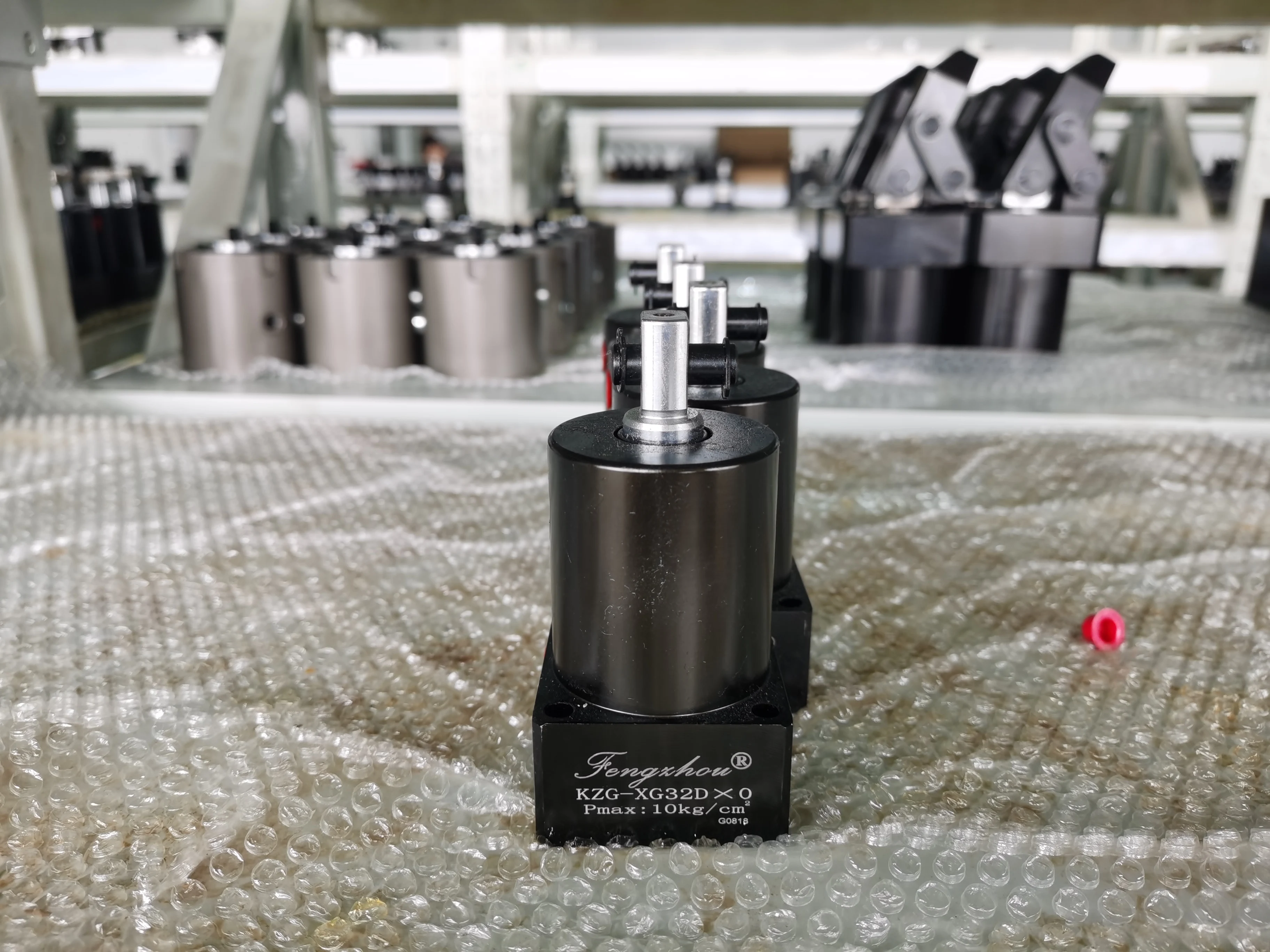

Long Life KZG XG for Press Fitting Steel Pneumatic Cylinders for Pet Bottle Blowing Machine
- Category: >>>
- Supplier: Zhejiang Fengzhou Precision Manufacturing Co. Ltd.
Share on (1600874458803):
Product Overview
Description
Products Description

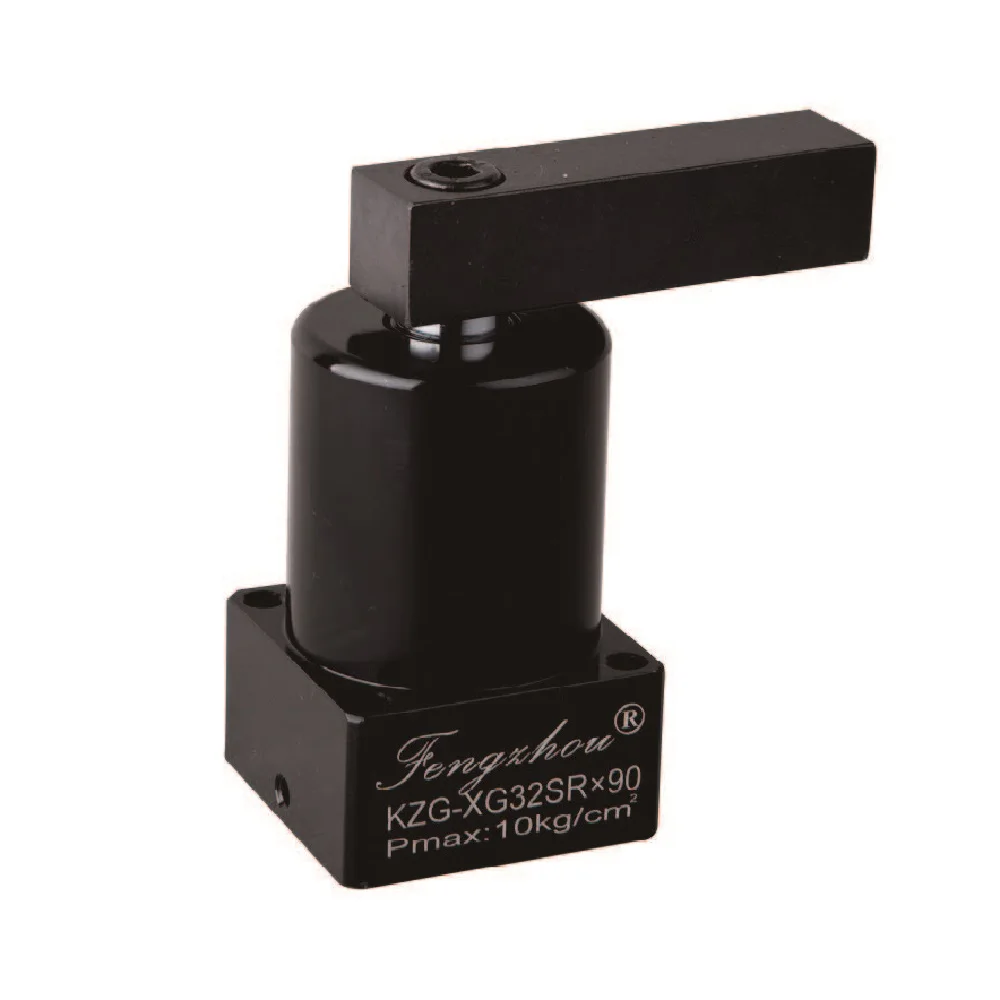

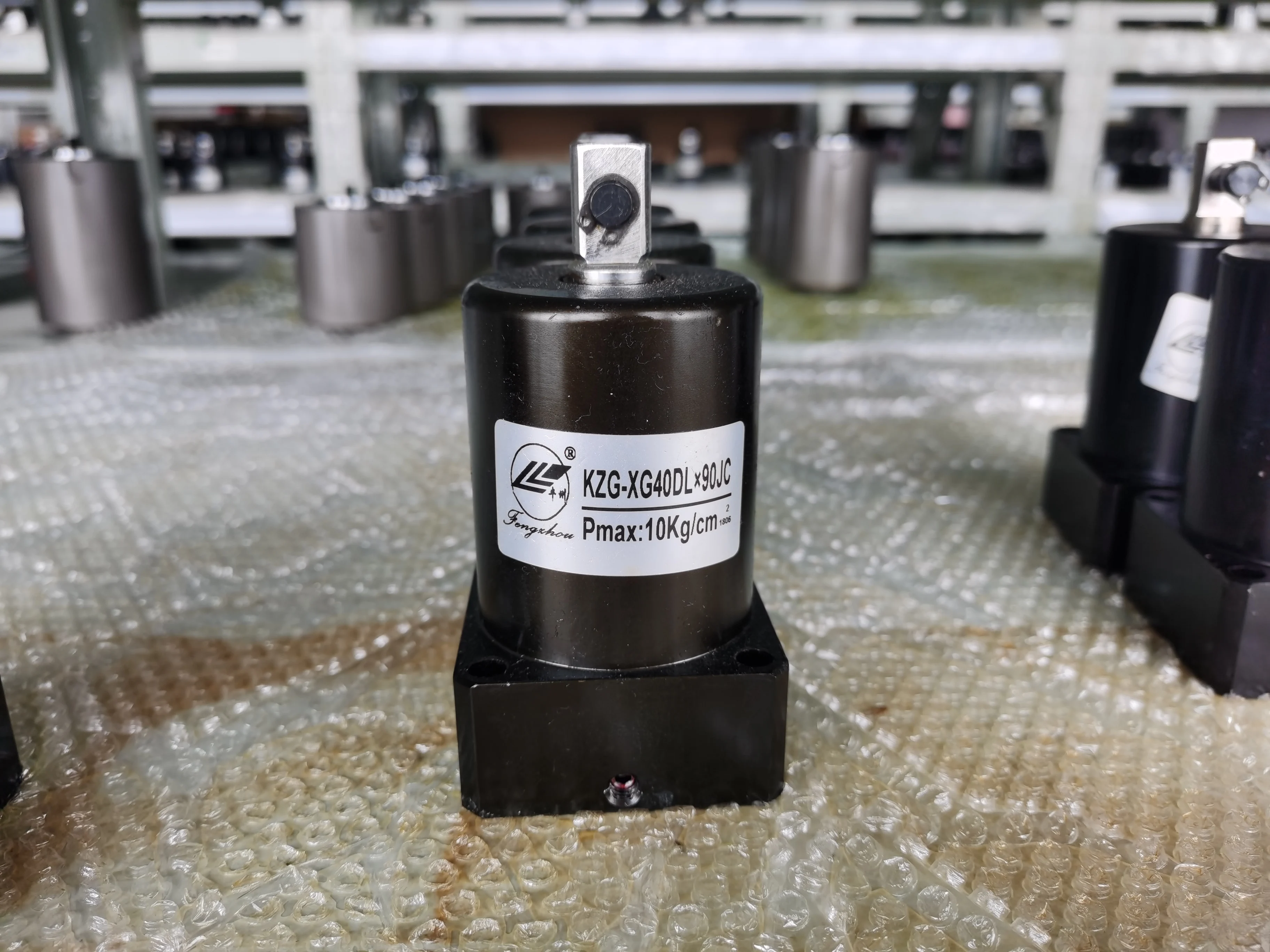

Pneumatic Lower Flange Piping Swing Clamp Cylinder

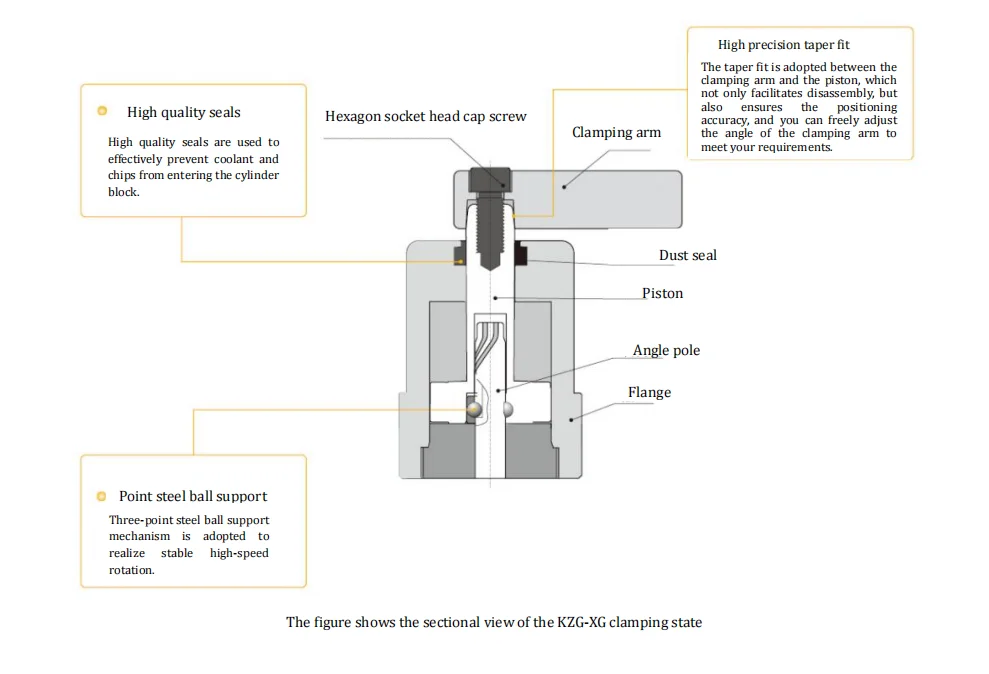

Products Features

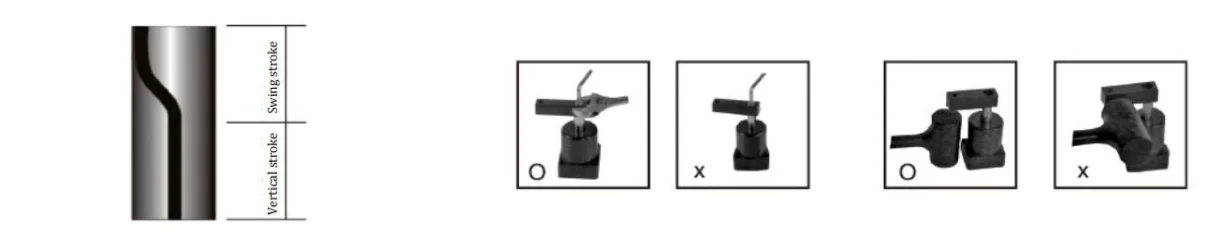

Schematic diagram of vertical and angular stroke
Clamping arm locking and disassembling method
Series Category | KZG-XG; KZG-XB/BT; KZG-SG; KZG-SB; KZG-LG | ||||||||
Bore of Cylinder (mm) | Φ25 | Φ32 | Φ40 | Φ50 | Φ63 | ||||
Piston Rod Diameter (mm) | Φ14 | Φ16 | Φ20 | ||||||
Rotation Angle | 30° /45° /60° /90° ±3 | 30° /45° /60° /90° ±3 | 30° /45° /60° /90° ±3 | ||||||
Full Stroke (mm) | 17.2 /18.4 /19.6 /22 | 20.2 /21.7 /23.1 /26 | 22.6 /24.5 /26.3 /30 | ||||||
Rotation Stroke (mm) | 4.2 /5.4/ 6.6 /9 | 5.2 /6.7 /8.1 / 11 | 5.6 / 7.5 / 9.3 /13 | ||||||
Clamping Stroke (mm) | 13 | 15 | 17 | ||||||
Extended Full Stroke (mm) | / | 35.2 /36.7 /38.1 / 41 | 39.6 /41.5 /43.3 /47 | ||||||
Extended Rotation Stroke (mm) | / | 5.2 /6.7 /8.1 / 11 | 5.6 / 7.5 / 9.3 /13 | ||||||
Extended Clamping Stroke (mm) | 30 | 34 | |||||||
Pressure Area Pull/Push (cm2) | 3.37/4.91 | 6.03/8.04 | 10.56/12.57 | 16.49/19.63 | 28.03 / 31.17 | ||||
Theoretical Clamping Force (5KN/cm2) | 16 | 30 | 50 | 85 | 140 | ||||
Max Operation Pressure (KN/cm2) | 10 | ||||||||
Operation Pressure Range(KN/cm2) | 2-7 | ||||||||

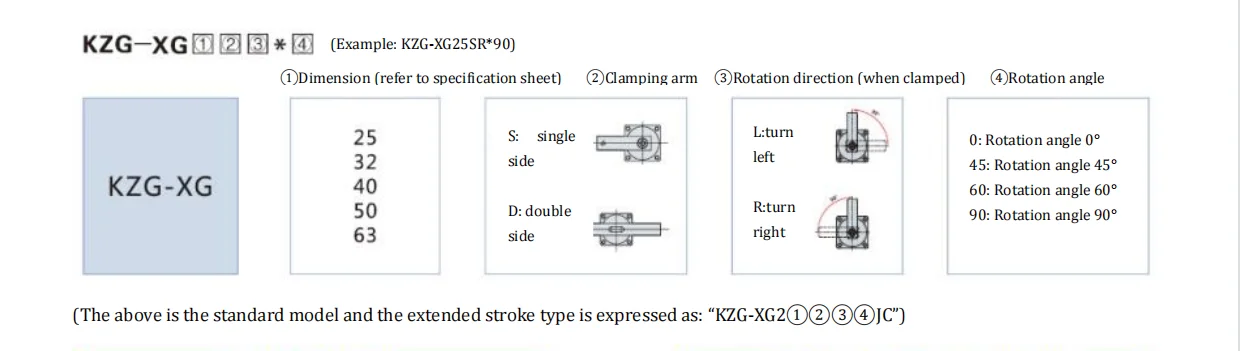

1.Model Representation
2.Product Type

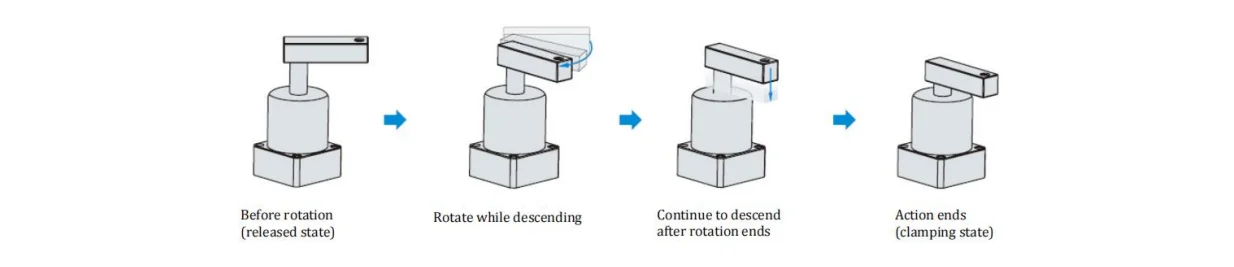

3.Action Description

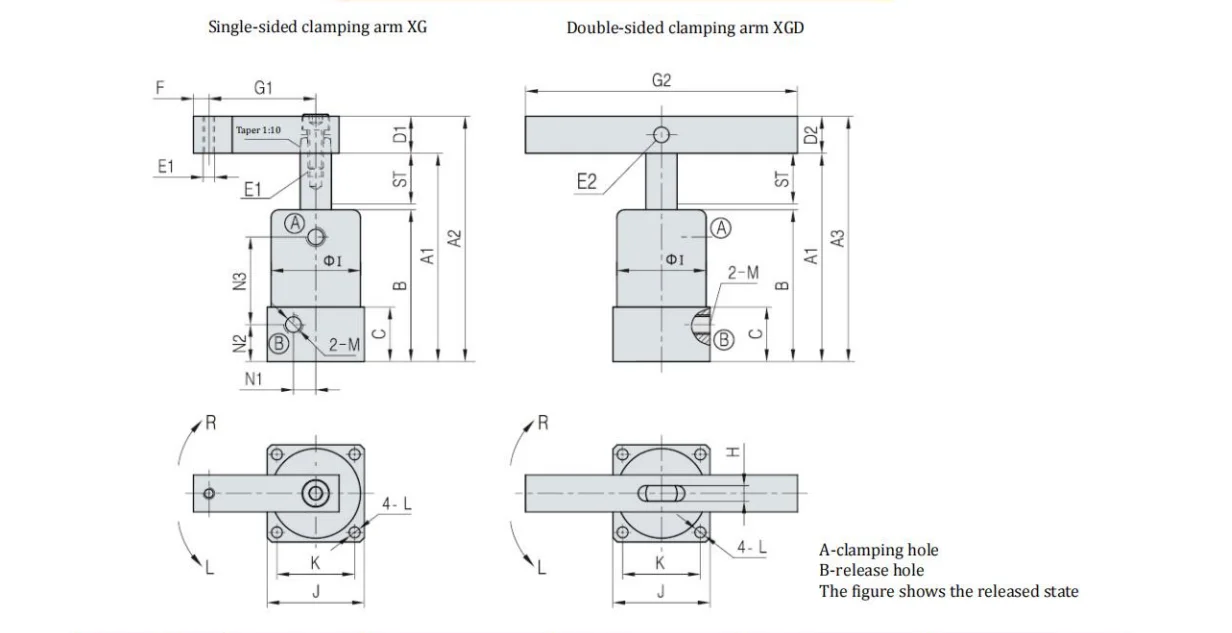

4.Overall Dimension
