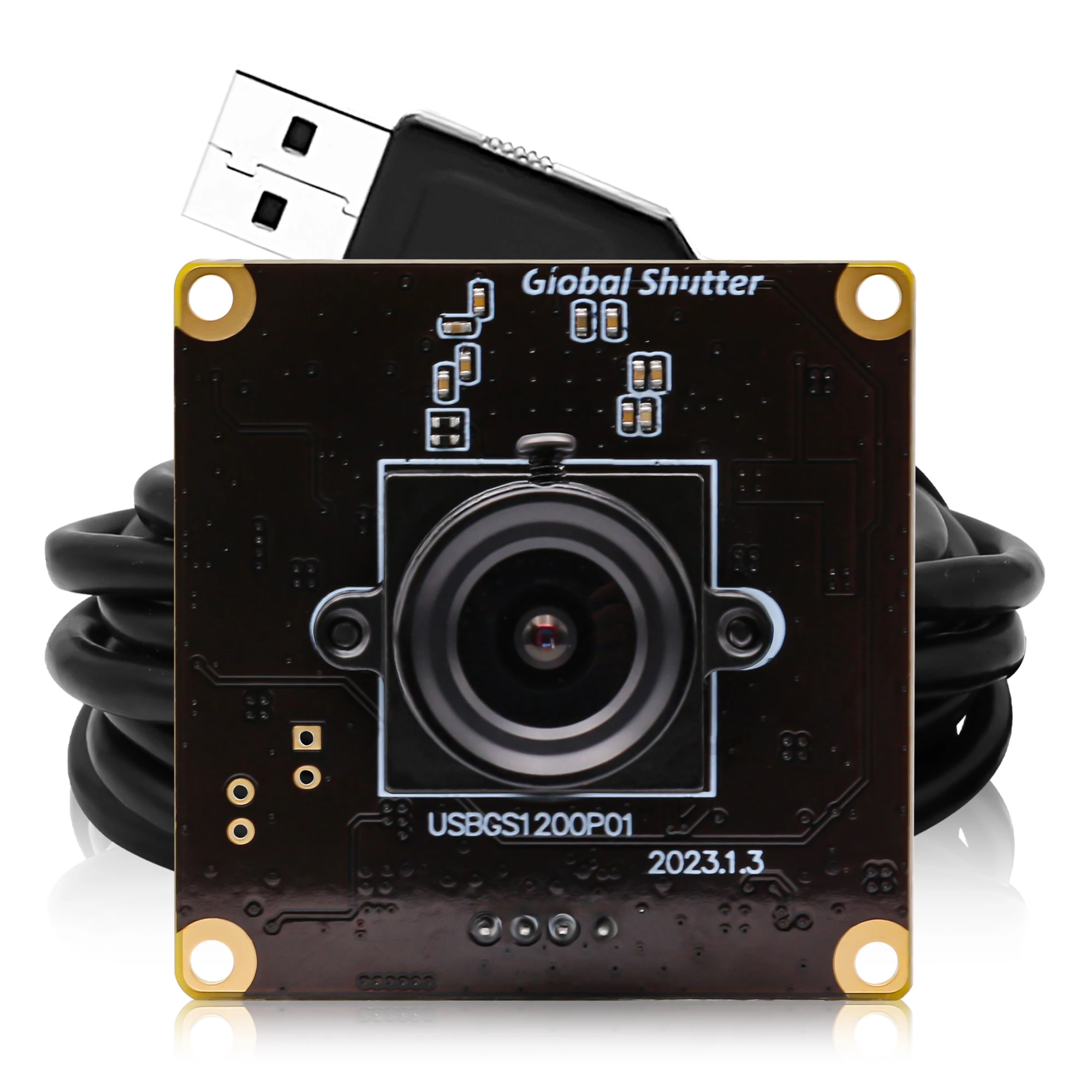

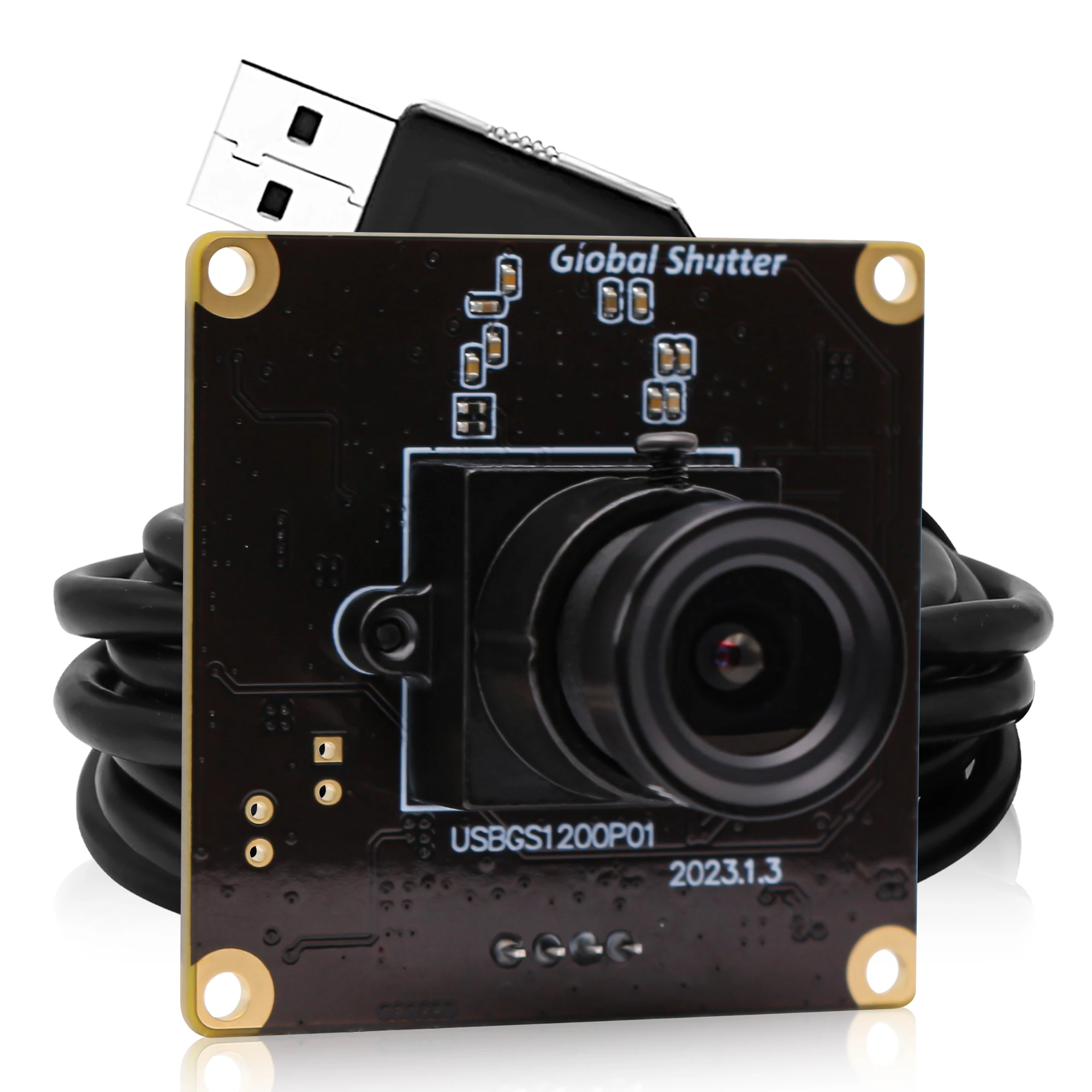

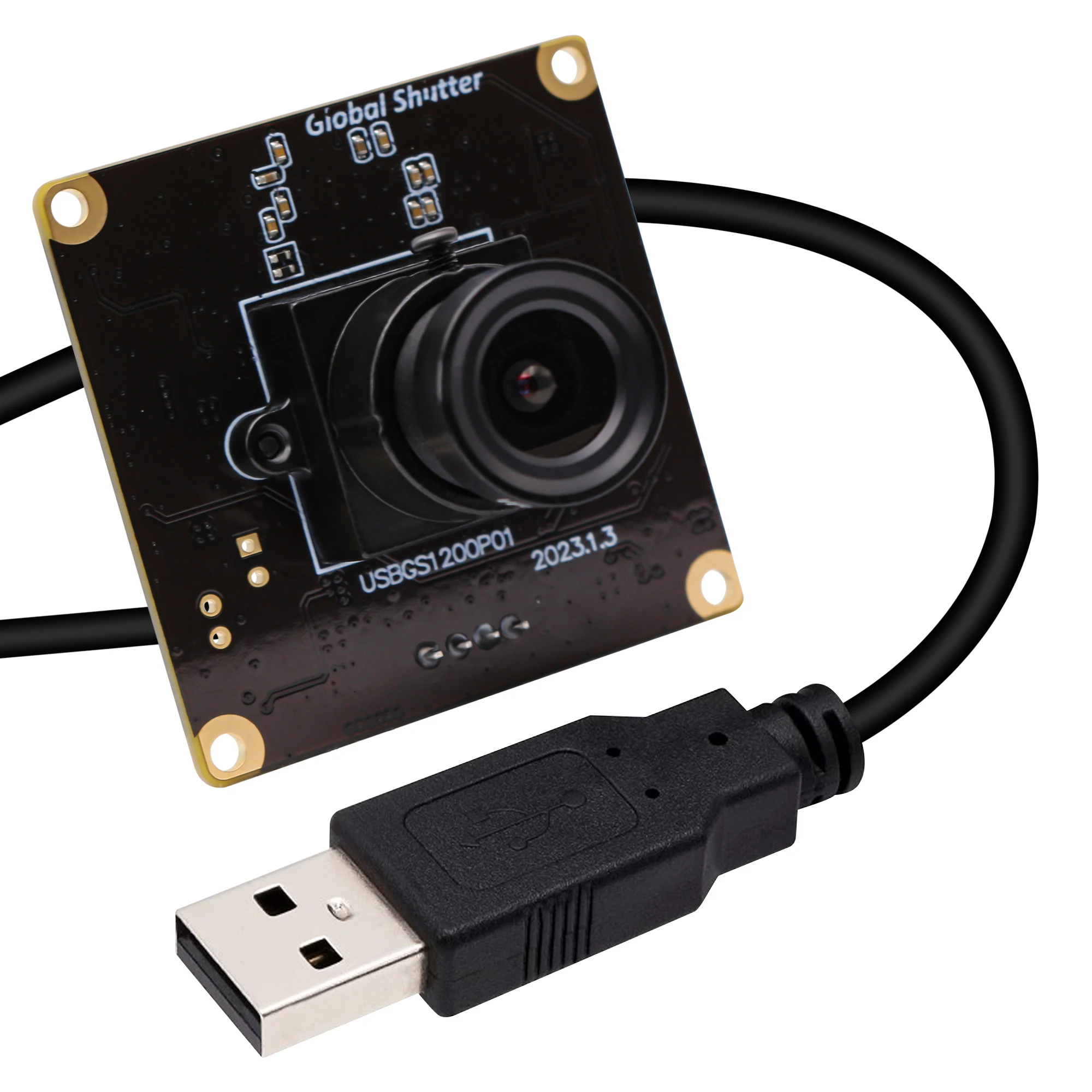

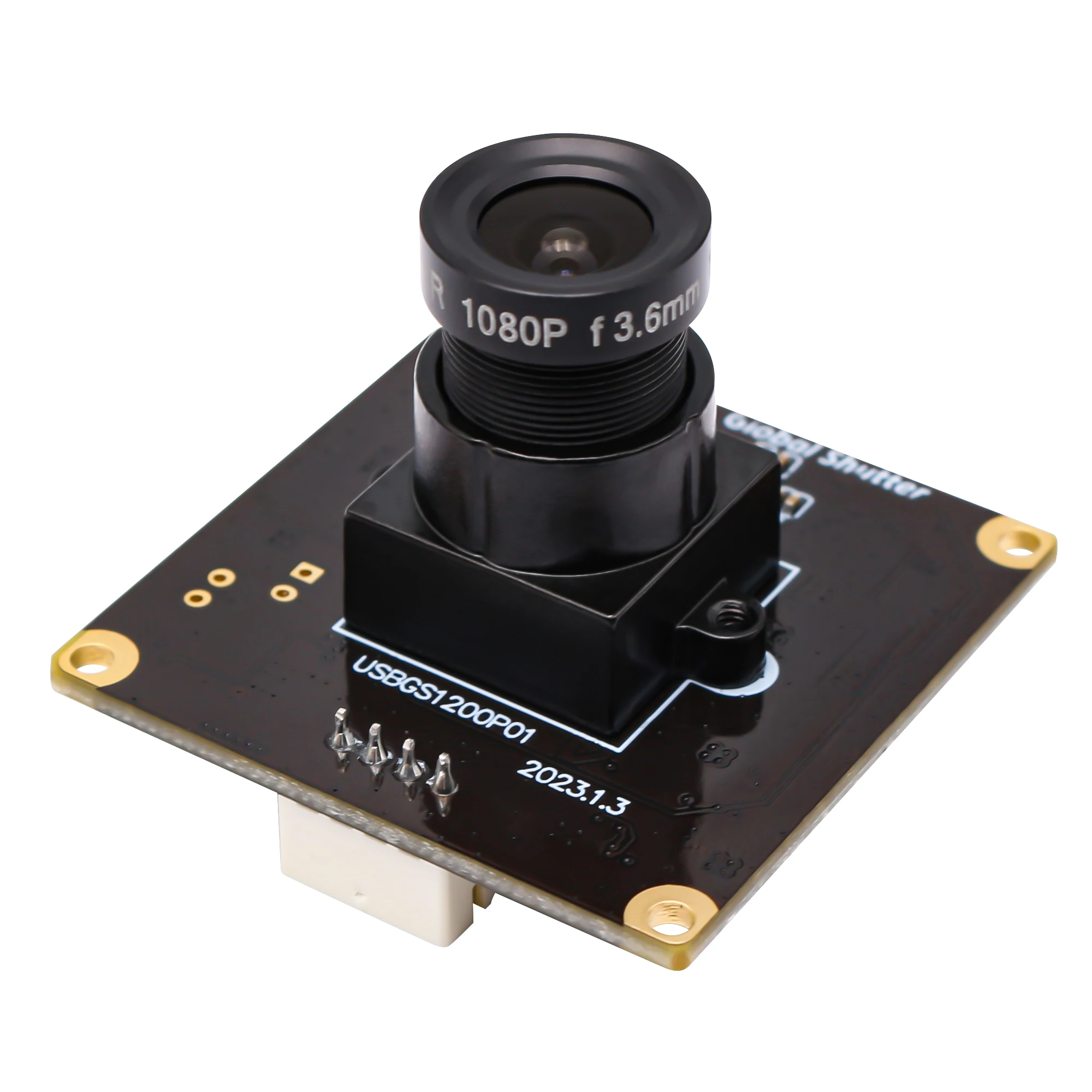

Global Shutter 1080P 90fps USB Camera Module Aptina AR0234 UVC Plug Play Driverless USB Webcam For Windows Android Mac Linux
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600874876482):
Product Overview
Description
Global Shutter 1080P 90fps USB Camera Module Aptina AR0234 UVC Plug Play Driverless USB Webcam For Windows Android Mac Linux
Features:
1. High quality 2MP Aptina AR0234 (1/2.6”) color Sensor for high quality image
2. Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras
3.High frame rate- deliver 1920x1200 90fps MJPEG/ 1920x1080 90fps MJPEG
4.2.1/2.8/3.6/6/8/12/16mm lens, 2.8-12mm manual varifocus lens, fisheye lens optional
with standard 1m cable (2m, 3m, 5m optional, also can customize the cable)
5. Plug&Play: UVC-compliant, support Windows, Linux, Mac, and Andriod with UVC, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed
6.Applications: Widely used for the video surveillance system, live streaming, record lesson and conference, and other vision applications.
2. Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras
3.High frame rate- deliver 1920x1200 90fps MJPEG/ 1920x1080 90fps MJPEG
4.2.1/2.8/3.6/6/8/12/16mm lens, 2.8-12mm manual varifocus lens, fisheye lens optional
with standard 1m cable (2m, 3m, 5m optional, also can customize the cable)
5. Plug&Play: UVC-compliant, support Windows, Linux, Mac, and Andriod with UVC, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed
6.Applications: Widely used for the video surveillance system, live streaming, record lesson and conference, and other vision applications.
Specification
Model | ELP-USBGS1200P01 | ||
Sensor | Aptina AR0234 (1/2.6”) Global Shutter | ||
Max Resolution | 1920 (H) *1200 (V) | ||
Sensor Size | 1/2.6 inch (4:3) | ||
PixelSize | 3.0μm | ||
Compression Format | MJPEG/YUV2 (YUYV) | ||
Resolution& Framerate | 1920x1200 @ 90fps MJPEG 1600x1200 @ 90fps MJPEG 1280x720 @ 90fps MJPEG 960x720 @ 90fps MJPEG 640x480 @ 90fps MJPEG | 1920x1080 @ 90fps MJPEG 1280x960 @ 90fps MJPEG 1024x768 @ 90fps MJPEG 800x600@ 90fps MJPEG 320x240 @ 90fps MJPEG | |
Surface Mount Technology | SMT | ||
Focus | Fixed | ||
Central Definition | 600LW/PH (Center) | ||
S/N Ratio | 37dB | ||
DynamicRange | 70dB | ||
Sensitivity | 1.4V/lux-sec@550nm | ||
MiniIllumination | 0.3lux | ||
Shutter | Global Shutter | ||
Interface | USB2.0 High Speed | ||
AEC | Support | ||
AWB | Support | ||
AGC | Support | ||
AdjustableParameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Whitebalance, BacklightCompensation, Exposure | ||
Lens Parameters | HD 3.6mmlens Optional 2.1mm/2.8mm/2.9mm/6mm/8mm/12mm... No DistortionLens(FOV65~130 degreeoptional) Fisheyelens 150 degree /180 degree etc. | ||
LED board power connector | Support 2P-2.0mm socket | ||
Power Supply | USBBUSPOWER4P-2.0mm socket | ||
Operating Voltage | DC5V | ||
WorkingCurrent | 160mA- 190mA | ||
Dimension | 38mm x 38mm | ||
Storage Temperature | -20°Cto80°C | ||
Working Temperature | 0°C to 60°C | ||
USBCable | 1M(2M/3M/5M ... Optional ) | ||
Operating System Request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux withUVC(abovelinux-2.6.26) MAC-OS X 10.4.8 orlater Android4.0 or above with UVC | ||
Application
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement,door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement,door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Product Display
Packing and delivery
Package Include:
- 1 piece 1 meter usb cable
Company Profile
Shenzhen Ailipu Technology Co.,Ltd, who has 16 years history, is a professional manufacturer of surveillance system . Ailipu has its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
