Price:$220,000.00 - $243,000.00

Quantity:


Product Overview

Description



Product Description

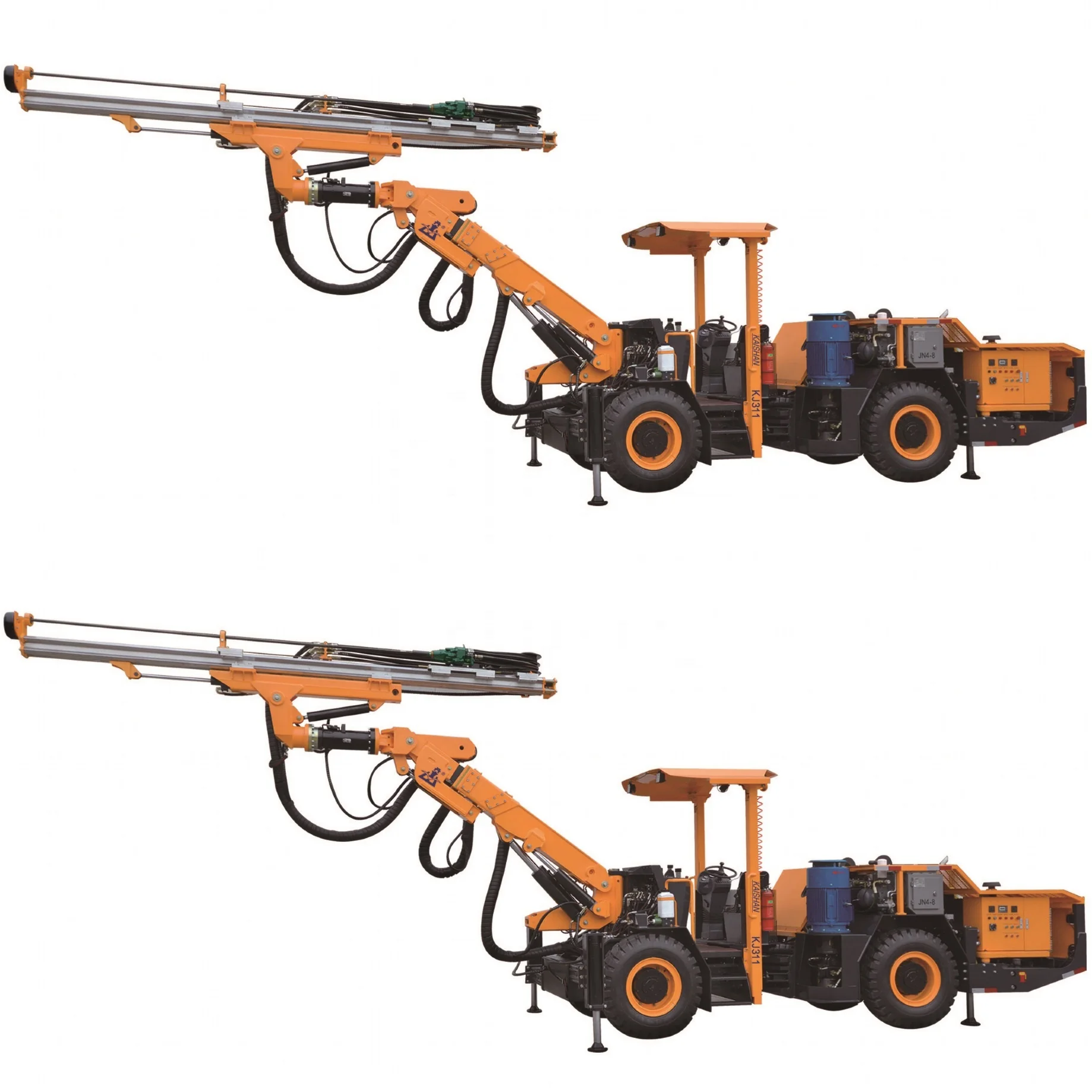

High Efficiency two Boom types of jumbo drilling machine mining jumbo drilling machine
KJ311 is a hydraulic drifting jumbo designed for 12-35 m2 cross section in underground mining operations. Robust universal drilling boom creates ideal face drilling coverage. Automatic parallelism and 360o roll-over enable easy, fast and accurate positioning for face drilling, sideway drilling and bolt hole drilling. The layout of components provides excellent vision for the operator in drilling and travelling.Powerful and well balanced 4-wheel drive chassis allows the rig to move through limited space and tough terrain in the mines. Duo-circuit service brake and enclosed multi-disc parking/ emergency brake ensure safety in tramming and on ramp slope. Field proven high frequency hydraulic drifter delivers high performance. Trapezoid shaped percussion piston optimizes shock wave transfer efficiency, enhancing penetration and decrease drilling consumables costs. Comfortable operator station provides safe working condition. Many automatic features simplified the drilling control and helps the miners to concentrate on fast and accurate drilling. All service points are easily accessible, which simplifies daily routine maintenance.






Products Details




                      Drill Arm
The sturdy universal boom has the best cross-section coverage shape, and the 360-degree flip of the propelling beam and the
automatic leveling facilitate quick and easy hollow positioning. The boom can also be used for lateral stone gate and bolt
drilling operations.






Electric Control Cabinet
Centralized control of the electrical box is simple to understand and easy to view and operate





Operation
The centralized operation platform is convenient for one person to control the machine, which is more convenient and fast.






Independent Cab
Independent and spacious work space and a range of automatic functions help the driver focus on safe, fast and accurate drilling


Product Parameter




KJ311
Rock Rigidity
f=6-20
Drilling Hole Diameter
45-76 mm
Drilling Depth
3.4 m
Traveling Speed
0-10.0 km/h
Rotation Speed
0-245 r/min
Rotation Torque
325 N.m
Max. Feed Force
12000 N
Push Way
Cylinder-Wire Rope
Feed Stroke
3450 mm
Climb Capacity
14º
Ground Clearance
320 mm
Weight
125000 kgs

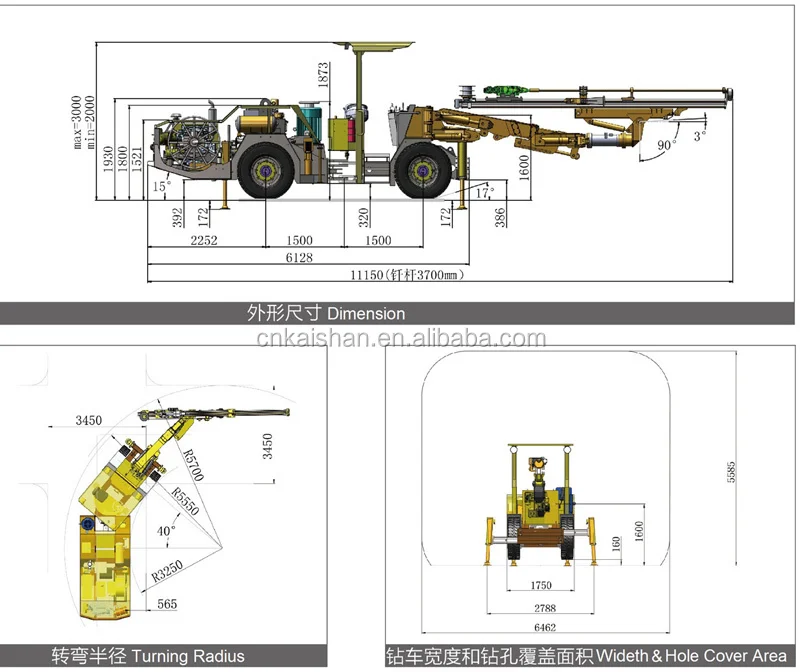

Dimension
11300*1750*3000 mm
Guide Tilt
93º
Guide Swing
180º right, 180º Ieft
Compensation Stroke
1600 mm
Boom Lift
45º up, 16º down
Boom Swing
45º right, 45º left
Engine Model
DEUTZ BF4L2011
Power
53 kW
Working Pressure
8 bar
Air Consumption
0.5 m³/min
Crawler Balance Angle
10º right, 10º left
Components
Standard
Option
Hydraulic Rock drill
HC50/R38
Rod
R38-H35-R32
Bit
Φ45 mm
Φ45-76mm


We also sell mining-related products such as water well drilling rigs, air compressors, down-the-hole drilling rigs, drill，drill pipe etc. Please feel free to contact us if you have any needs






Exhibition








Company Profile


Kaishan water well drilling rig is the largest water well drilling rig manufacturer in China. Kaishan water well drilling rig has complete vertical integration of production .Kaishan headquarters is located in Quzhou, Zhejiang Province,China, approximately 356 kilometers southwest of Shanghai, with its second largest manufacturing facility located in Shanghai, China. Kaishan Compressor currently has 3000 employees.
Specialized in Drilling rig and air compressor for many years.Sales Water well drill rig,Blasthole drill rig/quarry rock blasting Drilling equipment.Screw air comressor/Piston air comprssor,air tank for air compressor.jack hammers,hand rock drill.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.




Certifications




Packing And Shipping




FAQ


Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
