CHYF Factory Current Transducer High Voltage Epoxy Resin Insulator Sensor Insulator With Capacity
- Category: >>>
- Supplier: Yufeng Electric Co. Ltd.
Share on (1600874940360):
Product Overview
Description
Products Description

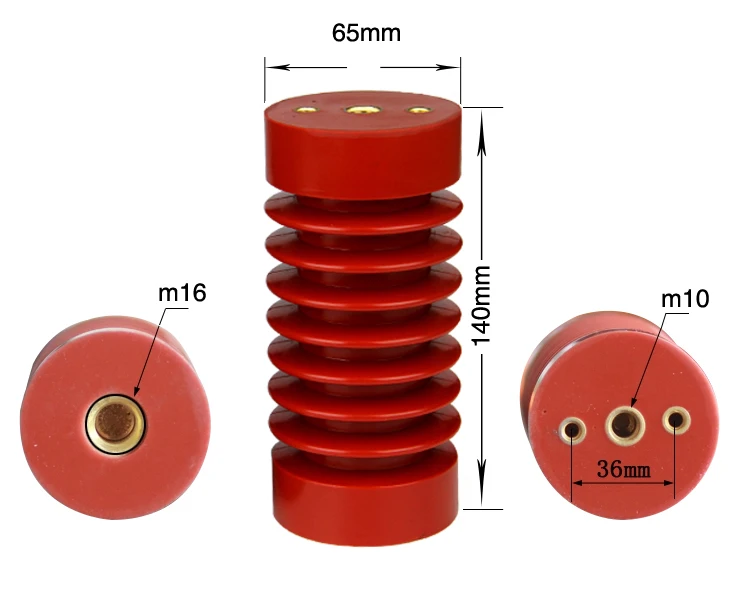

Drawing
Current transducer of 12/24/40.5KV power supply details listed as belows: Material: Epoxy Resin Rated Voltage: 12/24/40.5KV Technology: The Automatic Pressure Gelation (APG) Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear Operation Condition 1. Altitude: ≤ 1000m; 2. Ambient temperature: +40~-10º C; 3. The relative humidity shall not be more than 95% at+20 º C ambient temperature; 4. NO gas, wapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance. Technical Requirement 1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV; 2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in rated current condition. | ||||||||

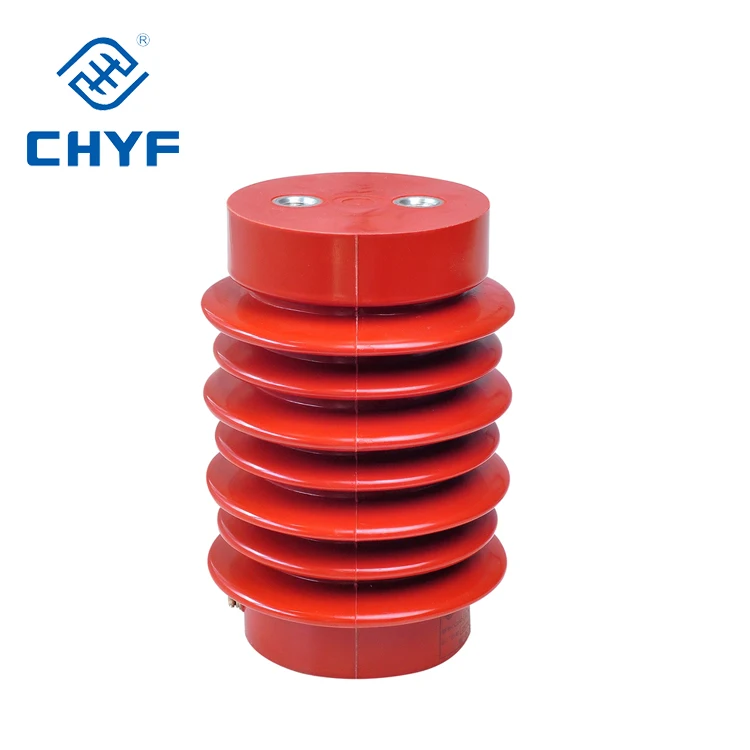

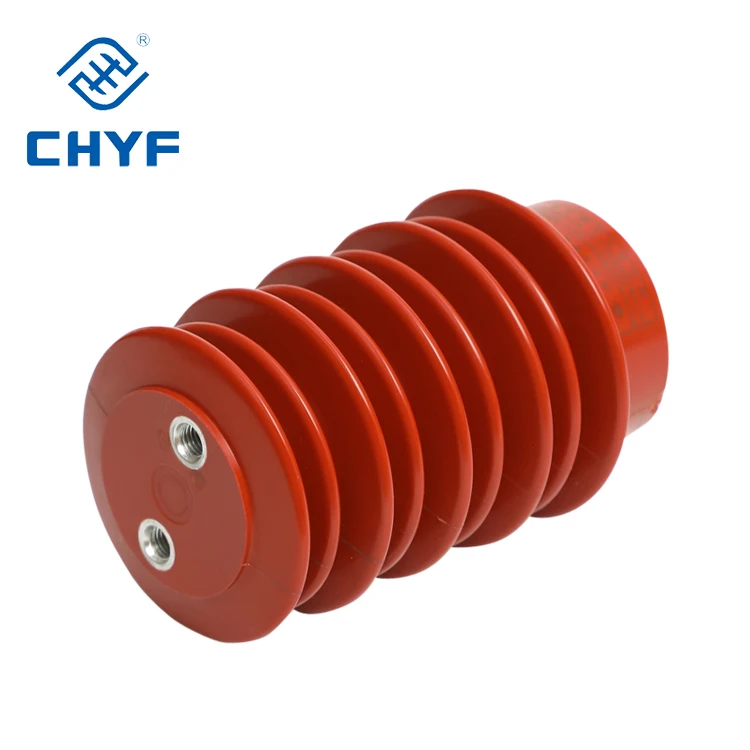

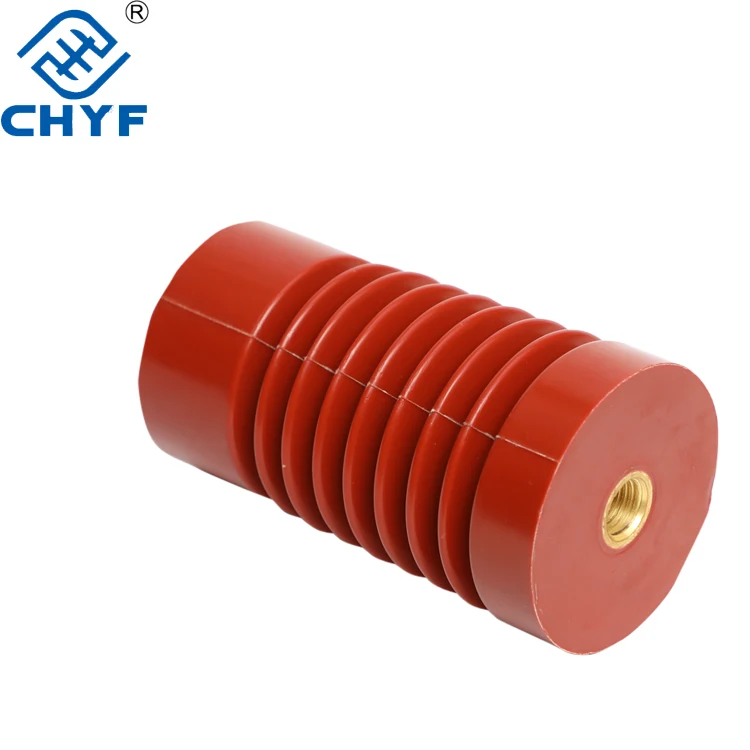

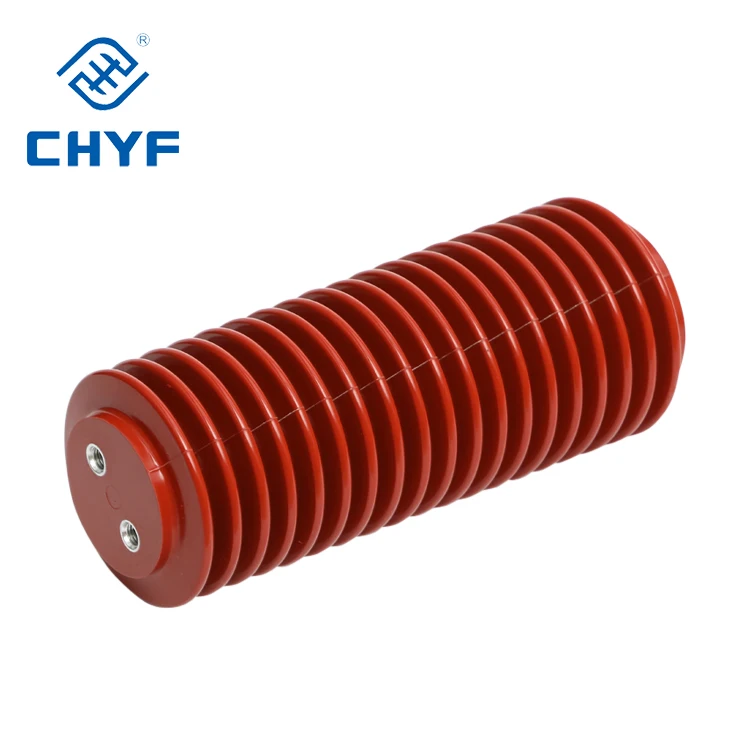

Product Photograph
Company Information
FAQ
A: We are factory with more than 20 years experience in this field.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days
if the goods are not in stock, it is according to quantity.
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: What is your terms of payment ?
A: Payment=500USD, 30% T/T in advance ,balance before shippment.
