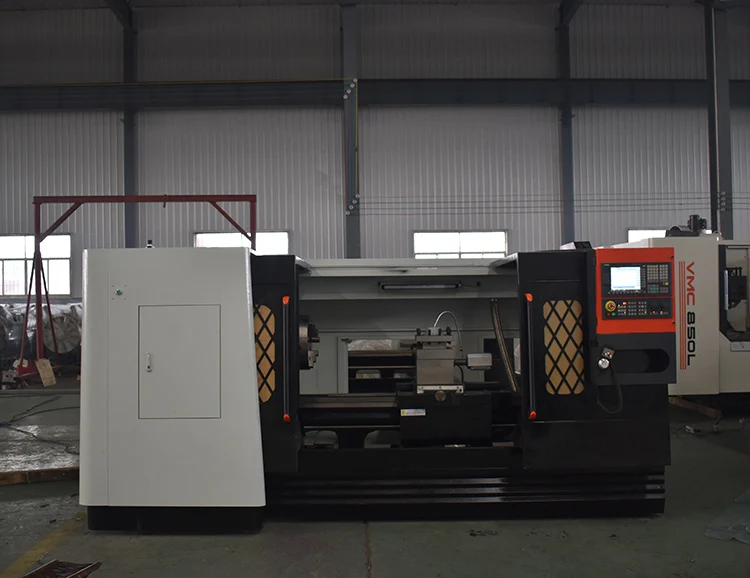

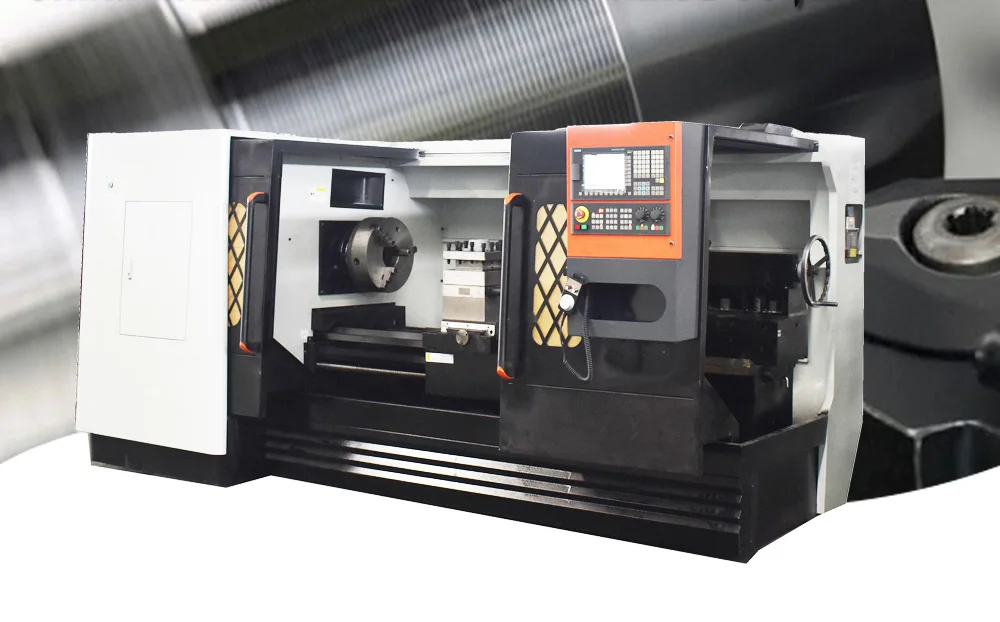

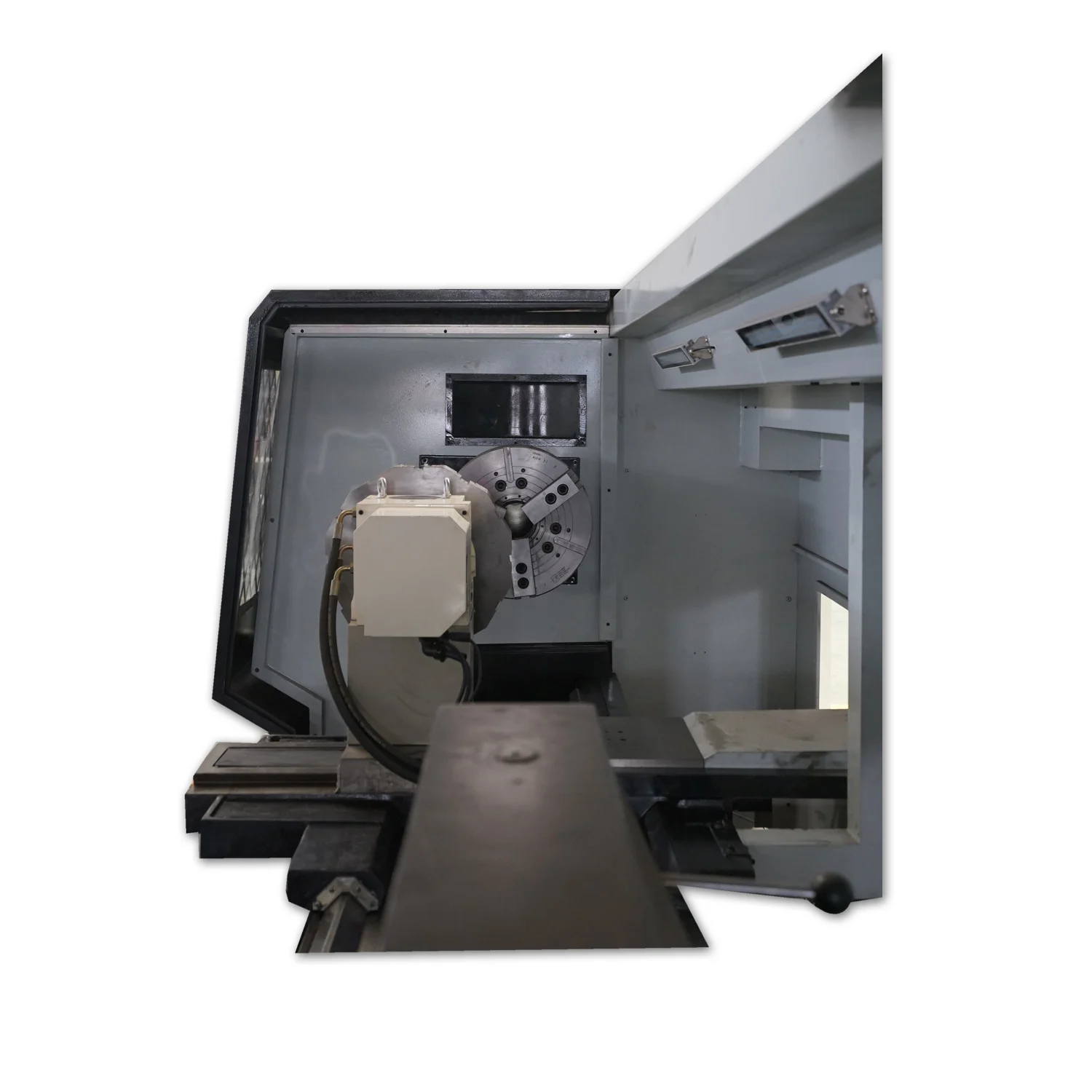

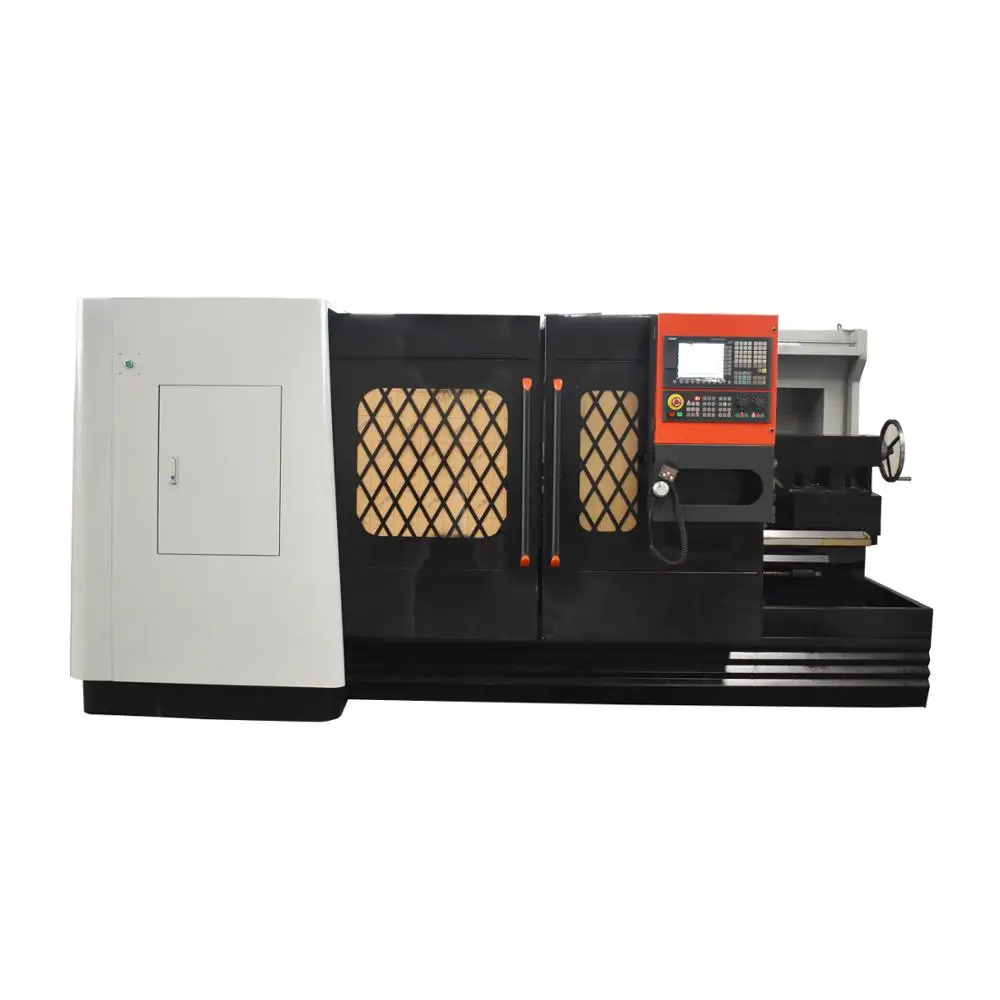

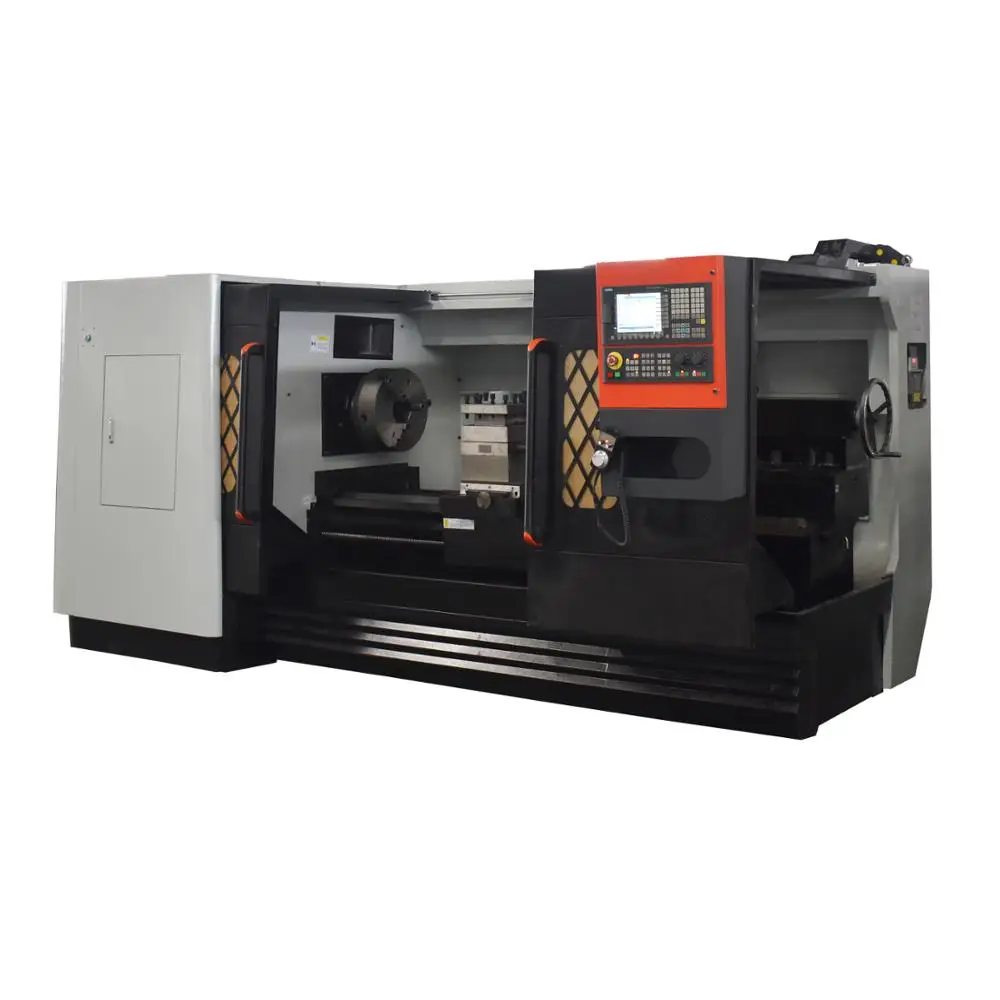

Best price cnc lathe cutter machine tools CK6180 horizontal cnc milling and drilling machine price list
- Category: >>>
- Supplier: Jinan Shangneng CNC Equipment Co. Ltd.
Share on (1600875007267):
Product Overview
Description
Product Description
Advantages:
----Over 20 years produce experience
----Factory supply directly----Professional engineer design
----Long-life after-sales service.
----Oversea service available
----Provide OEM&ODM service
----24 hours online after sales service
Standard
1. Full enclosed cover
2. One-piece body structure
3. 4-station electric tool post
4. Automatic lubrication
5. NSK spindle bearing of Japan
6. Manual chuck&tail stock
Optional
1. Hydraulic chuck& tailstock

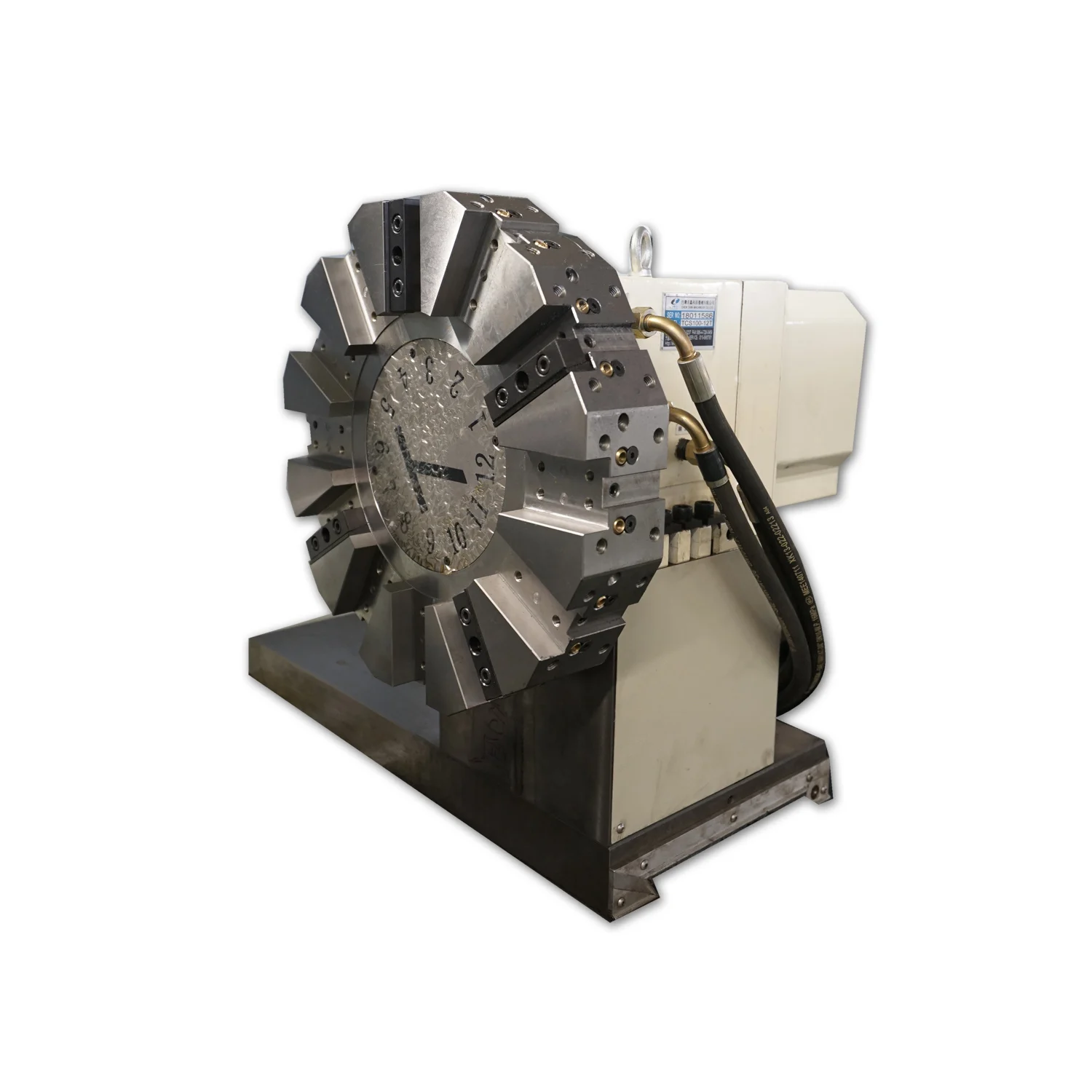

2. Electric 6/8 station turret

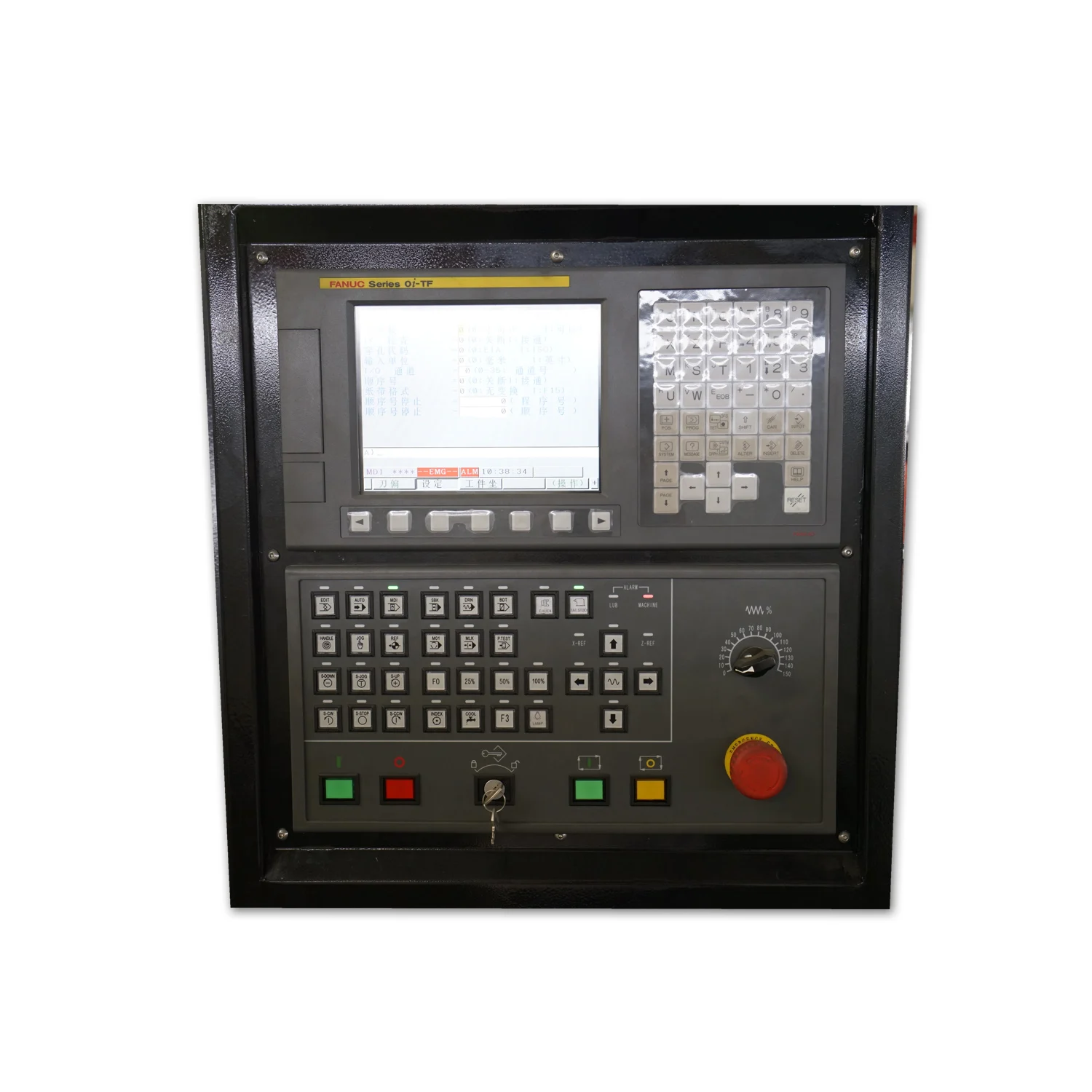

3. SIEMENS/FANUC/KND/GKS
/MITSUBISHI/SYNTEC
Specification
No | Item | Unit | Parameter |
1 | Max.swing over bed | mm | 800 |
2 | Max.swing over slide | mm | 480 |
3 | Max.processing length | mm | 1500/3000/6000 |
4 | Guideway width of bed | mm | 550 |
5 | X axis travel | mm | 400 |
6 | Z axis travel | mm | 1500 |
7 | X/Z axis rapid speed | m/min | 4/7 |
8 | X/Z axis positioning accuracy | mm | 0.025/0.03 |
9 | X/Z axis re-positioning accuracy | mm | 0.01/0.015 |
10 | Processing precision | mm | IT6-IT7 |
11 | Surface roughness | RA1.6 | |
12 | Spindle head type | C11 | |
13 | Dia.of spindle thru-hole | mm | 130 |
14 | Spindle hold tapper | 1:20 | |
15 | Chuck | mm | 400 |
16 | Spindle motor power | kw | 11/15 |
17 | Tool holder type | 4/6/8 station electrical tool turret | |
18 | Turning tool size | mm | 30*30 |
19 | Tailstock/Quil sleeve travel | mm | 250 |
20 | Tailstock sleeve dia, | mm | 100 |
21 | Tailstock sleeve taper | Morse 5 | |
22 | Controller | Siemens / Fanuc / GKS / Syntec / Mitsubishi | |
23 | N.W | kg | 4000 |
24 | Dimension | mm | 3700*1700*2000 |

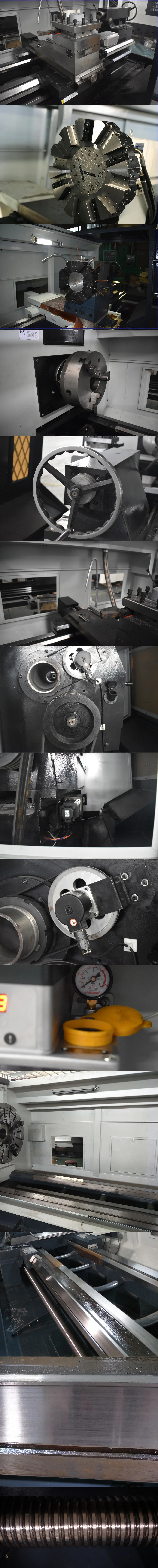

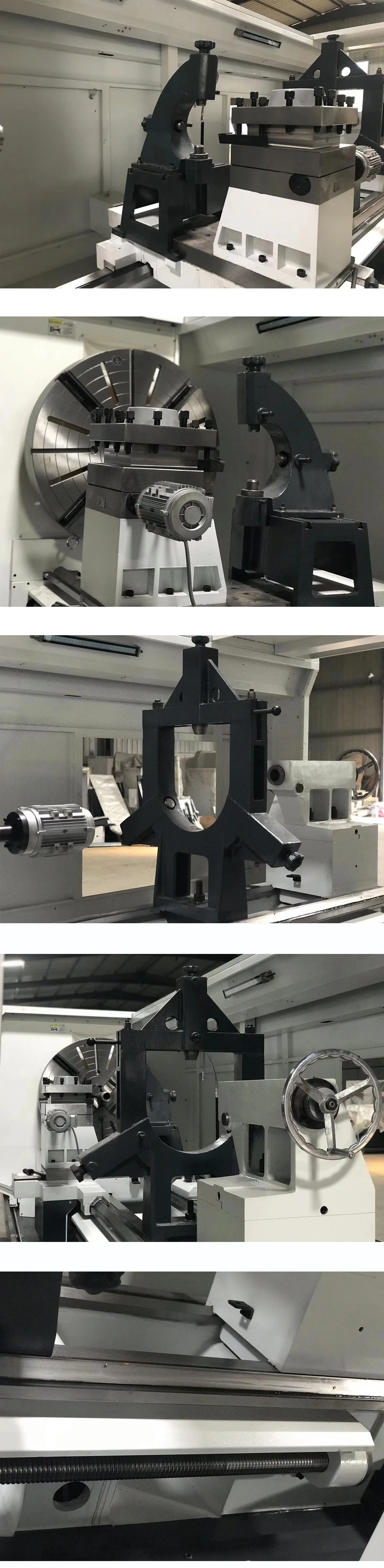

More Details Images
Packing & Delivery
Company Profile
Jinan Shangneng CNC Equipment Co.,Ltd. is located in Shanghe District, Jinan City, Shandong Province. It was established in 2018. It acquired 63.18 mu of land through double recruitment and double introduction, with a total investment of 150 million. At present, it has built a workshop of more than 10,000 square meters. And It is a CNC machine tool enterprise integrating production, processing and sales.
The company specializes in the production of horizontal/vertical/gantry machining centers, flat-bed lathes, slant bed CNC lathes, CNC vertical lathes and other CNC machine tools, and also undertakes the finishing of various metal products and accessories. The company has excellent production equipment, advanced and reasonable technology, complete testing methods and strong technical force. The main machine tool accessories are imported from Taiwan, Japan, Germany and other countries and regions.
The company specializes in the production of horizontal/vertical/gantry machining centers, flat-bed lathes, slant bed CNC lathes, CNC vertical lathes and other CNC machine tools, and also undertakes the finishing of various metal products and accessories. The company has excellent production equipment, advanced and reasonable technology, complete testing methods and strong technical force. The main machine tool accessories are imported from Taiwan, Japan, Germany and other countries and regions.
Exhibition
Certification
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
