Hot sale in Colombia 6 parameter pet monitor Wireless charging Veterinary Equipment BERRY AM6200 veterinary Monitor
- Category: >>>
- Supplier: Shanghai Berry Electronic Tech Co. Ltd.
Share on (1600875122153):
Product Overview
Description
Custom made
The minimum quantity for customization is 1000.
Instructions

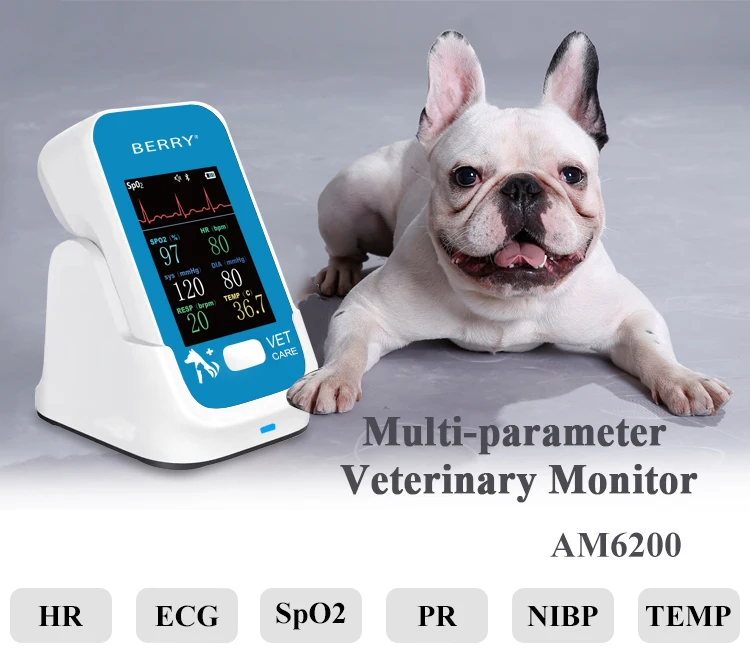

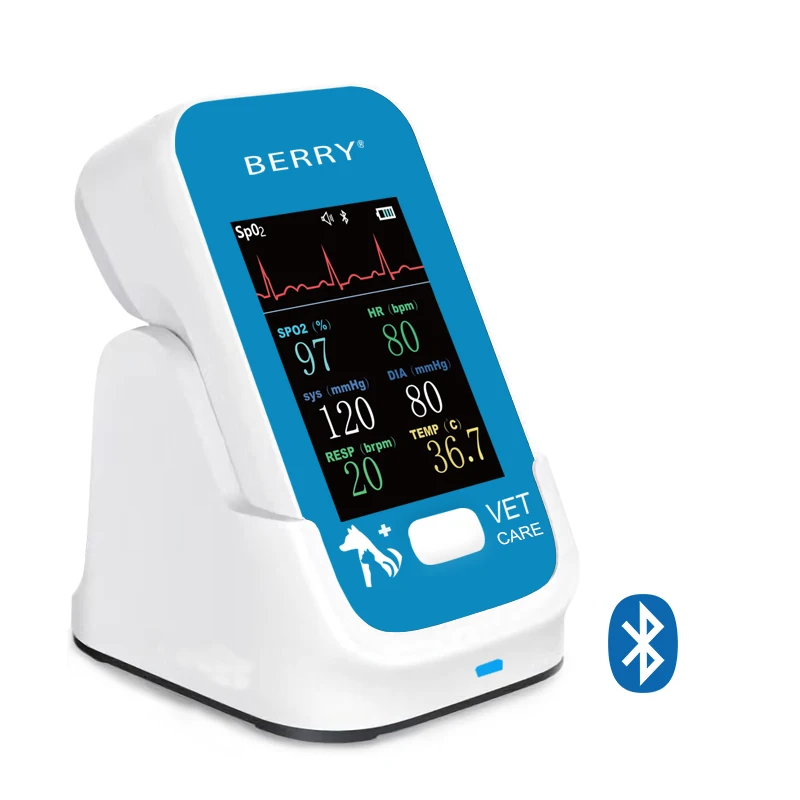

BERRY Multi-parameter veterinary monitor.
AM6200 This monitor is capable of monitoring parameters: ECG (Electrocardiograph), HR (heart rate), NIBP (non-invasive blood pressure), SpO2, PR(pulse rate), TEMP(body temperature).
The One-Button-Design make the monitor to be a easy-to-use system,so you can perform the operations conveniently. Besides, this monitor can be connected with the other smart terminals such as PC or Android phones.
This monitor integrates the functions of parameter measurement, waveform monitoring, etc. Its color TFT liquid crystal display is able to show animal parameters and waveform clearly.
Application scenarios
AM6200 pet monitor is applicable to the daily and surgical monitoring of various pets, and widely used in pet hospitals, pet clinics, zoos, indoor and outdoor home care.

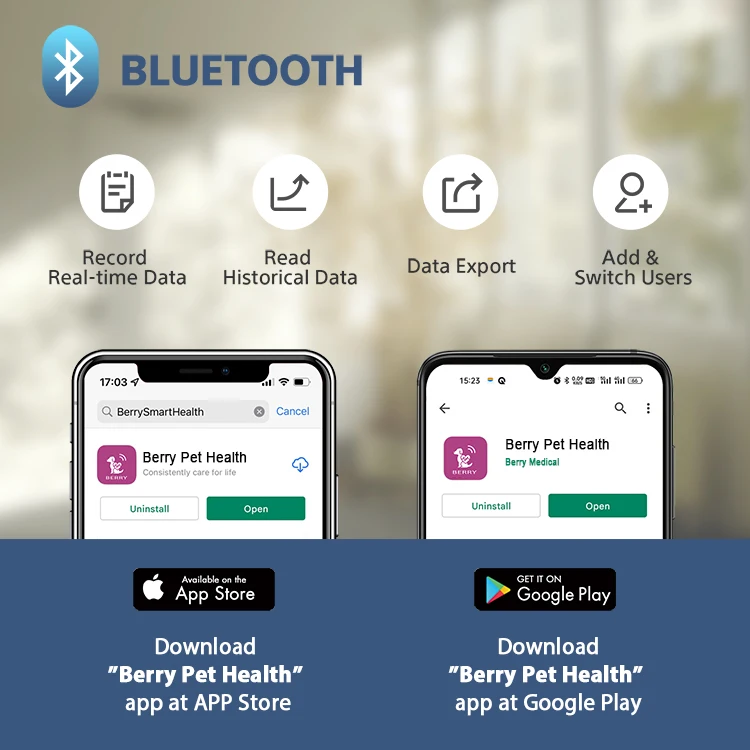

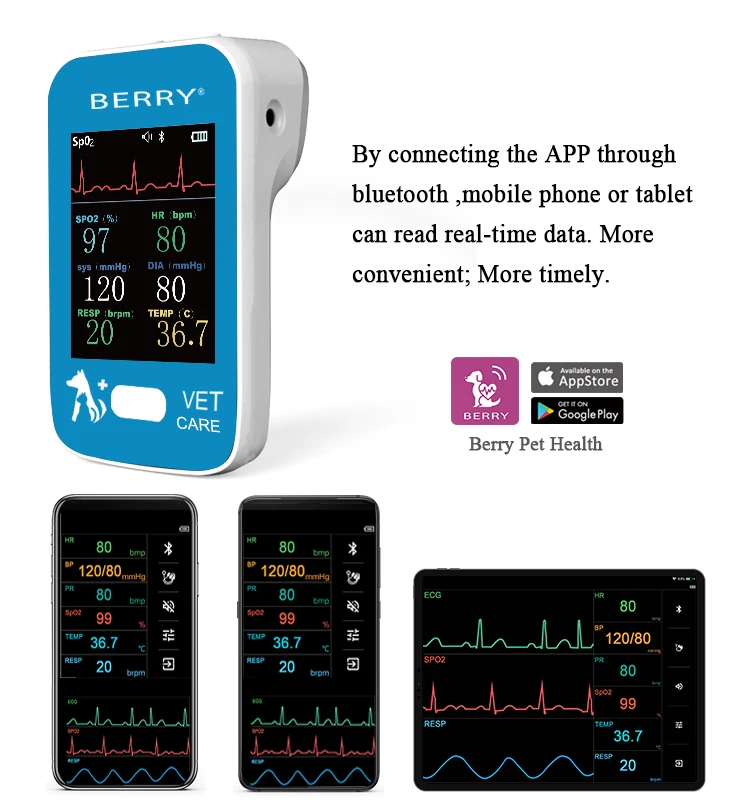

APP
By connecting the APP through Bluetooth ,mobile phone or tablet can read real-time data. More convenient; More timely.
Download
“Berry Pet Health”app at APP Store and Google Play
Can be used while charging, charge supports Type-c interface

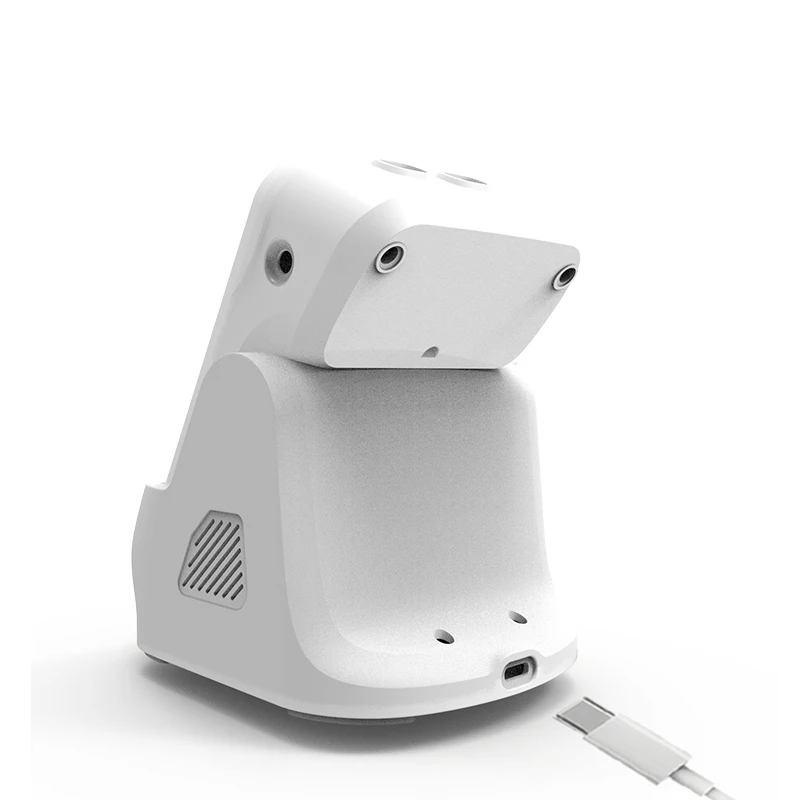

Wireless charging base

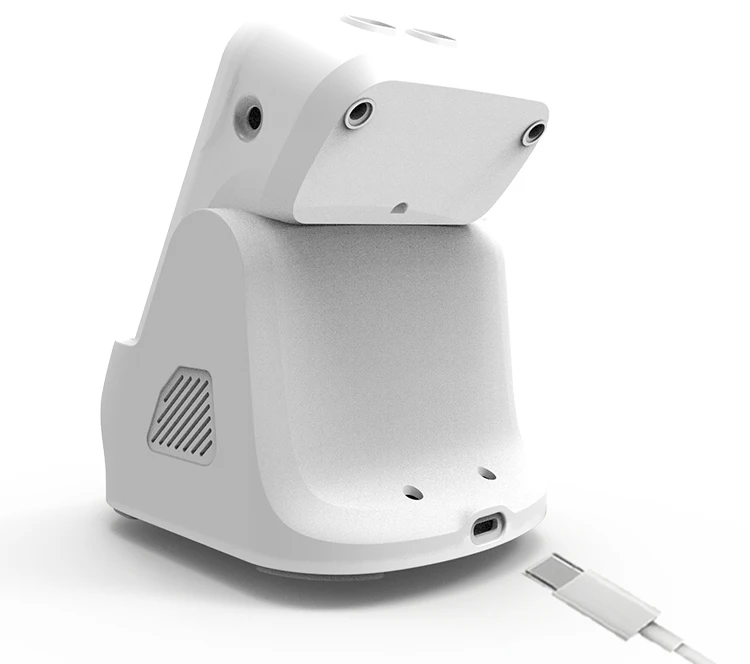

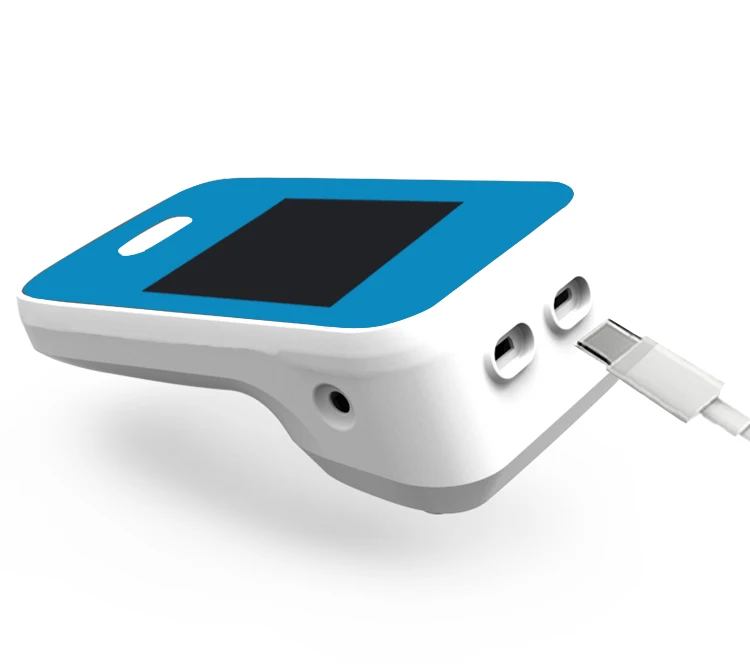

Machine charging

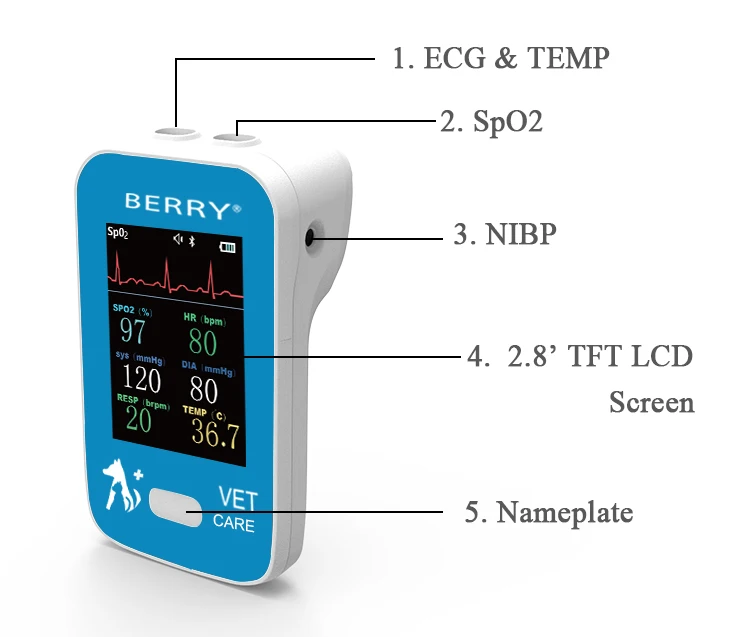

Number | Name | Purpose |
1. | ECG & TEMP | ECG & TEMP cable connector, Charging Connector. |
2. | SpO2 | SpO2 sensor connector. |
3. | NIBP | NIBP cuff hose connector. |
4. | Screen | 2.8’TFT LCD. |
5. | Key | Power and functions key. |

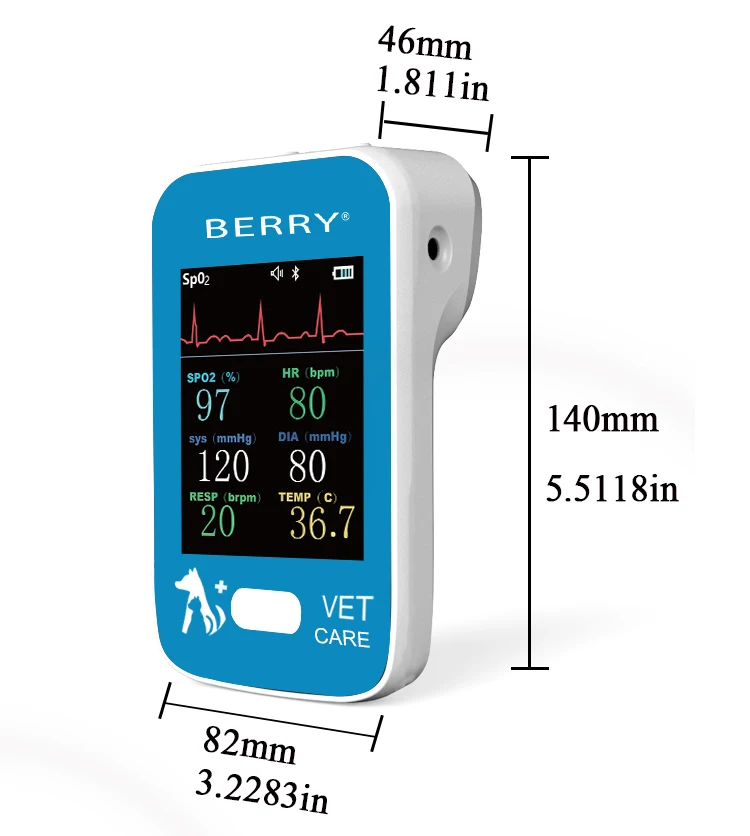

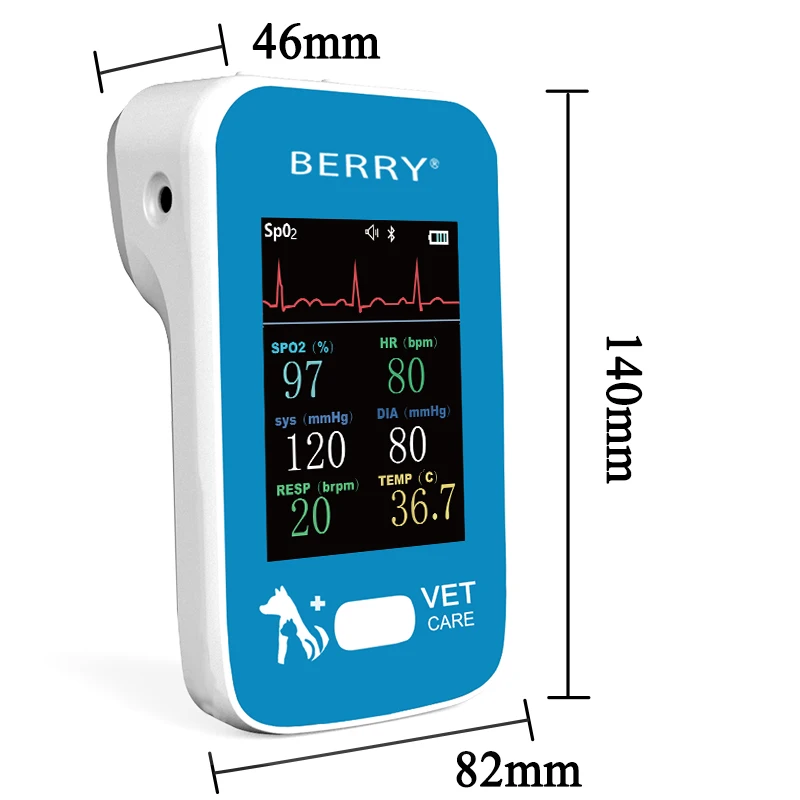

SIZE:
Battery and Charging
Built-in Battery
3.7V, 1800mAh lithium battery.
Wired Charging
5V⎓1A
Wireless Charging
5W

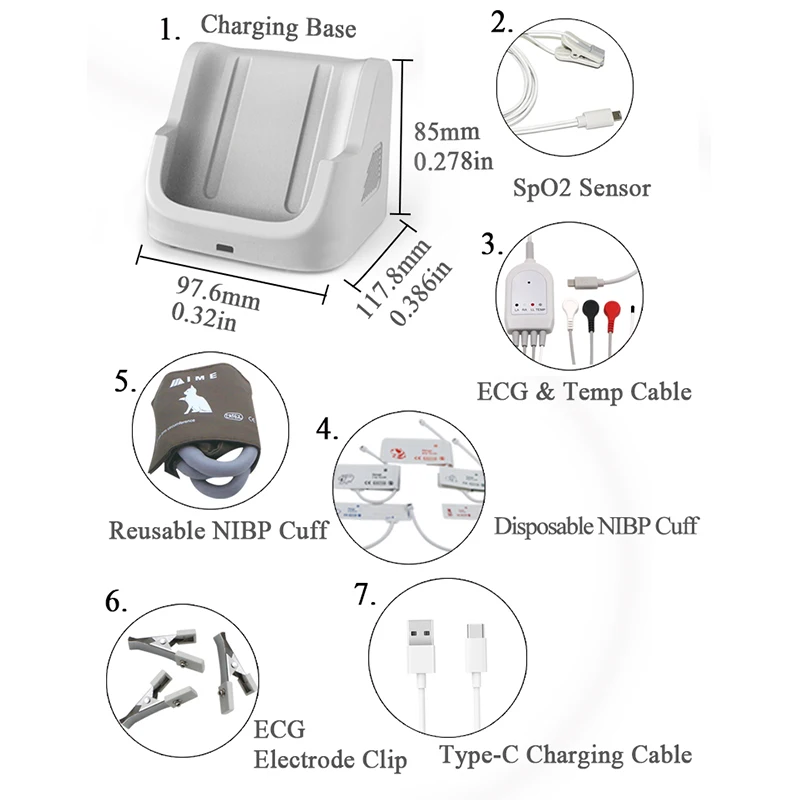

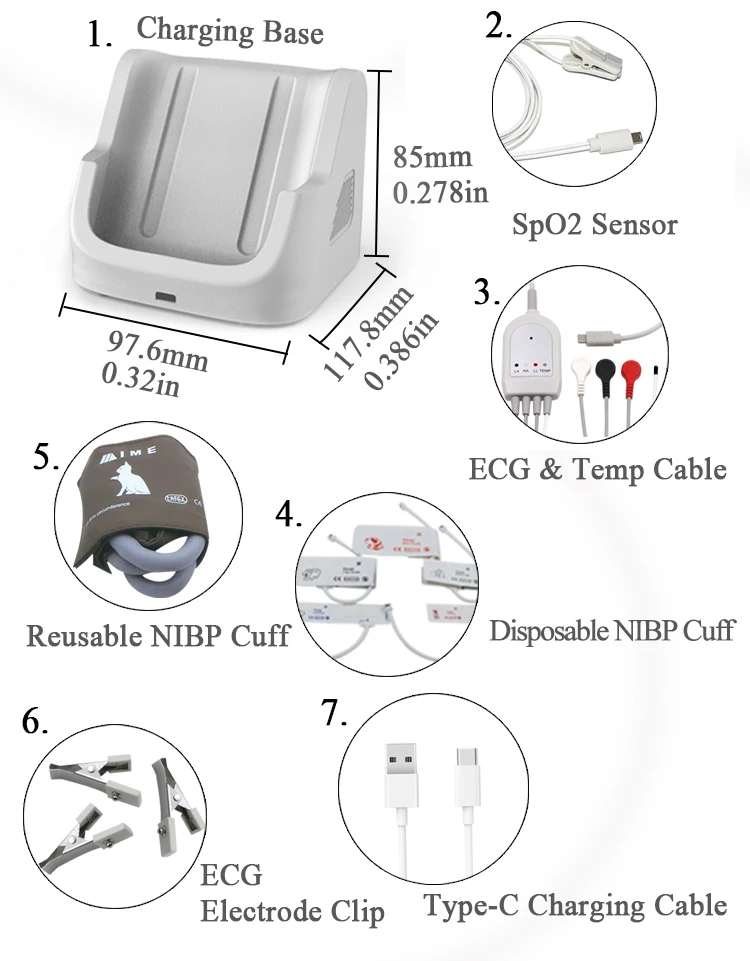

Standard configuration:
1、Charging Base
2、SpO2 Sensor
3、ECG & Temp Cable
4、Disposable NIBP Cuff
5、Reusable NIBP Cuff
2、SpO2 Sensor
3、ECG & Temp Cable
4、Disposable NIBP Cuff
5、Reusable NIBP Cuff
6、ECG Electrode Clip
7、Type-C Charging Cable
Function and Features
1、6-Vital signs numerical results and waveform are shown on the TFT-LCD in real time.
2、Communication with other intelligent terminals via Bluetooth.
3、Automatically power off to save power.
4、Portable, palm size
5、Low power consumption.
6、One touch operation
2、Communication with other intelligent terminals via Bluetooth.
3、Automatically power off to save power.
4、Portable, palm size
5、Low power consumption.
6、One touch operation
7、APP for Android and iOS
8、Real time data transmission
9、Rechargeable battery and wireless charging
10、Can be used while charging
11、Lithium battery is builtin.
12、Multi-function for SpO2, HR, Temp, ECG, RR and NIBP
8、Real time data transmission
9、Rechargeable battery and wireless charging
10、Can be used while charging
11、Lithium battery is builtin.
12、Multi-function for SpO2, HR, Temp, ECG, RR and NIBP
Technical Features
Display HR, NIBP, SpO2, PR, TEMP, RESP | Screen: 2.8 inches colorized TFT-LCD screen |
ECG Waveform: Lead I Band width 0.05Hz ~ 100Hz(3dB) diagnose mode 1 ~ 40Hz monitor mode 0.1 ~ 25Hz operation mode | Heart rate Scope: 15 bpm ~ 300 bpmAccuracy:±2bpm or 2%, whichever is greater. |
NIBP Scope: Systolic blood pressure: 4kPa ~ 34kPa(30mmHg ~ 255mmHg) Diastolic pressure: 2kPa ~ 29.3kPa(15mmHg ~ 220mmHg) Mean pressure: 2.7kPa ~ 31.3kPa （20mmHg ~ 235mmHg） Detection accuracy: Static pressure: ±3mmHg | Temp Type: Vascular/surface temperature Scope: 25℃ ~ 45℃ Accuracy: ±0.2℃ |
RESP Measurement range: 5～100brpm. Accuracy:±2brpm | TEMP Measurement range: 25～45℃. Measurement accuracy: ±0.2℃.. |
SpO2 Measurement range:35~100%. Accuracy: ±2% (80%~100%), ±3% (70%~79%), ±3% (35%~69%) | PR Measurement range: 25~250bpm. Accuracy: ±2bpm or 2%, whichever is greater. |
NIBP Scope: Systolic blood pressure: 4kPa ~34kPa(30mmHg ~ 255mmHg) Diastolic pressure: 2kPa ~ 29.3kPa(15mmHg ~ 220mmHg) Mean pressure: 2.7kPa ~ 31.3kPa （20mmHg ~ 235mmHg） Detection accuracy: Static pressure: ±3mmHg | Weight: 256±10g (not including accessories). |
