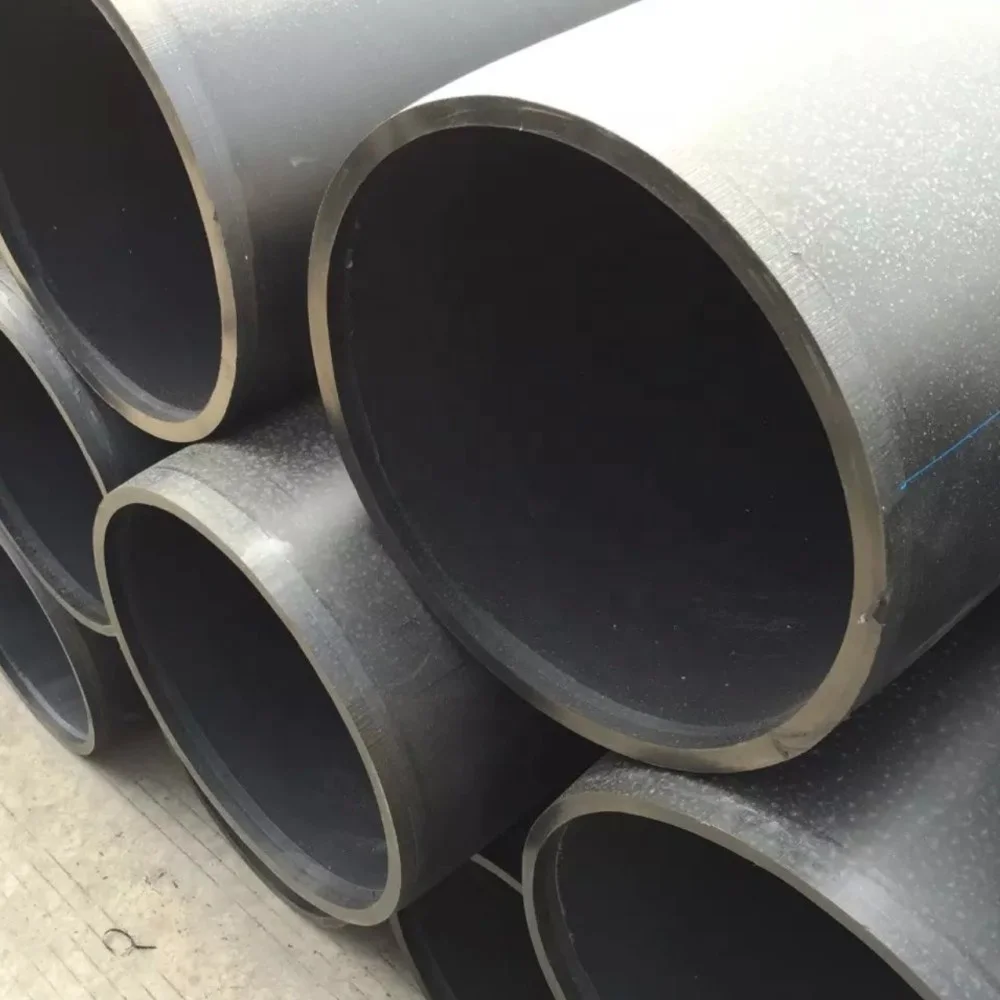

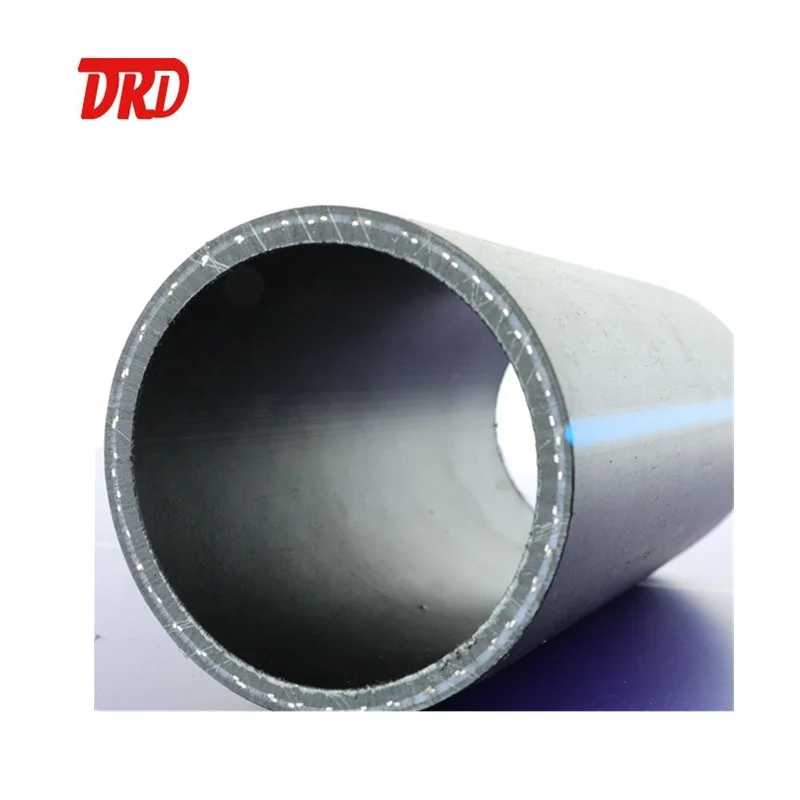

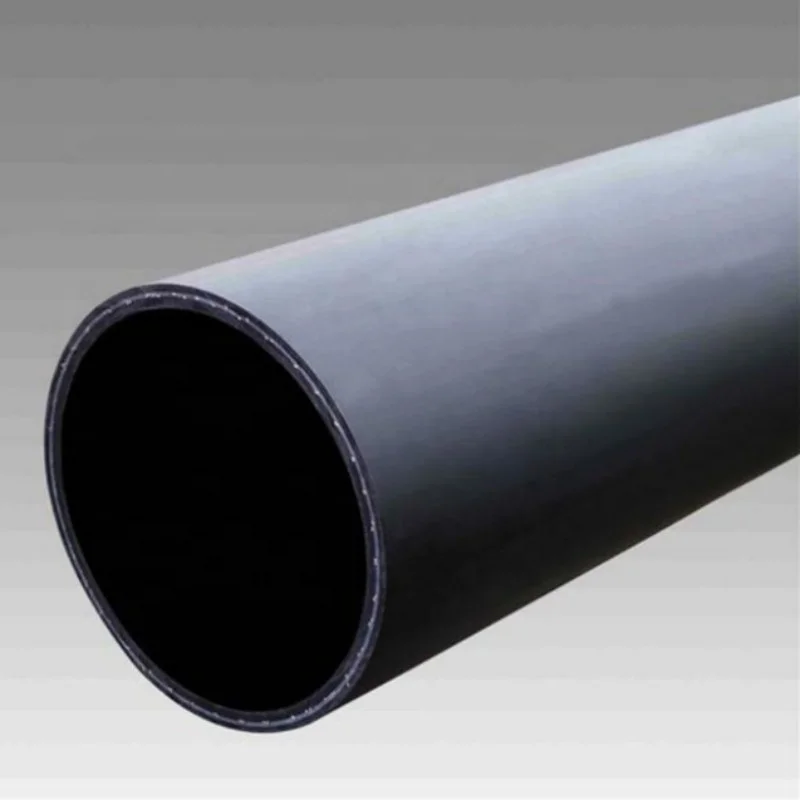

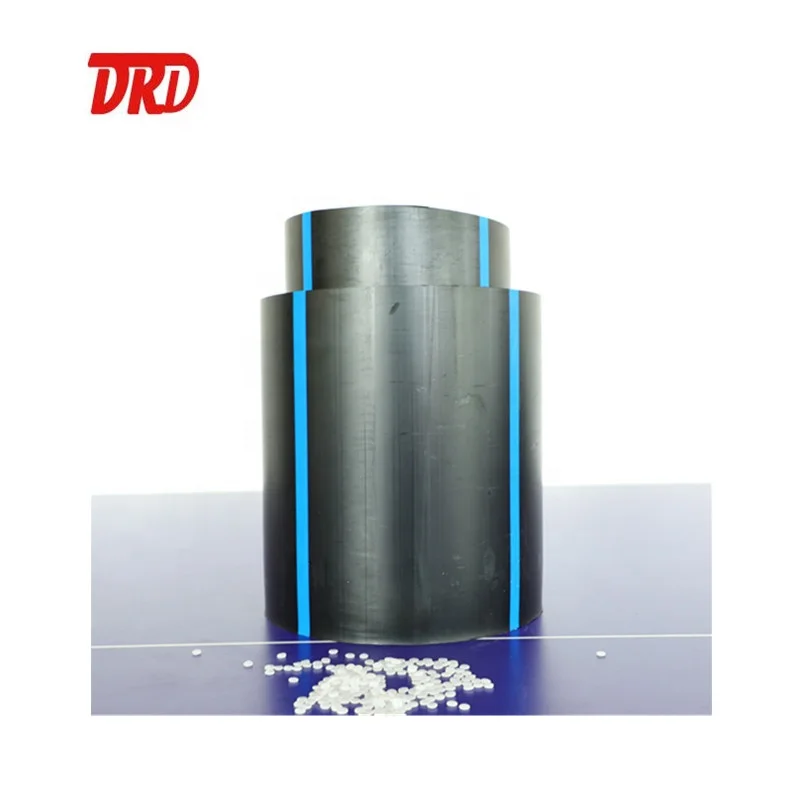

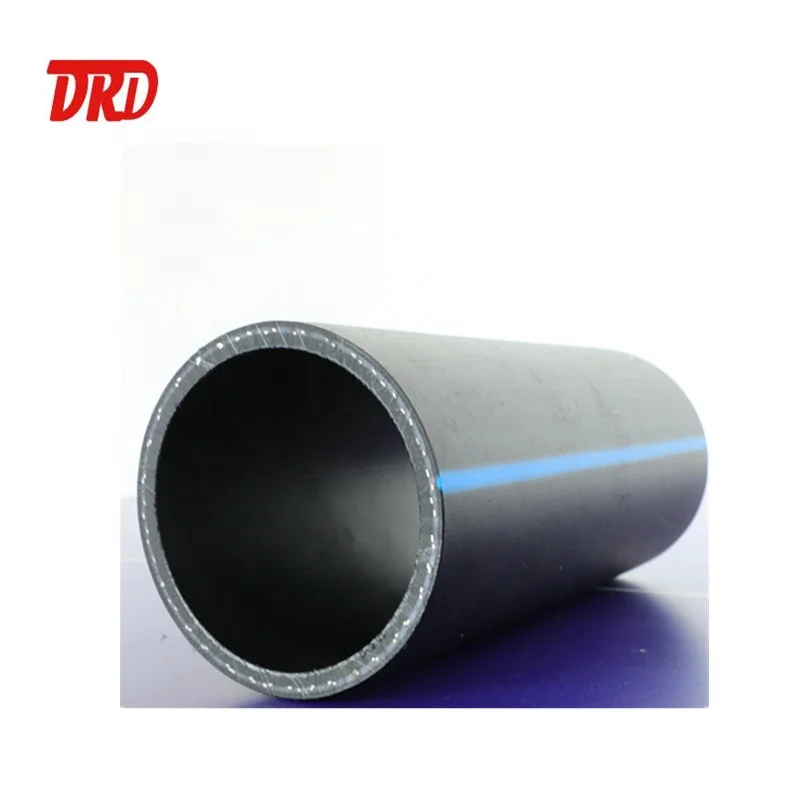

Steel wire mesh skeleton reinforced pe100 HDPE composite pipe 315MM SRTP pipe
- Category: Composite Pipes >>>
- Supplier: Tianjin Dingrunda Technology Co. Ltd.
Share on (1600875164026):
Product Overview
Description
Product Description
Steel Plastic composite pipe SRTP Steel Wire Reinforced HDPE Composite Pipe

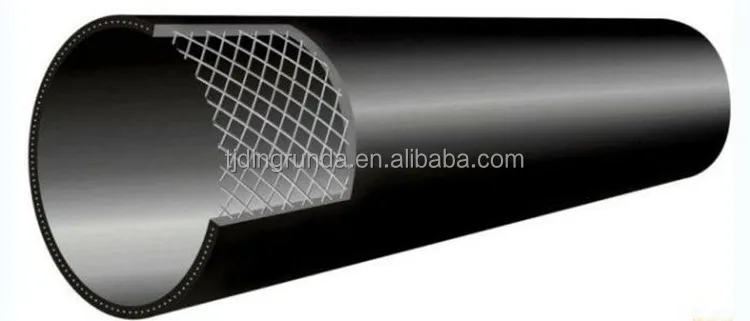

Steel mesh reinforced HDPE Composite pipe is compounded special hot adhesive layer to plastic.The inner surface of the pipe has the same features of corrosion resistance and wear resistance.The inner wall is smooth for transportation without scaling, no wax, corrosion resistance and energy saving.This pipe is more economical and convenient for underground transportation and corrosive environmental conditions.Furthermore,the pipe has excellent seismic resistance, which almost cannot be damaged in earthquakes. Because of the reinforced effect of steel wire mesh,it has more outstanding ability to adapt to land subsidence and other conditions.Based on above advantages,this kind of pipe is selected as the buried underground water pipe of national stadium during the construction of Olympic venues.
DN/mm | Pressure/MPa | |||||
1 | 1.25 | 1.6 | 2 | 2.5 | ||
Specification | Deviation | EN/mm AND Deviation/mm | ||||
50 | 0+1.0 | 4.50 | 5.00 | 5.50 | ||
75 | 0+1.2 |
|
| 5.00 | 5.00 | 5.50 |
90 | 0+1.4 |
|
| 5.50 | 5.50 | 5.50 |
110 | 0+1.5 | 5.50 | 5.50 | 7.00 | 7.00 | 7.50 |
140 | 0+1.7 | 5.50 | 5.50 | 8.00 | 8.50 | 9.00 |
160 | 0+2.0 | 6.00 | 6.00 | 9.00 | 9.50 | 10.00 |
200 | 0+2.3 | 6.00 | 6.00 | 9.50 | 10.50 | 11.00 |
225 | 0+2.5 | 8.00 | 8.00 | 10.00 | 10.50 | 11.00 |
250 | 0+2.5 | 10.50 | 10.50 | 12.00 | 12.00 | 12.50 |
315 | 0+2.7 | 11.50 | 11.50 | 13.00 | 13.00 |
|
355 | 0+2.8 | 12.00 | 12.00 | 14.00 |
|
|
400 | 0+3.0 | 12.50 | 12.50 | 15.00 |
|
|
450 | 0+3.2 | 13.50 | 13.50 | 16.00 |
|
|
500 | 0+3.2 | 15.50 | 15.50 | 18.00 |
|
|
560 | 0+3.2 | 20.00 |
|
|
|
|
630 | 0+3.2 | 23.00 |
|
|
|
|
Features:
HDPE SRTP pipe Features

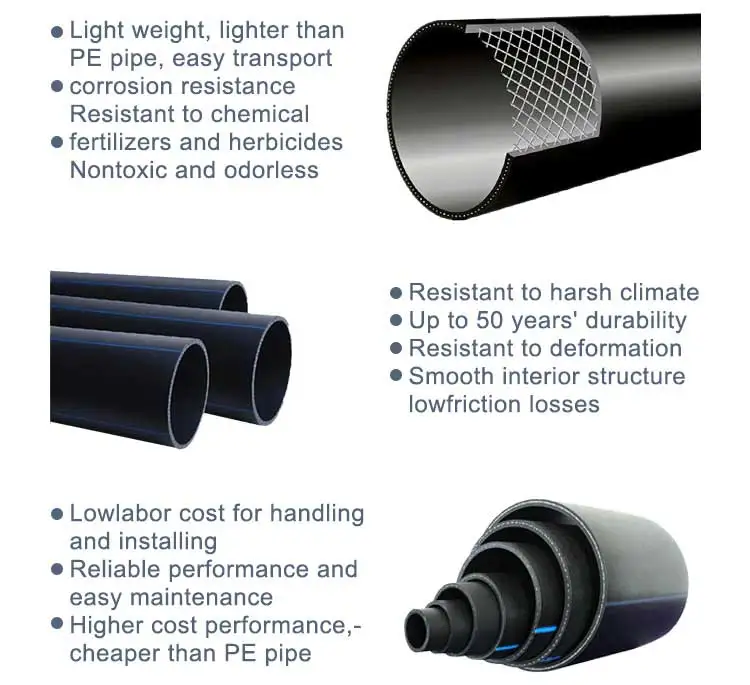

1.Higher strength resistance and creep resistance. 2.Excellent stiffness, impact resistance. Low linear expansion coefficient. 3.Smooth inner wall, won’t covered with dirt. Low flow resistance, high flow capacity. 4.Both the inner and outer wall are made of plastic, lead the pipe and fittings owns good corrosion resistance. 5.Light weight, easy to transport. 6.Use elector-fusion joint, no leakage in the joint, fast and easy installation. 7.The product is composite with steel wire and plastic, overcome the fast stress crack of plastic pipe. 8.Good abrasion resistance. The product can work for more than 50 years under normal use. 9.low in cost, hygienic and non-toxic than galvanized pipe
Advantages:
Connection Method

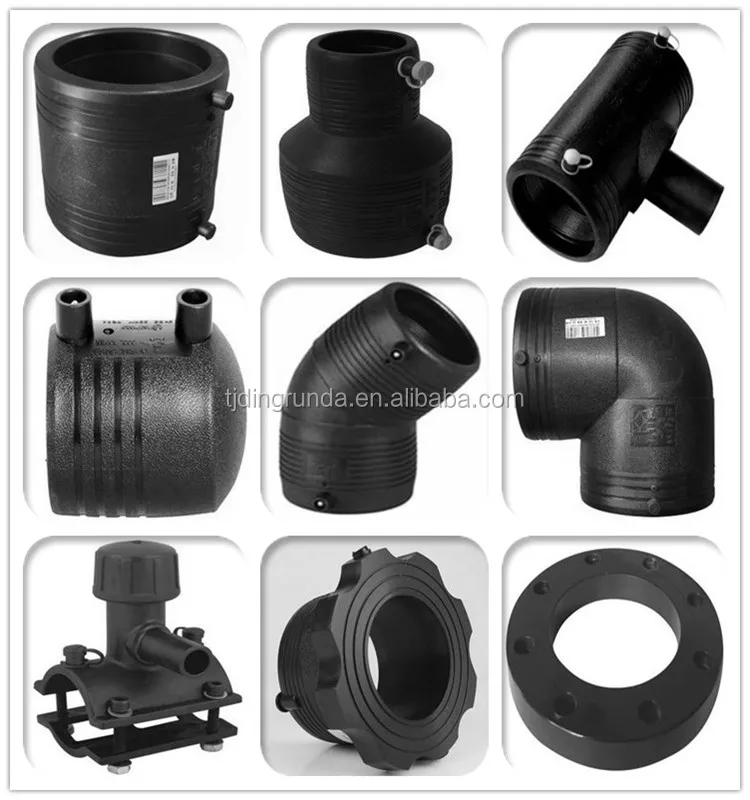

This technique of heat fusion joining is a bit different from the conventional fusion joining.The electro fusion joint is heated internally,either by a wire coil at the interface of the joint or, as in one design, by a conductive polymer.Heat is created as an electric current is applied to the conductive material in the fitting.
General steps to be followed when performing electro fusion joining are:
1.Prepare the pipes
2.Clamp the fittings and pipe(s)
3.Apply the electric current
4.Cold and remove the clamps

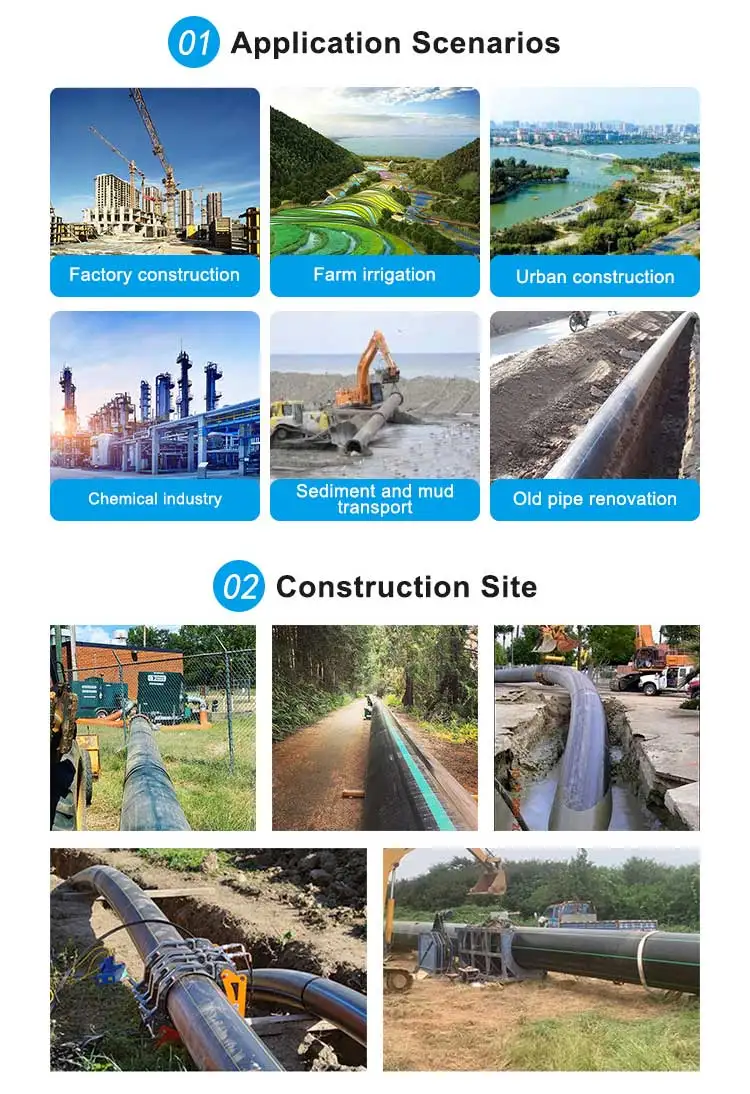

Application
