Model | WZ30 |
Bucket capacity | 0.1m³ |
Engine | Laidong, 385 22.1Kw/Kubota D1105 |
Walking speed | 2.7 Km/h |
Rotation speed | 10r/min |
Total length | 4180 mm |
Total width | 1350 mm |
Total height | 2200 mm |
Crawler length | 2000 mm |
Crawler width | 230 mm |
Body width | 1350 mm |
Maximum digging height | 3900 mm |
Maximum dumping height | 2600 mm |
Maximum digging depth | 2500 mm |
Maximum digging radius | 4040 mm |
Platform clearance to ground | 458 mm |
Swing angle | 360° |
Climbing gradient | 30° |

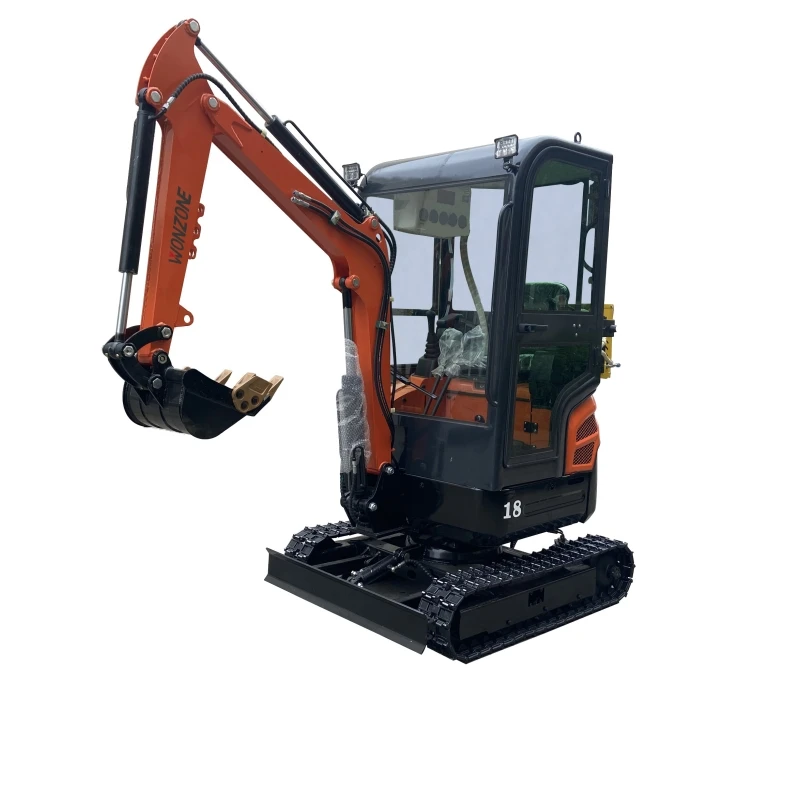

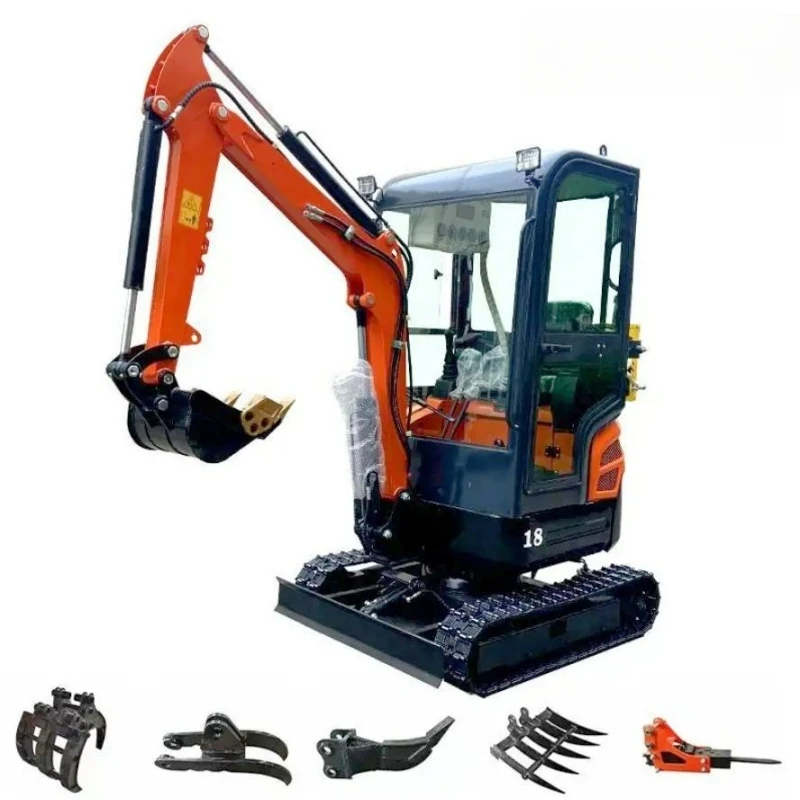

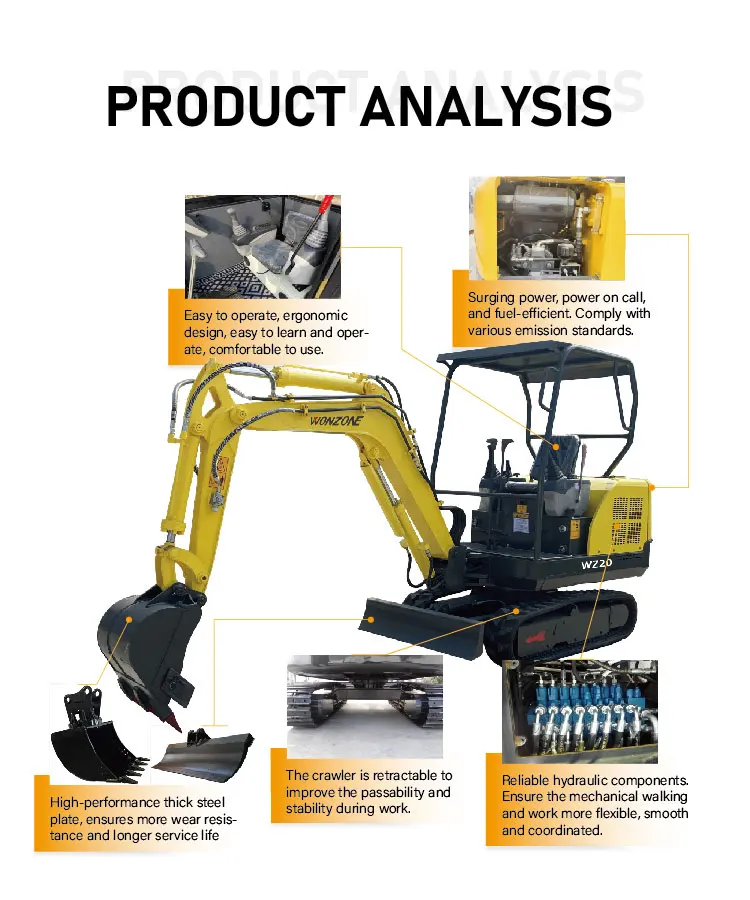

Model | WZ20 |
Bucket capacity | 0.06m³ |
Operating weight | 2000kg |
Max. Digging force(kN) | 15.2 |
Engine Model | Laidong 385B |
Discharge | Europe Ⅱ |
Engine power(kw/rpm) | 18.4/2350 |
Optional Engine Model | Kubota D1105 |
Discharge | Euro 5/EPA IIII |
Engine power(kw/rpm) | 14.2/2200 |
Rated pressure(Mpa) | 20.6 |
Type of hydraulic system | Load sensitivity |
Hydraulic Pump | Rexroth |
Structural Style | Plunger pump |
Valve | Italy |
Swing Motor | Eaton Orbit motor |
Traveling Motor | Italy Plunger motor |
Overall dimension | 3900x1230x2270 mm |

Model | WZ10 |
Engine | Diesel or EPA gasoline |
Weight | 1000KG |
Bucket capacity | 0.025CBM |
Working device mode | Back hole |
Power | 7.6KW/7KW/13.5HP |
Tyre gauge | 420mm |
Track length | 1250mm |
MIN ground clearance | 80mm |
Width of chassis | 940mm |
Over length | 2170mm |
Machine height | 2200mm |
Max digging radius | 2900mm |
Max digging depth | 1650mm |
Max digging height | 2500mm |
Max.dumping height | 1850mm |
Min gyration redius | 1550mm |

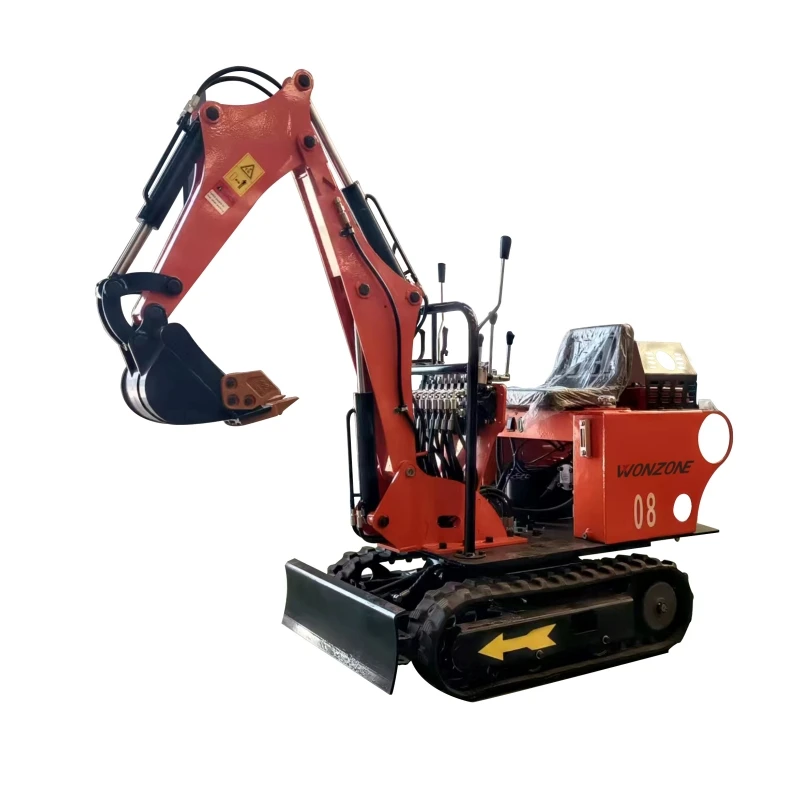

Model | WZ08 |
Engine | Diesel or EPA gasoline |
Weight | 800KG |
Bucket capacity | 0.02CBM |
Working device mode | Back hole |
Power | 7.6KW/7KW/13.5HP |
Tyre gauge | 420mm |
Track length | 1150mm |
MIN ground clearance | 80mm |
Width of chassis | 730mm |
Over length | 2100mm |
Machine height | 1250mm |
Max digging radius | 2050mm |
Max digging depth | 1200mm |
Max digging height | 2350mm |
Max.dumping height | 1600mm |
Min gyration redius | 1100mm |
