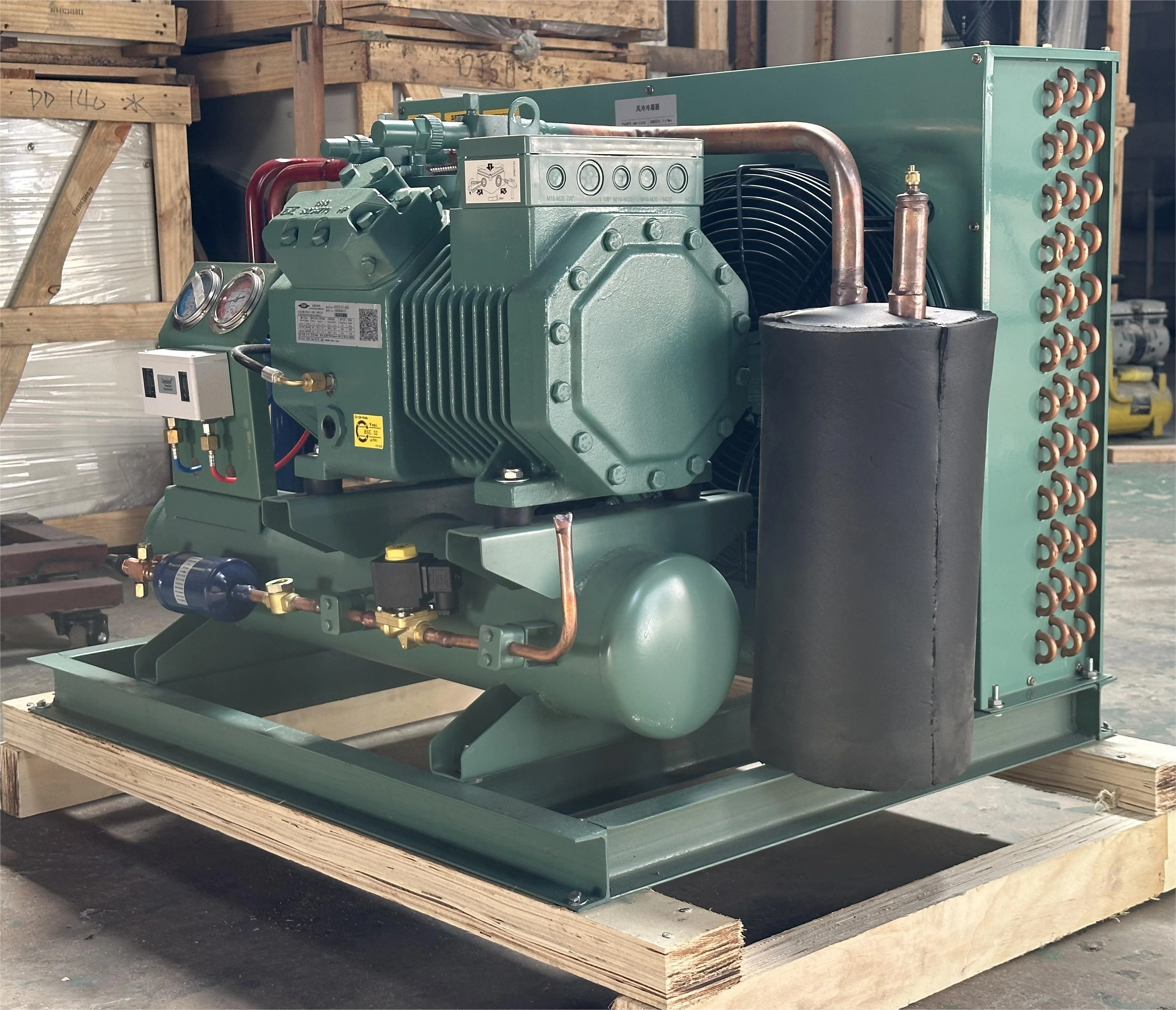

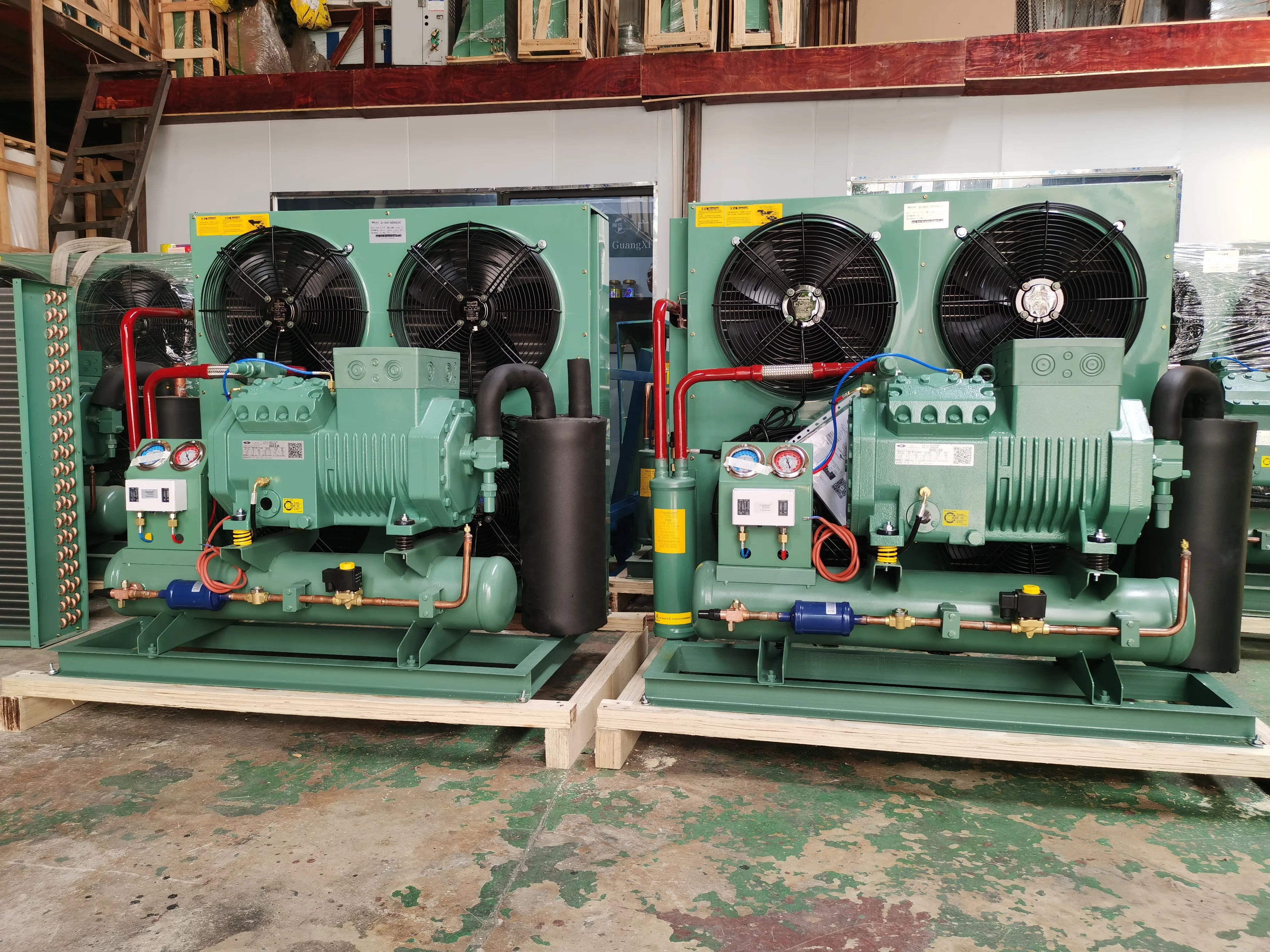

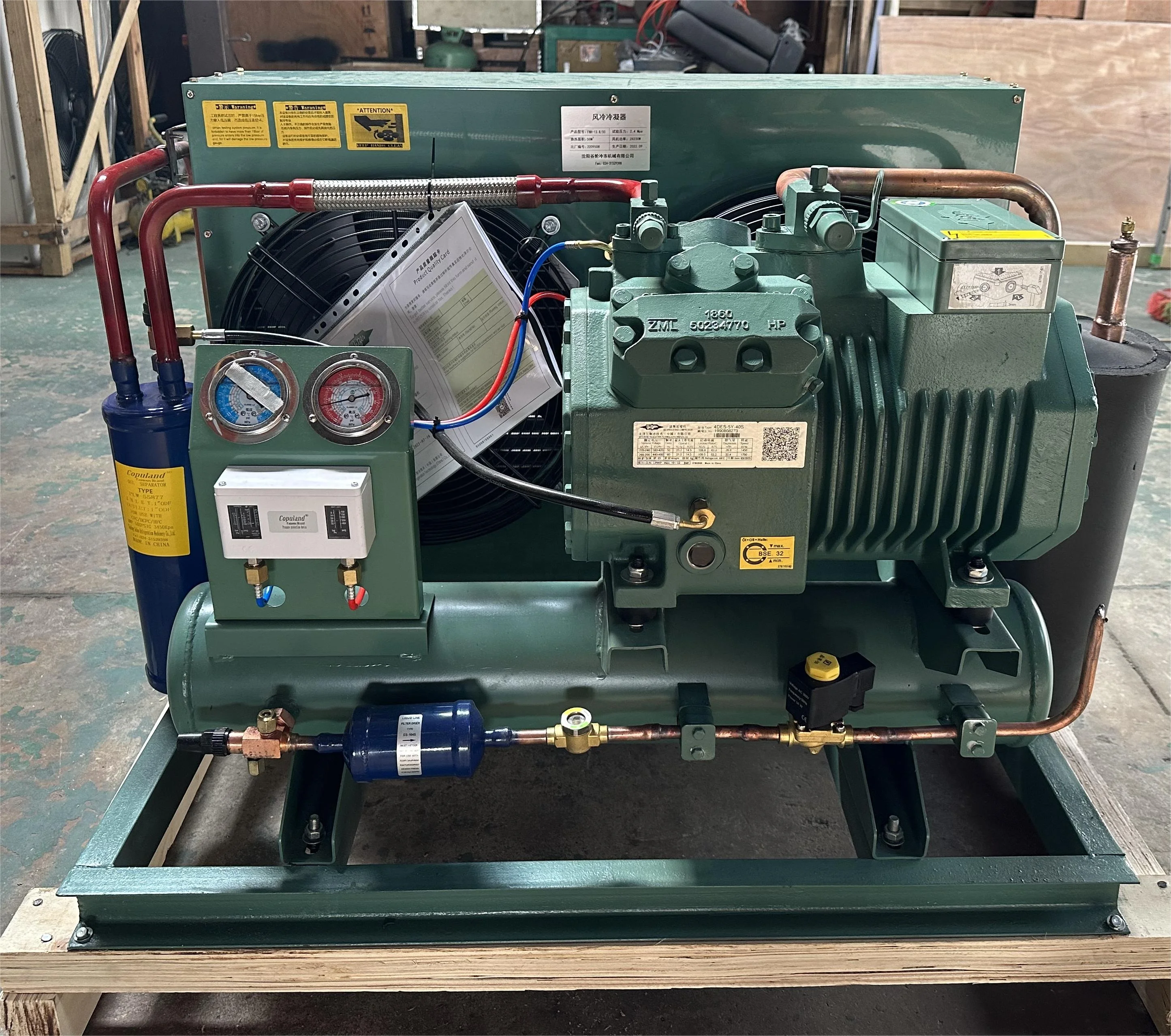

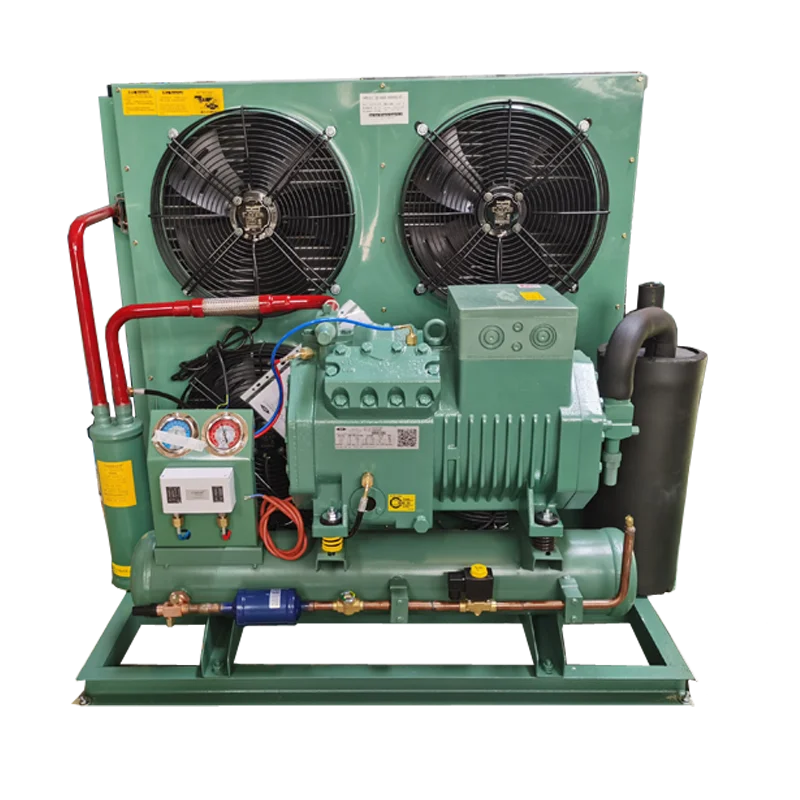

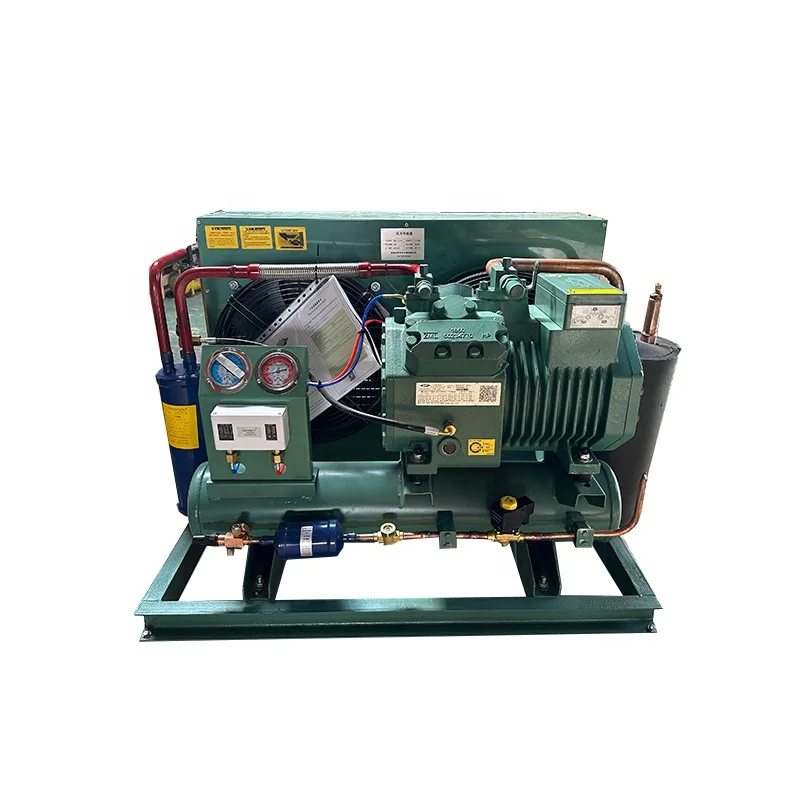

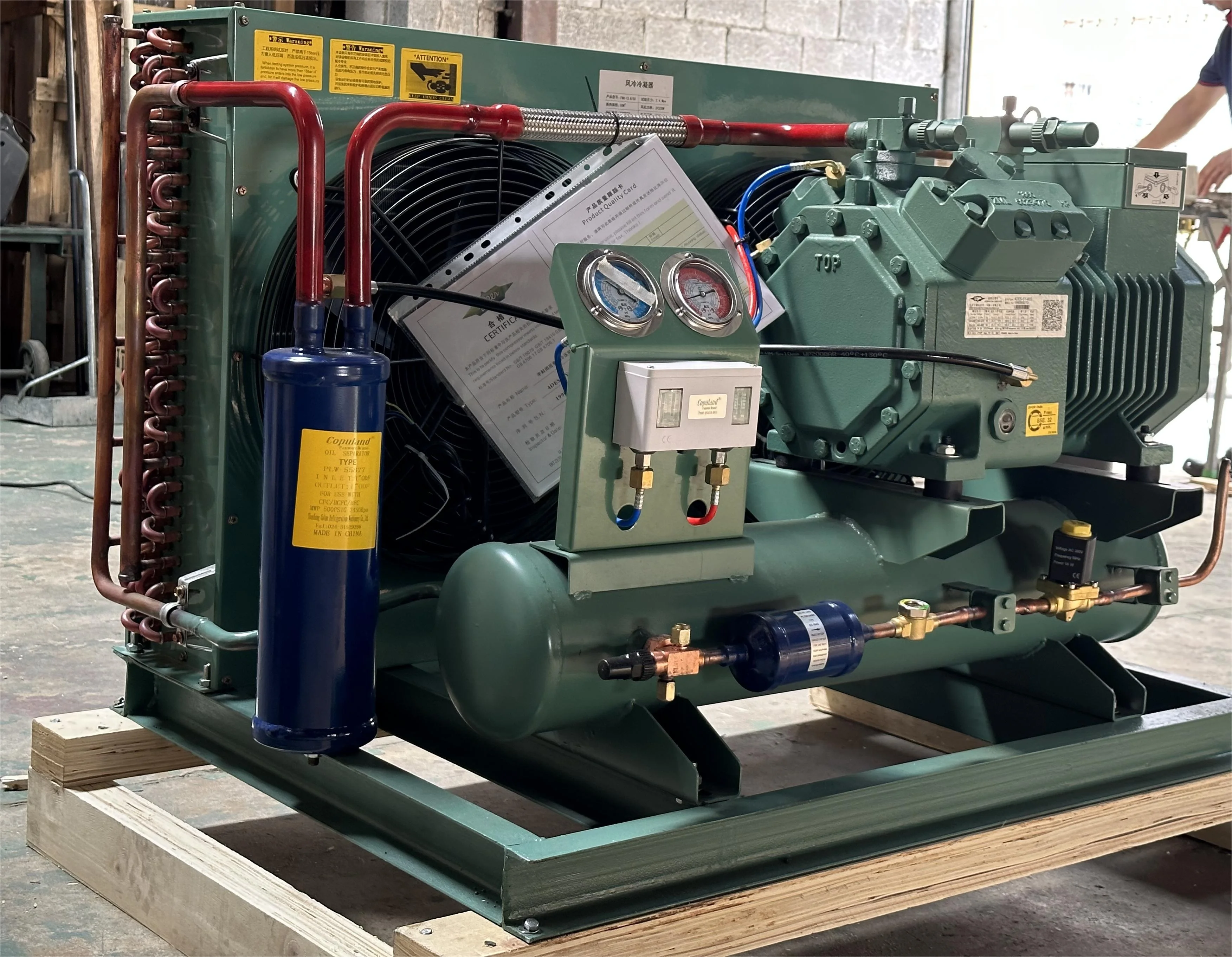

Factory 3hp 5hp 6hp 10hp Germany Air Cooled Compressor Condensing Unit for freezer Cooling System refrigeration
- Category: >>>
- Supplier: Guangxi Cooler Refrigeration Equipment Co. Ltd.
Share on (1600875289174):
Product Overview
Description
Condensing unit ,compressor unit,Refrigeration unit,refrigeration condensing unit,cold room Unit
High Quality Condensing Unit For Cold Storage Room 5hp/10hp/15hp/20hp825hp/30hp/40hp/50hp
Technical Parameters
Model | Horsepower | Compressor Displacement | Applicable Temperature | Motor Power |
4DES-5 | 5HP | 26.8m³/h | -15~-30℃ | 3.8KW |
4TES-9 | 8HP | 41.3m³/h | -15~-30℃ | 5.9KW |
4PES-12 | 10HP | 48.5m³/h | -15~-30℃ | 7.5KW |
4NES-14 | 12HP | 56.2m³/h | -15~-30℃ | 8.8KW |
4HE-18 | 15HP | 73.7m³/h | -15~-40℃ | 11KW |
4GE-23 | 20HP | 84.5m³/h | -15~-40℃ | 15KW |
6HE-28 | 25HP | 110.5m³/h | -15~-40℃ | 18KW |
6GE-34 | 30HP | 126.8m³/h | -15~-40℃ | 22KW |
6FE-44 | 40HP | 151.6m³/h | -15~-40℃ | 29KW |
Compressor | Condenser | Gas receiver | Crankcase heater | Oil Separator |
Filter drier | Glass sight | Solenoid valve | Pressure control switch | High /Low pressure meter |
Shock tube | Check Valve | Oil Controller | Accumulator |
Guangxi Cooler refrigeration equipment Co., Ltd.
A manufacturing factory specializing in one-stop cold storage solutions, from cold storage planning, design and equipment
provision, we are professional one-to-one services, ensure you to have a real worry-free purchasing experience. For more than 17
years, Cooler has been deeply involved in cold storage services, and has cooperated with large and small enterprises all over the
world. We deliver our machines worldwide and provide first-class service worldwide. No other company in the industry offers this
level of flexibility and personalized customer service!
provision, we are professional one-to-one services, ensure you to have a real worry-free purchasing experience. For more than 17
years, Cooler has been deeply involved in cold storage services, and has cooperated with large and small enterprises all over the
world. We deliver our machines worldwide and provide first-class service worldwide. No other company in the industry offers this
level of flexibility and personalized customer service!
