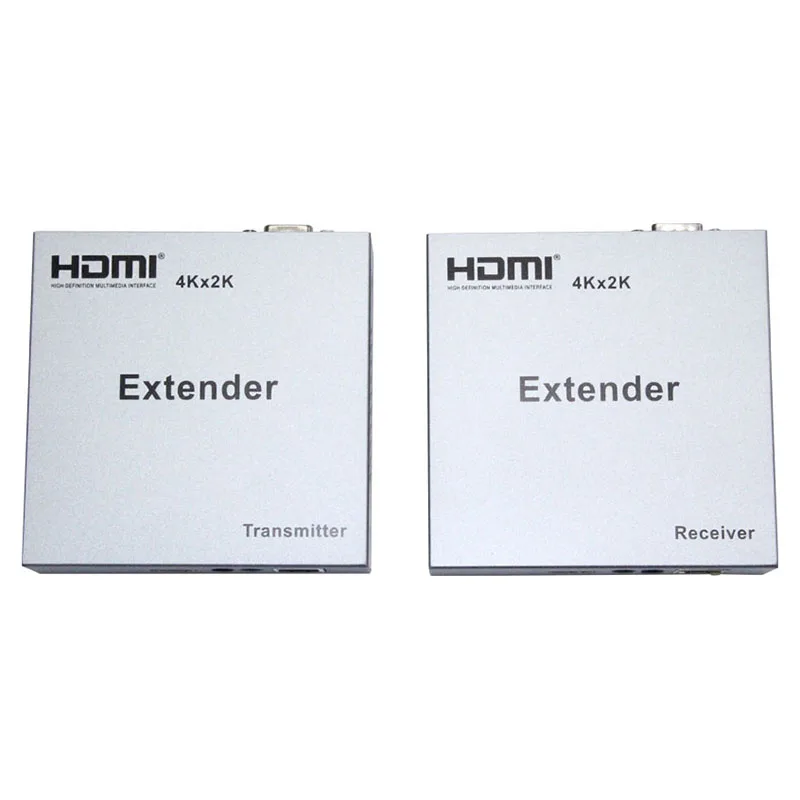

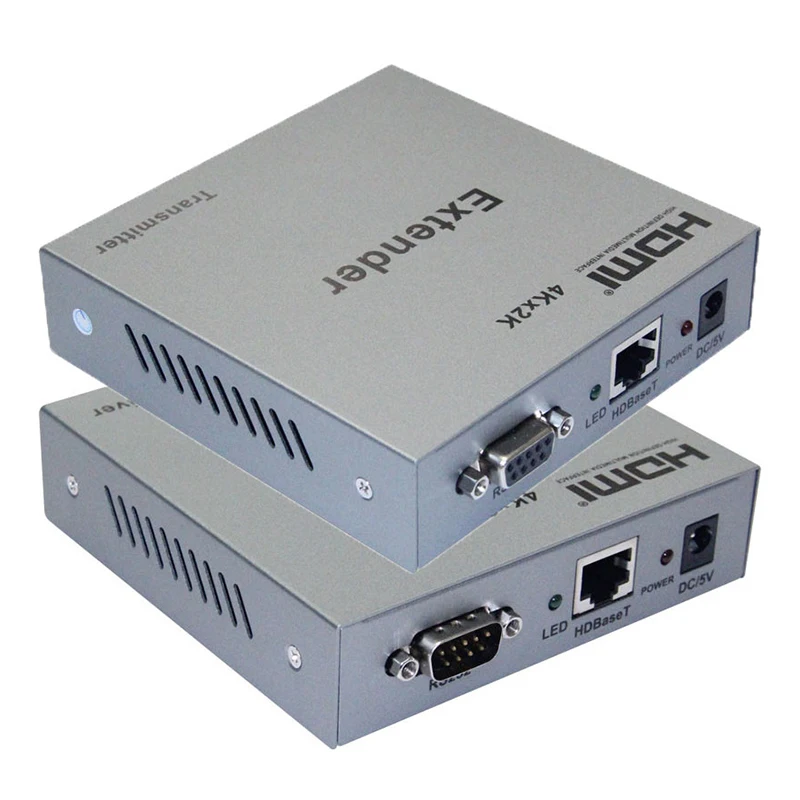

High Quality 4K 1080P 100M HDBT HDBaseT RJ45 HDMI Extender RS232 Over Ethernet Cat6 Cat 6 with IR

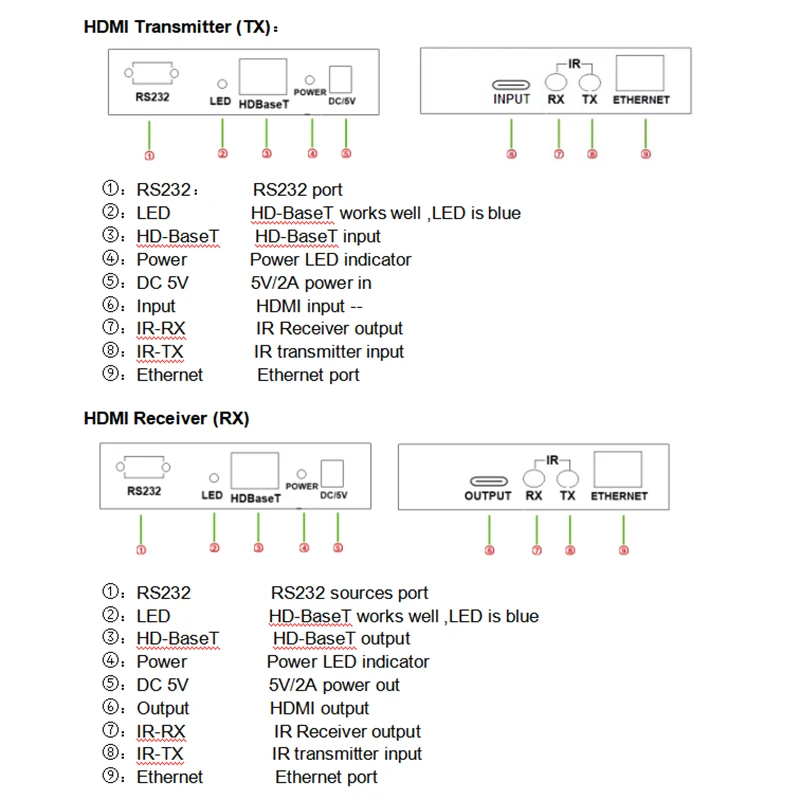

Physical Connection Showing Picture

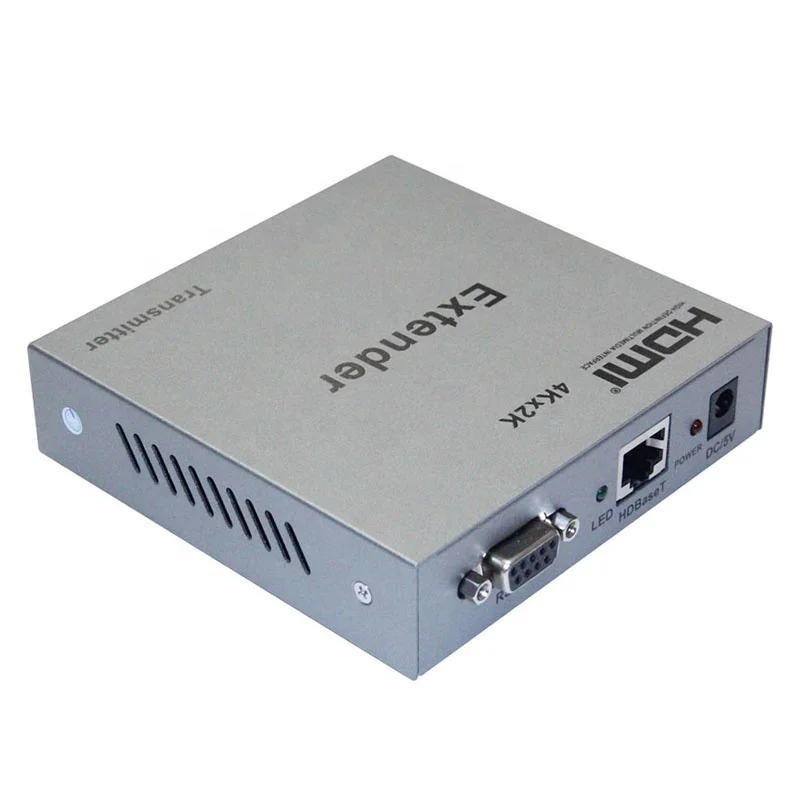

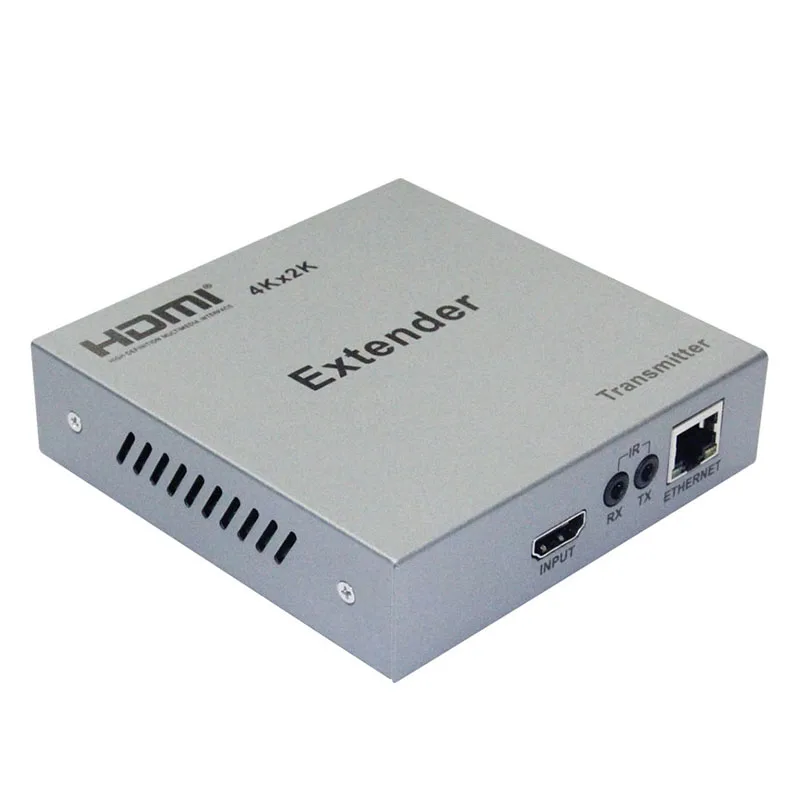

HDMI Transmitter (TX):

1:RS232:RS232 port

2:LED:HD-BaseT works well ,LED is blue

3:HD-BaseT:HD-BaseT input

4:Power:Power LED indicator

5:DC 5V:5V/2A power in

6:Input:HDMI input

7:IR-RX:IR Receiver output

8:IR-TX:IR transmitter input

9:Ethernet:Ethernet port

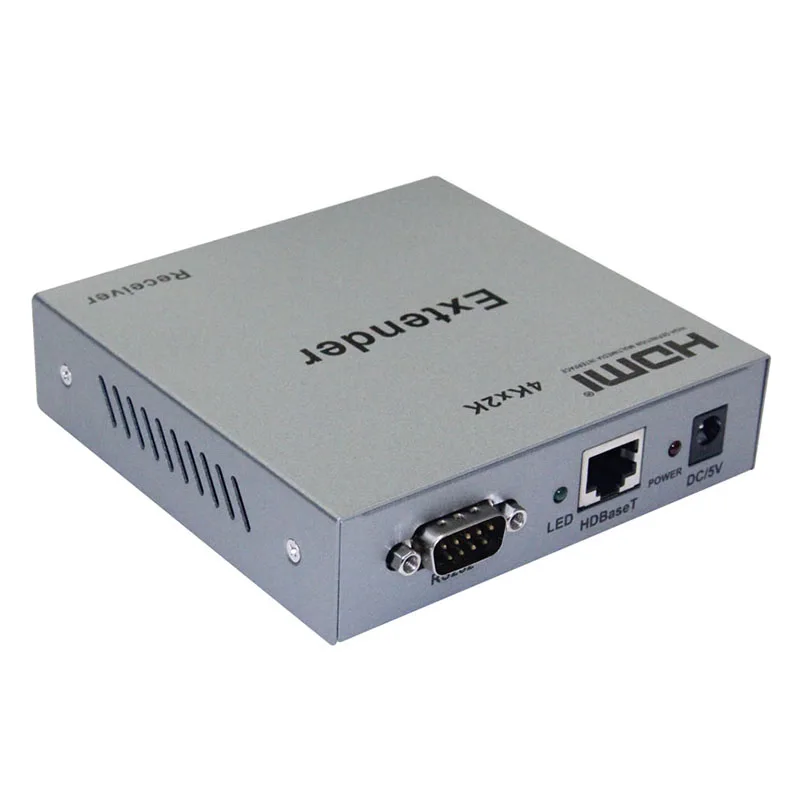

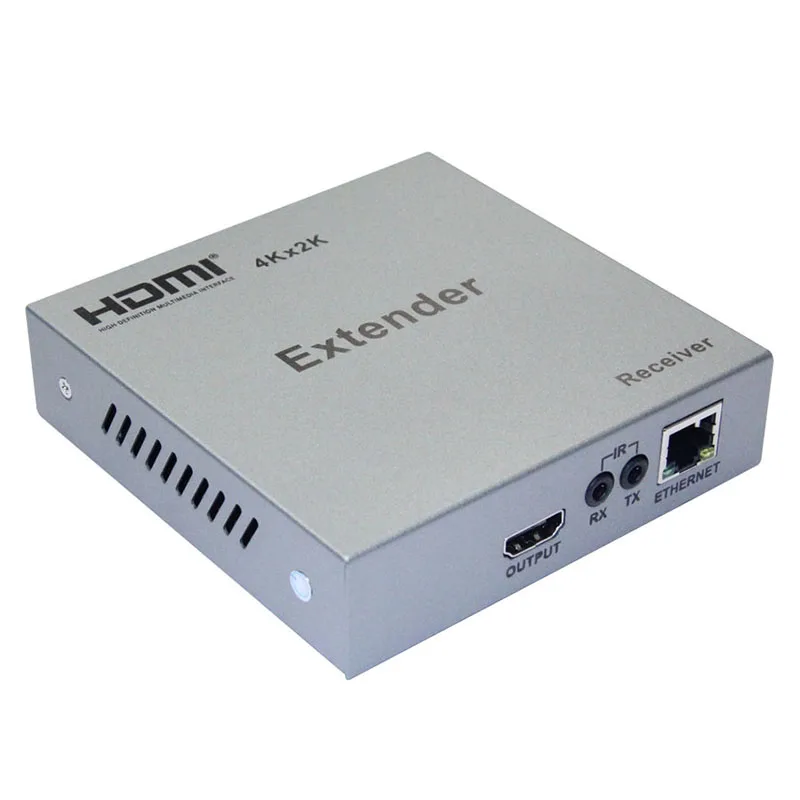

HDMI Receiver (RX)

1:RS232:RS232 sources port

2:LED:HD-BaseT works well ,LED is blue

3:HD-BaseT:HD-BaseT output

4:Power:Power LED indicator

5:DC 5V:5V/2A power out

6:Output:HDMI output

7:IR-RX:IR Receiver output

8:IR-TX:IR transmitter input

9:Ethernet:Ethernet port

Pls Note:
1)RS232 port supports the RS232 Sources/devices
You simply connect the HDMI Extender transmitter to RS-232 source via cable. Your RS232 device plug into the HDMI RS232 Extender's receiver unit. so the RS232 source can control the RS232 device

2)Match rules about the IR-RX and IR-TX   :

HDMI transmitter’s  IR-RX should match to HDMI Receiver’s IR-TX

HDMI transmitter’s  IR-TX should match to HDMI receiver’s IR-RX

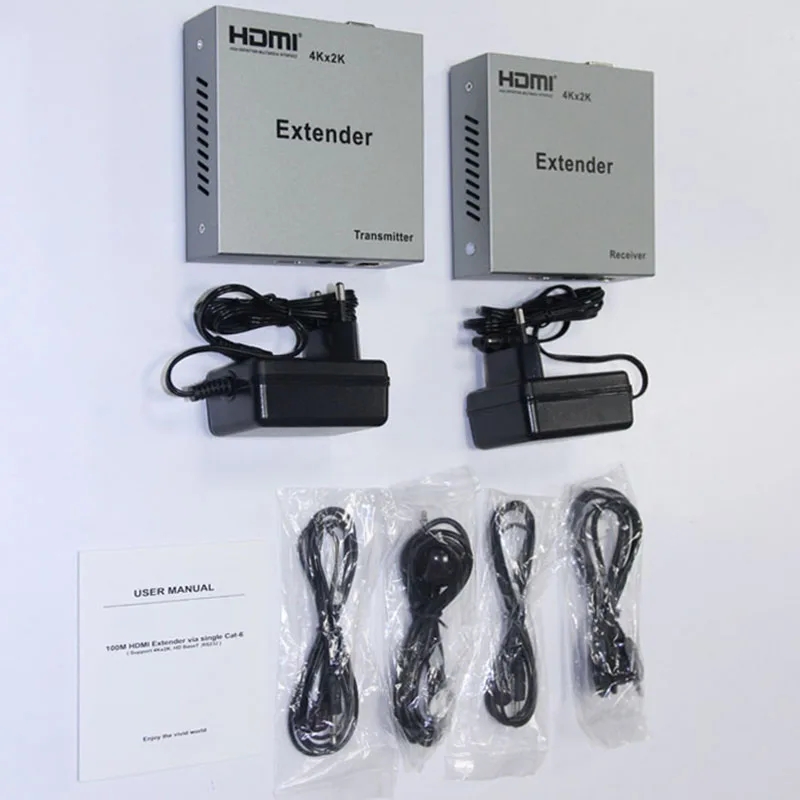

The Package includes:

1x HDMI Transmitter

1x HDMI receiver

2x 5V/2A power supply

2x IR-TX cable

2x IR-RX cable

1x User Manual

Installation Guide
1.Connect the HDMI source device and HDMI Transmitter with HDMI cable
2.Connect the HDMI receiver and the HDTV with HDMI cable
3.Connect HDMI receiver to HDMI Transmitter’s HD BaseT port with Cat 6 cable, which’s Max distance is 100 Metres
4.Bi-directional IR control function: Connect the IR receiver into the HDMI transmitter ,then Connect the IR transmitter into the HDMI receiver , make sure the IR transmitter aim at the controled device’s IR receiver
5.Connect power adapter to the device ,the power LED appears Red
When HDMI transmitter connect well to the HDMI receiver with the CAT6 cable, the LED appears blue , it means the Extender work well

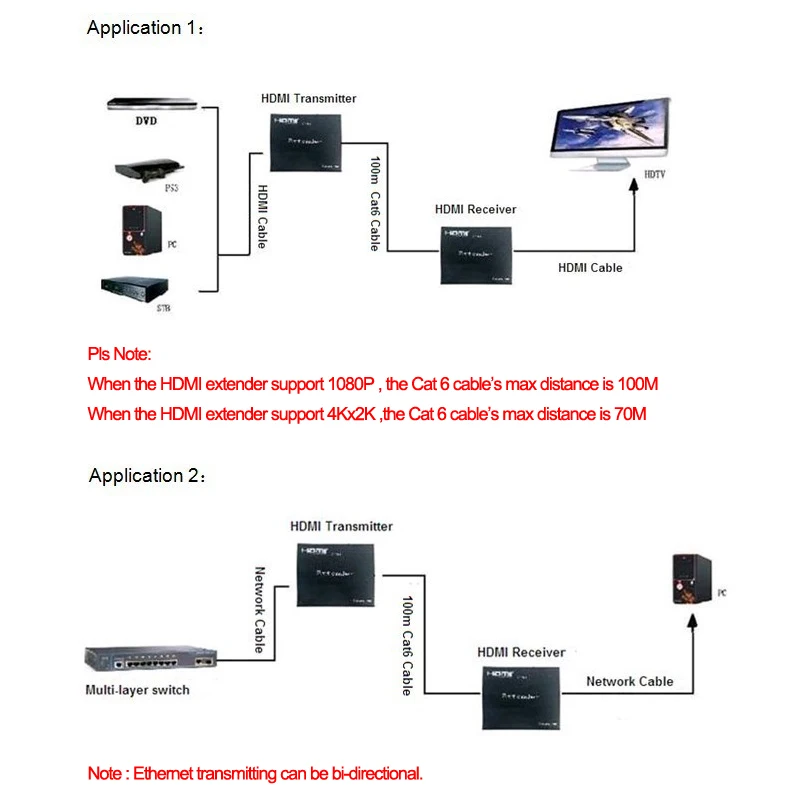

Application diagram

Pls Note:

When the HDMI extender support 1080P , the Cat 6 cable’s max distance is 100M

When the HDMI extender support 4Kx2K ,the Cat 6 cable’s max distance is 70M

Note : Ethernet transmitting can be bi-directional.
