High speed full automatic cup 3 color screen printer with full line

Product Overview

Description



Description

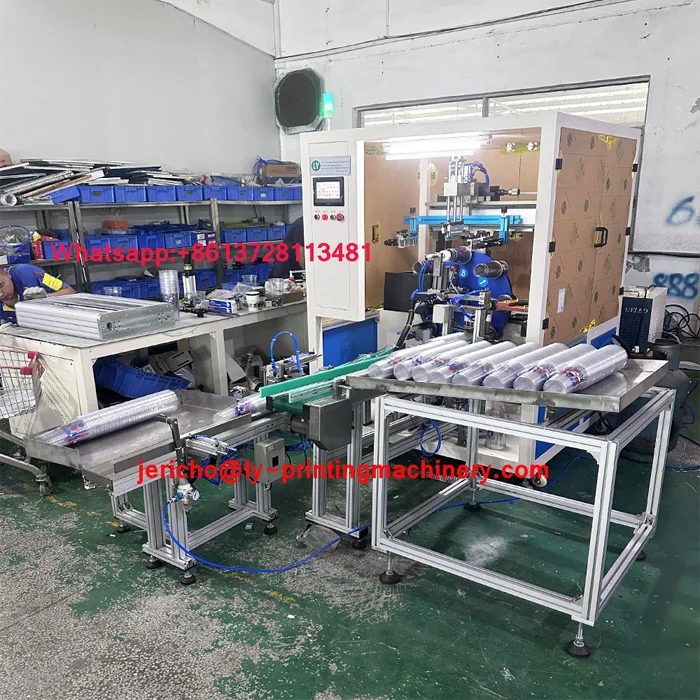

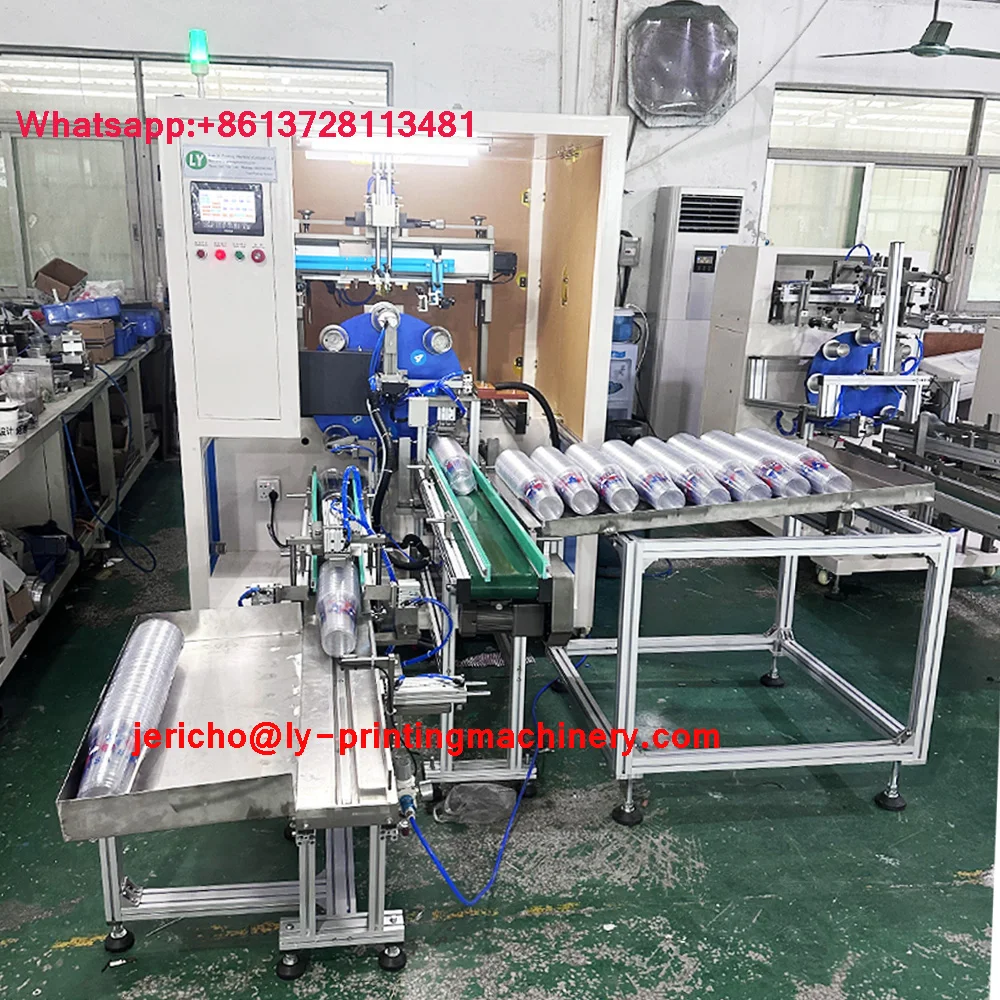

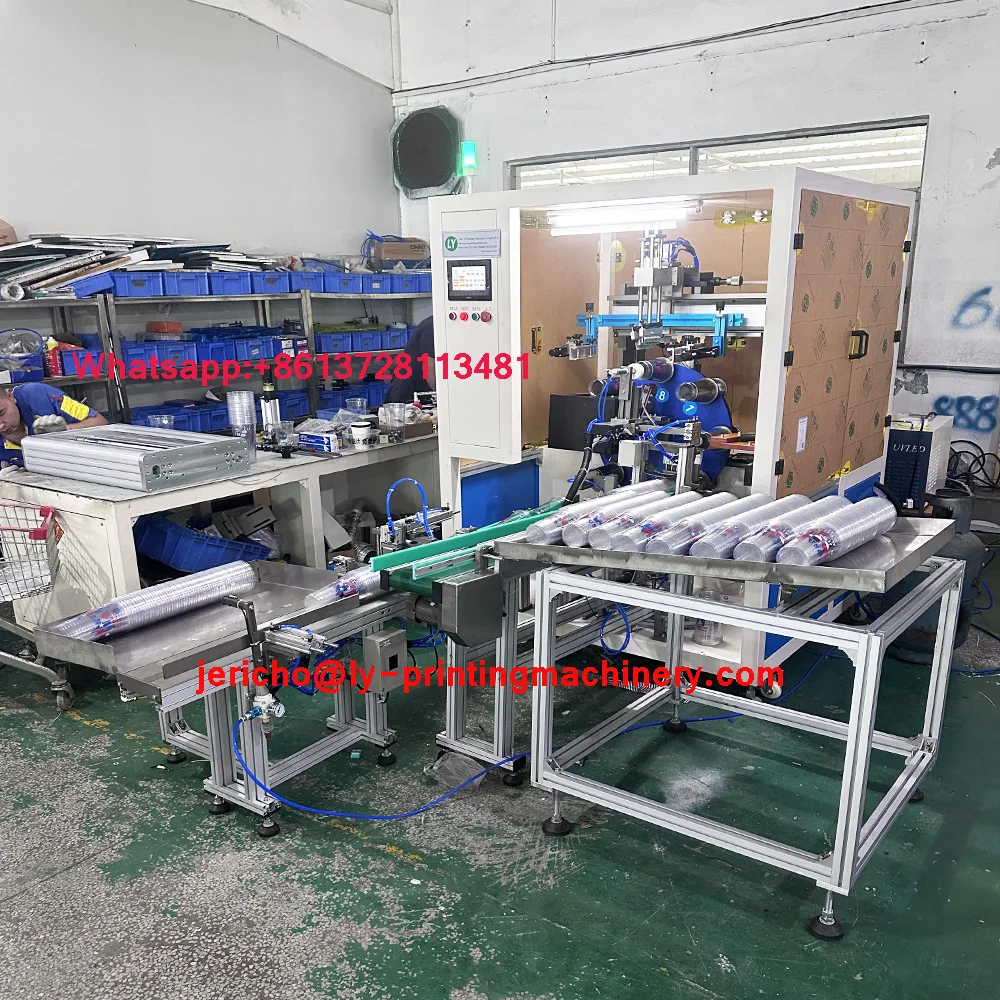

Servo system full automatic color sensor register Cup full auto screen printer with  LED UV dryer  LY-S80-1



 Full automatic working, don't need any worker to operate it , Save labor cost

It is adopted full Servo system to control ,So that print multiple color very precise,It is adopted advanced high sensitive Sensor for making registration by automatically , automatic positioning ,It is very easy to print multiple color with high quality ,such ,2,3,.4,5,6 color ......



Programming is operated by PLC , inspect everything is very clearly.
Left and right running by full Servo motor,Screen frame moving by electronic motor.



Application

LY-S80-1 is extremely good at 360 degree printing ( full circle), it can print all sizes of cups,from 2oz to 32oz....ETC, also it can print bowls....



Advantages:
We use all main parts are imported directly ,original place.

1.Servo motor is imported from Japanese famous brand Fuji,
2.High precise Sensor is imported from German famous brand Leuze
3.PLC system is imported from Japanese celebrated Hitachi
4.Touch Screen is imported American Guaranteed brand Wigerlon
5.Guide screw is imported great brand TBI from TaiWan.
6.Slide guide is from Hiwin from TaiWan.

Tech specification:
1.Model number: LY-S80-1
2.Product appearance: Round
3.Max. Printing diameter: 120mm (All sizes of cups can be printed)
4.Printing Speed: 3600 PC/Hr
5.Machine weight: 880kg
6.Machine size:L3100Xw1500xH1850mm
7.Air pressure: 0.5Mpa
8.Voltage power: 220V/ 110V
9.With Servo system
10.With automatic color sensor register
11.With PLC
12.Packing size:L3000xW1500xH2020mm
13.Packing weight:1080Kg
14 With Led UV dyer

15.With auto storage

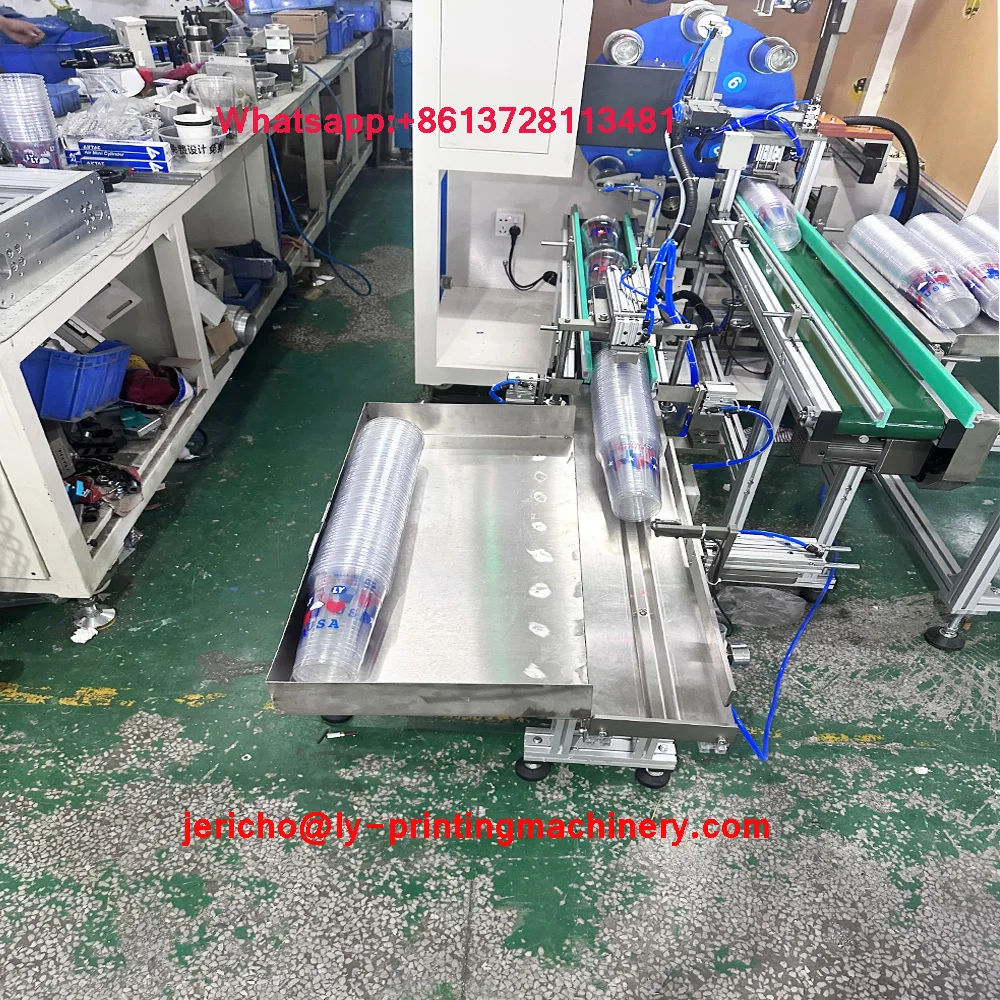

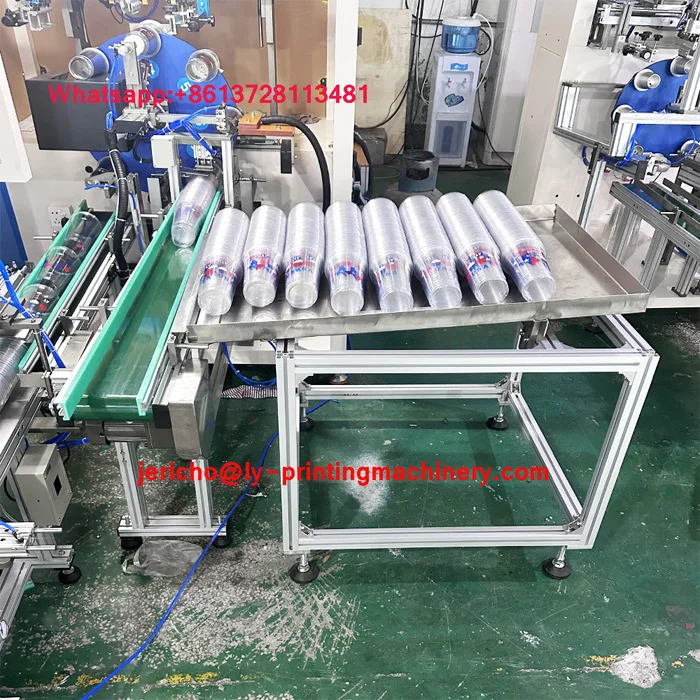

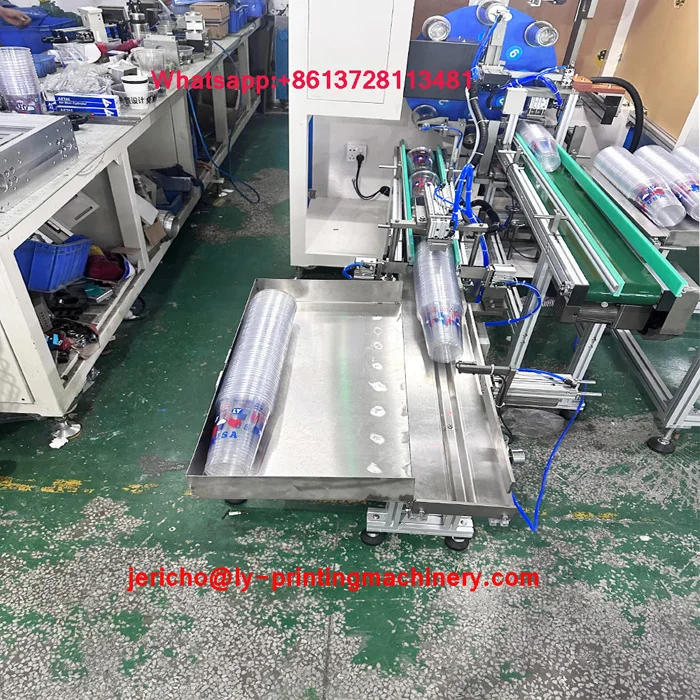

15.With Automatic feeding and automatic unloading
16.It with corona system ( flame treatment) to process the surface on PP cups ,PE cup
17.It can print all kind of cups , PET cups ,PP cups , paper cups ,U type cups ....ETC
18 Full automatic working, don't need any worker to operate it , Save labor cost



Printing videos on Youtube:



 For plastic cups



https://www.youtube.com/watch?v=GqGSK1d6dJI



 For paper  cups

https://www.youtube.com/watch?v=tdfn7HejB0g&t=117s













































Printing samples



































 With CE certificate





Customers visit our factory and make cooperation
