factory supplier price 8.00mm copper wire rod Copper Clad Aluminum rod

Product Overview

Description

factory supplier price  8mm Copper Clad Aluminum copper rod

Copper Clad Aluminum wire (CCA wire)is an electrical conductor which has an outer sleeve of copper metallurgically

bonded to a solid aluminum core. The combination of these two metals make

it uniquely suited to many electrical applications

 Standard:

SJ/T 11223-2000

ASTM B 566-93

Feature:

Compared to copper conductors:

Higher Flexibility due to lower elastic modulus

63% material weight reduction due to lower specific gravity of CCA over regular copper

Compared to aluminum conductors:

Better corrosion resistance than aluminum due to copper layer

Lower resistance due to high electric conductivity of copper

Better Solderability

Higher strength than aluminum

 Application:

 In high frequency signal transmission field, it is applied to:

l  Standard Material of Conductor in CATV Coaxial Cable;

l  50 Ohm Radio Frequency Aerial;

l  Leaky Cable;

l  Soft Coaxial Radio Frequency Cable;

l  Data Cable

 In power transmission field, it can be applied to:

l  Stranded wire;

l  Power Cable;

l  Control Cable;

l  automotive cable;

l  Building distribution wire;

l  Busbar;

l  Radio Frequency shielding;

In special electromagnetic wire, it can be applied to:

l  Coils in motor and fans, mahjong machine, Loudspeakers

l  Voice coils (e.g. in Headphone, Headset, ...)

l  Windings

Manufacture Scope:

 0.12MM~5.50MM

Physical property of CCA wire

Specification	Copper in volume (%)	Copper in mass (%)	Length comparison	Density (g/cm3)	Max.DC resistivity Ω.mm2/m (20°C)	Conductivity (%IACS) Min
CCA-10%Copper volume	8~12	27	2.65:1	3.32	0.02743	63
CCA-15%Copper volume	13-17	37	2.45:1	3.63	0.02676	65
Copper wire	100	100	1:1	8.89	017241	100







  CCA wire with diameter 1.20mm~5.50mm     Plywood bobbin+Pallet

  CCA wire with diameter 0.12mm~1.20mm       Plastic bobbin+Carton+Pallet

 Qualified Products ; Competitive Price; Customized Products;Fast Delivery time; Quick Customer service

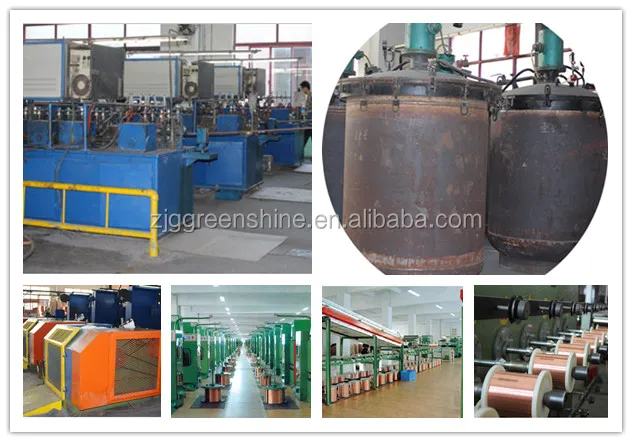

Production Equipment





 Testing Equipment
