Carbon Dioxide Blasting equipment mining and tunnelling co2 gas cracking blasting
- Category: >>>
- Supplier: Shanxi Zhongde Dingli Group Co. Ltd.
Share on (1600875727239):
Product Overview
Description
Product Overview
Dingli Co2 Rock breaking system
Dingli CO2 rock breaking system is a new rock breaking technology that can replace explosive blasting. Our company started research and development in coal mines in 1996. This technology is mainly developed to avoid explosion accidents caused by flames generated by explosive blasting in high gas mines. After three years of numerous failures and thousands of experiments, the 51# rock-breaking steel pipe was finally successfully developed. In 2014, the carbon dioxide rock breaking system was further improved and upgraded, the 108# rock breaking steel pipe was developed for open-pit rock breaking. There is no vibration, shock wave, open flame or harmful gas when the carbon dioxide rock breaking system works, which is safe and environmental. The steel pipes are reusable, which helps to reduce the cost. The advent of the 108# CO2 rock breaking system perfectly solves the problem of prohibition of blasting in quarries and mines and the low efficiency of excavator hydraulic breaker. Now the carbon dioxide rock breaking system has been widely used in quarries, mines, highway construction, building foundation, tunnel excavation and other fields.

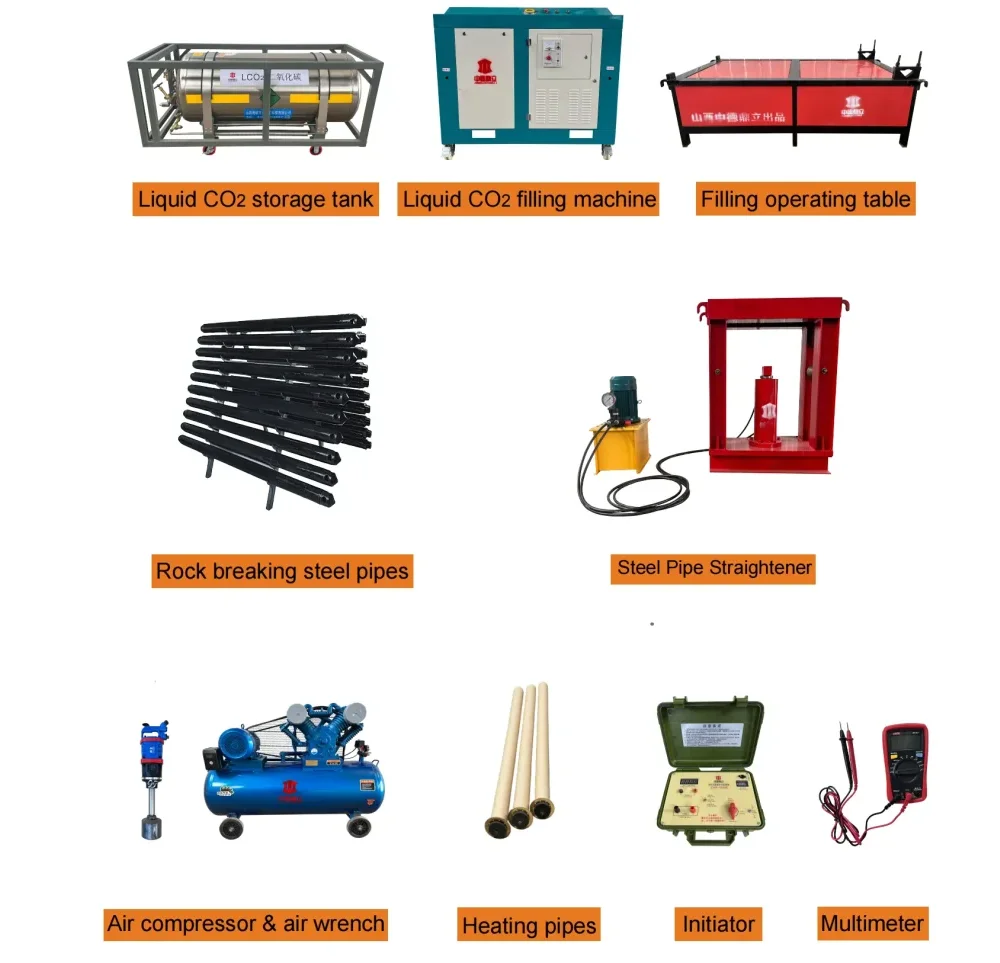

Components

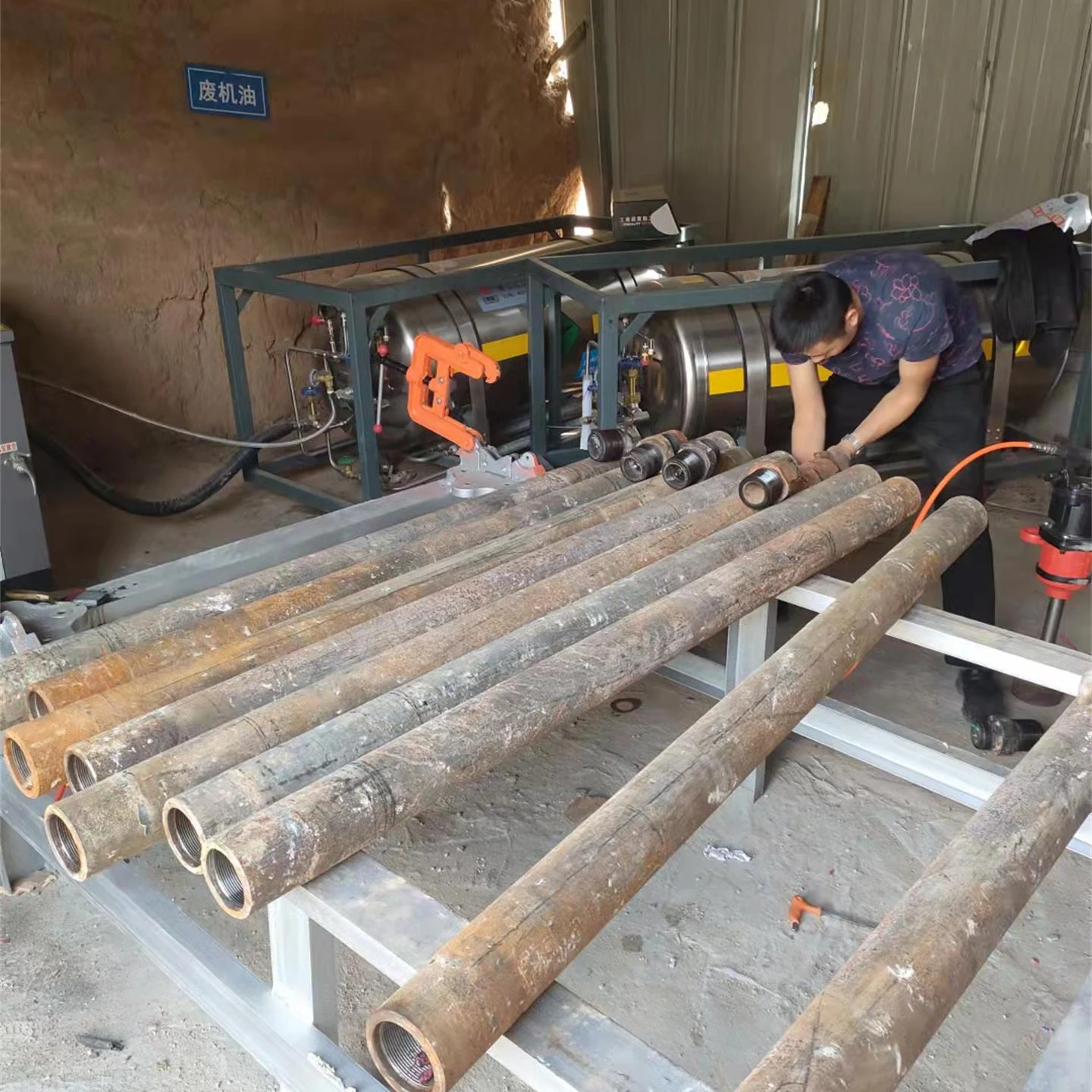

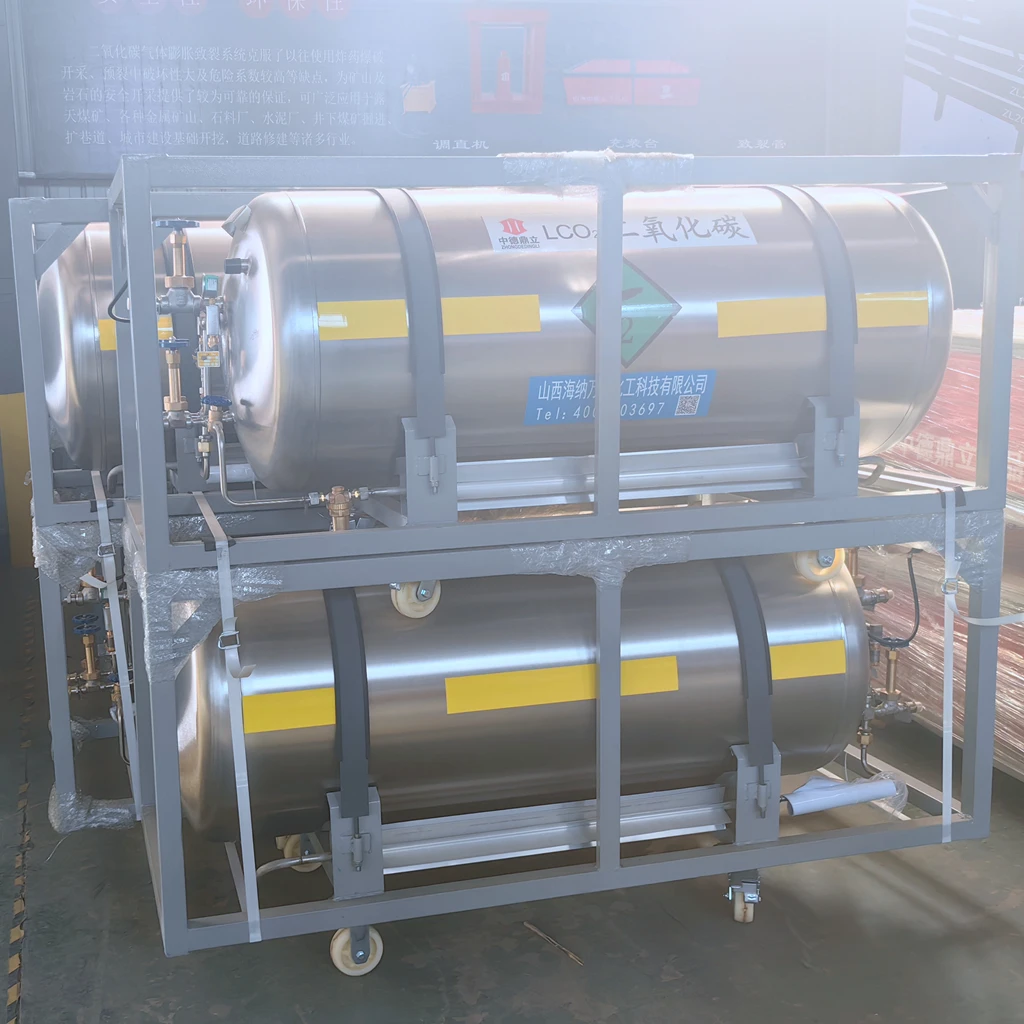

The main components of the Dingli Co2 rock-breaking system are composed of a high-strength reusable alloy steel pipe filled with liquid CO2, excitation tube, energy release component, inflation component, firing circuit connection component, and other connection auxiliary components.
Specifications
ROCK-BREAKING STEEL PIPE SPECIFICATIONS | ||||
Model | 51# | 108# | ||
Tube diameter | 51mm | 108mm | ||
Length | 1.2m | 2.2m | ||
Capacity | 0.4-0.5kg | 0.6-0.8kg | ||
Weight | 12kg | 98kg | ||
Drill hole diameter | 50mm | 130mm | ||

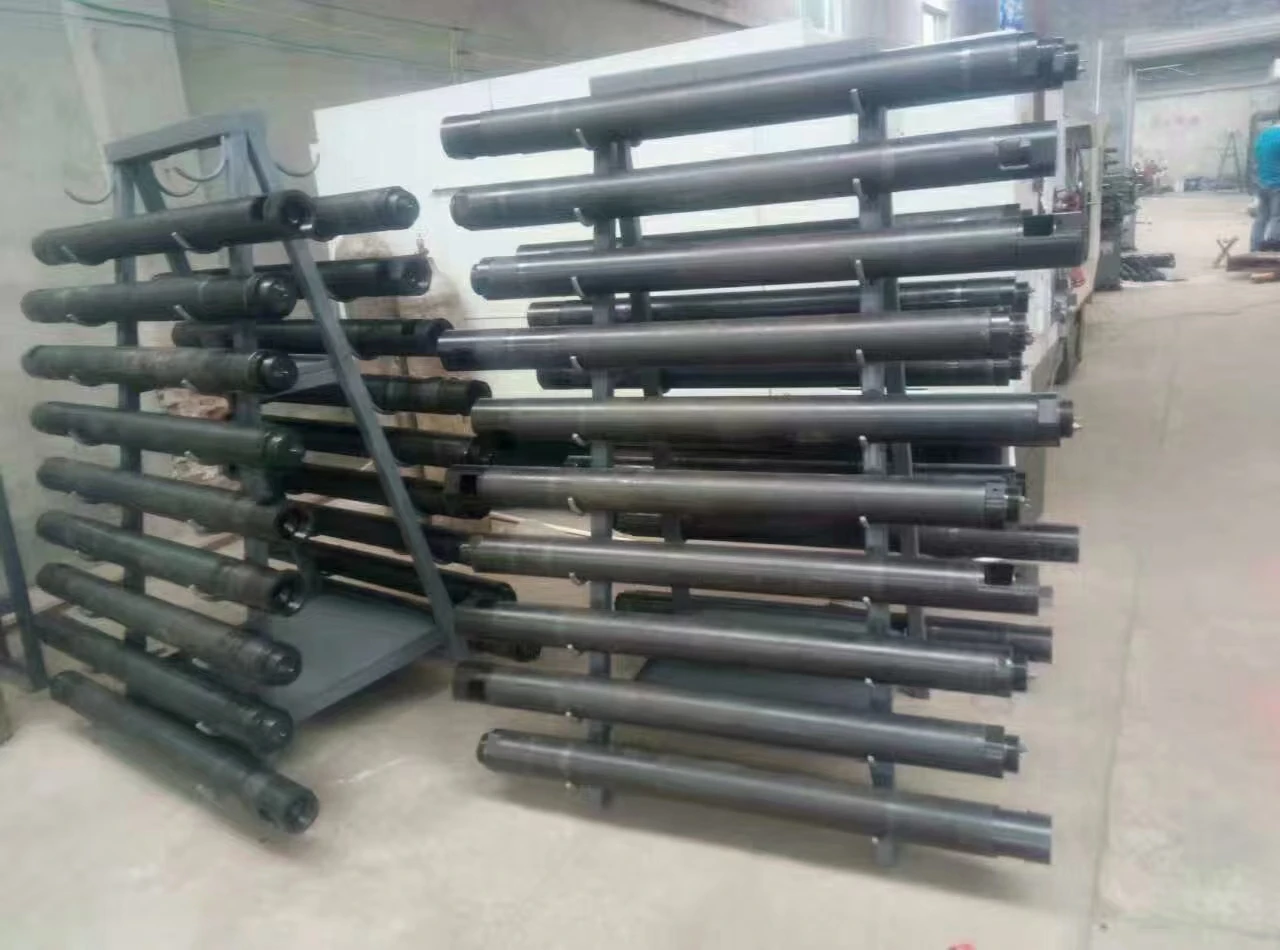

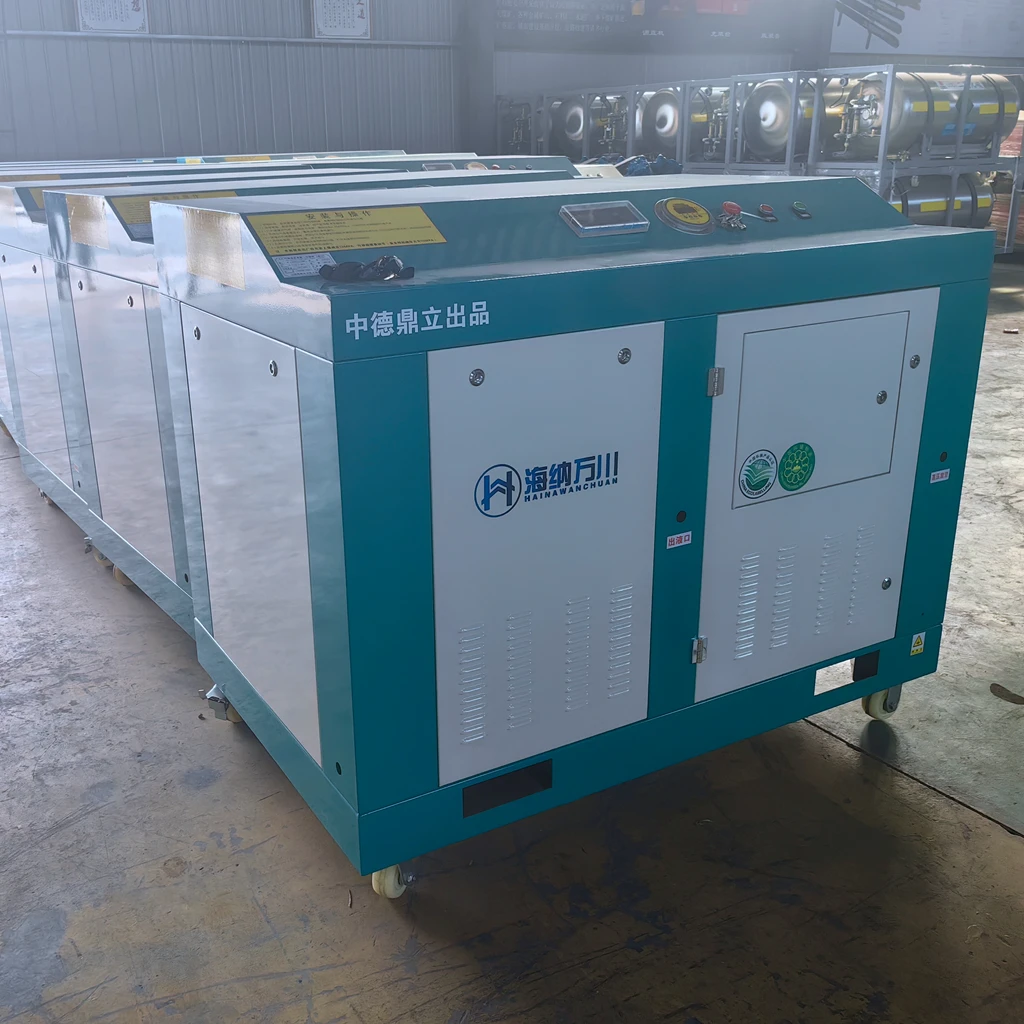

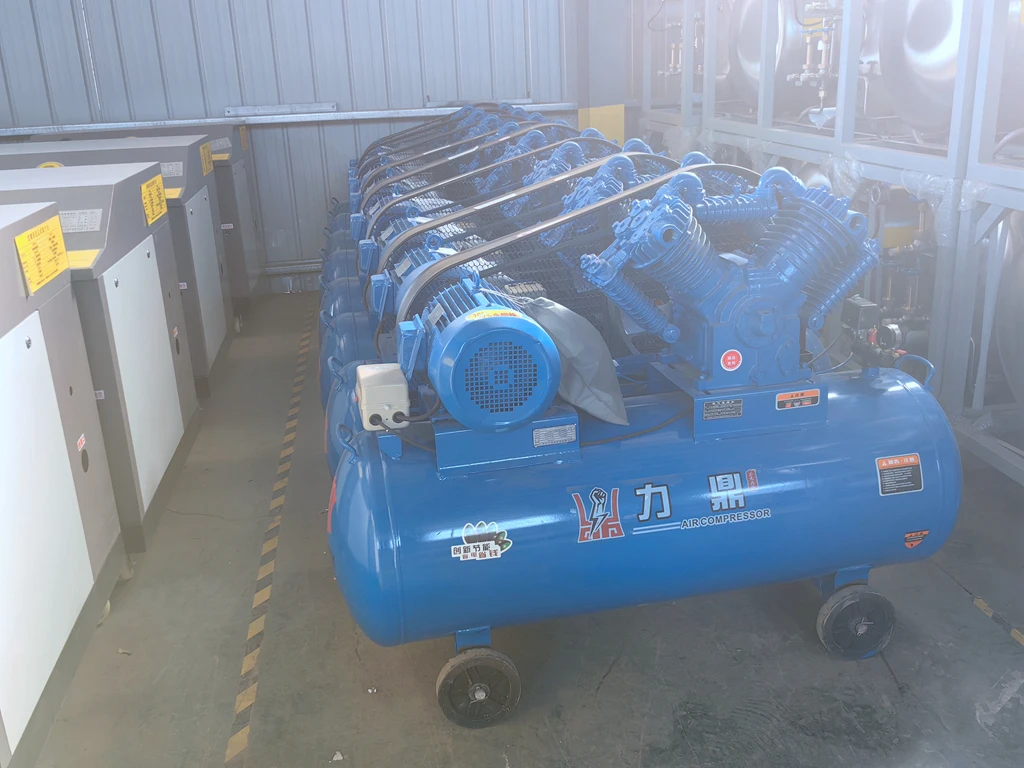

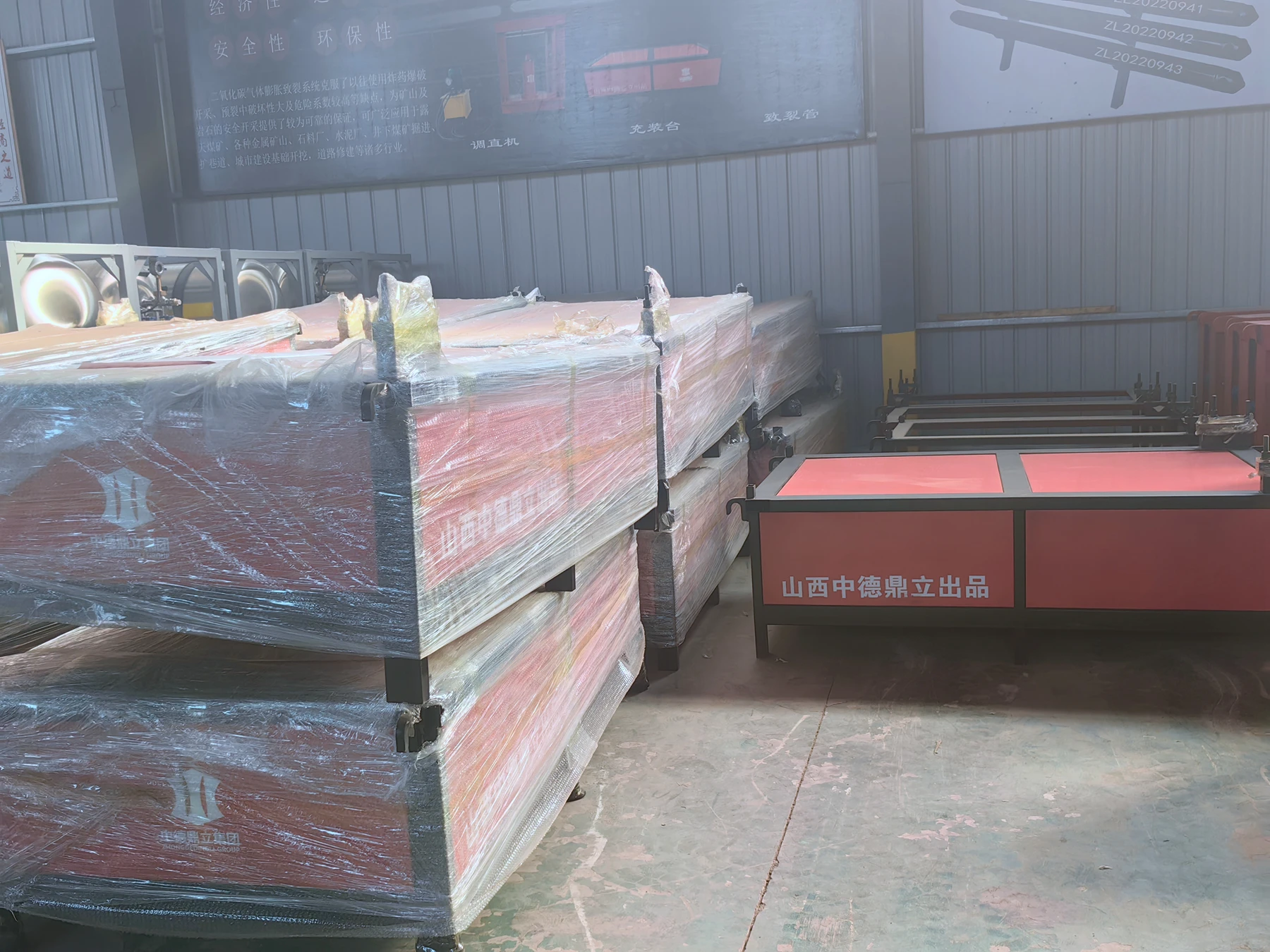

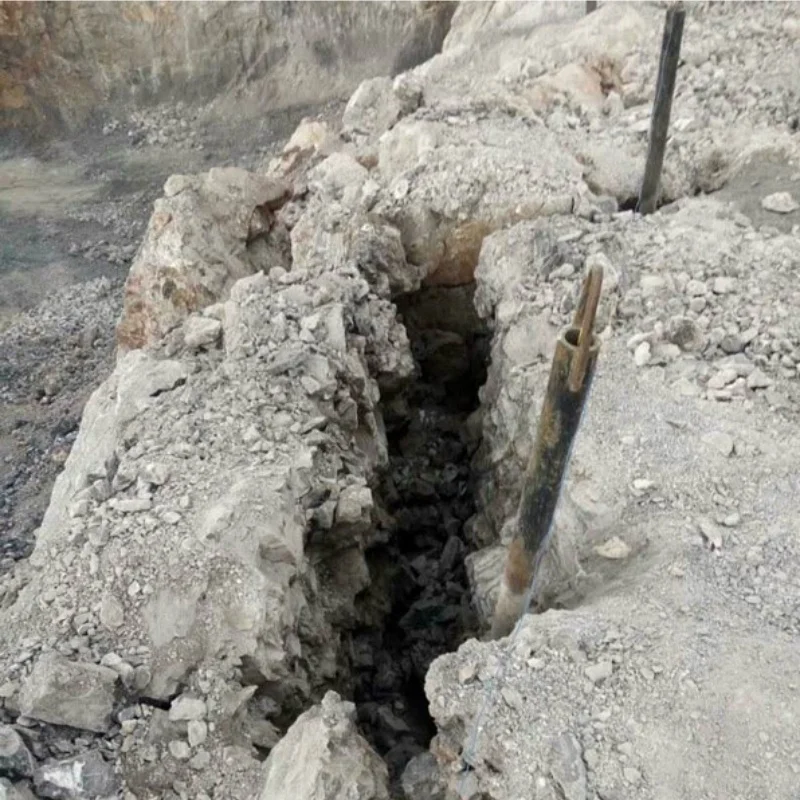

Product Images
Working Principle

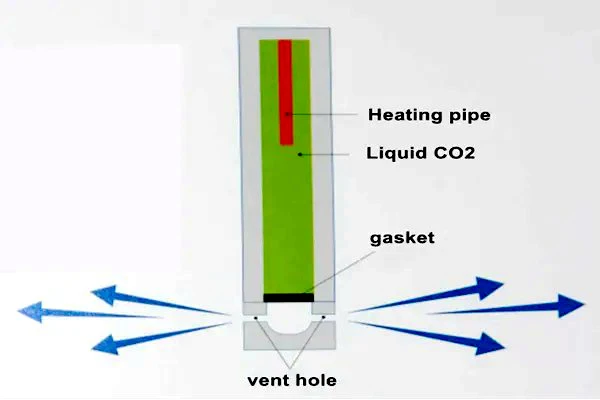

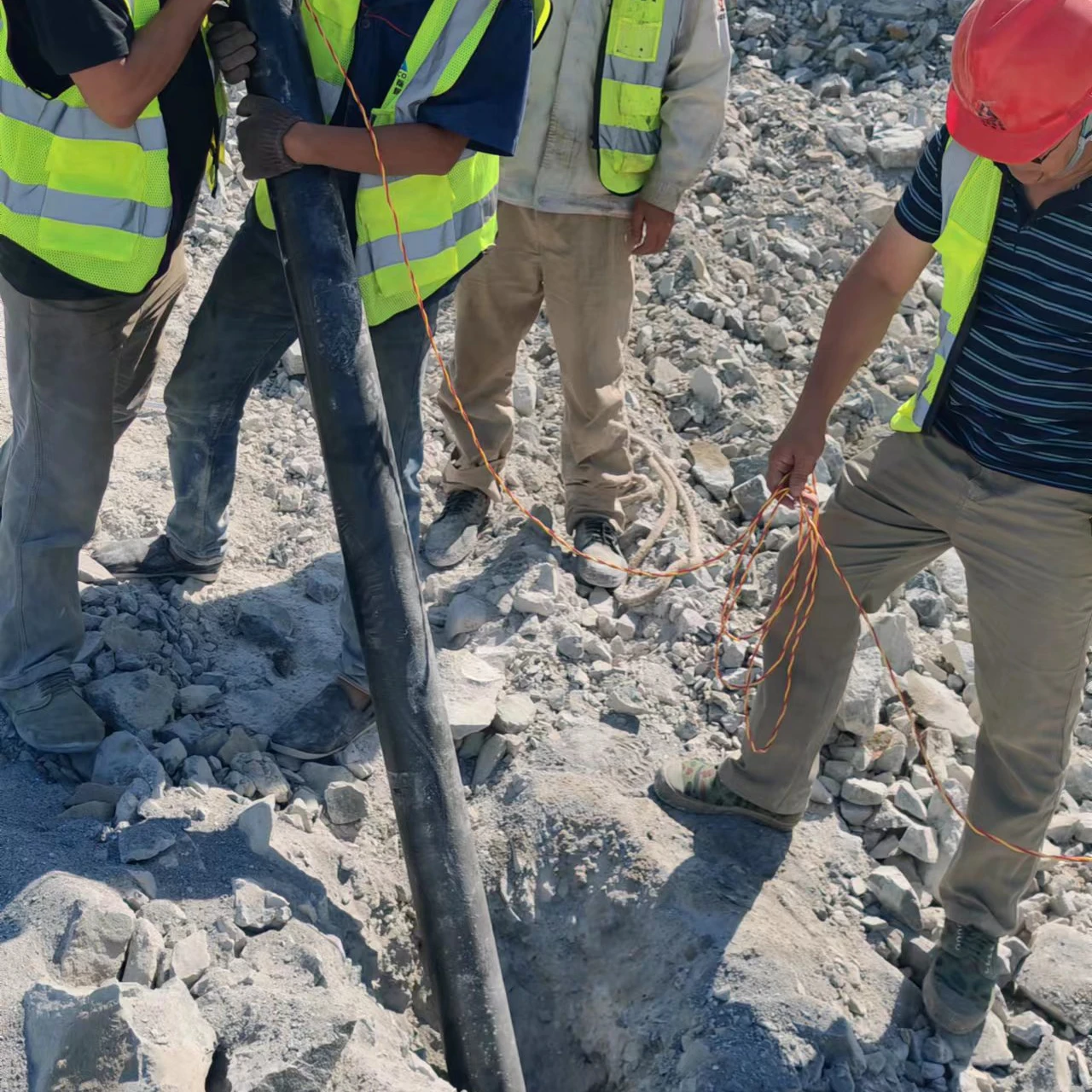

Liquid carbon dioxide is a liquid formed from highly compressed and cooled gaseous carbon dioxide. It does not form under atmospheric conditions. It exists only at pressures above 5.1 atm and temperatures below 31.1 °C (critical point temperature) and above -56.6 °C (triple point temperature). CO2 rock breaking technology uses this feature to put the heating pipes into the rock-breaking steel pipes and fill the liquid carbon dioxide into the rock-breaking steel pipes. Insert the steel pipes into the pre-drilled holes on the rocks. When the start button on the initiator is pressed, the temperature of heating pipes will increased rapidly. The liquid carbon dioxide will vaporize and expand rapidly at high temperature. Consequently, the rocks will be broken and splitted.

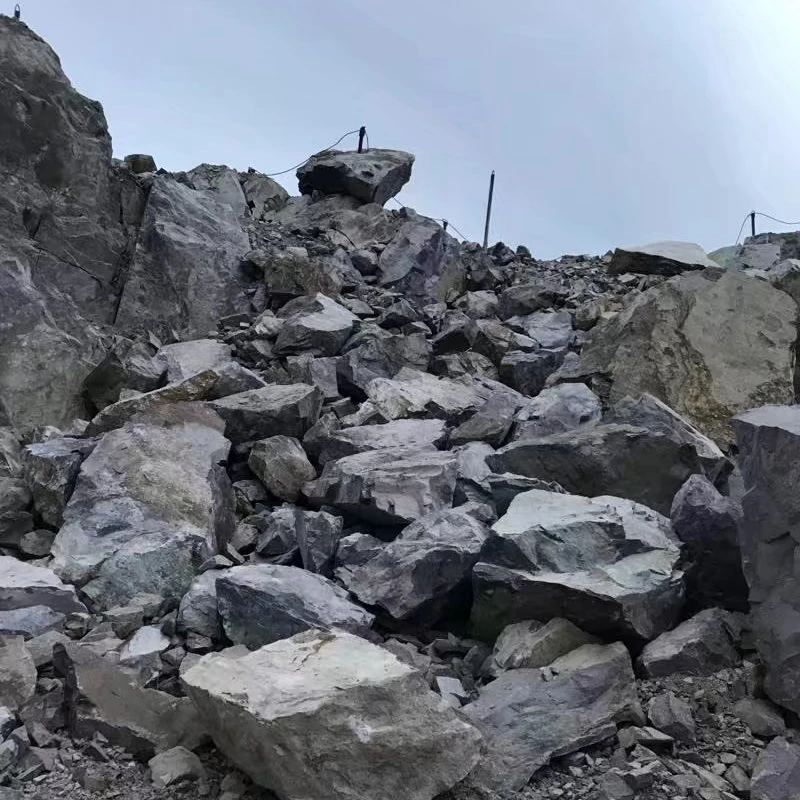

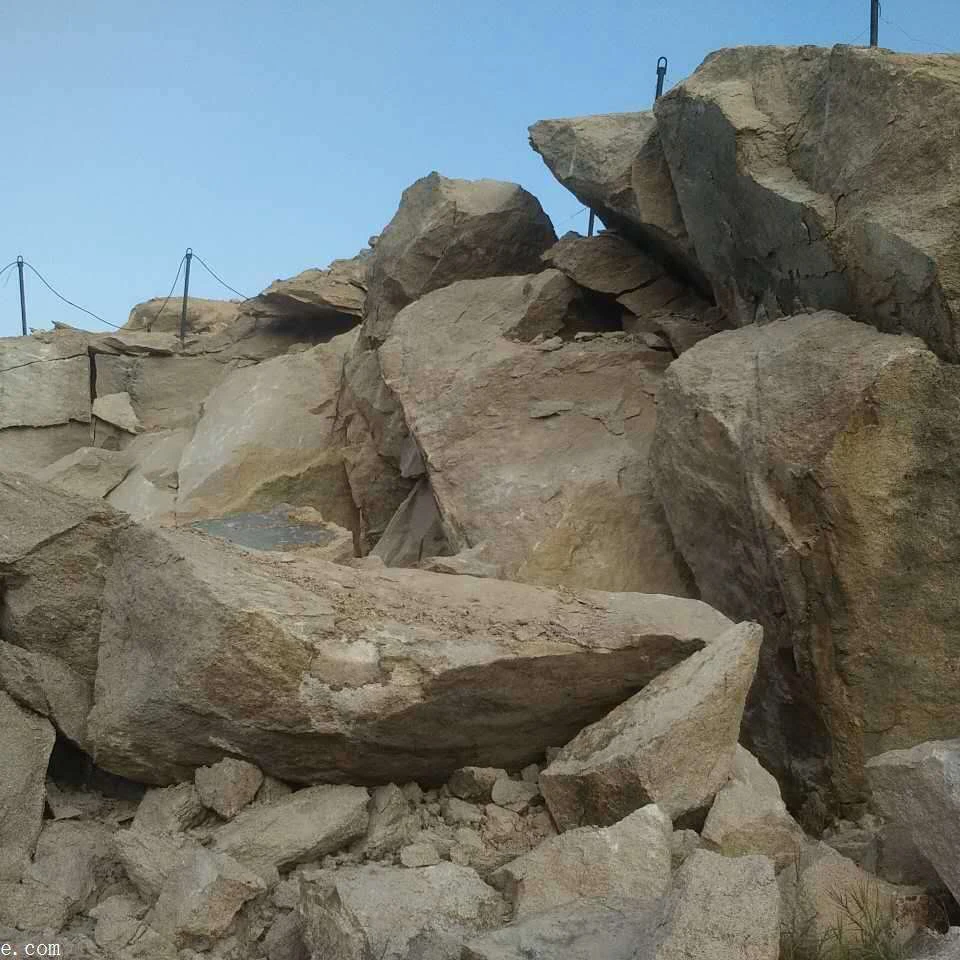

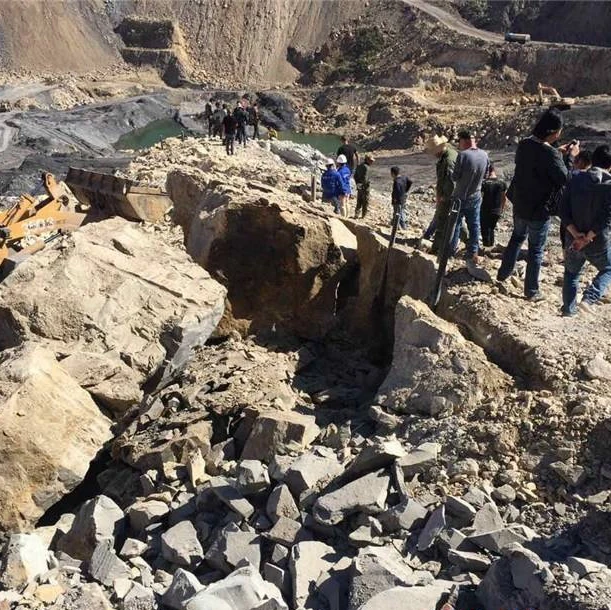

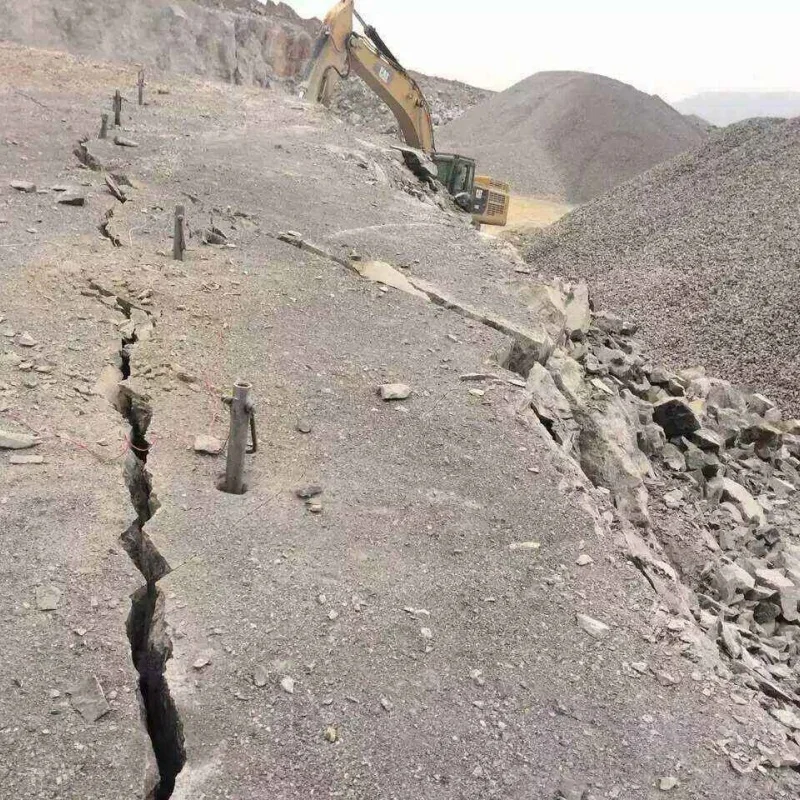

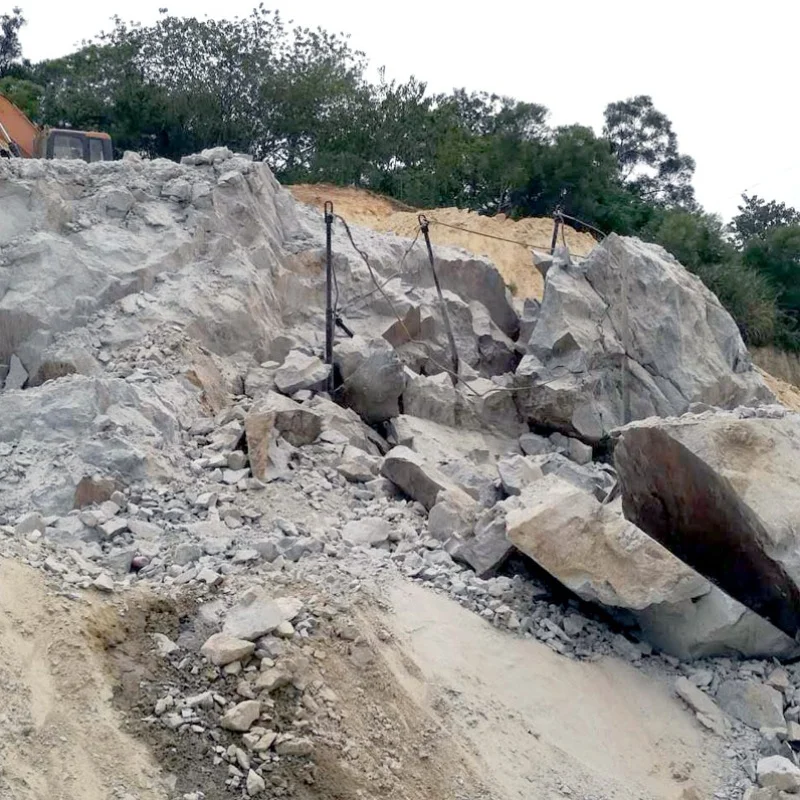

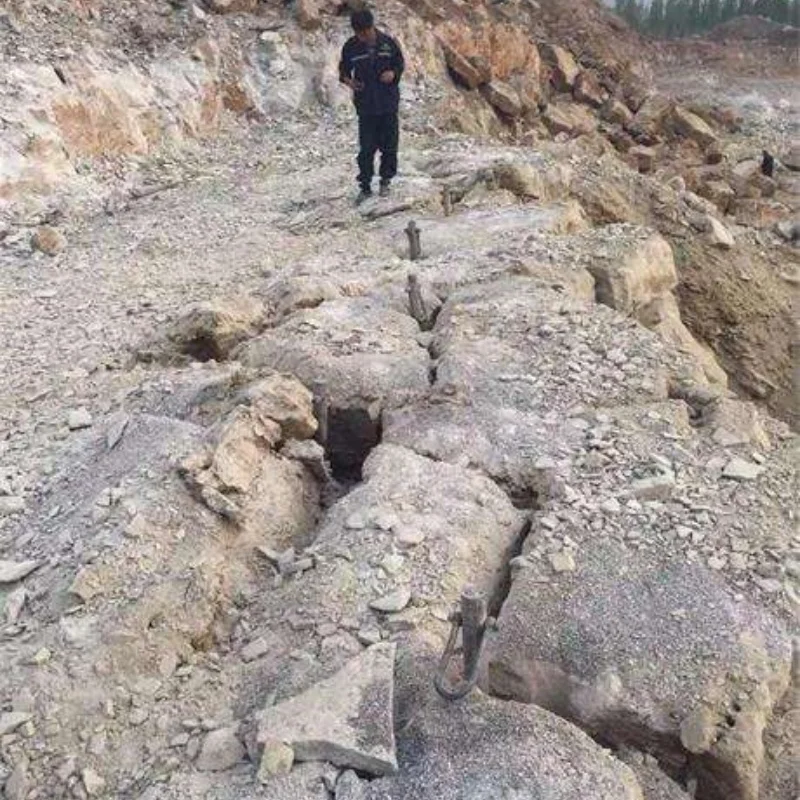

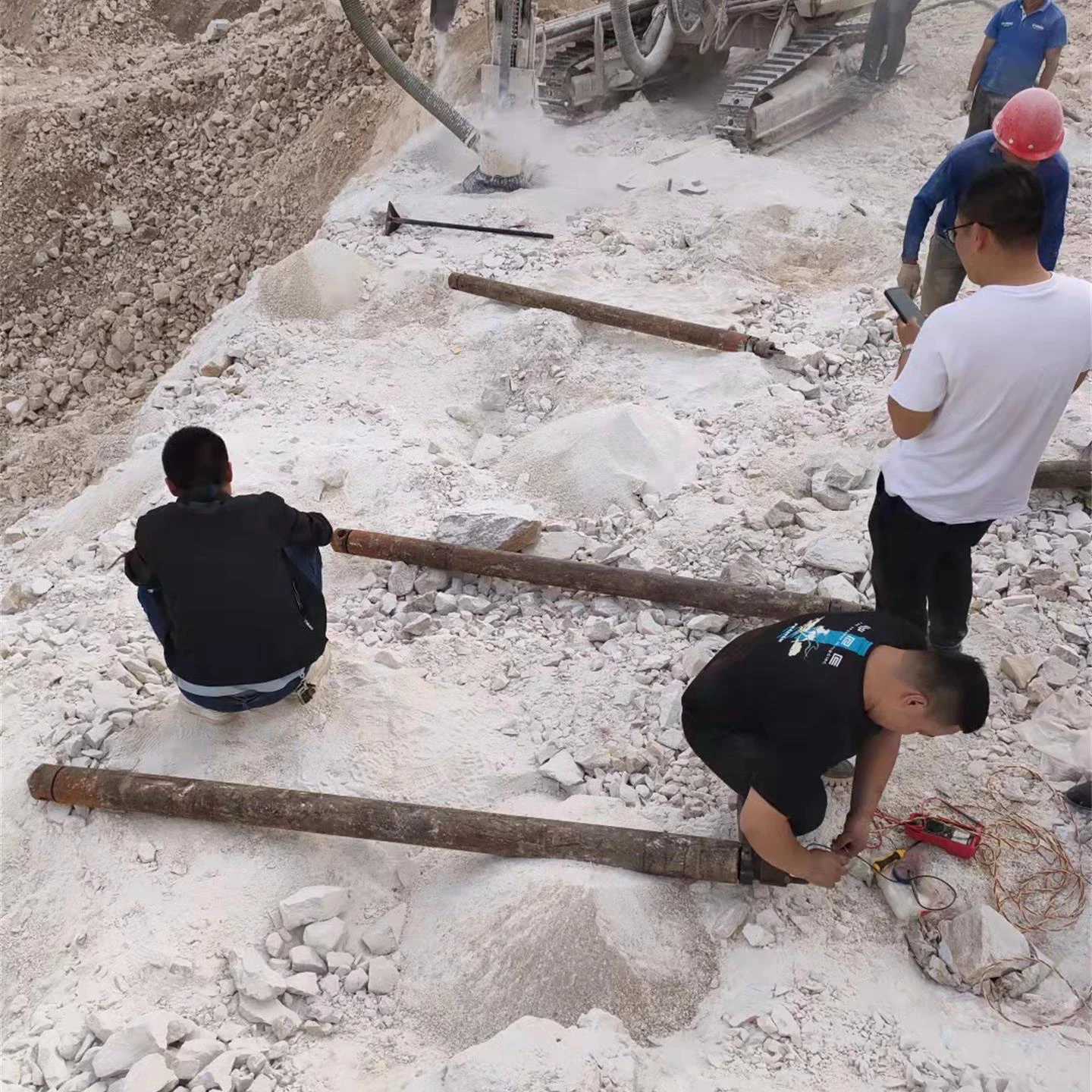

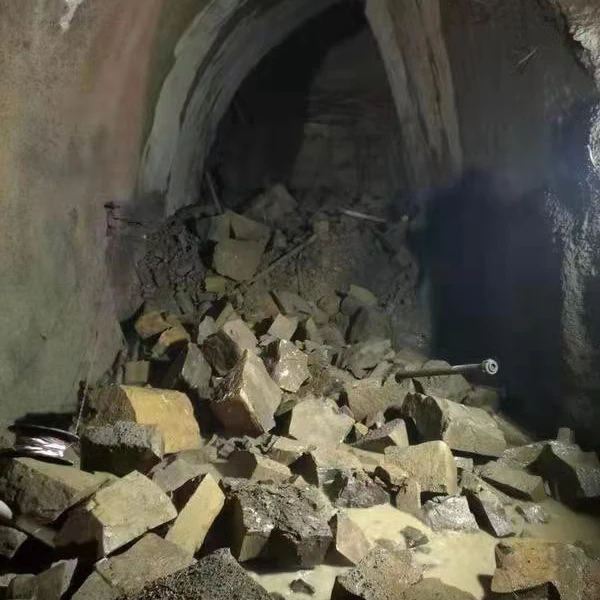

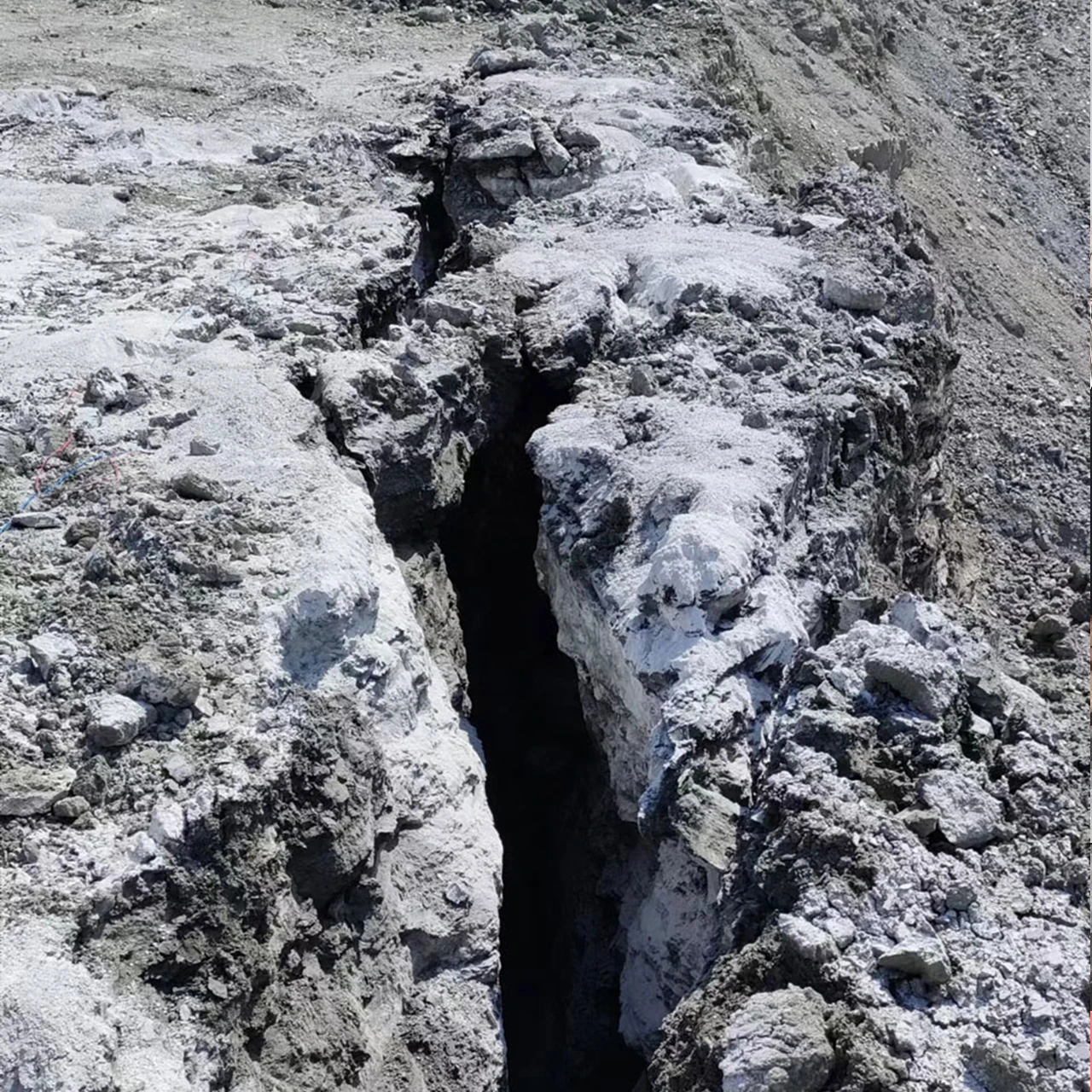

Applications
Company Information
About Us
Shanxi Zhongde Dingli Machinery Manufacturing Group, established in 2000, is a company specializing in the manufacture, supply and service of mining construction machinery. Our main products include rock splitters, excavator converted drilling rigs, pile breakers, carbon dioxide rock breaking systems and related accessories. For more than 20 years, our products have been widely used in mining, quarrying, road construction, construction, tunnels, subways, underground mines and other fields. We take pride in the quality of our customer service and ensure fast on-time delivery to meet your urgent requirements. We are always on call to serve you, and we promise to go the extra mile to meet our customers’ current and future needs.
