PowerEdge R250: Your Innovation Engine for businesses of all sizes
The D-ell EMC PowerEdge R250, powered by ® Xeon® E-2300 processors, delivers powerful compute for common business applications and streamlines productivity. It supports 3200 MT/s DDR4 speeds and 32 GB DIMMs, up to 128 GB for memory intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge R250 supports PCIe Gen 4 and offers enhanced thermal efficiency to support increasing power and thermal requirements. This makes the PowerEdge R250 an rack ideal server for buisness critical workloads, cloud infrastructure, and point of sale transactions in a 1U form factor, for small to midsized businesses, inside and outside of the data center.
Specification
Features
PowerEdge R250 Technical Specifications
Processor
One Xeon E-2300 series processor with up to 8 cores
Memory
• Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s
• Supports unregistered ECC DDR4 DIMMs only
Note: For Pentium processor, the maximum memory speed is 2666 MT/s.
Storage controllers
• Internal controllers: PERC H345, H355, H755, HBA355i, S150
• Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs
• External HBAs (non-RAID): HBA355e
Drive bays

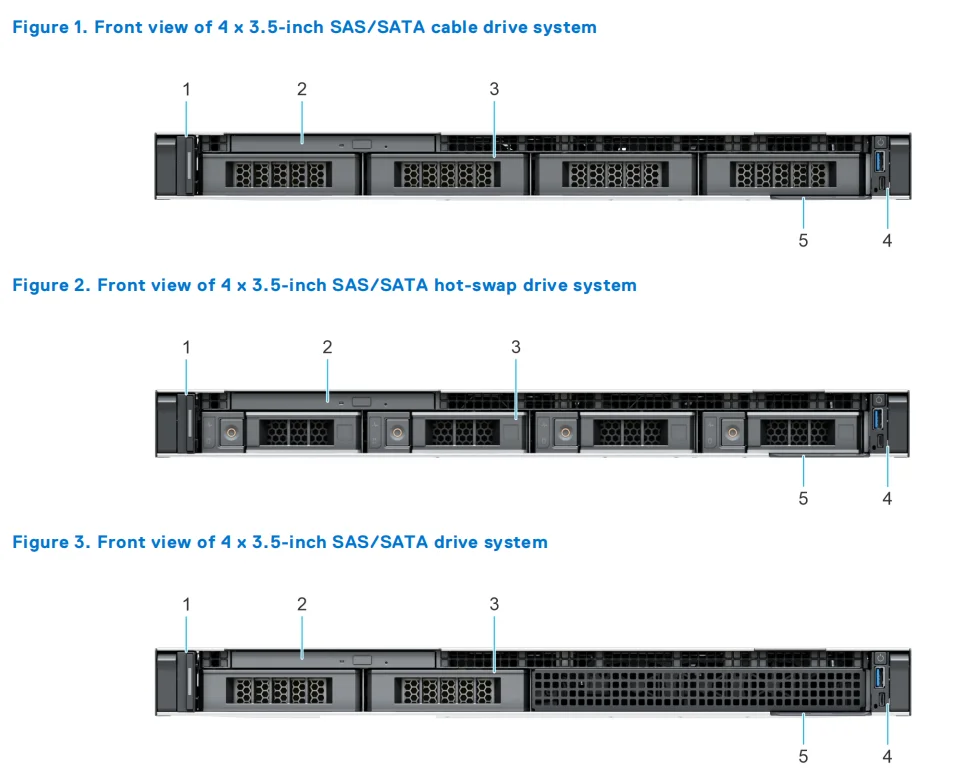

Front bays:
• Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB
• Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB
• Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 30.72 TB
Power supplies
• 450W Bronze 100-240 VAC, cabled
• 450W Platinum 100-240 VAC, cabled
Cooling options
Air cooling
Fans
Up to four cabled fans
Form Factor
1U rack server
Embedded NIC
Onboard LOM 1GbE x2
GPU options
Not supported
Ports

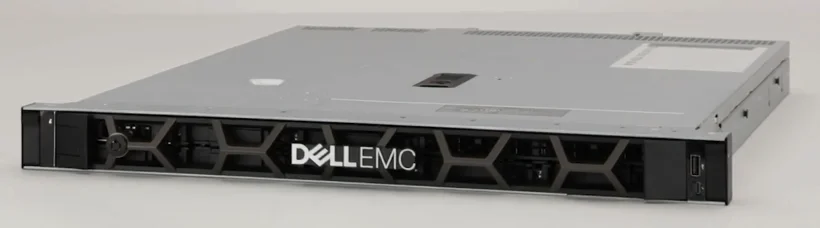

Front Ports
• 1 x USB 2.0
• 1 x iDRAC Direct (Micro-AB USB) port

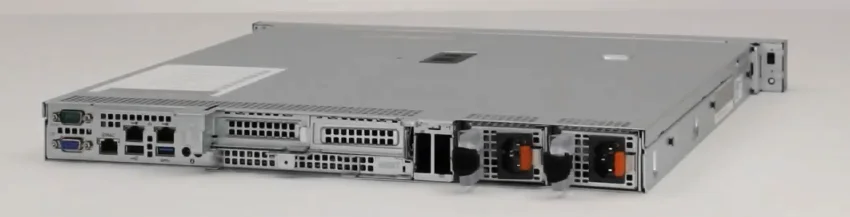

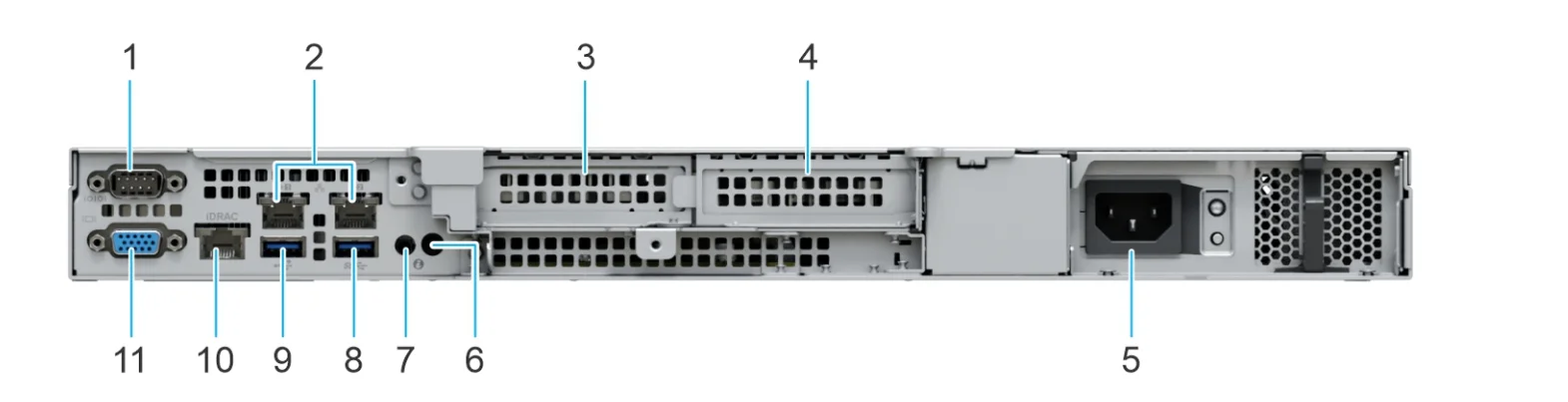

Rear Ports
• 1 x USB 2.0
• 1 x iDRAC ethernet port
• 1 x USB 3.0 • 1 x VGA
• 1 x Serial port
Internal Ports
• 1 x USB 3.0 (optional)
