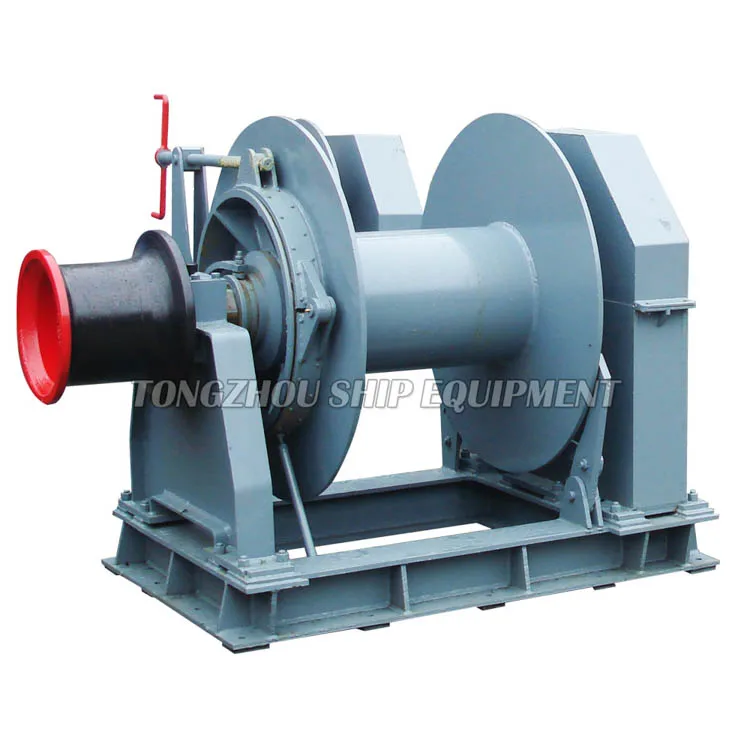

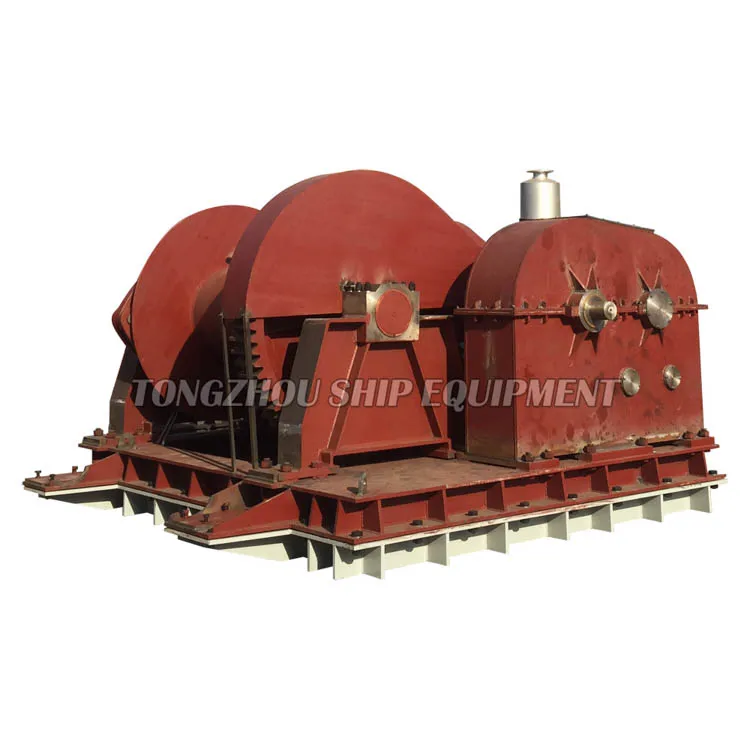

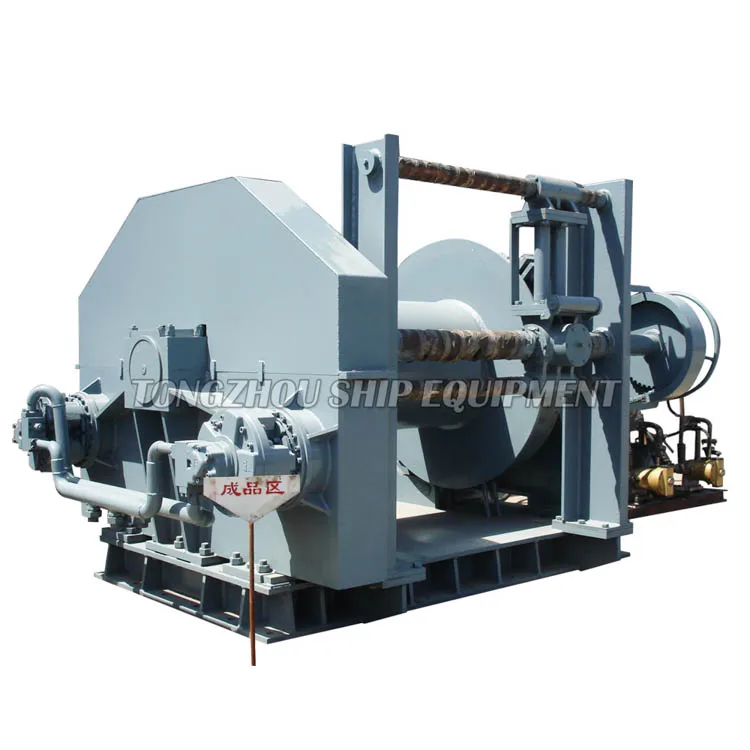

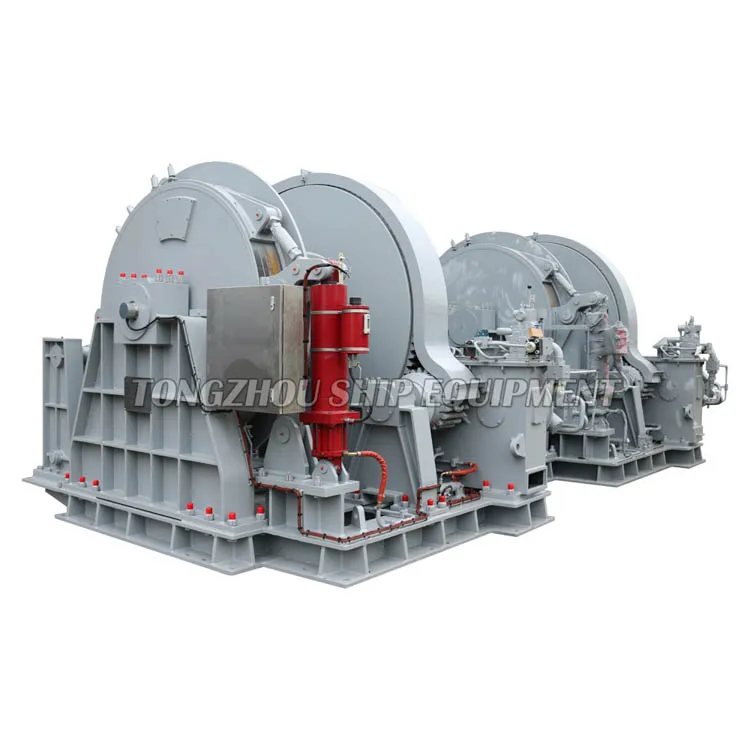

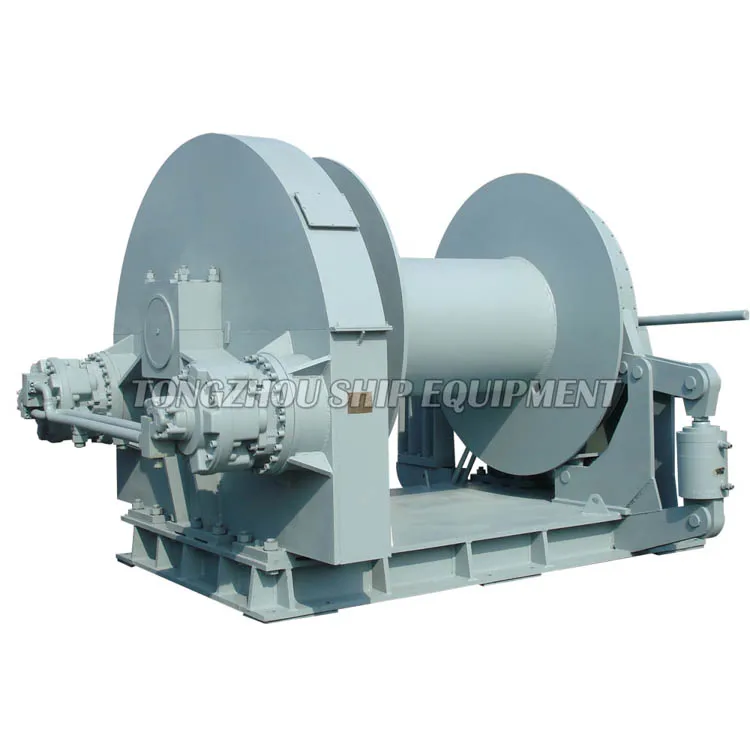

30 ton 35 ton 40 ton 45 ton Winch Rope Drum Worm Gear Winch

    The winch is a compact and durable winch. Mainly used in construction, water conservancy projects, forestry, mines, docks, etc. for lifting or flat towing of materials. The winch has the following characteristics: high versatility, compact structure, small size, light weight, heavy lifting capacity, easy to use and transfer, and is widely used in construction, water conservancy projects, forestry, mines, docks, etc. for lifting or hauling materials, and can also be used as supporting equipment for modern electronically controlled automatic work lines. There are 0.5t~350t, divided into two kinds of fast and slow speed. The winch can be used alone or as a component part of machinery for lifting, road construction and mine hoisting, and is widely used because of its simple operation, large rope winding capacity and convenient displacement. The main technical indicators of the winch are rated load, support load, rope speed, rope capacity, etc.





TYPE	DRUM			DIWENSION (m)
	LOAD (HN)	SPEED (n/min)	POPE SIZE (mX m)	A	B	φ0	φD	E	F	G
Y1B450	450	3>20	50X150	3315	1300	1500	2050	1400	1400	3495
YB500	500	20	50X 150	3745	1490	1500	2050	1B00	1400	3495
Y8560	560	>20	50X150	3745	1490	1500	2050	1B00	1400	3495
YB600	600	315	Ropes specificat ions var iety may. under user: roqui ronents and design standards requl renents	The length of windlass, accord ing to the user requested sprockets center distance, specif ications, variet y and meet standards for design.		The width of mind ass, acord ing to the user requested sprockets centor distance, specif ications, wariet y and moot standards for design.		The hoight of windass, aocording to the user requested sprockets center distanse, specificat ions variety and meet standards for design.
YB650	650	≥15
YB800	B00	315
YB1000	1000	>9
YB1200	1200	39
YB1500	1500	37.2
YB1800	1800	37.2
YB2000	2000	36.5





Anchor mooring winch is a combination of anchor windlass and mooring winch. It is an ideal choice to perform both anchoring and mooring functions in various types of vessels.

The winch can be electrically or hydraulically driven depending on the existing infrastructure, your preference and financial
considerations. It can be designed for any type or size of mooring line and any chain size to suit your winching requirements.

The anchor and mooring winch can pull up to 100 tons. We offer a variety of optional features to make sure you end up with a perfect winch system.

With highly efficient, safe and reliable operation, this equipment can bring value to various ships, like barges, passenger
vessels, tankers, multi purpose vessels and inland vessels.

More kinds marine winch for your choose:
Electric/Hydraulic/Diesel Marine anchor winch
Electric/Hydraulic/Diesel Marine mooring winch
Electric/Hydraulic/Diesel marine anchor mooring winch

Product classification and characteristics:

    Winches are classified according to power as manual, electric or hydraulic. From the use of classification can be divided into construction winches and marine winches.

    Winches can be divided according to function: marine winches, engineering winches, mining winches, cable winches and so on.

    According to the form of reel is divided into single reel and and double reel.

    According to the form of distribution of the reels are divided into parallel double reels and front and rear double reels. Special types of winches are: frequency winches, double drum winches, hand brake lever type double brake winches, winches with limiters, electronically controlled winches, electronically controlled hand brake clutch winches, large double drum double brake winches, large external gear winches, large hydraulic type winches, large external gear winches with rope rowers, double traction wheel winches, large hydraulic double drum double brake winches, frequency winches with limiters rope grooves.

Electric winch:

    Electric winches are widely used for heavy work and where the required pulling force is high. The single reel electric winch (diagram) is driven by the electric motor through the reducer, and a brake is fitted between the motor and the input shaft of the reducer. In order to adapt to the needs of lifting, pulling and slewing operations, there are also double reel and multiple reel devices winch. Winches with a general rated load of less than 10T can be designed as electric winches.

Hydraulic winch:

    Hydraulic winches are mainly winches with a larger rated load, generally more than 10T to 5000T winches are designed as hydraulic winches.

Diesel winch:

    The fixed geometrical position relationship between the drive components determines the design layout of the system, with few layout changes: large volume dimensions of the drive train, heavy total weight; complex mounting arrangements, often requiring finely machined planes and precise component positioning: difficult to achieve a wide range of stepless speed regulation.
