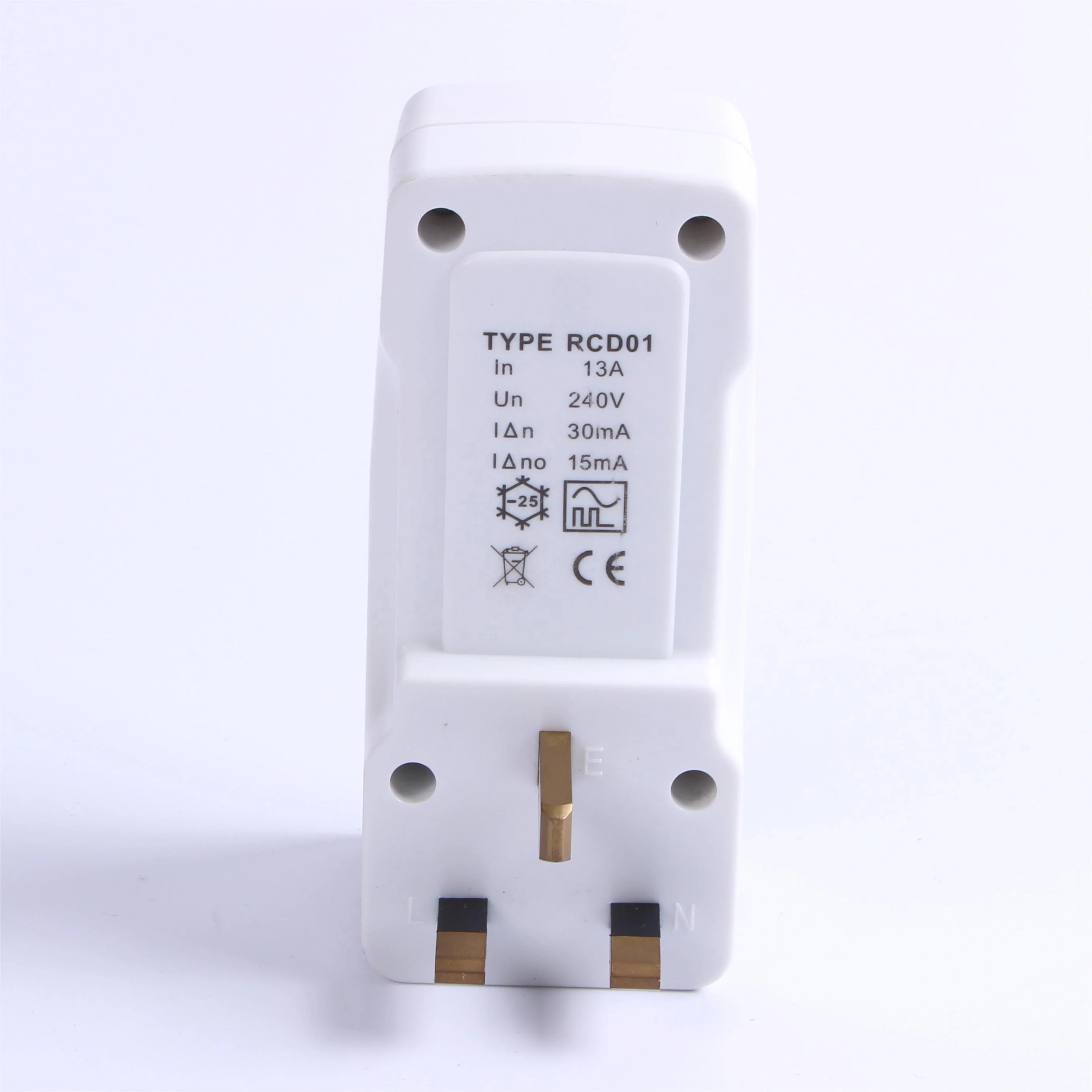

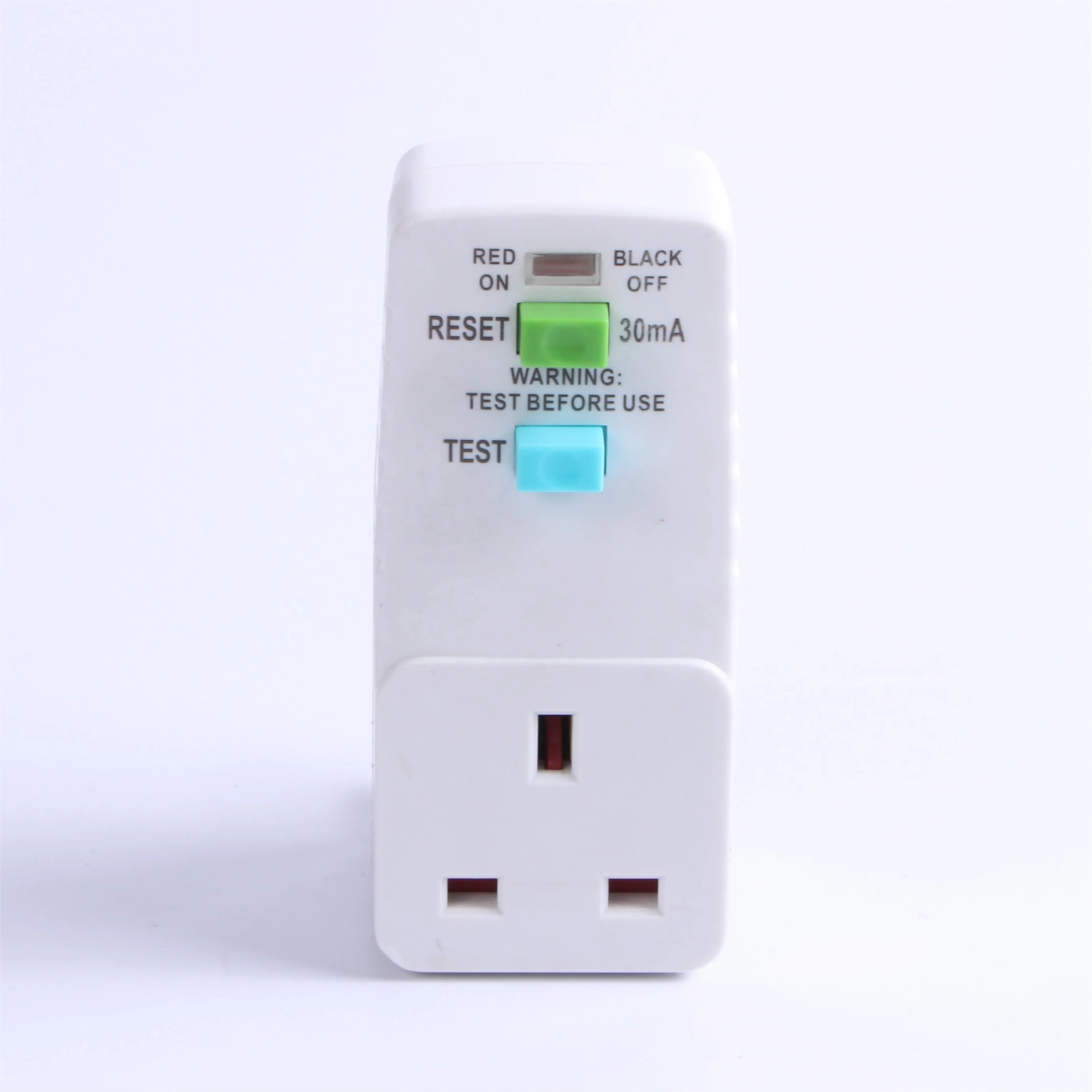

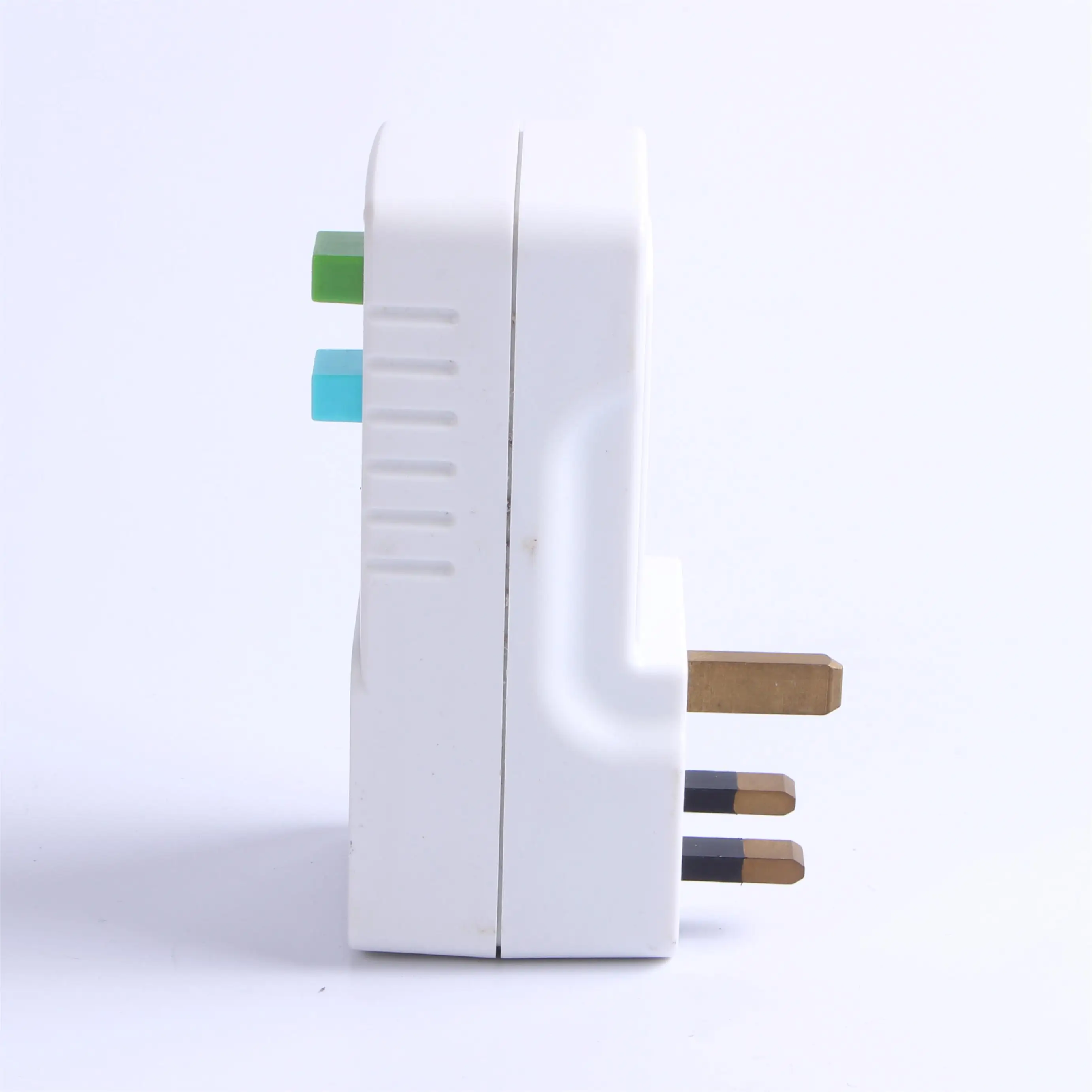

10ml British Standard PRCD Portable Residual Current Plug & Socket

Product application

 The RCD adaptor(RCD01B) simply plugs into the mains, and then you plug your electrical appliance into it. If there is a fault or a short in the tool you are using, the unit cuts the power very quickly, reducing the risk of electrocution.

The RCD adaptor continuously monitors the power supply to an electrical appliance and cuts off the power within 40 milliseconds if an earth current fault is detected. This is fast enough to prevent a fatal electric shock. This plug is an ideal way to protect yourself when using portable electrical tools such as lawnmowers and drills.

Electrical appliances can become dangerous if the wiring becomes loose, their power cords become damaged or if they get wet. Not only power tools and lawnmowers can cause electrocution--it is also possible if fingers, wet hair or other conductive bodies enter the appliance. In all these cases the RCD adaptor is a must. RCD adaptors are the simplest way of power protection for in and around the home. Ideally, you would use an RCD adaptor with any electrical appliance. Please note, these products are not suitable for pond pumps and other pond equipment as when these are removed the installation is unprotected.

Main Technical Specifications

l Rated Voltage:

240VAC~/50Hz

lMax. Load Current:

13A

lRated trip Current:

10mA

lLeakage no tripping Current:

5mA

lMax Tripping Time:

40mS

l Work Environment Temperature:

-25°C~+40°C

l Protection Class:

IP20

lNon-Latching Operation

l Flexible Cord

H05RN3G1.0; H05VVF-3G1.0/1.5;

H05RR3G1.5

lStandard:

BS7071, BS1363

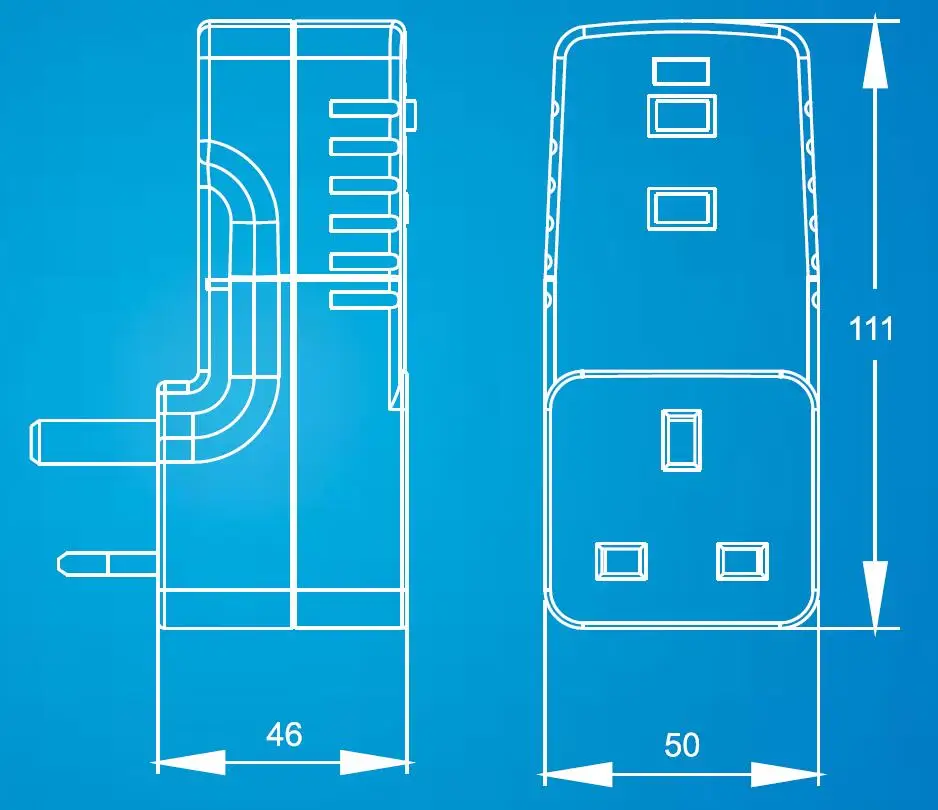

lUnit Size:

111*46*50mm

Packing Details

l Packing:

White box

l Meas.:

45cm×26cm×30cm (50PCS/CTN)

l N.W.:

9KG

l G.W.

10KG

Certification:CE-LVD,RoHS2.0
