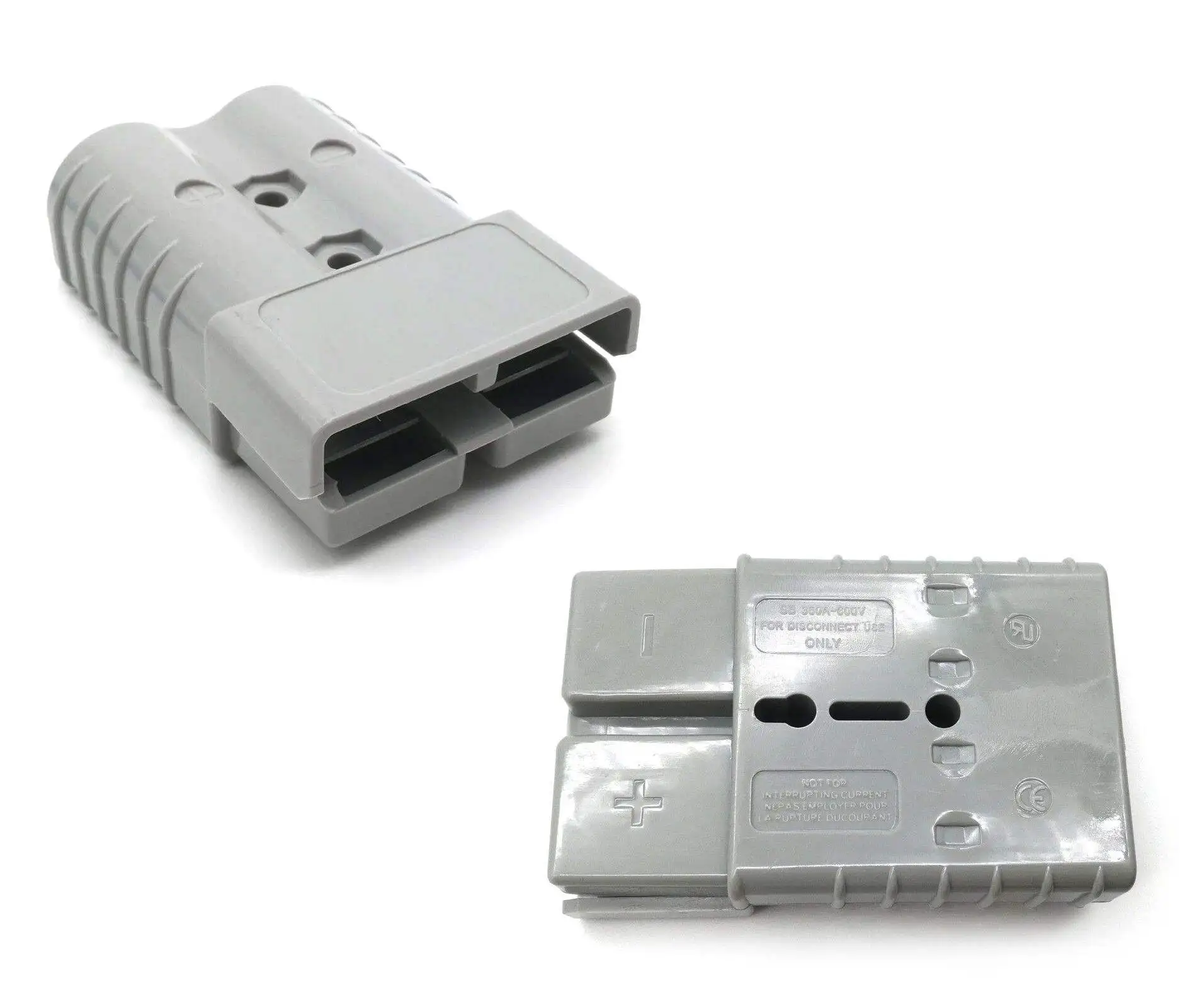

50A/120A/175A/350A 600V High Current Plastic Gray Style Power Connector Plug
- Category: >>>
- Supplier: Dongguan Yucheng Outdoor Co. Ltd.
Share on (1600875769496):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | YUCHENG |
Model Number | YC-ADS01 |
Type | connector |
Application | Automotive |
Gender | Female |
Color | black |

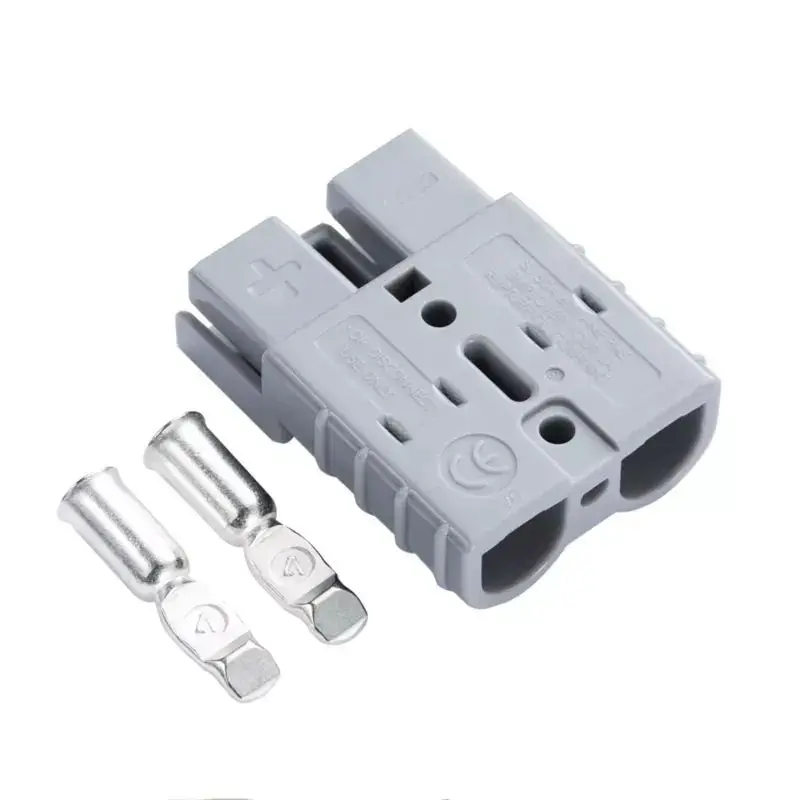

Product name | 50A Grey Anderson Style Connector |
Model Number | YJ-ADS023 |
Current | 50A |
Connection Type | Two Pole |
Color | Black, Red, Gray |
Material | ABS |
Voltage | 600V (AC, DC) |
Contact Barrel Wire size | 6/10/12 AWG |
These Anderson Style Plugs are genderless therefore perfect to connect your portable camping fridge or solar panel to your battery.
Anderson compatible plug/socket can be used as either a plug or a socket. They are fully insulated, a high 50 AMPS and made from pollycarbon.

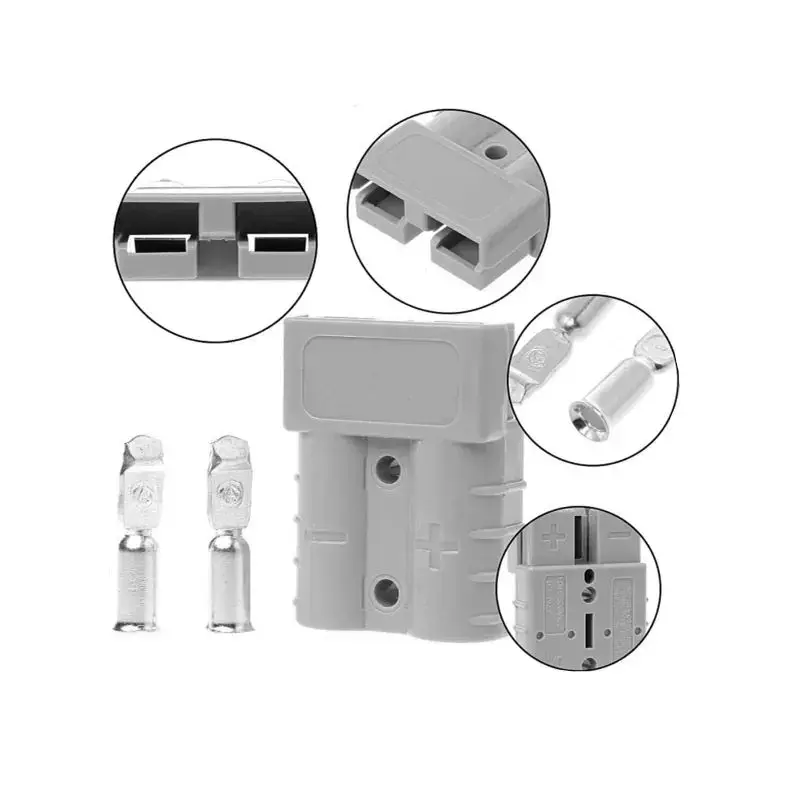

The Anderson style connectors are a single-piece housing that provides a cost-effective, durable, and safe connection.
**Please NOTE** Grey Anderson plugs are inter-connectable with Grey Anderson plugs only.
Material Properties
* Housing: Polycarbonate
* Contact: Copper
* Plating: Silver/Tin
* Spring: Stainless
Electrical Properties
* Rated Current (Ampere): 50
* Rated Voltage (Volts AC & DC): 600
* Dielectric Voltage Withstand (Volts DC): 2200
* Insulation Resistance: Per Mil-Std-202
* Initial Contact Resistance (microhms): 200
Mechanical Properties
* Contact Retention Force (Lbs): 50
* Crimp Retention Force (Lbs): Per UL 486A
* Contact Barrel Wire Size (AWG): #6 to #16
* Max. Wire Insulation Dia. (mm): 11
* Avg. Connect / Disconnect Force (Lbs): 15
* Millivolt Drop at Max. Current(mV): 10.00
What Cable Size Do I Need for my Anderson Connectors?
* 50 Amp Anderson Connector use 16mm Battery Starter Cable
* 175 Amp Anderson Connector use 35mm Battery Starter Cable
* 350 Amp Anderson Connector use 50mm Battery Starter Cable
Package include:
1 x 50A Anderson Connectors
All YUJIE product With 12 months warranty.
Free parts will be sent during guarantee period!
Anderson compatible plug/socket can be used as either a plug or a socket. They are fully insulated, a high 50 AMPS and made from pollycarbon.
The Anderson style connectors are a single-piece housing that provides a cost-effective, durable, and safe connection.
**Please NOTE** Grey Anderson plugs are inter-connectable with Grey Anderson plugs only.
Material Properties
* Housing: Polycarbonate
* Contact: Copper
* Plating: Silver/Tin
* Spring: Stainless
Electrical Properties
* Rated Current (Ampere): 50
* Rated Voltage (Volts AC & DC): 600
* Dielectric Voltage Withstand (Volts DC): 2200
* Insulation Resistance: Per Mil-Std-202
* Initial Contact Resistance (microhms): 200
Mechanical Properties
* Contact Retention Force (Lbs): 50
* Crimp Retention Force (Lbs): Per UL 486A
* Contact Barrel Wire Size (AWG): #6 to #16
* Max. Wire Insulation Dia. (mm): 11
* Avg. Connect / Disconnect Force (Lbs): 15
* Millivolt Drop at Max. Current(mV): 10.00
What Cable Size Do I Need for my Anderson Connectors?
* 50 Amp Anderson Connector use 16mm Battery Starter Cable
* 175 Amp Anderson Connector use 35mm Battery Starter Cable
* 350 Amp Anderson Connector use 50mm Battery Starter Cable
Package include:
1 x 50A Anderson Connectors
All YUJIE product With 12 months warranty.
Free parts will be sent during guarantee period!
