BAYM Solar PV Combiner Box With Lightning Protection 15A 4strings 600V For Solar Panel Circuit Breaker panel solar
- Category: >>>
- Supplier: Yueqing Baym Electric Co. Ltd.
Share on (1600875874072):
Product Overview
Description
Specification:

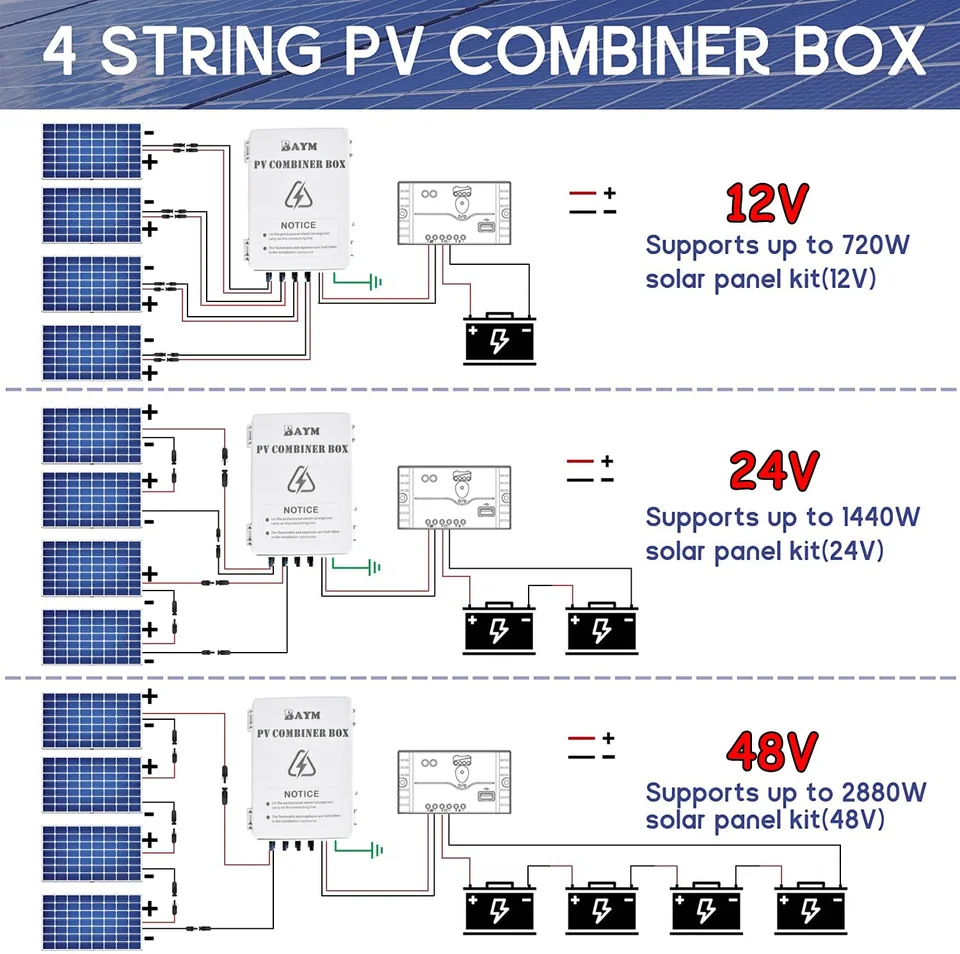

* 4 String PV Combiner Box with 3 Digit Combination Lock,suitable for photovoltaic on-grid/off-grid solar power generation
systems, solar panel systems, PV array, RV solar power, home solar panel systems. It can support solar panel systems up to 720W
in 12V system, 1440W in 24V system, 2880W in 48V system

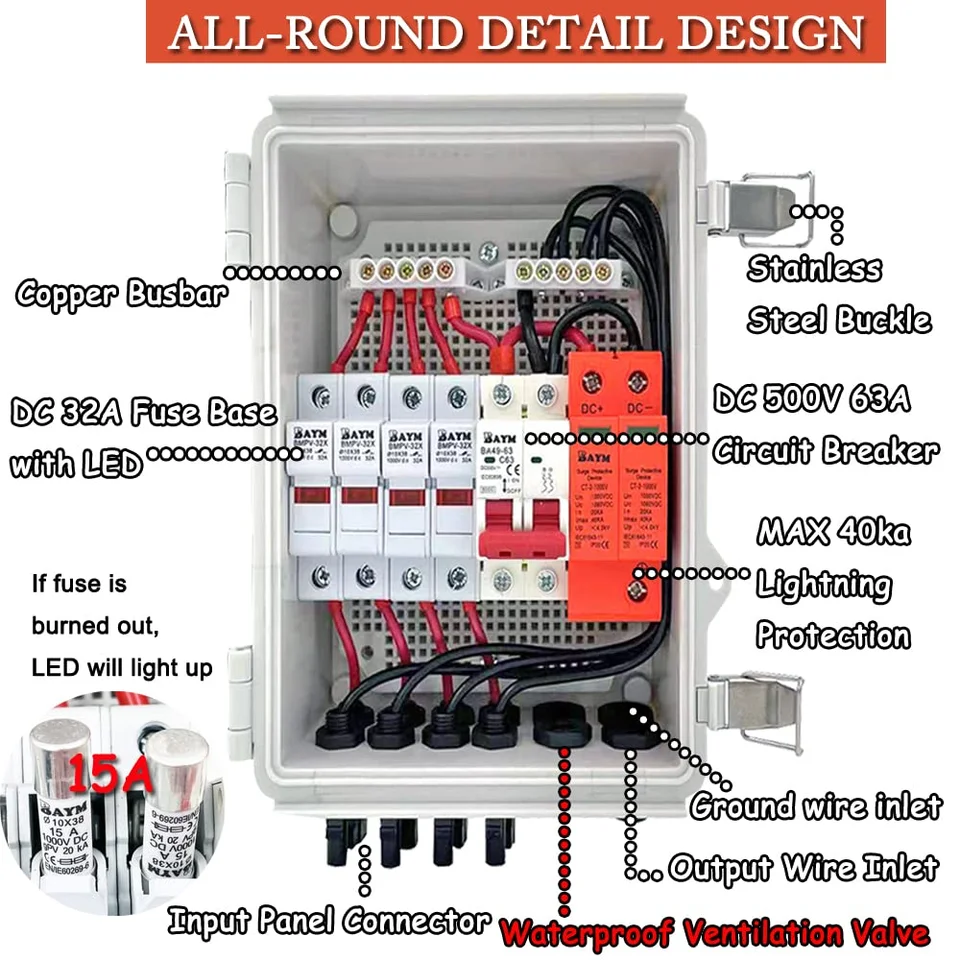

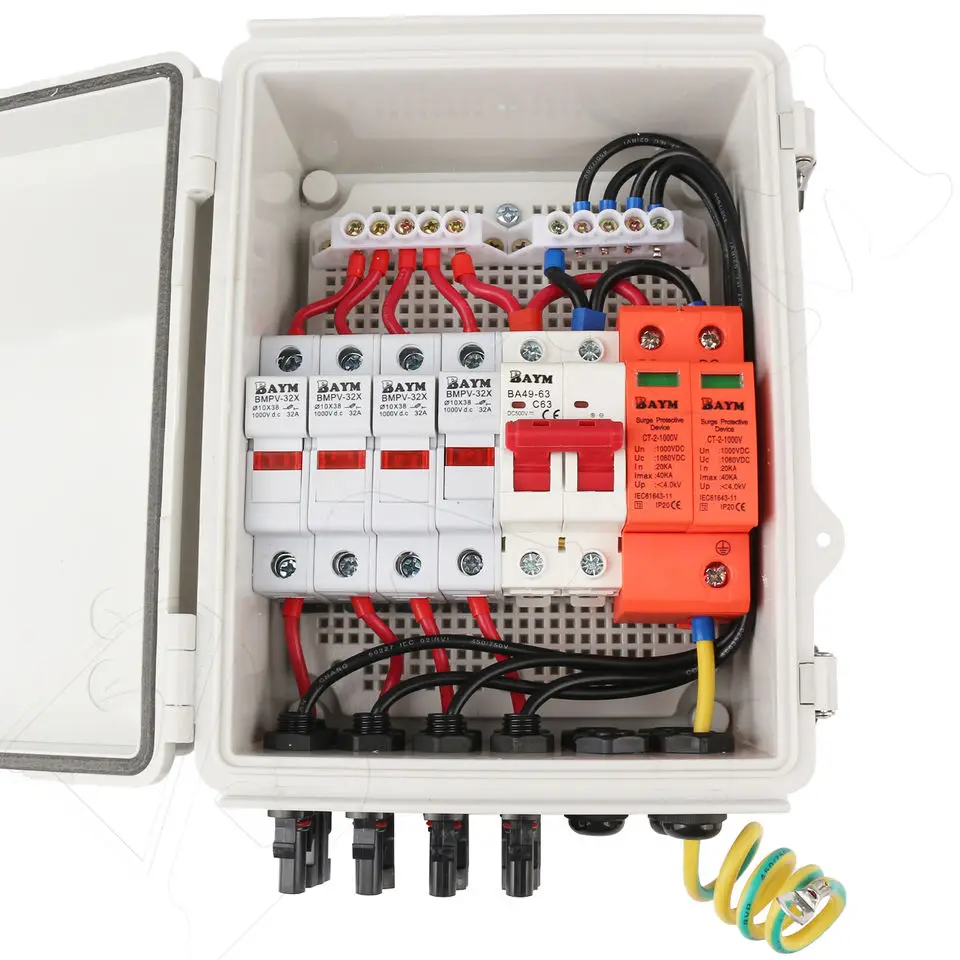

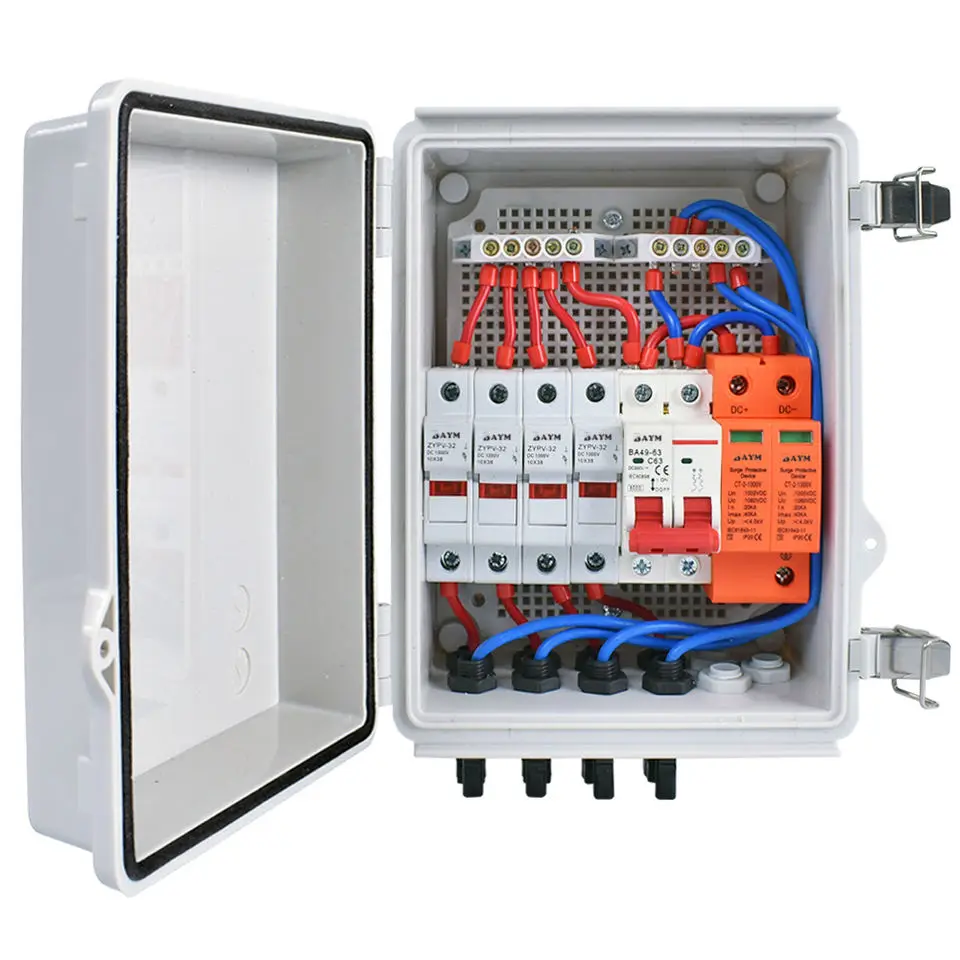

* Configuration:10Awg Cables;6pcs*15A DC Fuse;32A Fuse Holder Base.The fuse base has an LED indicator, if the fuse is burned out,
the LED will light up;Surge protection device with max 40KA;DC 500V 63A 2 Pole DC Miniature Circuit Breaker. It has short
circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to photovoltaic panels and
inverters when fault occurs

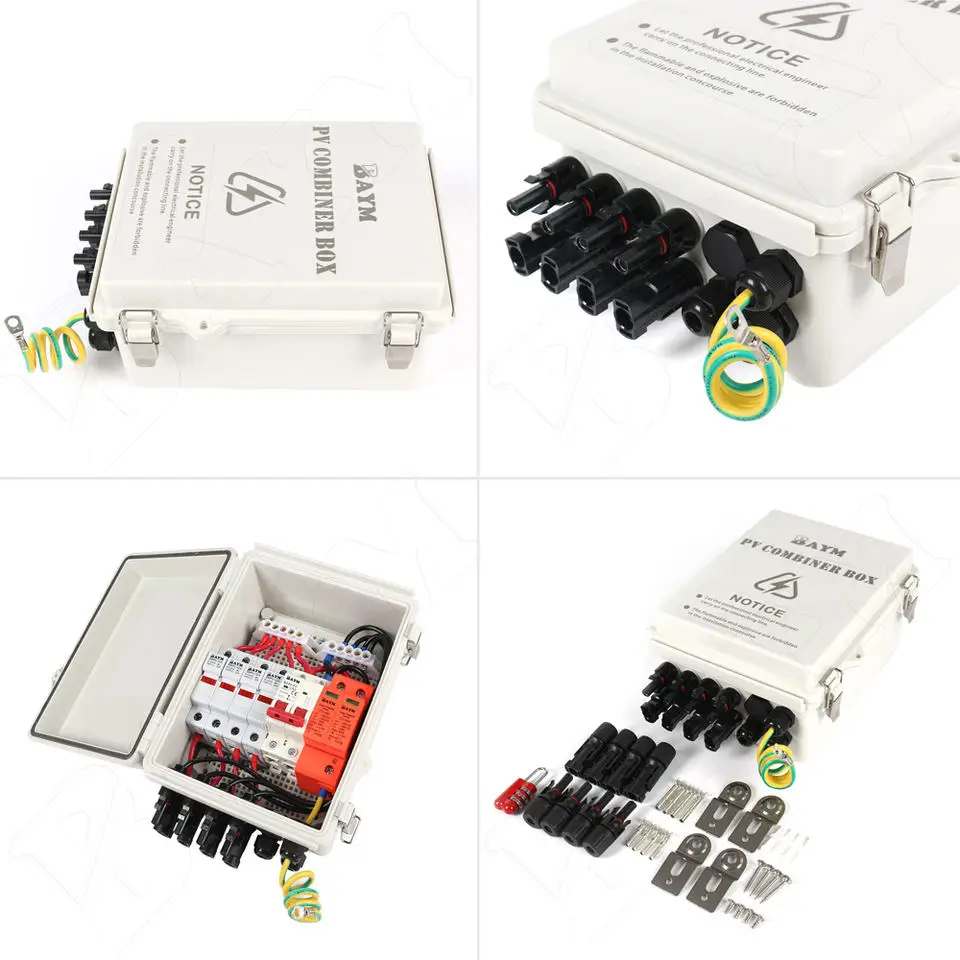

* Advantages:Solar PV combiner shell is IP65 waterproof & dustproof. The sturdy shell is made of high-quality ABS plastic
material, insulating, moisture-proof, has no dripping; It has impact resistance and high break resistance, keeping your
equipment well protected in harsh environment.The wiring adopts wiring blocks, which are safe, clear and concise

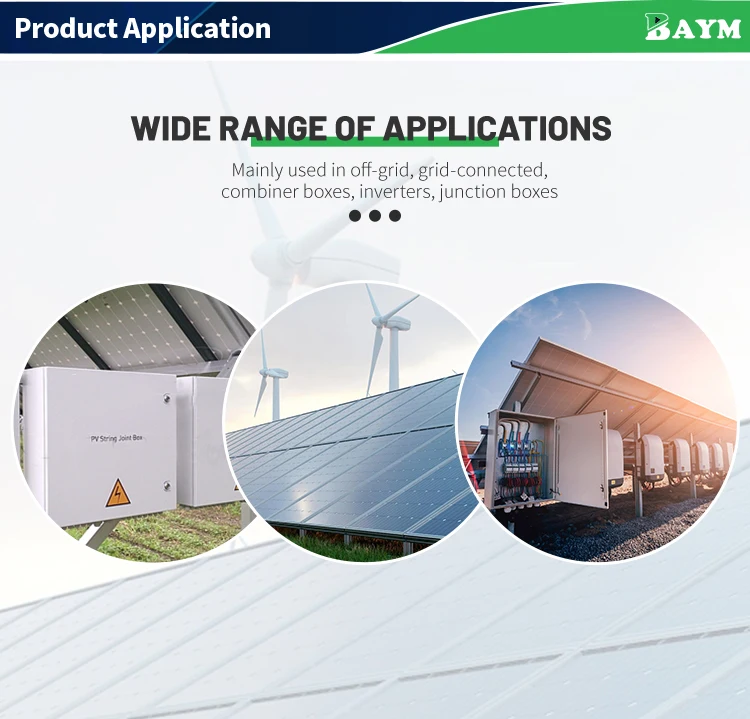

* Applications:The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on- grid/off-grid
solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems
systems, solar panel systems, PV array, RV solar power, home solar panel systems. It can support solar panel systems up to 720W
in 12V system, 1440W in 24V system, 2880W in 48V system
* Configuration:10Awg Cables;6pcs*15A DC Fuse;32A Fuse Holder Base.The fuse base has an LED indicator, if the fuse is burned out,
the LED will light up;Surge protection device with max 40KA;DC 500V 63A 2 Pole DC Miniature Circuit Breaker. It has short
circuit/lightning surge/over-voltage/over-current protection/grounding protection to avoid damage to photovoltaic panels and
inverters when fault occurs
* Advantages:Solar PV combiner shell is IP65 waterproof & dustproof. The sturdy shell is made of high-quality ABS plastic
material, insulating, moisture-proof, has no dripping; It has impact resistance and high break resistance, keeping your
equipment well protected in harsh environment.The wiring adopts wiring blocks, which are safe, clear and concise
* Applications:The combiner box is a perfect device for outdoor installation and use. Suitable for photovoltaic on- grid/off-grid
solar power generation systems, solar panel systems, PV array, RV solar power, home solar panel systems
Installation & Maintenance
1. Usage instruction: connect solar panel positive and negative with box input port respectively, please switch the DC MCB at ON.
Suggesting to use the cable that more than 10mm2.
2. Don’t connect PV input and output port reverse, otherwise the output equipment couldn’t work normally, moreover damage other
equipment.
3. When maintain or test this combiner box, please notice the input and output port may with power, please be careful of electric
shock or damage other equipment.
4. After thunder weather, please check the anti-thunder module, if the malfunction indicator is red, please replace the module in
time.
5. Please use bolt fixed the 4 holes on the combiner box bottom to install it. Please install at aeration drying place, avoid
direct sunshine, high environmental temperature and moisture influence equipment function.
6. This combiner box connects with the ground line to prevent thunder damages equipment and solar panel
1. Usage instruction: connect solar panel positive and negative with box input port respectively, please switch the DC MCB at ON.
Suggesting to use the cable that more than 10mm2.
2. Don’t connect PV input and output port reverse, otherwise the output equipment couldn’t work normally, moreover damage other
equipment.
3. When maintain or test this combiner box, please notice the input and output port may with power, please be careful of electric
shock or damage other equipment.
4. After thunder weather, please check the anti-thunder module, if the malfunction indicator is red, please replace the module in
time.
5. Please use bolt fixed the 4 holes on the combiner box bottom to install it. Please install at aeration drying place, avoid
direct sunshine, high environmental temperature and moisture influence equipment function.
6. This combiner box connects with the ground line to prevent thunder damages equipment and solar panel
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
