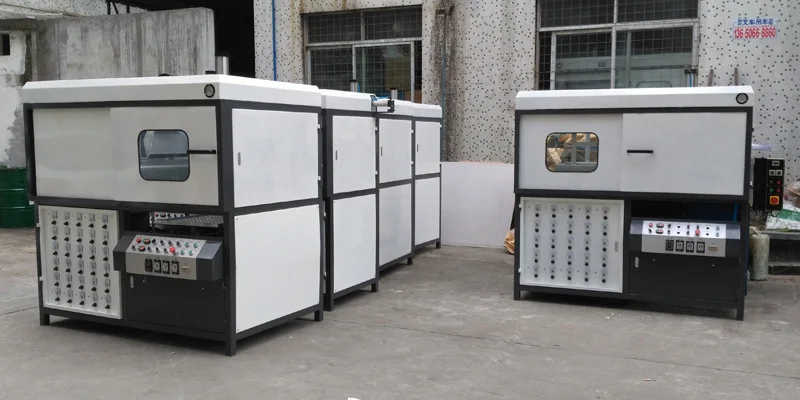

Semi automatic blister vacuum forming machine for plastic sheet
- Category: >>>
- Supplier: Guangzhou Looker Packaging Machinery Co. Ltd.
Share on (1600875876014):
Product Overview
Description
Product Description

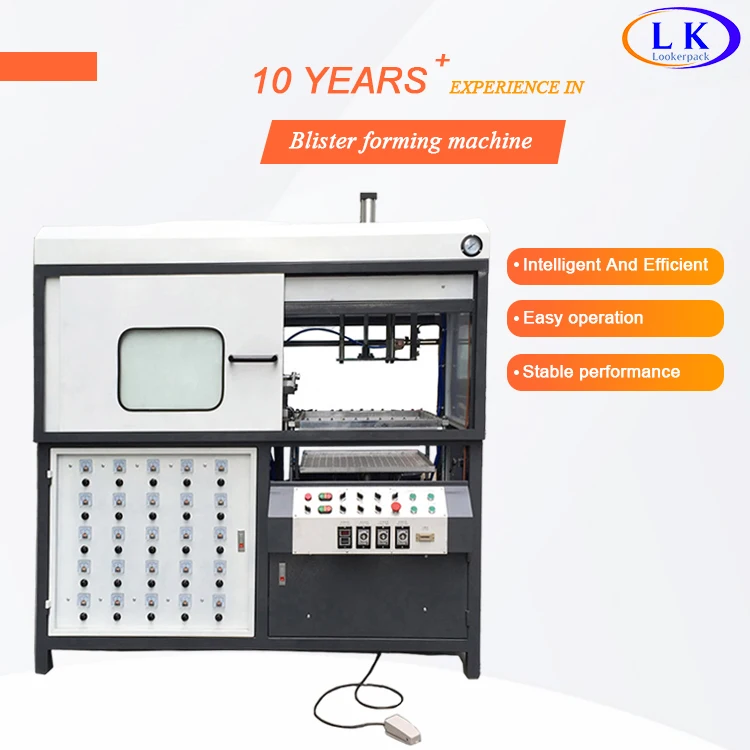

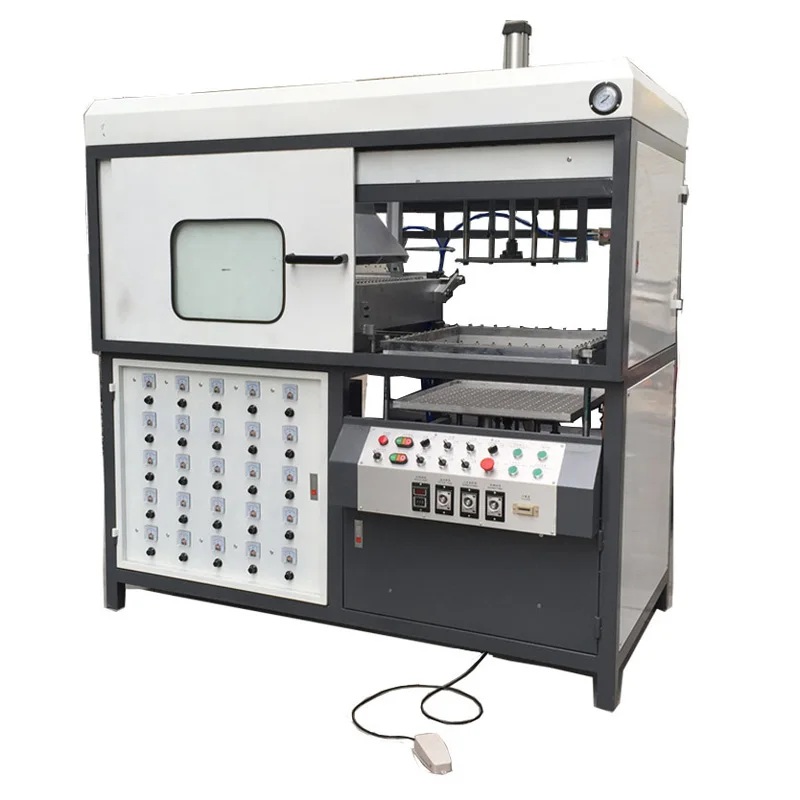

Semi automatic blister vacuum forming machine
Working Principle
Suitable for PVC，ABS，PP，PC，PS，PE，PET，PETG，APET，HIPS，PMMA etc. the machine furnace produce heat to soften the plastic sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different forming mould enable to have different forming shape. This machine is ideal for the sample making purpose and small quantity order production.

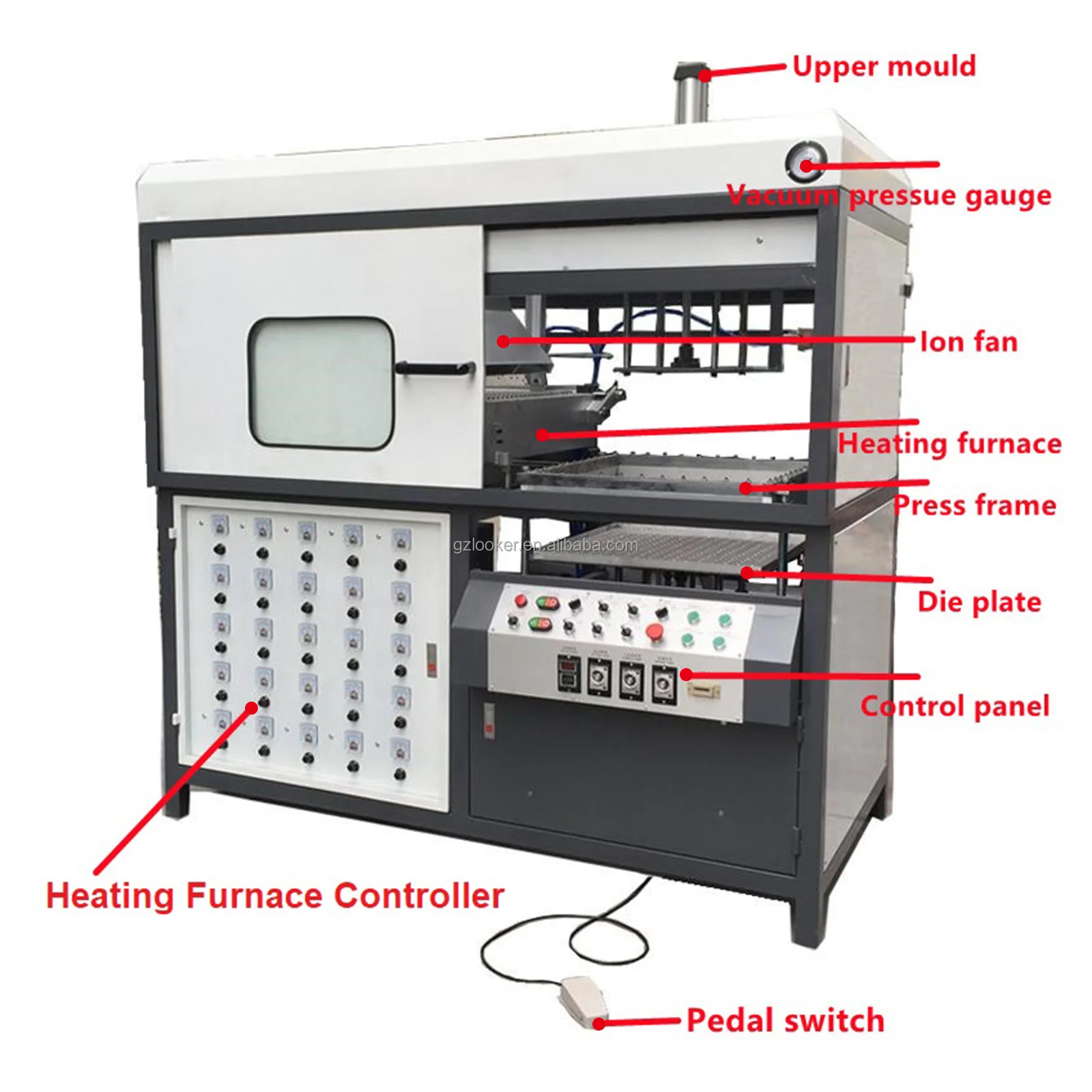

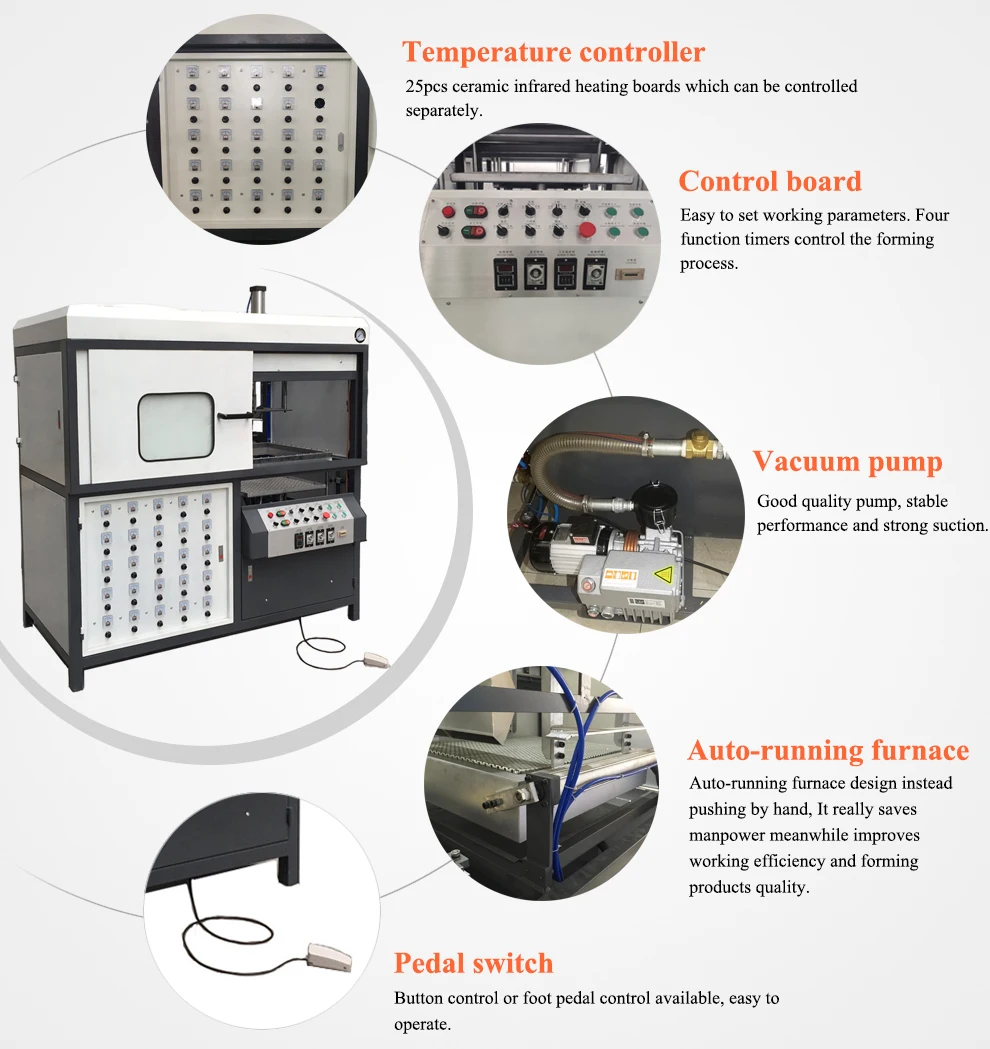

Machine details:

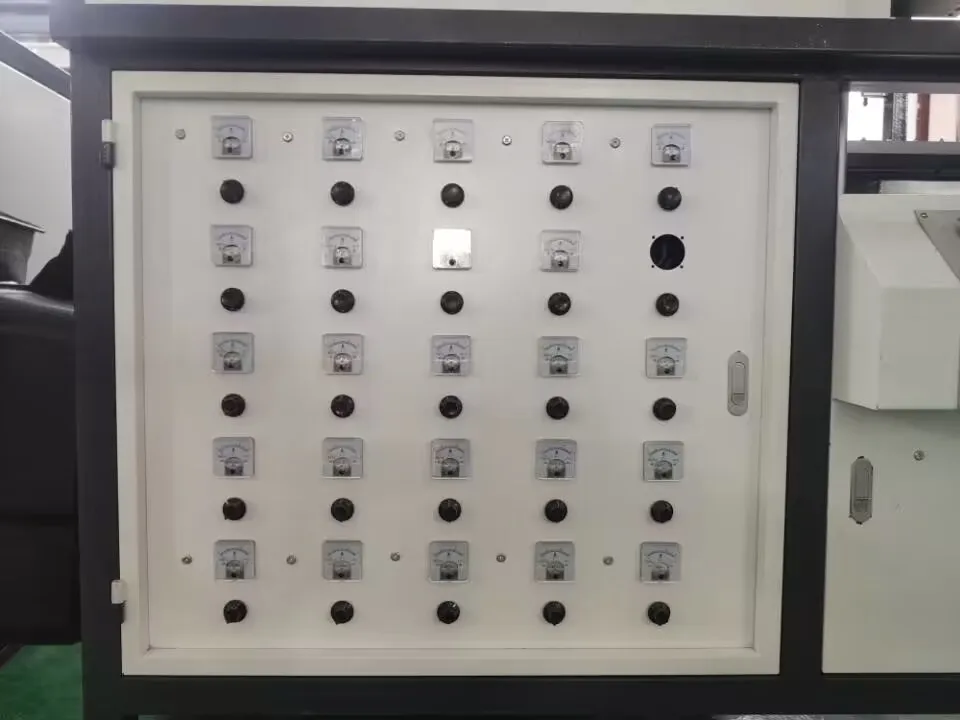

Temperature controller
25pcs Solid state voltage regulators, control heating boards simple and visualized.

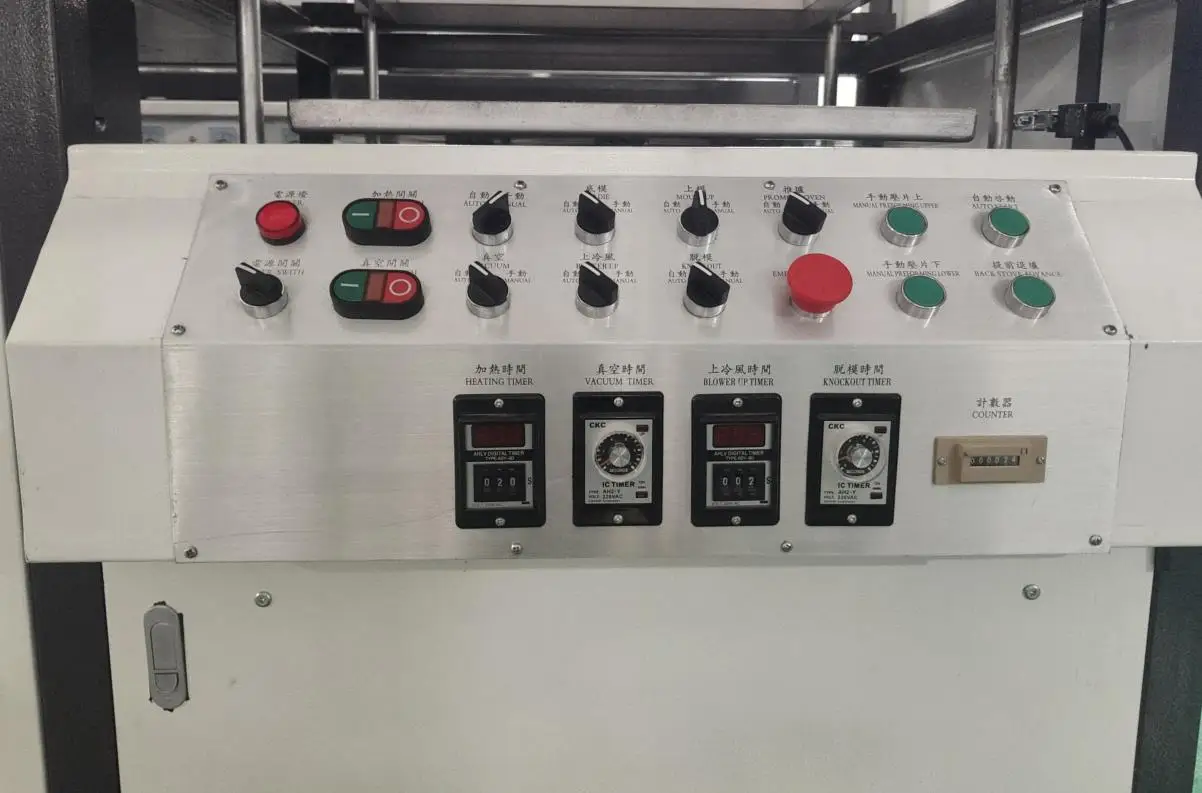

Control board
Easy to set working parameters. Four function timers for control forming process.

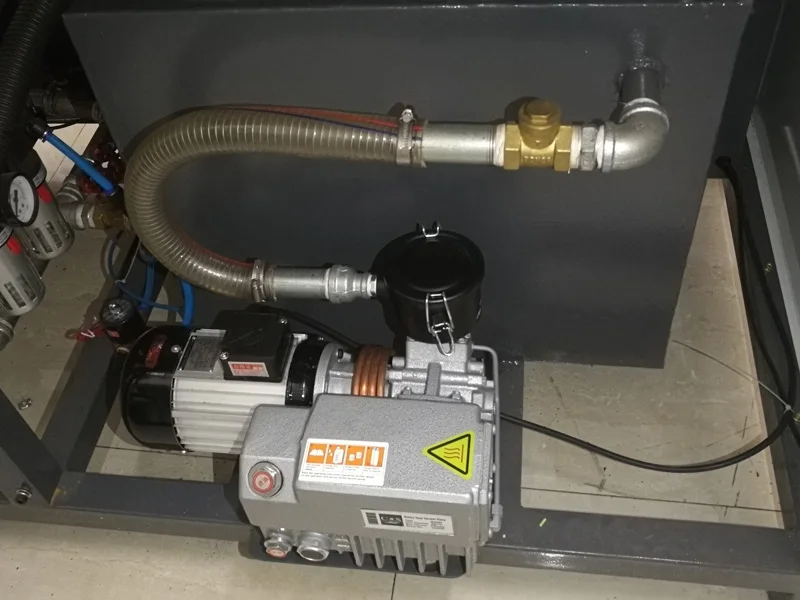

Vacuum pump
High quality vacuum pump,stable performance and strong suction. It can prevent oil return and splash.

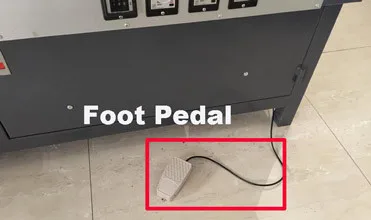

Pedal control
Pedal control or button control available.
Pedal control will be more convenient and efficient.
Pedal control will be more convenient and efficient.

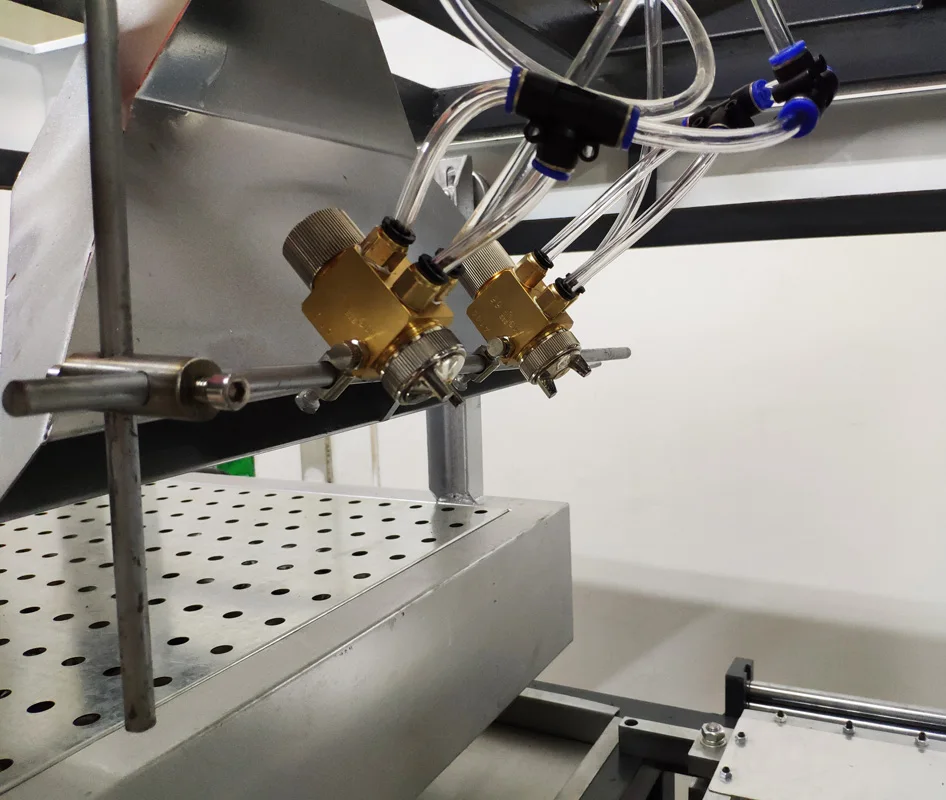

Water-spray cooling system
Water-spray cooling system which suit for thick material.(optional).

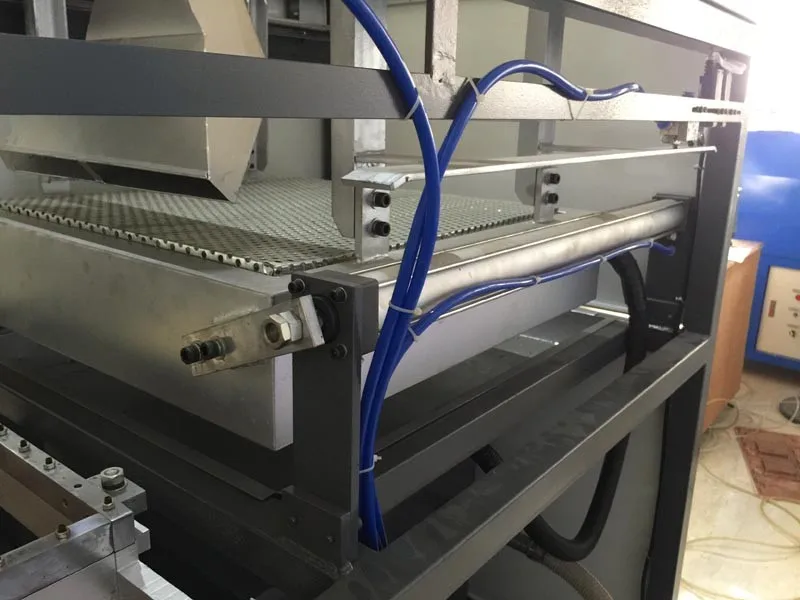

Auto-running furnace
Auto-running furnace design instead pushing by hand, It really saves manpower meanwhile improves working efficiency and forming products quality.

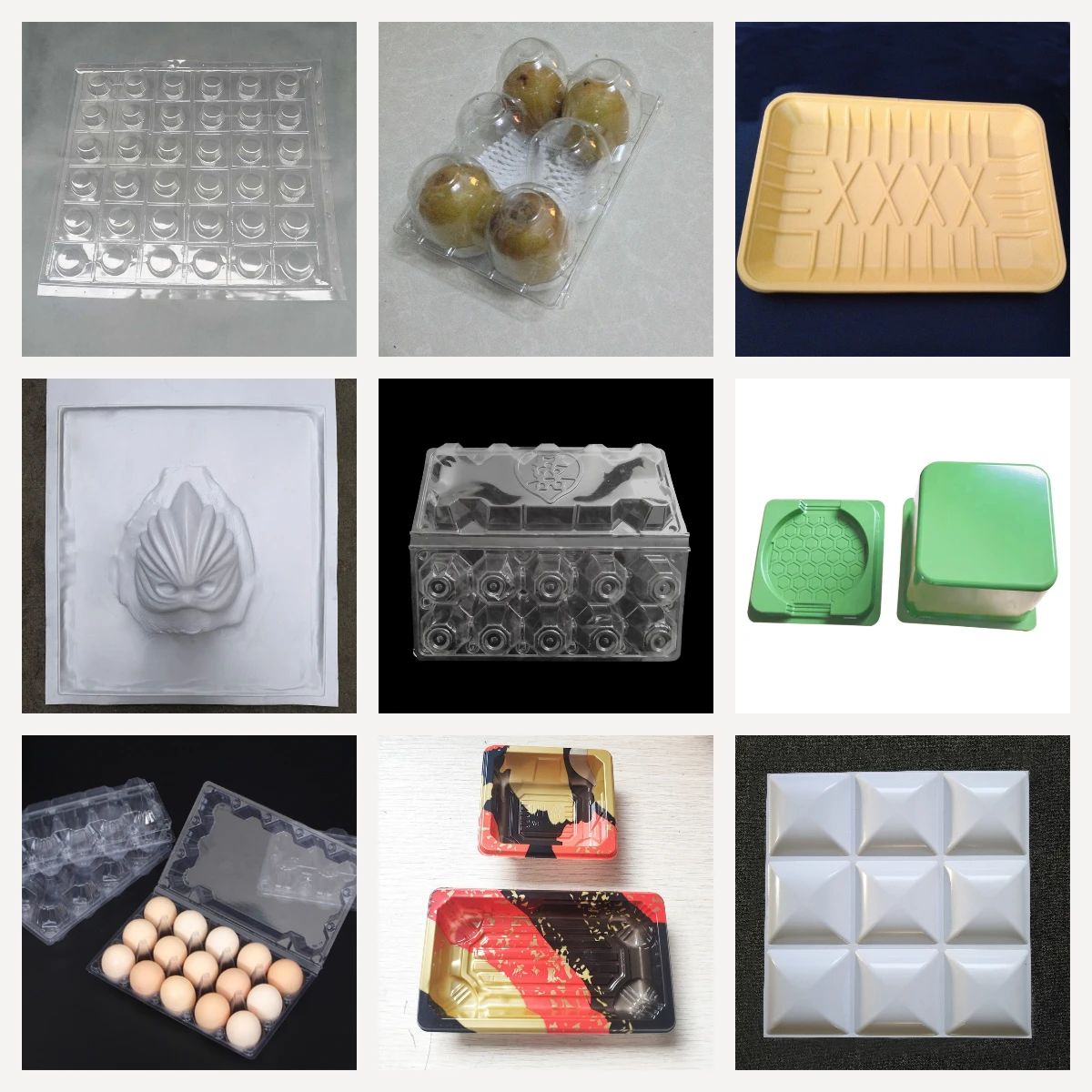

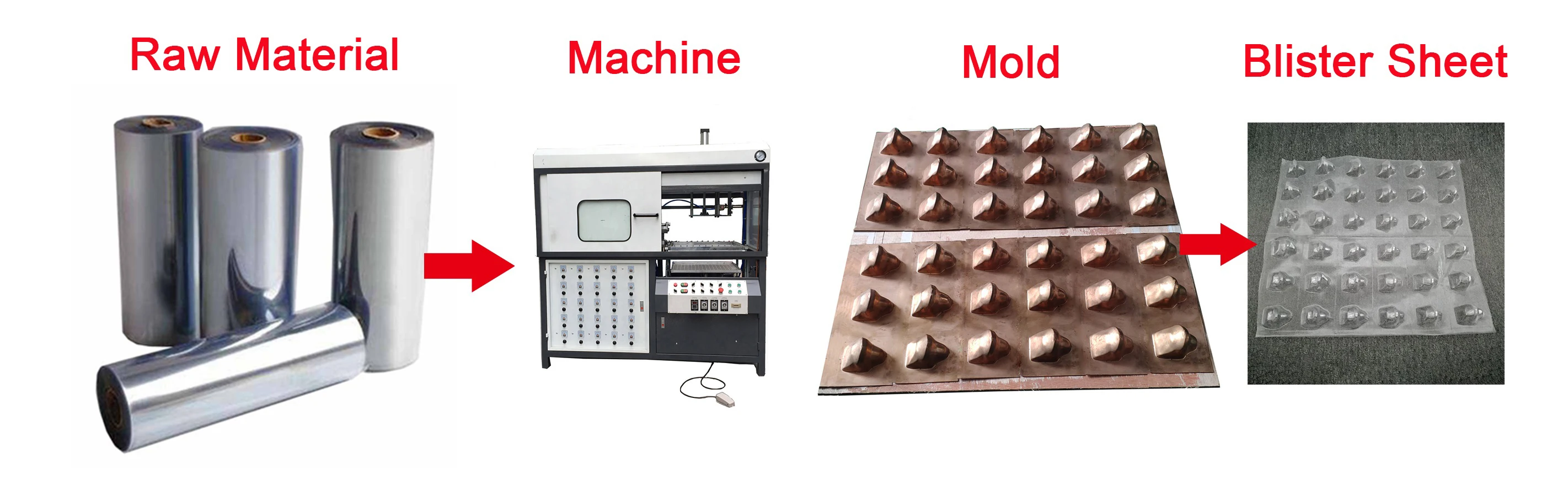

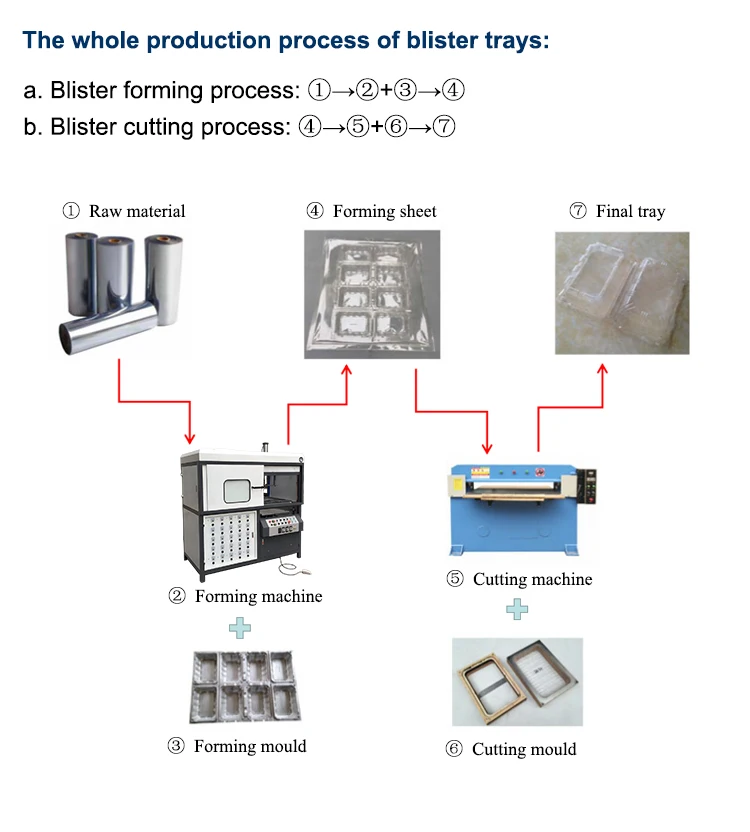

Application
Main Features:
1. Fix with high quality vacuum pump and has stable performance and strong suction. independent temperature control system, simple operation and easy maintenance.
2. Auto-running furnace design instead pushing by hand, It really saves manpower meanwhile improves working efficiency and forming products quality.
3. Button control or foot pedal control available, convenient operation.
4. 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
5. 25pcs Solid state voltage regulators, control heating boards simple and visualized.
6. Large-scale cooling fan which can cool the products quickly.
7. Water-spray cooling system which suit for thick material.(optional)
8. Manual style and Semi-auto style available.
2. Auto-running furnace design instead pushing by hand, It really saves manpower meanwhile improves working efficiency and forming products quality.
3. Button control or foot pedal control available, convenient operation.
4. 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
5. 25pcs Solid state voltage regulators, control heating boards simple and visualized.
6. Large-scale cooling fan which can cool the products quickly.
7. Water-spray cooling system which suit for thick material.(optional)
8. Manual style and Semi-auto style available.
Machine parameters:
Model | LK-61A |
Power supply | AC380V |
Power | 17KW |
Vacuum pump capacity | 20m³/H |
Max.forming size | 560*610mm |
Max. forming height | 200mm |
Speed | 200~300moulds/H |
Thickness of material | 0.2~1.5mm |

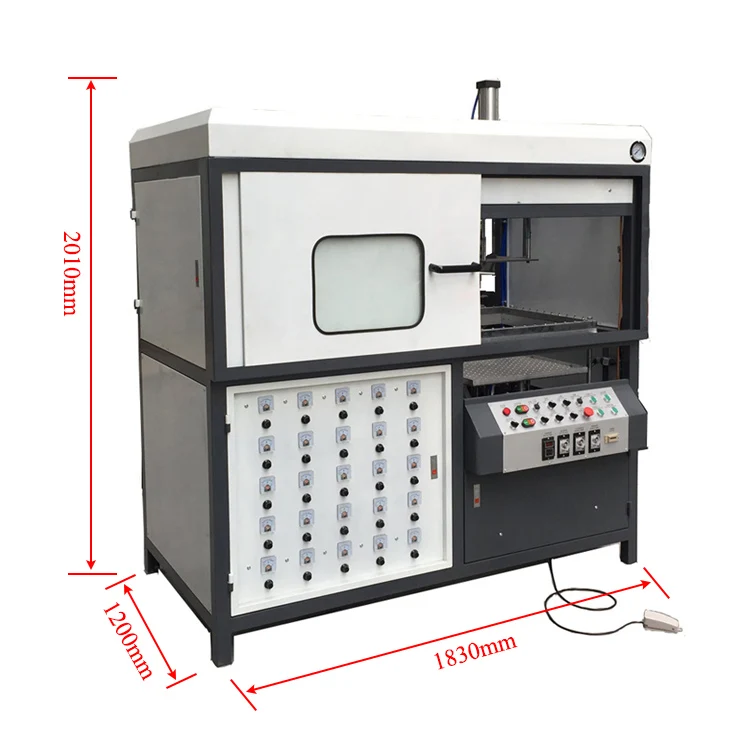

Machine size | 1830*1200*2010mm |
N. weight | 650KG |

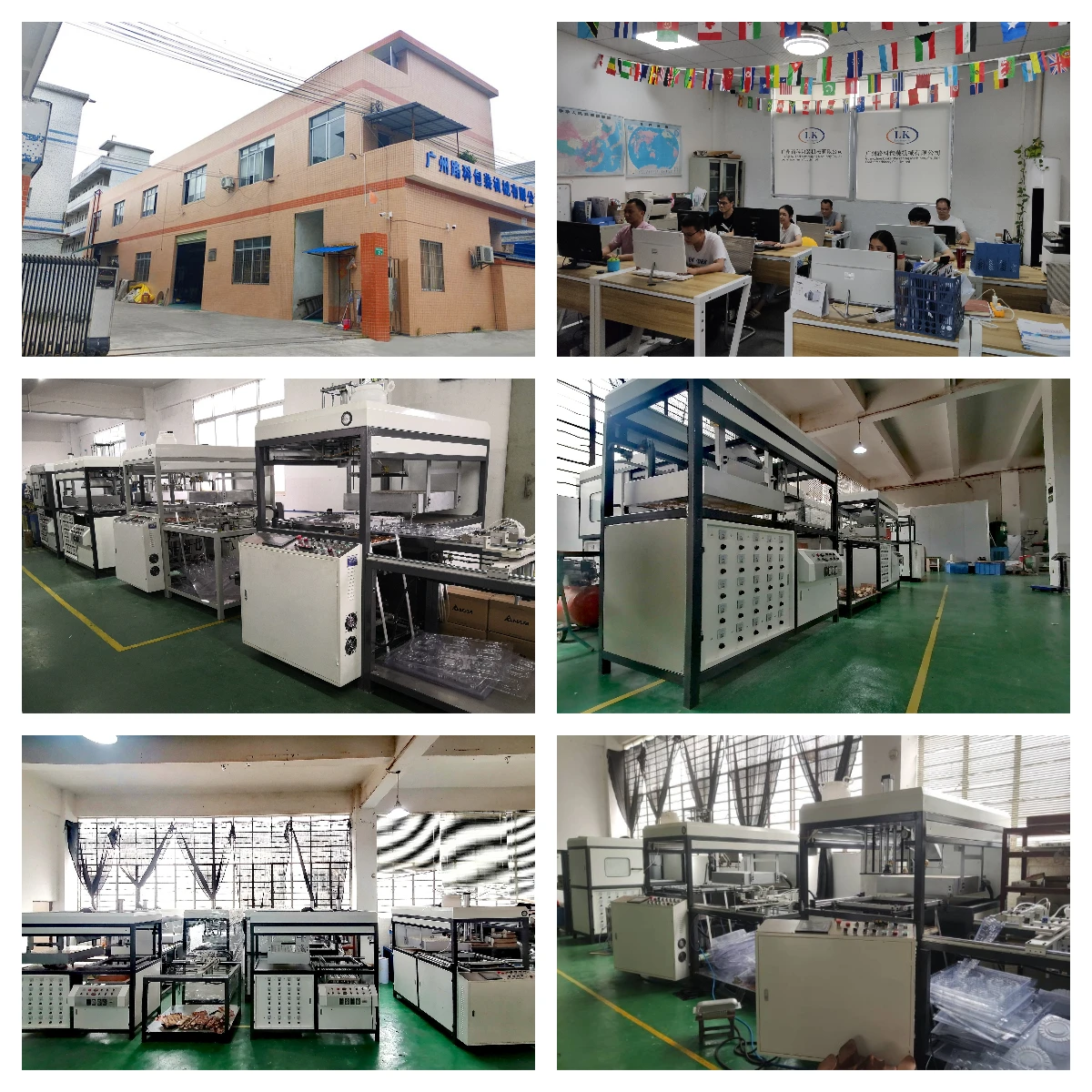

Company Profile
Guangzhou Looker Packaging Machinery Co, Ltd specializing in the production of blister forming machine, high frequency plastic welding machine, ultrasonic plastic welding machine, blister packing machine, sachet packing machine etc. As one of the major industrial brands, Looker offers R&D, manufacture, sales one stop service .Since its inception, Looker has grown with its business partners and absorbed foreign advanced technology and experience and with our unique innovation idea and constantly make improvement of production, and we get lots of praise from customers at home and abroad. Looker is one of the leading brand in this area.
Certifications
Product packaging
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service.
1.A step-by-step free English manual and operation video to easily know how to operate the machine.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service.
1.A step-by-step free English manual and operation video to easily know how to operate the machine.

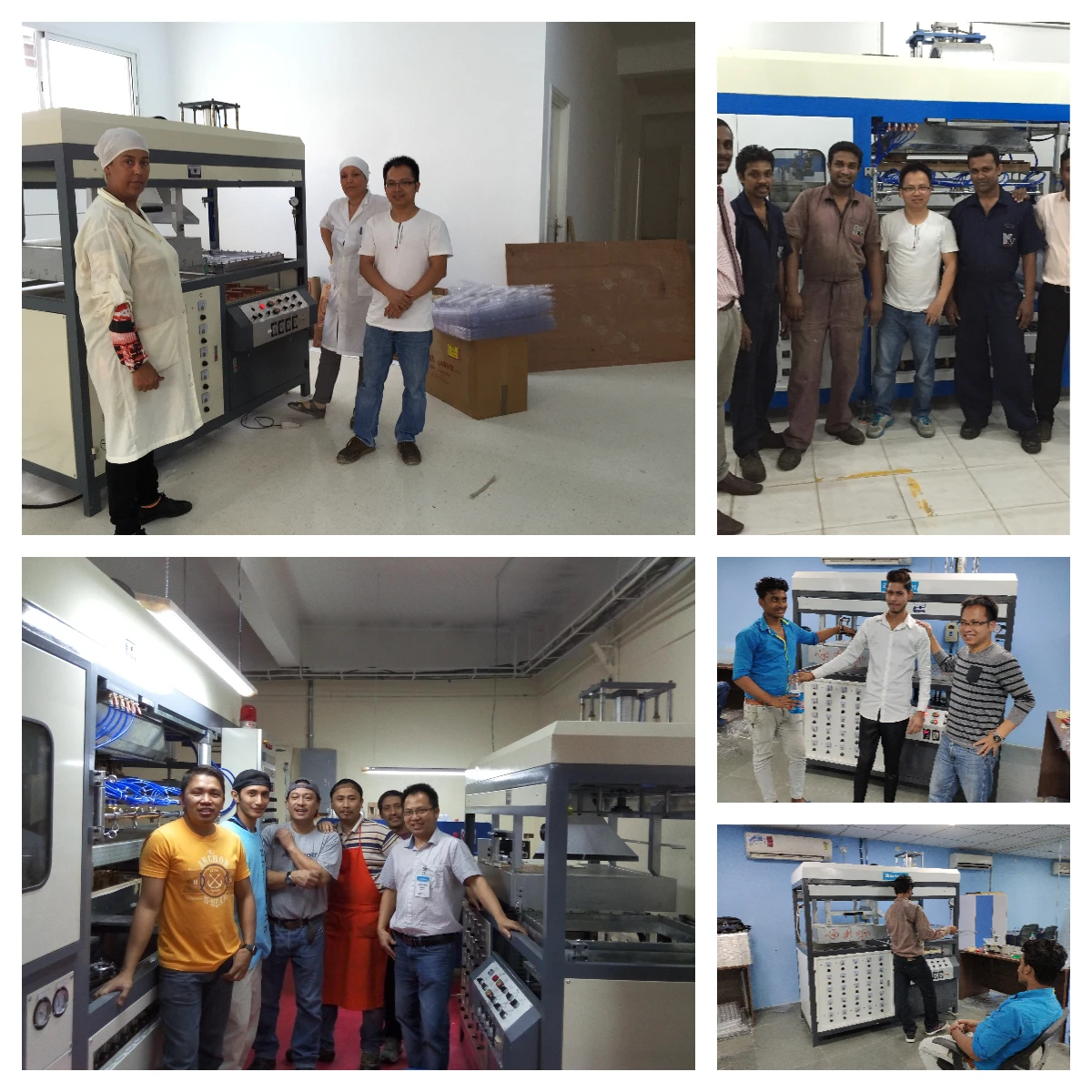

2.Our senior engineers are skillful and fluent in English.They have rich oversea experiences and are vailable to oversea services. Below with some pictures our engineers trained customers how to install and operate the machines.
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory and trading, all machine is made by ourself and we can provide customize service according to your requirementS.
Q: How long is your delivery time?
A: Generally it is about 1-3 days if there are machines in stock. or it is about 5-7 days if there are no goods in stock, also depending on the quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if not broken for man made.
Q: What is your terms of payment?
A: 30% deposit T/T in advance ,balance before shippment.We recommend alibaba payment because it will much better for your money safe.
Q: Is there any assembly instruction after we received the machine?
A: Yes, we have assembly video and operation manual delivered with the machine.If any questions,our senior engineers who are fluent in English will give you instruction anytime.
A:Yes, We are factory and trading, all machine is made by ourself and we can provide customize service according to your requirementS.
Q: How long is your delivery time?
A: Generally it is about 1-3 days if there are machines in stock. or it is about 5-7 days if there are no goods in stock, also depending on the quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if not broken for man made.
Q: What is your terms of payment?
A: 30% deposit T/T in advance ,balance before shippment.We recommend alibaba payment because it will much better for your money safe.
Q: Is there any assembly instruction after we received the machine?
A: Yes, we have assembly video and operation manual delivered with the machine.If any questions,our senior engineers who are fluent in English will give you instruction anytime.
