Price list self priming spare parts 220 volt high pressure water pump for agricultural irrigation in China
- Category: >>>
- Supplier: Shandong Huayishengshi Plant Protection Co. Ltd.
Share on (1600876018663):
Product Overview
Description
Product Description
Application
HYSS Series Industrial Pumps are designed for a wide range of application and are constructed from a selection of material
suitable for handlinga broad range of chemicals.
The HYSS Series of diaphragm pumps are self-priming and can be run continously for short periods of time. The higher the duty cycle the shorter the expected life of the pump.
Typical pump uses are liquid transfer,spraying, circulation, filtration and dispensing.
suitable for handlinga broad range of chemicals.
The HYSS Series of diaphragm pumps are self-priming and can be run continously for short periods of time. The higher the duty cycle the shorter the expected life of the pump.
Typical pump uses are liquid transfer,spraying, circulation, filtration and dispensing.
Advantage
Stable performance,
Self priming,automatic switch,
Low noise, corrosion resistant.
Pump Head 2 chambers
Max Pressure 55psi/35psi/80psi(consult factory for other pressure)
Motor Configuration lead wires 2-pin connector(consult with factory)
2-pin connector with on/off switch
Reciprocating Diaphragm made of Santoprene
Duty cycle:intermittent.
Housing PP
Check valve made of EPDM
Check valve spring: Stainless stee
Self priming,automatic switch,
Low noise, corrosion resistant.
Pump Head 2 chambers
Max Pressure 55psi/35psi/80psi(consult factory for other pressure)
Motor Configuration lead wires 2-pin connector(consult with factory)
2-pin connector with on/off switch
Reciprocating Diaphragm made of Santoprene
Duty cycle:intermittent.
Housing PP
Check valve made of EPDM
Check valve spring: Stainless stee
Product Application
* Agriculture/Yacht / RV/Caravan pressurized water system
* Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
* Cleaning machine, Humidifier, Water purification, Medical apparatus
* Food beverage filling & liquid transfer
* Any other pressurization system
* Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
* Cleaning machine, Humidifier, Water purification, Medical apparatus
* Food beverage filling & liquid transfer
* Any other pressurization system
Techinical Data
Model | Voltage | Flow Rate | Pressure | Amps | |||
FLO-2201 | 12V DC | 0.5GPM(2.0LPM) | 55PSI(3.8 Bar) | 1.8A | |||
FLO-2202 | 12V DC | 1.0GPM(3.8LPM) | 35PSI(2.4 Bar) | 3.0A | |||
FLO-2202-1 | 12V DC | 1.1GPM(4.3LPM) | 55PSI(3.8 Bar) | 3.5A | |||
FLO-2203 | 12V DC | 0.7GPM(2.6LPM) | 70PSI(4.8 Bar) | 2.1A | |||
FLO-2203-1 | 12V DC | 0.8GPM(3.1LPM) | 70PSI(4.8 Bar) | 2.2A | |||
FLO-2202A | 12V DC | 1.1GPM(4.0LPM) | 80PSI(5.5 Bar) | 2.6A | |||
FLO-2401 | 24V DC | 0.5GPM(2.0LPM) | 55PSI(3.8 Bar) | 0.9A | |||
FLO-2402 | 24V DC | 1.0GPM(3.8LPM) | 35PSI(2.4 Bar) | 1.5A | |||
FLO-2403 | 24V DC | 0.7GPM(2.6LPM) | 70PSI(4.8 Bar) | 1.0A | |||
FLO-2402A | 24V DC | 1.1GPM(4.0LPM) | 80PSI(5.5 Bar) | 1.3A | |||
Inlet Size | 3/8" hose barb; thread | ||||||
Outlet Size | 3/8" hose barb; thread | ||||||
Dimension/pc | 18.5*11*6.5cm | ||||||
Net Weight/pc | 0.64kg | ||||||
Gross Weight/pc | 0.72kg | ||||||
Carton Dimension(50pcs) | 56.5*38.5*36.5cm | ||||||
Product packaging

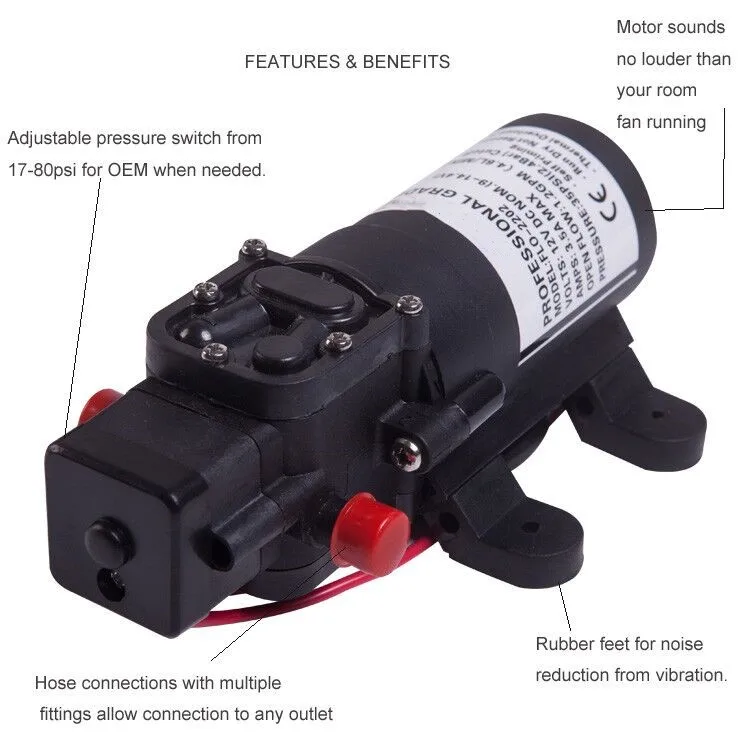

Feature
* Small size,Light weight and Stable performance.
* Special valve for liquid input and outpu.
* Antivibration pad,easy installation.
* Self-priming,Automatic Pressure Switch.
* Automatic Pressure Protection.
* Low Noise,with excellent resistant to chemical corrosion
* Special valve for liquid input and outpu.
* Antivibration pad,easy installation.
* Self-priming,Automatic Pressure Switch.
* Automatic Pressure Protection.
* Low Noise,with excellent resistant to chemical corrosion
Company Profile
Shandong Linyi Huayi Shengshi Plant Protection Co., Ltd. is a professional manufacturer sprayer factory focuses on research, design, production and sales of garden spray related products. Our main products cover portable sprayers, hand sprayers, electric sprayers, 2 in 1 sprayers, garden pressure sprayers, diaphragm pumps and so on. Our company equips with a professional team of supply chain integration. We can provide different kinds of products to satisfy the demand of different customers. With the joint effort of all the technicians, our company has formed a producing process of the automatic production line. Over the years, we have owned strong research and development capabilities. Up to now, we’ve obtained more than 16 national patents and many international certifications. With high-quality products, timely delivery and good service, our company wins many customers’ praise in the market competition. Our products are exported to Europe, South-east Asia, the Middle East, Africa and more than 100 countries and areas.
FAQ
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV
pump, bilge pump )for over 8 years with excellent quality and competitive price.
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or
you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable
model will be recommended.
Q:What's your product MOQ of it?
A:Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more discount.
Q: What's your payment way?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 2-3days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor
For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV
pump, bilge pump )for over 8 years with excellent quality and competitive price.
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or
you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable
model will be recommended.
Q:What's your product MOQ of it?
A:Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more discount.
Q: What's your payment way?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 2-3days by international express after received
2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor
For your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
